QNAP TS-h973AX-8G

Professional NAS server 9 bays - 8 GB DDR4 RAM - AMD Ryzen V1500B - LAN 10GbE - QuTS hero (without hard drive)

QNAP TS-h973AX-8G Professional NAS server 9 bays - 8 GB DDR4 RAM - AMD Ryzen V1500B - LAN 10GbE - QuTS hero (without hard drive)
NAS server
Review QNAP TS-h973AX-8G
Buy QNAP TS-h973AX-8G
cheap QNAP TS-h973AX-8G

Pictures may differ from actual products

One customer review

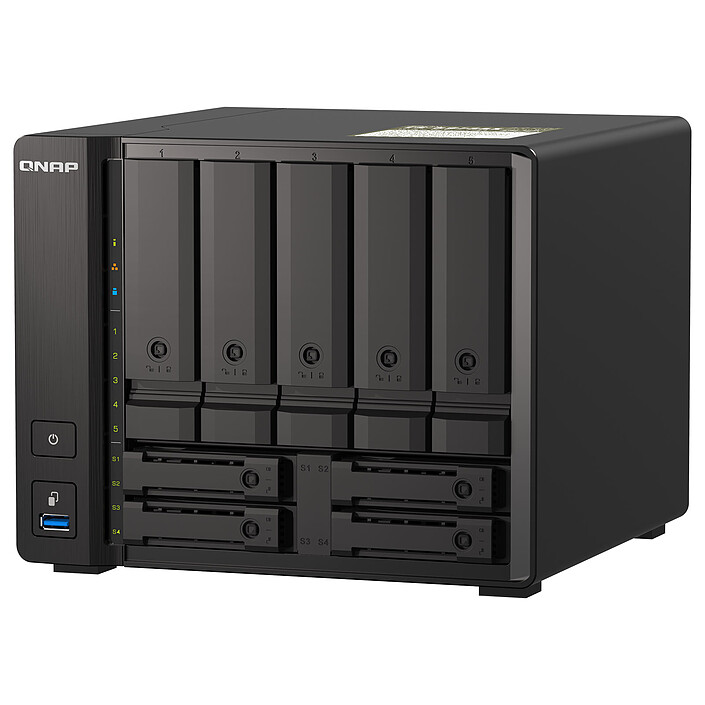

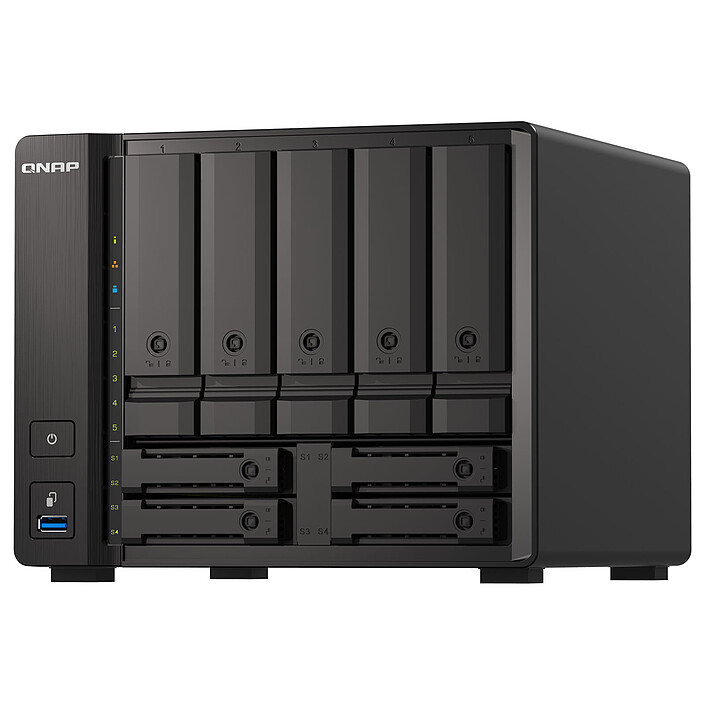

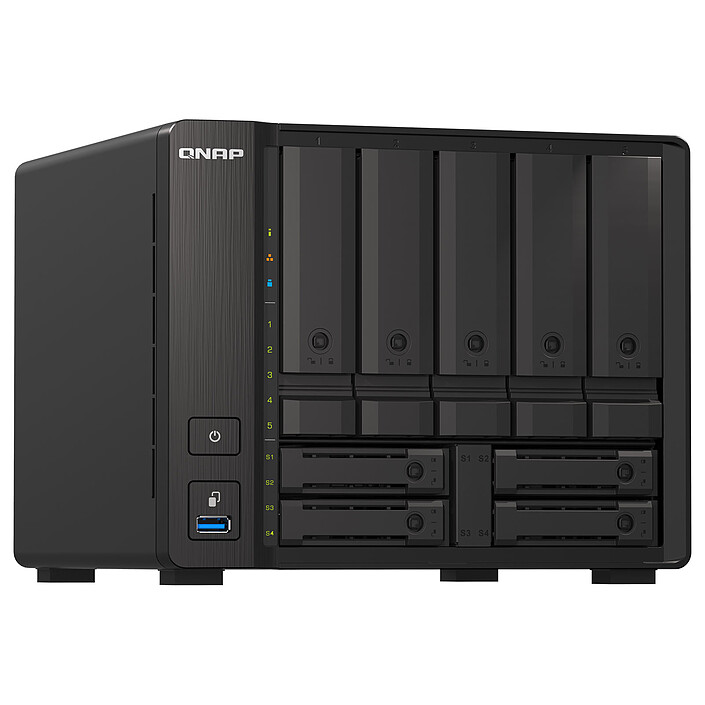

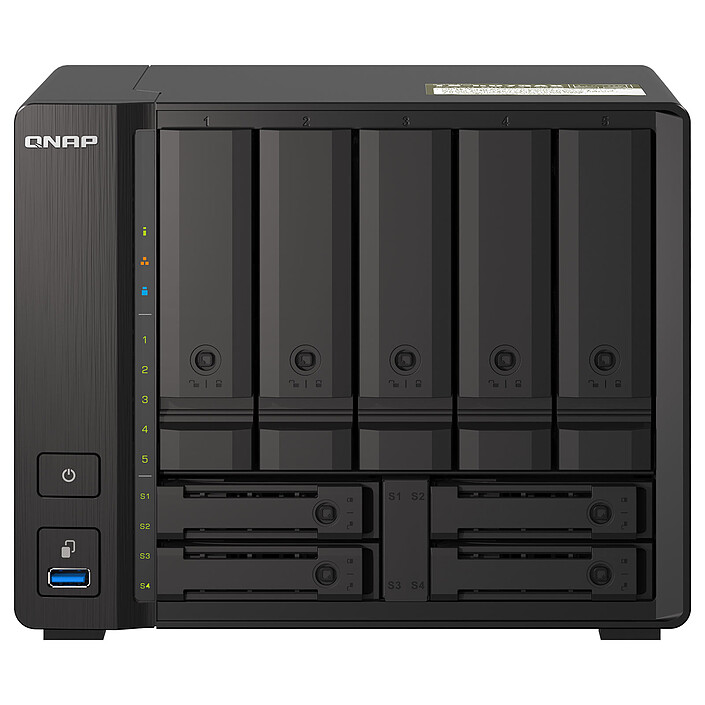

The QNAP TS-h973AX-8G NAS offers 9 bays (4 x 2.5" and 5 x 2.5"/3.5") and a 10 GbE LAN controller. It is equipped with an AMD Ryzen V1500B processor (4 cores/8 threads) which is able to boost the performance of virtual machines. It is also expandable with up to 32 GB of DDR4.

Professional NAS server 9 bays - 8 GB DDR4 RAM - AMD Ryzen V1500B - LAN 10GbE - QuTS hero (without hard drive)

Overview

QNAP TS-h973AX: 9-bay desktop NAS with 10 GbE LAN

The TS-h973AX-8G rackmount NAS from QNAP offers 9 bays (4 x 2.5" and 5 x 2.5"/3.5") and a 10 GbE LAN controller. It features an AMD Ryzen V1500B processor (4 cores/8 threads) which is able to boost the performance of virtual machines. It is also scalable with up to 32GB of DDR4 memory and the advanced hardware integrated with the complete software solutions makes the TS-h973AX the preferred choice for resource intensive applications and tasks.

High performance hardware

Powered by a quad-core AMD Ryzen 4-core/8-thread V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB of DDR4 RAM, the rack-mounted TS-h973AX delivers smart yet aggressive performance to run resource-intensive business applications such as VDI, R&D, private cloud, and server virtualization.

Move to 10 GbE networking

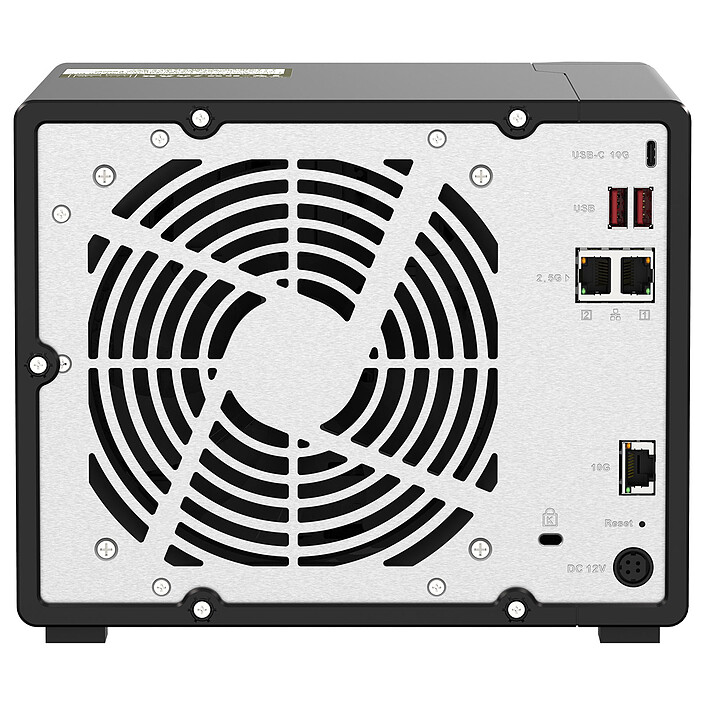

The TS-h973AX features one 10 GbE and two 2.5GbE RJ45 network ports to upgrade network speeds from 1 to 2.5 Gigabit. You can also achieve 5GbE speeds using Port Aggregation while 10GbE connectivity takes it to new heights.

QTS Hero Operating System

The QTS Hero operating system combines application-based QTS with a 128-bit ZFS file system to provide flexible storage management, comprehensive data protection and performance optimised to meet the complexity and performance demands of modern computing. From storage, to virtualization, to collaborative multimedia workflows, the QTS hero system simplifies your critical tasks.

Key features :

  • 9-bay NAS (4 x 2.5" / 5 x 2.5"/3.5")
  • AMD Ryzen Embedded V1500B processor (Quad-Core 2.2 GHz - 8 Threads)
  • 8 GB DDR4 RAM (1 x 8 GB - 2 slots - 32 GB max.)
  • 1 x 10 Gigabit Ethernet port + 2 x 2.5 Gigabit Ethernet LAN ports
  • Compatibility list
Specifications
Select your criteria

General information

Product name

 QNAP TS-h973AX-8G

Brand

 QNAP

Model

 TS-H973AX-8G

Processor

CPU frequency

 2.2 GHz

Memory size

 8 GB

Memory type

 DDR4

Network

Network standard(s)

 10 Gbps Gigabit Ethernet (10 GbE)
2.5 Gbps Gigabit Ethernet (2.5 GbE)

Network connector(s)

 1 X 10 Gigabit Ethernet - RJ45 Female
2 X 2.5 Gigabit Ethernet - RJ45 Female

Wake On LAN

 Yes

DLNA certification

 Yes

Storage

Capacity

 0 GB

Internal interface

 9 X Serial ATA 6Gb/s (SATA Revision 3)

Hard drive format

 4 X 2" 1/2
5 X 3" 1/2

Hard drive

 Without hard drive

Number of discs

 0

Max number of discs

 9

RAID supported

 Yes

Supported RAID Modes

 60
6
50
5
0
1
10

File system

 ZFS

Connector(s)

 1 X USB 3.1 Type C
3 X USB 3.1

Compatibility

Server functions

 FTP
Multimedia
Video surveillance
Virtualization
Web

Windows ADS

 Yes

iSCSI (SCSI encapsulation)

 Yes

Scalable

 Yes

Supported OS

 Microsoft Windows 8
Microsoft Windows 7
Microsoft Windows 10
Windows Server 2019
Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Linux
Mac OS X 10.10 or higher

Physical characteristics

Rackable

 No

Sound level

 22.9 dB

Consumption

 55.41 W

Width

 224.6 mm

Height

 182.65 mm

Depth

 224.1 mm

Weight

 3.52 kg

Warranties

Commercial warranty

 Seller 3 years

Legal warranty

 See terms & conditions

See all QNAP products

See QNAP NAS server section

Product referenced on 27 Nov 2020

Customer review
Global rating
9/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by DavidP
    Posted on 11 Feb 2021
    Product bought from LDLC on 28 Dec 2020
    Number of reviews: 2 Average rating: 9

    Excellent multi-purpose NAS

    Very good NAS, a 10gb connection that goes up to 850Mb/s (tested with raid 0 ssd, provided of course that you have 10gb hardware on hand), and U2 ports that reach 3000Mb/s with my M2 drives via an adapter (no need to take the qda-ump, almost all M2 to U2 adapters work well).
    I've installed the Qnap Hero system on SSDs before, otherwise it's a hassle.
    I had previously installed on HDDs, and whether it was with an iSCSI LUN (random deco) or even booting (which was done in 15m), it was all trouble.
    I've been using the Hero system on SSDs for a while now, and it's been very stable and I recommend it.

    Review automatically translated
