ASRock Thunderbolt 4 AIC R2.0 Thunderbolt 4 40 Gb/s controller card compatible with DisplayPort, 4K/5K and Power Delivery 27W 9V-3A - 4x PCI-Express 3.0 bus

Pictures may differ from actual products

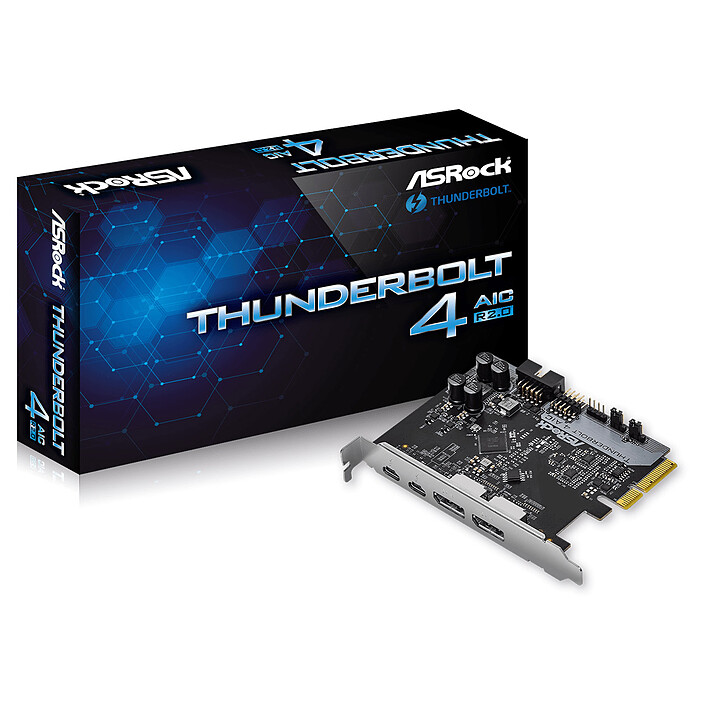

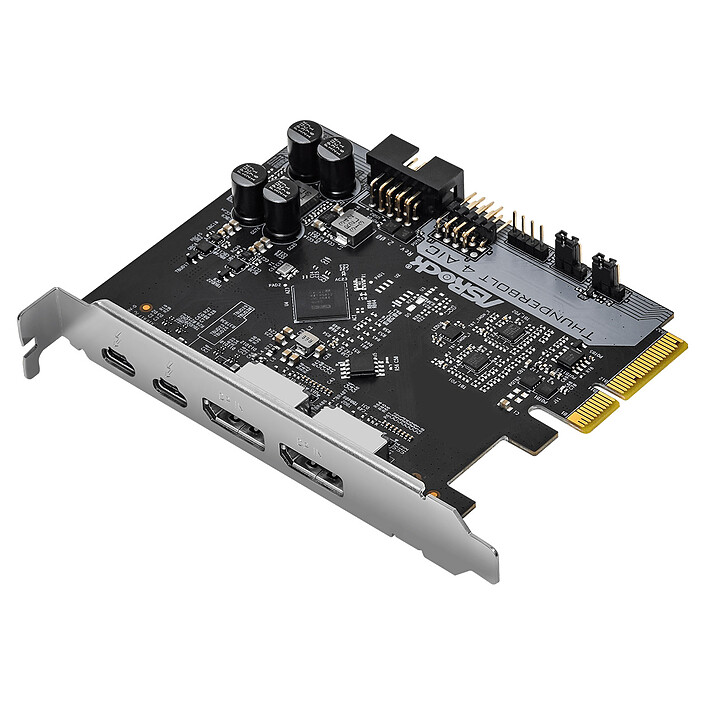

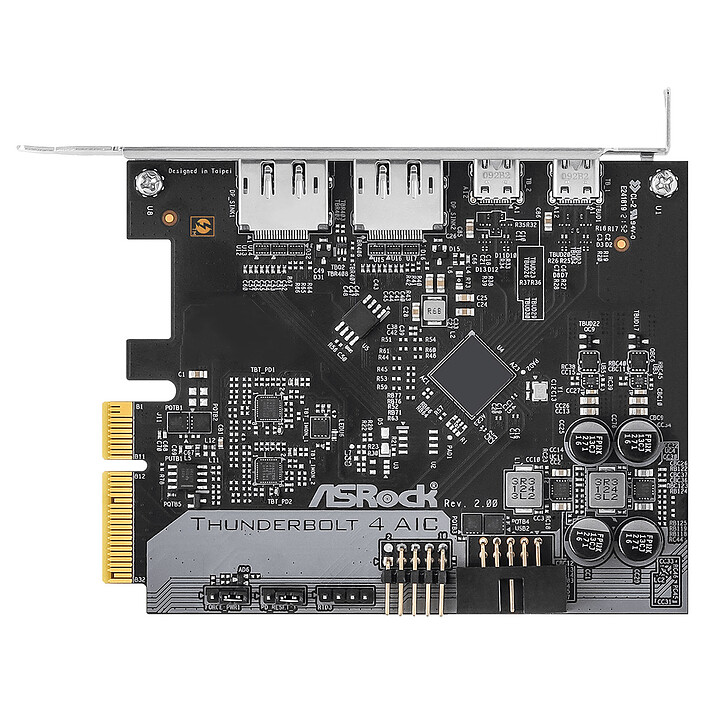

ASRock Thunderbolt 4 AIC R2.0

Name: ASRock Thunderbolt 4 AIC R2.0
Brand: ASRock
SKU: AR202409180029
Price: 89.95 EUR
Availability: BackOrder
Rating: 8 (1 reviews)

Thunderbolt 4 40 Gb/s controller card compatible with DisplayPort, 4K/5K and Power Delivery 27W 9V-3A - 4x PCI-Express 3.0 bus

One customer review

89€⁹⁵

Recycling charge of 0€⁰⁶

Maximum quantity allowed is 100

89€⁹⁵

Tech department information

Overview

Enjoy the speed and versatility of Thunderbolt 4

TheASRock Thunderbolt 4 AIC R2.0 is a controller card that allows you to equip your PC with the revolutionary all-in-one Thunderbolt 4 connectivity (data transfer, display, charging...).

Speed and versatility

Transfer rates up to 40 Gb/s
Intel JHL8540 chipset
A single cable to connect a 5K@60Hz screen or 2 4K@60Hz screens
USB PD 2.0 charging support up to 9V@3A (27W)
Compatible with devices including PCIe, USB, DisplayPort protocols
Compatibility list

Information provided by our tech department This expansion card is compatible with only some ASRock motherboard models, please refer to the compatibility list before your purchase .

Specifications

Select your criteria

General information	Product name	ASRock Thunderbolt 4 AIC R2.0
	Brand	ASRock ASRock
	Model	THUNDERBOLT 4 AIC R2.0
Technical specifications	Bus	PCI Express 3.0 x4
	Controllers	Thunderbolt 4
	Connector(s)	1 X Internal USB 2.0
		2 X DisplayPort Female (Input)
		2 X Thunderbolt 4/USB-C
	Supported OS	Microsoft Windows 10
	Supported OS	Microsoft Windows 11
Warranties	Commercial warranty	Seller 2 years
Warranties	Legal warranty	See terms & conditions
Safety Information	Responsible person	ASRock EUROPE B.V.
	Postal address	Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands
	Electronic Address	sales@asrock.nl

See all ASRock products

See ASRock Controller card section

Product referenced on 19 Sep 2024

Customer review

Global rating

8/10

based on 1 review Editorial and moderation guide

0%
100%
1 review
0%
0%
0%

by RomainC
Posted on 18 Mar 2025

Bought on 2 Feb 2025 from LDLC

Number of reviews: 1 Average rating: 8

Effective product

Bought to run a Thunderbolt audio interface under Windows 11, this extension card works very well.

However, be careful when installing and configuring it if you're not using Intel architecture.
No explanation or instructions on how to get started.

Review automatically translated
