DeLock U.2 SFF-8639 to M.2 NVMe M-Stick Converter
U.2 SFF-8639 to M.2 NVMe Key M converter
69€90
Recycling charge of 0€05
Create a price drop alert
1
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
69€90
In stock
Overview
Add an M.2 NVMe module via a U.2 SFF-8639 interface

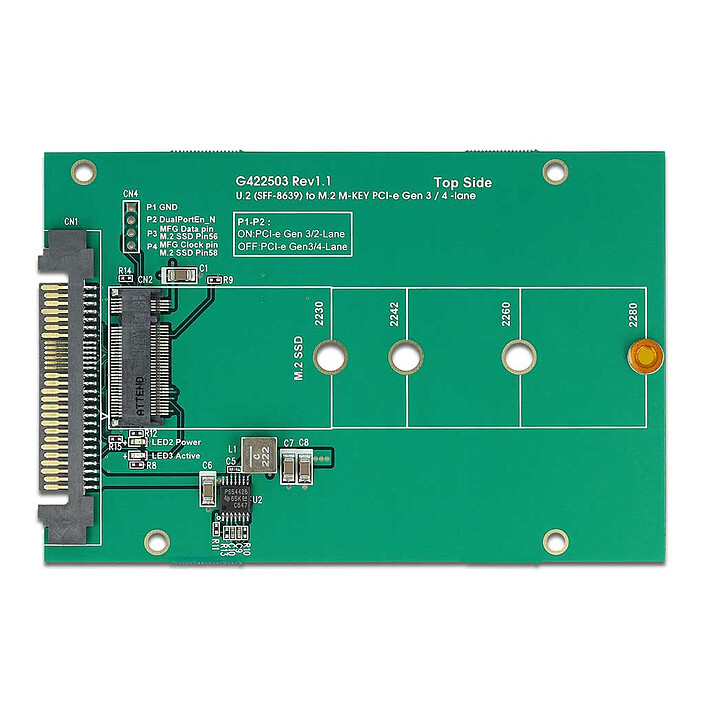

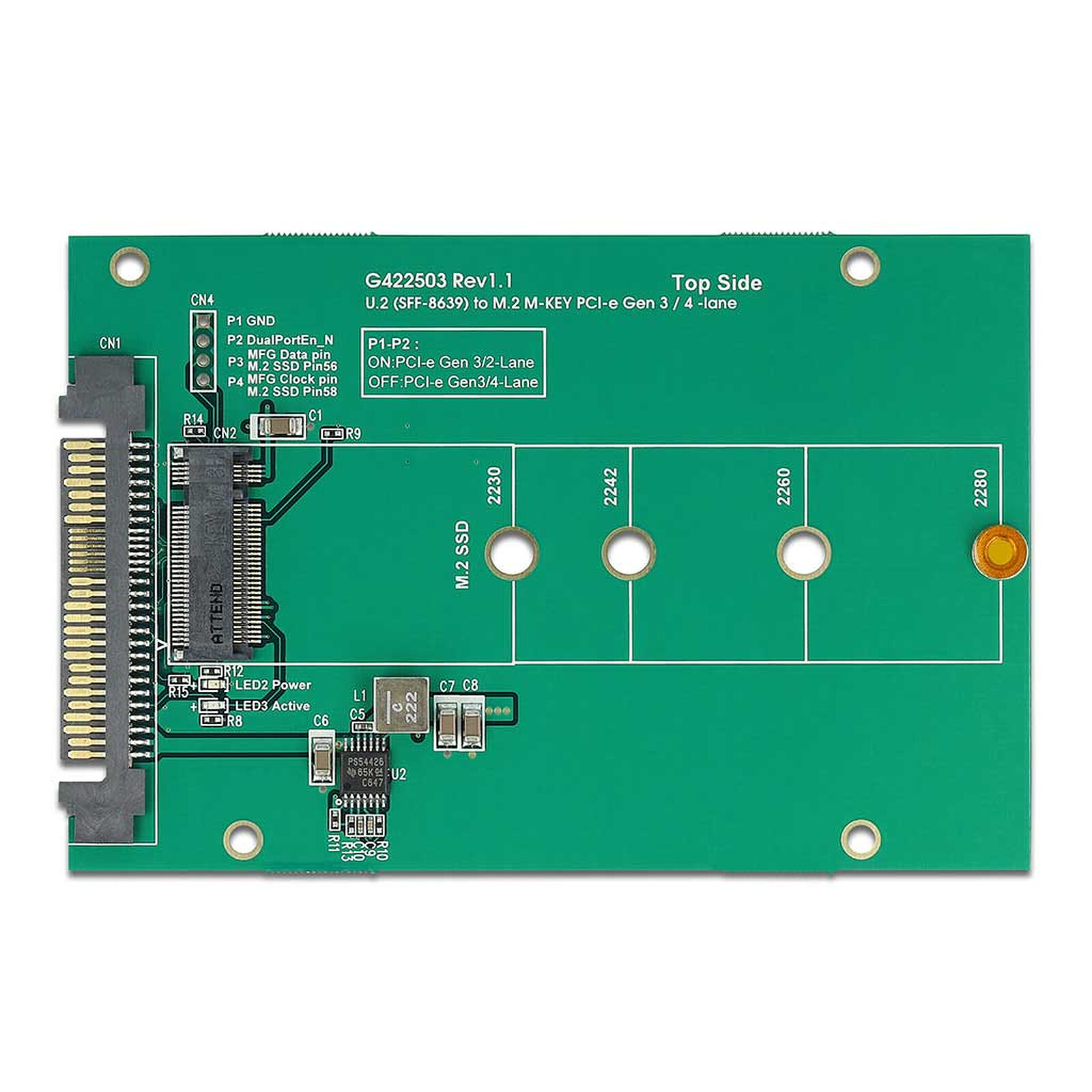

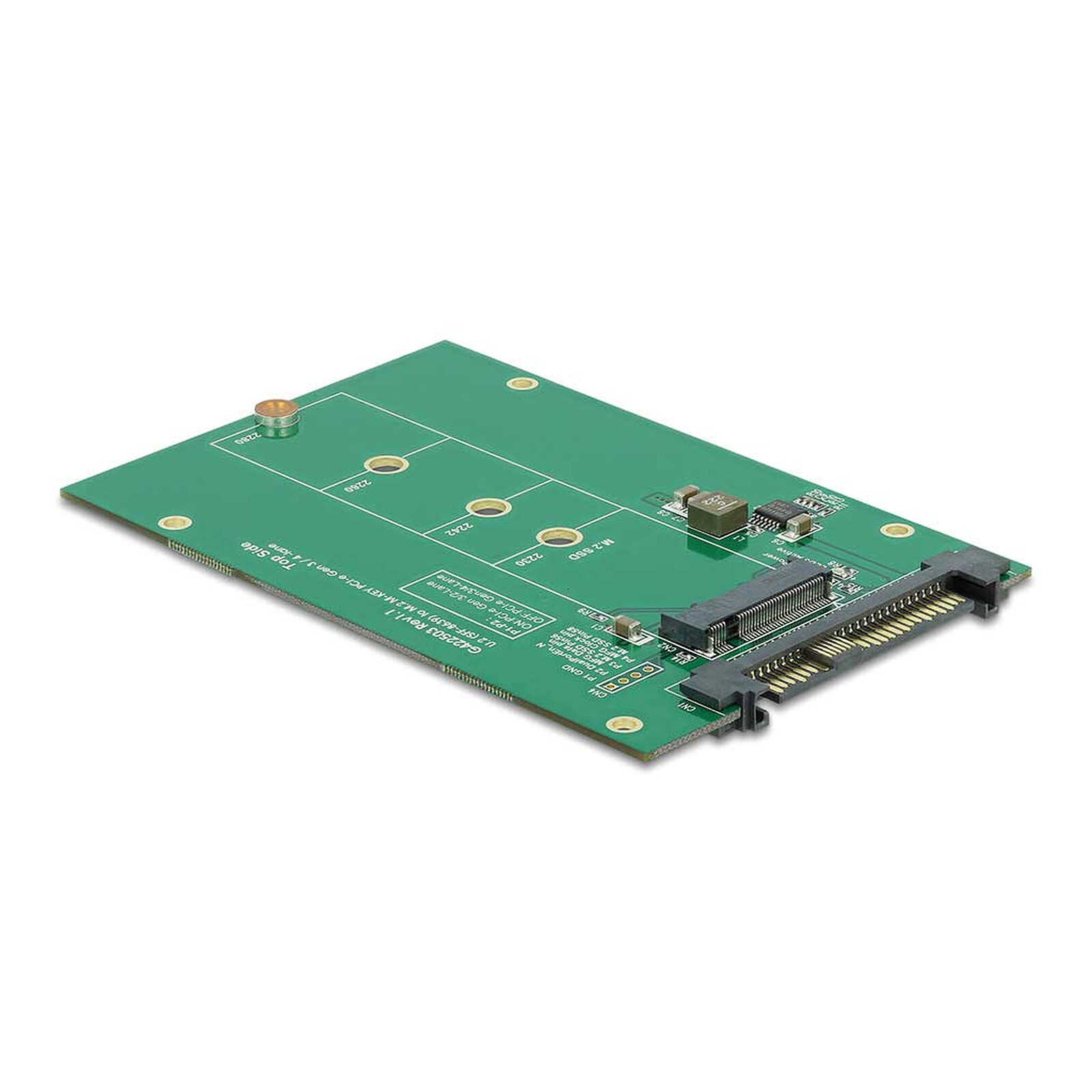

This converter designed by DeLock enables the connection of an M-key NVMe M.2 module in 2280, 2260, 2242 or 2230 format. The adapter can be installed in the system using a 68-pin U.2 interface.
Features :
- Connectors: 1 x U.2 SFF-8639 male and 1 x M.2 67-pin M-key slot
- Interface: PCIe (2 or 4 lanes)
- Support for M.2 modules in the following formats: 2280, 2260, 2242 or 2230 with M or B + M key, based on PCIe
- Maximum component height on the module: 1.5 mm
- Compatible with double-sided modules
- Jumper for M.2 SSDs in 2- or 4-way configuration
- Power and activity LEDs
- Supports NVM Express (NVMe)
- Power consumption: max. 13,2 W
- Short-circuit protection, inrush current suppression, overheating protection
- Dimensions (LxWxH): 100 x 65 x 7 mm
Specifications
Select your criteria
General information |
Product name |
DeLock U.2 SFF-8639 to M.2 NVMe M-Stick Converter |
Brand |
DeLock | |
Model |
62696 | |
Technical specifications |
Bus |
U.2 - PCI-E 3.0 x4 NVMe |
Controllers |
U.2 | |
Connector(s) |
M.2 - PCI-E NVMe | |
Supported OS |
Linux | |
| Microsoft Windows | ||
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Tragant Handels- und Beteiligungs GmbH |
Postal address |
Beeskowdamm 13/15, 14167 Berlin, Germany | |
Electronic Address |
info@delock.de |
See all DeLock products
Product referenced on 25 Sep 2025
