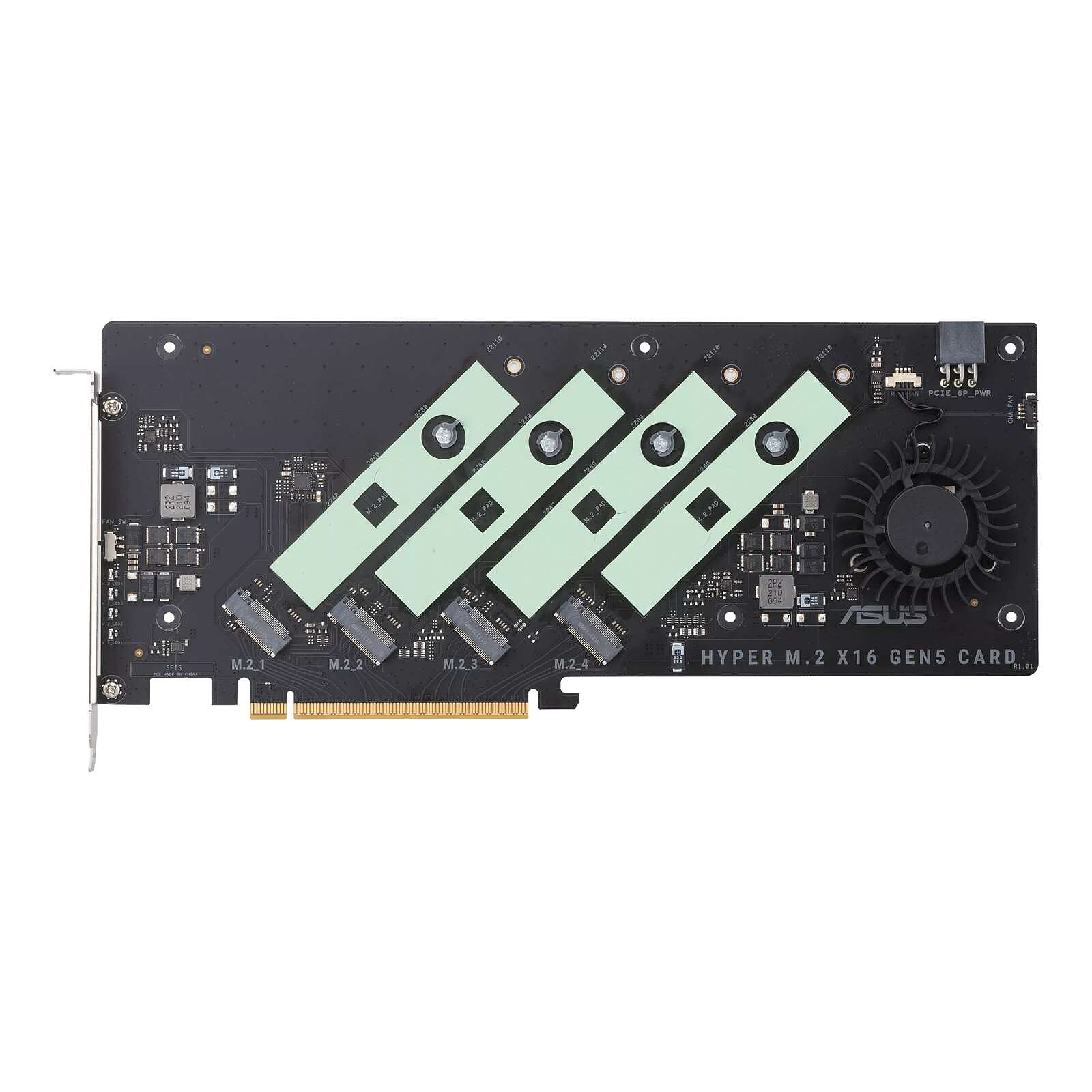

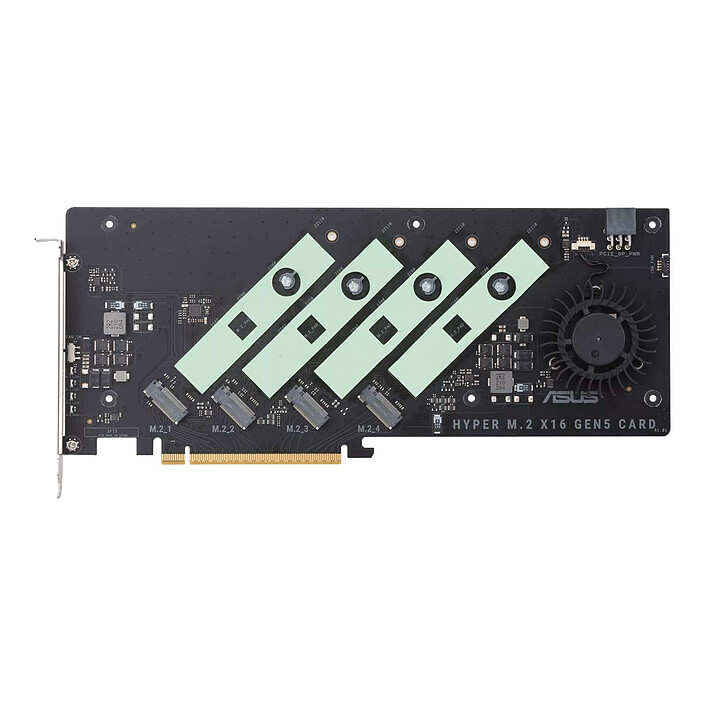

ASUS Hyper M.2 x16 Gen 5 Card
PCI Express 5.0 x16 card with 4 M.2 PCIe NVMe SSD slots 2242/2260/2280/22110
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Extreme storage acceleration for scalable systems
This high-end expansion card transforms one PCIe x16 slot into four ultra-fast M.2 slots, providing a flexible, high-performance solution for demanding NVMe storage users. slots , providing a flexible, high-performance solution for demanding NVMe storage users. Using thePCIe 5.0 x16 interface, this card delivers bandwidth of up to 512 Gb/s- up to 8 times that of a PCIe 4.0 SSD alone. It supports four NVMe M.2 modules (formats 2242/2260/2280/22110), compatible with PCIe 5.0 and 4.0 generations. Support for RAID configurations, including RAID booting, depends on the capabilities of the processor and motherboard (forking of PCIe lines and BIOS update required).

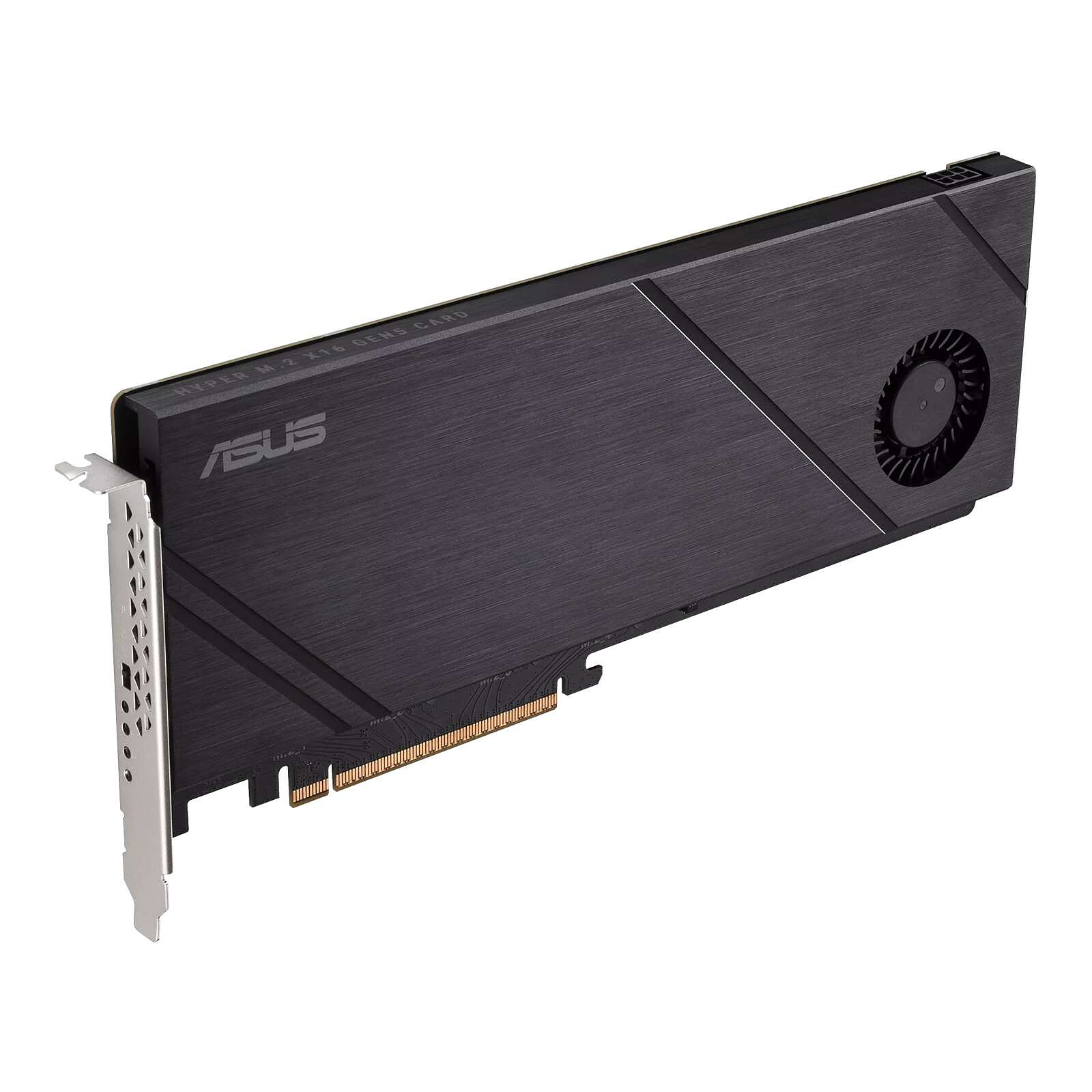

This card features a complete heatsink and a turbine-type fan with integrated thermal pads, to avoid performance limitations due to the high temperatures of SSDs during intensive transfers. Fan control is via a dedicated switch or via Fan Xpert 4 software. A 6-pin PCIe power supply provides up to 14W per SSD thanks to a two-phase solution, guaranteeing stable power suitable for the latest NVMe SSDs.
Key features :
- Exceptional bandwidth: up to 512 Gb/s via PCIe 5.0 x16
- Multi-storage: four PCIe 5.0/4.0 compatible M.2 slots (2242 to 22110)
- RAID solution (including bootable): depending on system configuration
- Efficient cooling: full heatsink, active fan, thermal buffers
- Fan control: manual or via Fan Xpert 4
- Robust power supply: 6-pin, up to 14 W per SSD module
Select your criteria
General information |
Product name |
ASUS Hyper M.2 x16 Gen 5 Card |
Brand |
ASUS | |
Model |
90MC0CY0-M0EAY0 | |
Technical specifications |
Bus |
PCI Express 5.0 x16 |
Connector(s) |
4 X M.2 - PCI-E 5.0 x4 | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
ASUS Computer GmbH |
Postal address |
Harkort STR. 21-23, 40880 RATINGEN, GERMANY | |
