The PEXESAT322I PCI Express SATAIII PEXESAT322I (6Gb/s) controller card from StarTech.com offers the ability to add 2 internal or external ports to your computer through a single PCI Express slot. The card offers a full selection of built-in jumpers.

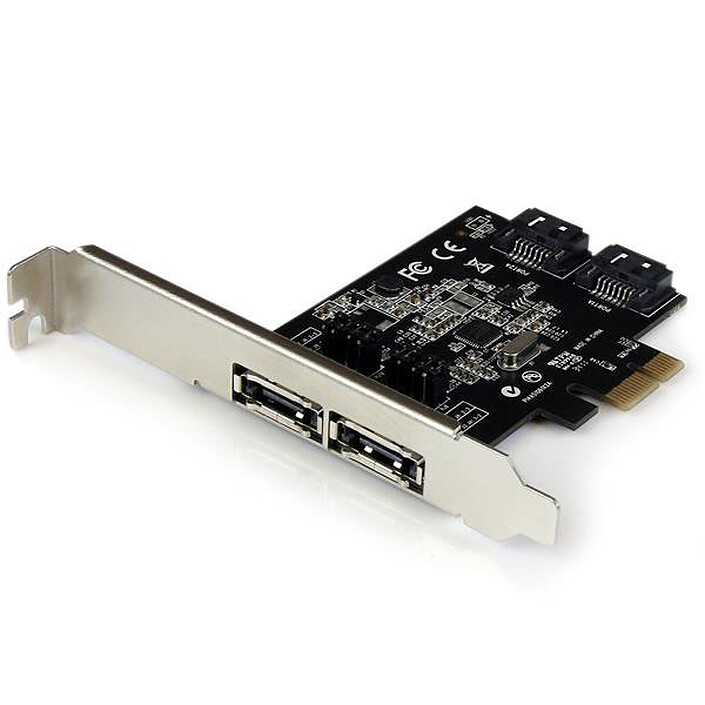

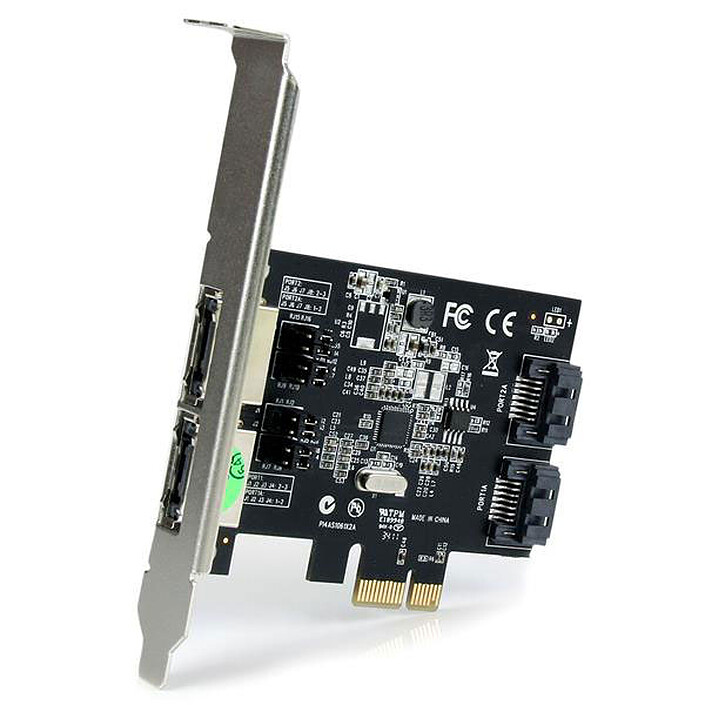

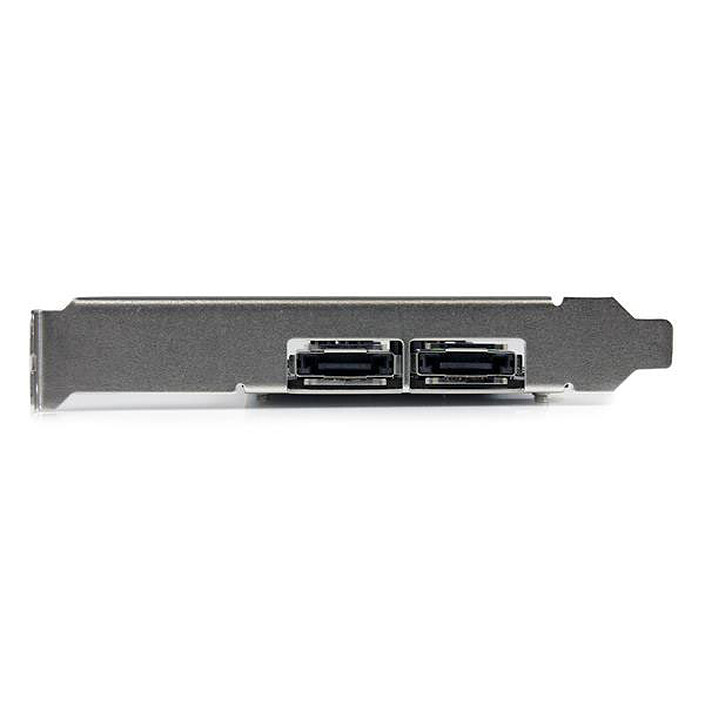

PCI-Express controller card with 2 internal SATA III ports and 2 external eSATA ports
Simplicity is goodThe fully SATA Revision 3.0 compliant card (up to 6 Gb/s bandwidth) allows you to exploit the speed of high-performance hard disks and solid state drives (SSDs) as well as SATA optical drives (CD-ROM, DVD-ROM, Blu-Ray). The PEXESAT322I SATA III controller card comes with a 2-year manufacturer's warranty and free lifetime technical support. |
 |
Select your criteria
General information |
Product name |
StarTech.com PCI-E controller card with 2 internal SATA III ports and 2 external eSATA ports |
Brand |
StarTech.com | |
Model |
PEXESAT322I | |
Technical specifications |
Bus |
PCI Express x1 |
Controllers |
e-SATA | |
| Serial ATA | ||
Connector(s) |
eSATA 6Gb/s | |
Supported OS |
Windows Vista | |
| Microsoft Windows 10 | ||
| Microsoft Windows 7 | ||
| Microsoft Windows 8 | ||
| Microsoft Windows 8.1 | ||
| Windows XP | ||
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 3 Feb 2017
This PCI-E controller card with 2 SATA3 ports comes to our rescue because on most motherboards sold today there is a lack of SATA ports or none at all. Apparently, manufacturers consider SATA ports to be useless since mini-PCIe slots for M2 SSDs replace them and that we can do without multi-format drives since the "cloud" exists to store memories, music and everything else we own. It turns out that internal SATA3 ports are needed most of the time.
Card used to power two disks in a PC recycled as an OMV NAS previously plugged into a USB port ...Recognized without concern by the distribution...
After 2 weeks of use (I plugged my old Blue Ray burner into an internal port) I had problems with Windows.
When I connected, the loader would run and then freeze. Impossible to access Windows. I also had problems reinstalling Windows, the repair discs couldn't cope.
When I removed the card: no more problems.
I put the card back in & unplugged the BR burner: no more problems.
I updated the drivers and plugged in the BR: no more problems.
Well then I removed some useless HD and plugged the BR into my motherboard...
drivers on startech website, ref PEXESAT322I
https://www.startech.com/en-us/cards-adapters/pexesat322i
Otherwise on the external ports to copy data, no problem. Fast and efficient. With an SSD, it runs like the wind.
Be careful if you have a 5''1/4 platter drive, you have to power it with 12V. I was able to get by with an old HD to USB adapter that used a molex male plug. But there are memory card readers + expansion ports that offer molex plugs on the front.
I confirm that the ports are managed in pairs on the card. That means 1 esata with 1 sata. So you can't activate both ports of the same pair.
Possible configurations: 2 sata or 2 esata or 1sata+1esata (of different pairs) you switch with the jumpers.
Card that manages the multiply port.
For those who are interested, when you plug in a 5 bay Lian-li ex503 box, the 5 disks are seen separately in Windows.
I was not able to test if it was possible to connect two ex503 at the same time at full capacity.
I thought the card allowed 2 external _and_ internal SATA connectors, but in fact you have to choose with jumpers if you want the internal _or_ external connector to be used.
It's a good idea to use the external connector. It works well under linux.
