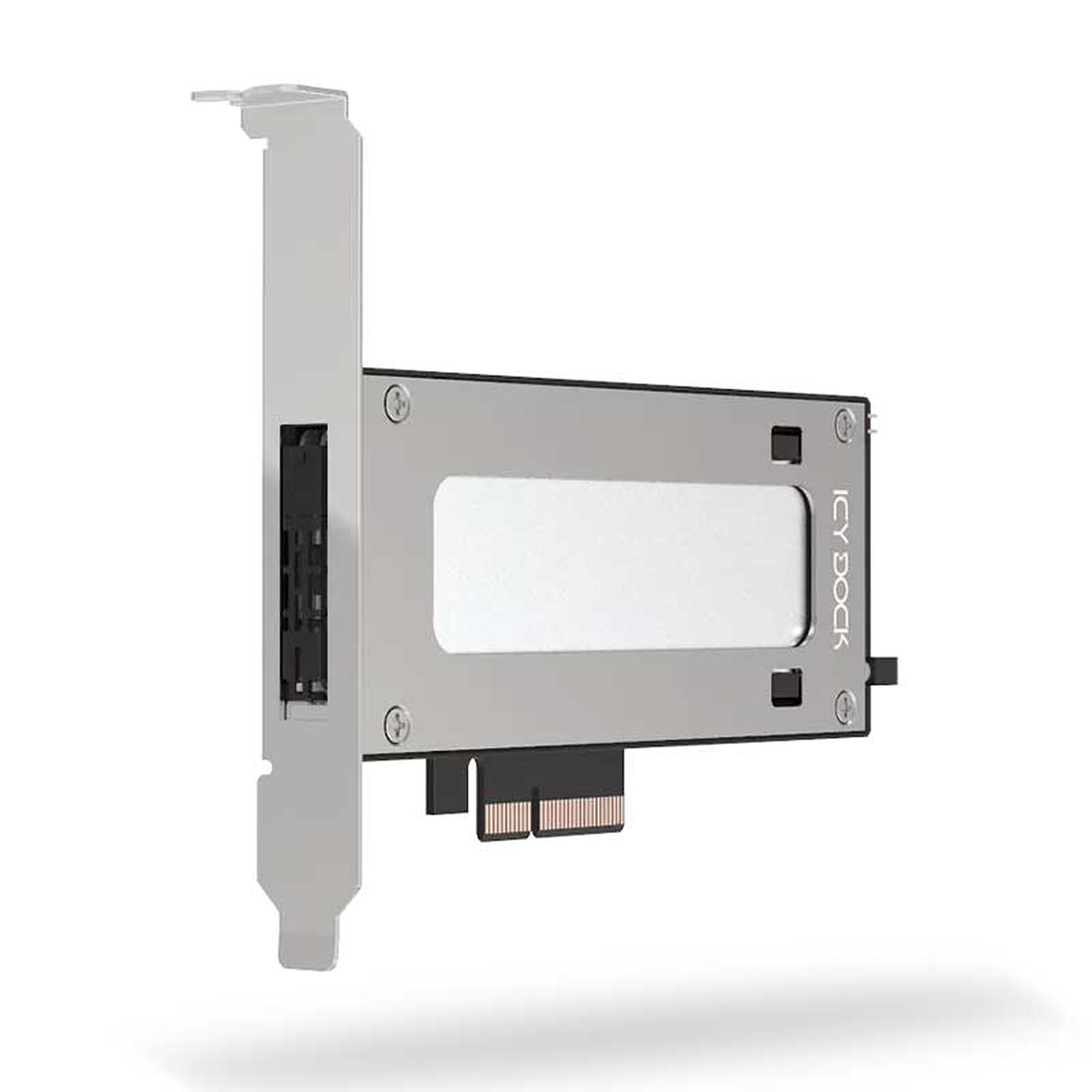

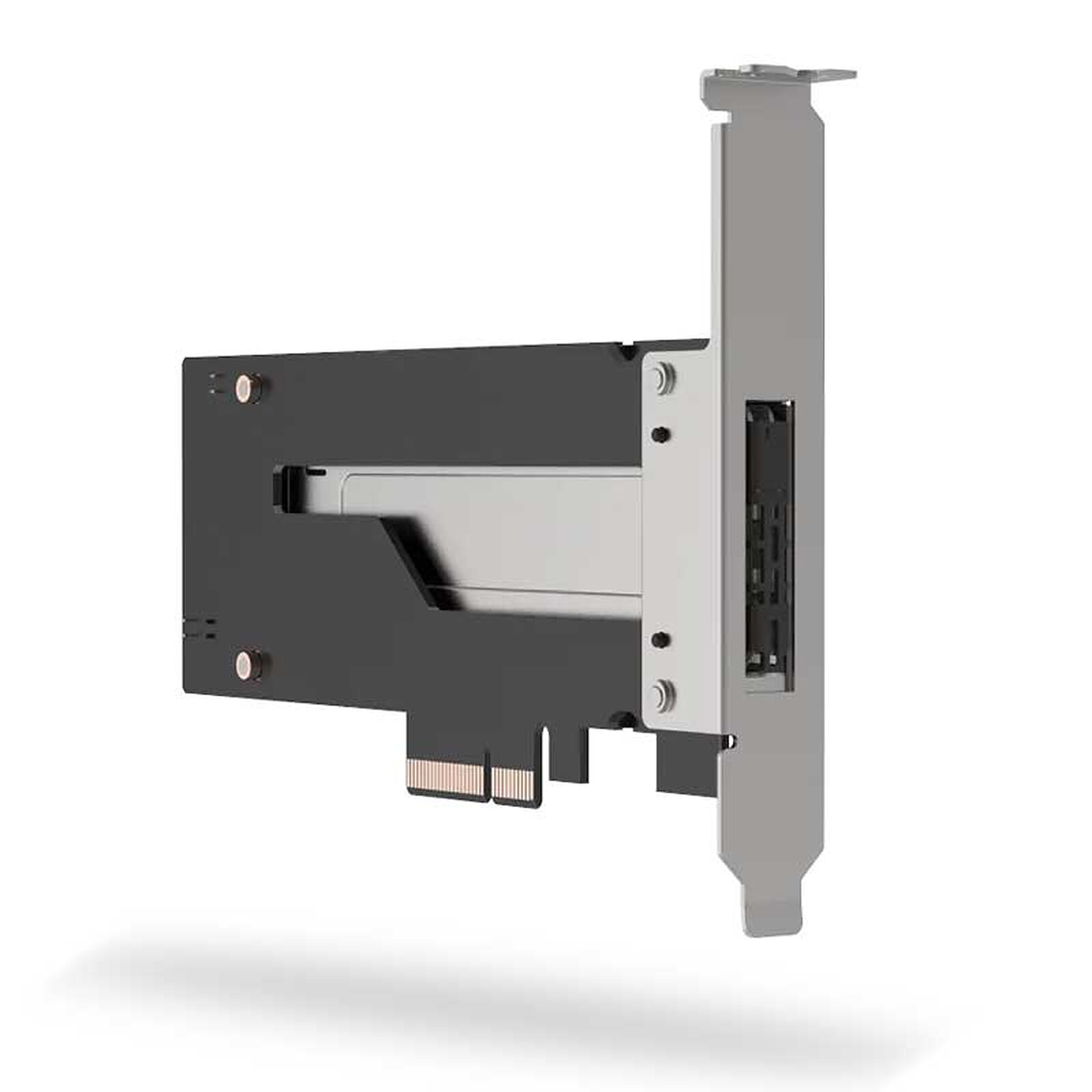

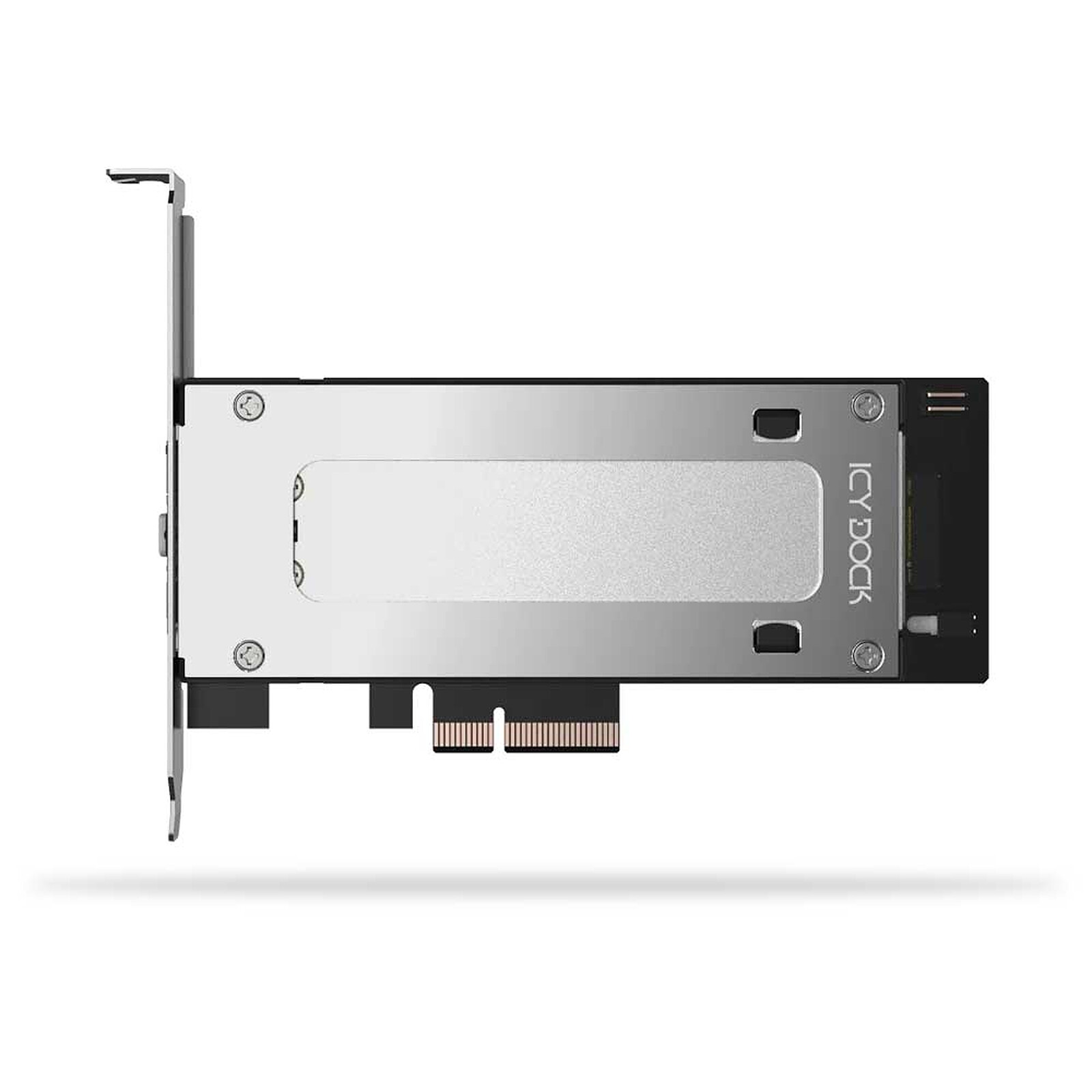

ICY DOCK ExpressSlot Elite MB840M5P-B
Removable adapter card with NVMe M.2 to PCIe 5.0 x4 SSD slot for mobile rack for PCIe expansion slot
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

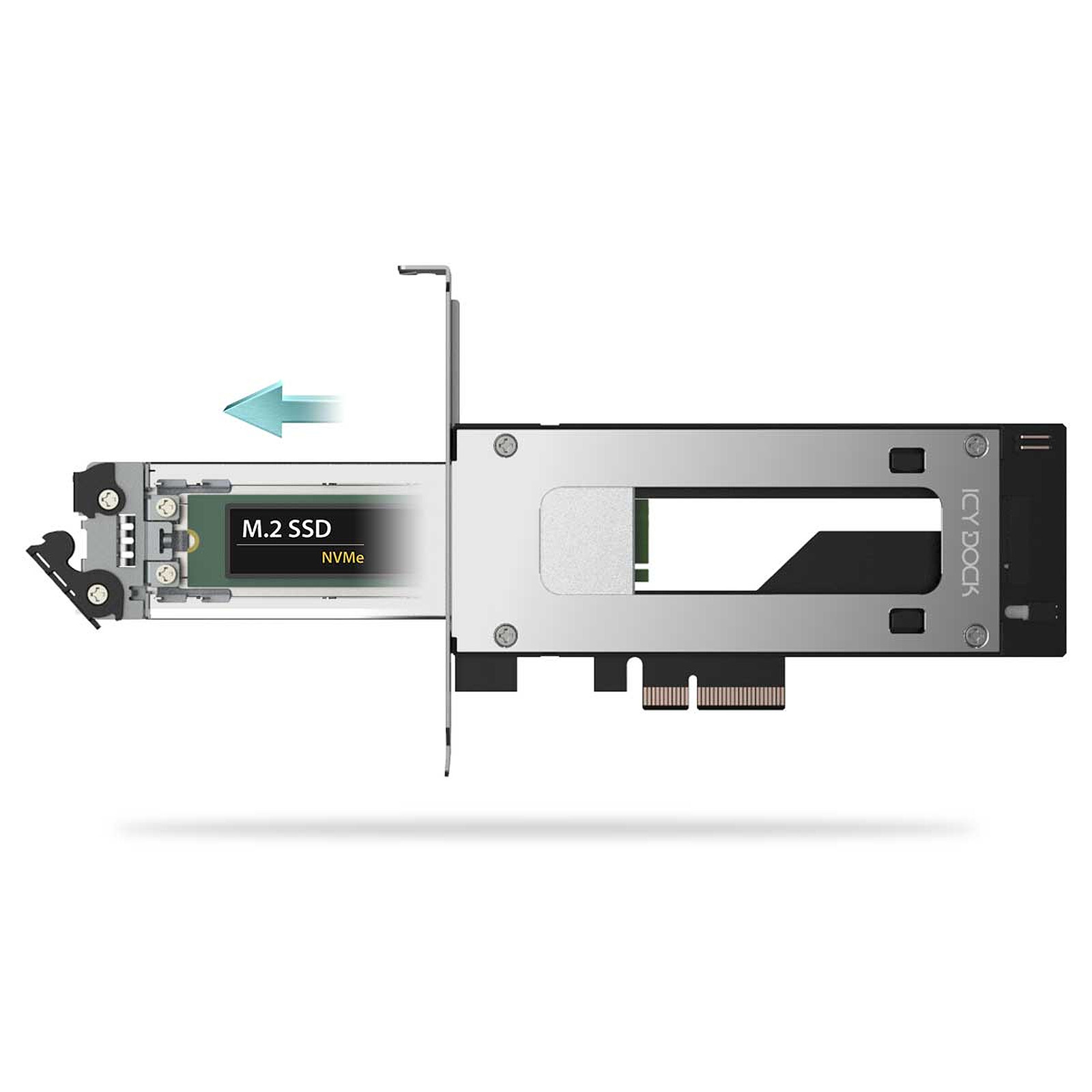

Easily manage your M.2 SSDs, without tools
The ICY DOCK ExpressSlot Elite MB840M5P-B transforms a 4x, 8x or 16x PCIe expansion slot into a removable NVMe M.2 SSD bay, enabling fast and easy SSD swapping without the need to open your computer case. The MB840M5P-B is designed to harness the power of PCIe 5.0 and offers ultra-fast transfer speeds of 128 Gbps, twice the bandwidth of PCIe 4.0 (64 Gbps) and more than 20 times that of SATA (6 Gbps).
Designed for PCIe 5.0, 4.0 and 3.0 x8/x16 slots, this high-speed NVMe solution ensures maximum flexibility for enterprise workstations, high-performance computing, AI training and data-intensive applications. The removable M.2 NVMe SSD platter (MB840TP-B) supports standard M.2 sizes including 2230, 2242, 2260, 2280 and 22110, ensuring maximum SSD compatibility.
Key features :
- Compatible with 1x NVMe PCIe M.2 SSDs of any length, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm) and 22110 (110mm)
- PCIe 5.0 x4 interface (backwards compatible with PCIe 4.0/3.0)
- Fits into full-height and half-height PCIe expansion slots
- Removable tray with tool-free design for easy drive maintenance
- Compact design allows side-by-side installation of multiple bays
- Eagle-hook locking system secures drive in place
- EMI grounding technology protects SSDs against static discharge
- Anti-Vibration Technology (AVT) minimises noise and impact
- Active Power Technology (APT) reduces power consumption when no SSD is present
- PCIe-powered design eliminates unnecessary cables
- Thermal buffer included for improved heat dissipation
- Optional SSD activity LED output for external monitoring
- 5-year manufacturer's warranty
Select your criteria
General information |
Product name |
ICY DOCK ExpressSlot Elite MB840M5P-B |
Brand |
ICY DOCK | |
Model |
MB840M5P-B | |
Technical specifications |
Bus |
PCI Express 5.0 4x |
Connector(s) |
1 X M.2 - PCI-E 5.0 x4 | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
See all ICY DOCK products
Product referenced on 2 Oct 2025
