ICY DOCK ExpressSlot Elite MB842M5P-B
Removable adapter card with two NVMe M.2 to PCIe 5.0 x8 mobile rack SSD slots for PCIe expansion slot
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Easily manage your M.2 SSDs, without tools

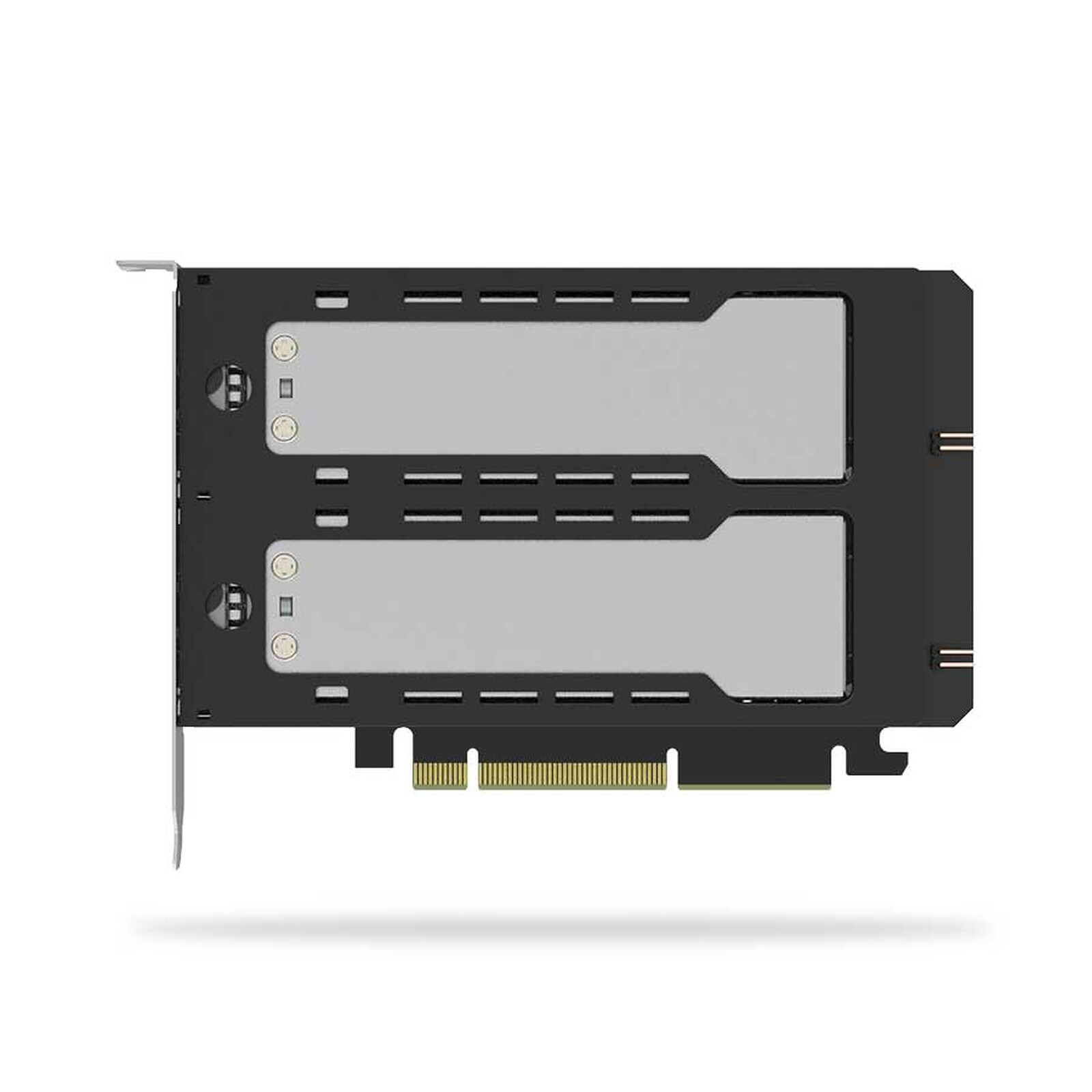

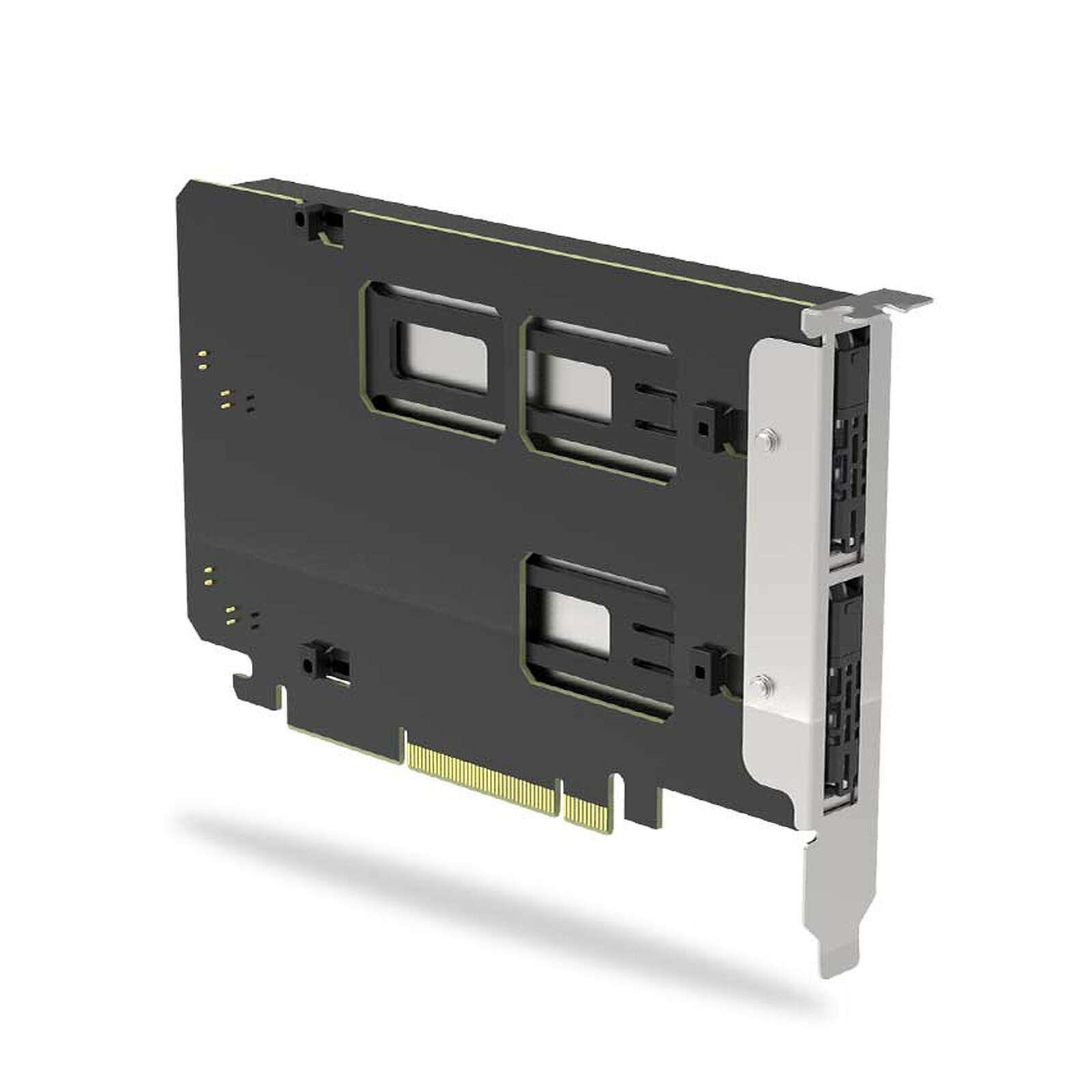

The ICY DOCK ExpressSlot Elite MB842M5P-B controller card transforms a PCIe 8x/16x expansion slot into two removable NVMe M.2 drive bays, allowing you to swap NVMe M.2 SSDs without having to open the computer case. The MB842M5P-B is designed to take advantage of the power of PCIe 5.0, offering transfer speeds of up to 128 Gbps - double the bandwidth of PCIe 4.0 (64 Gbps) and more than 20 times faster than SATA (6 Gbps).
Designed for PCIe 5.0, 4.0 and 3.0 x8/x16 slots, this ultra-fast NVMe solution ensures maximum flexibility for enterprise workstations, high-performance computing, AI training and data-intensive applications. Using direct PCIe connectivity, it eliminates slowdowns, reduces cable clutter and delivers ultra-low latency storage performance for next-generation workloads.

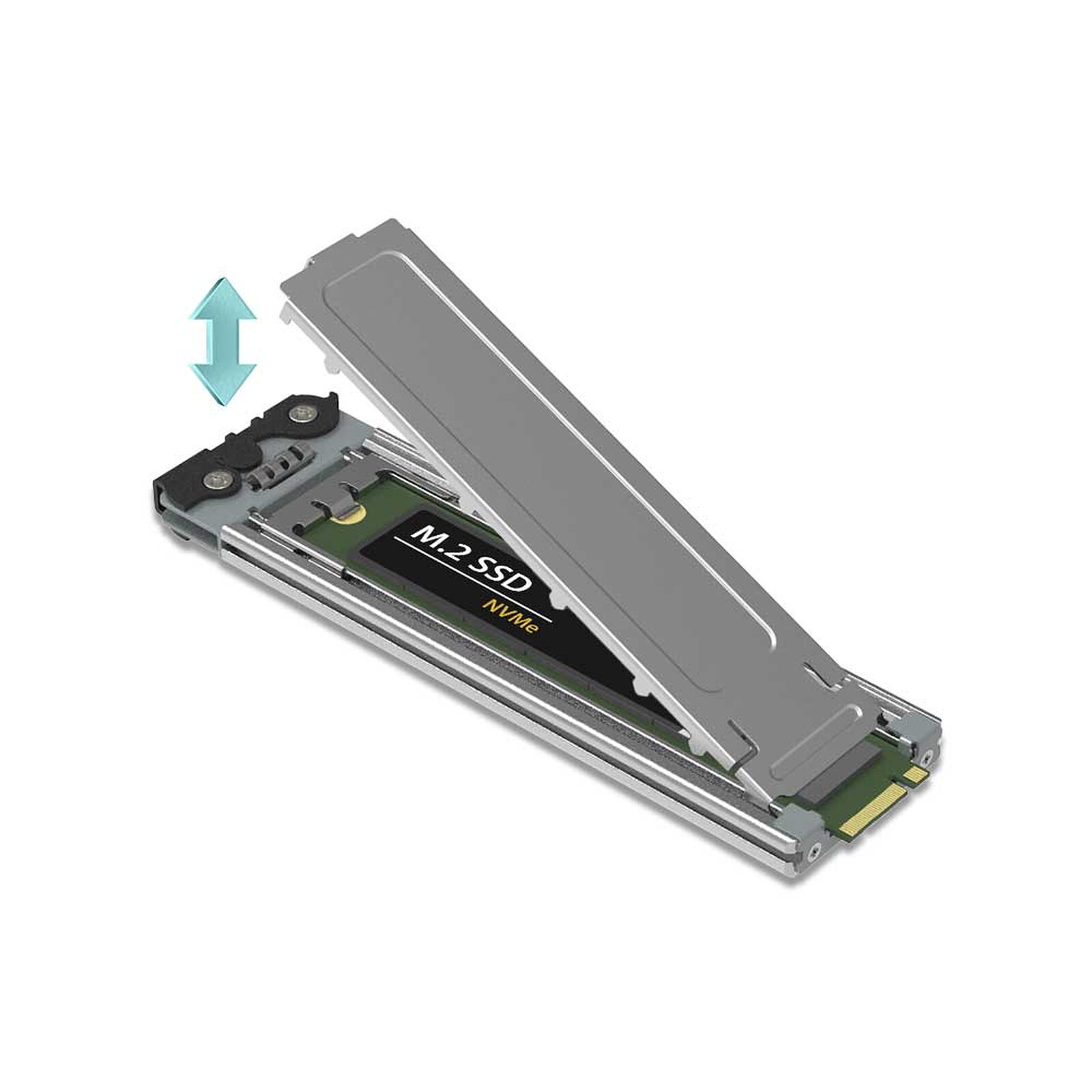

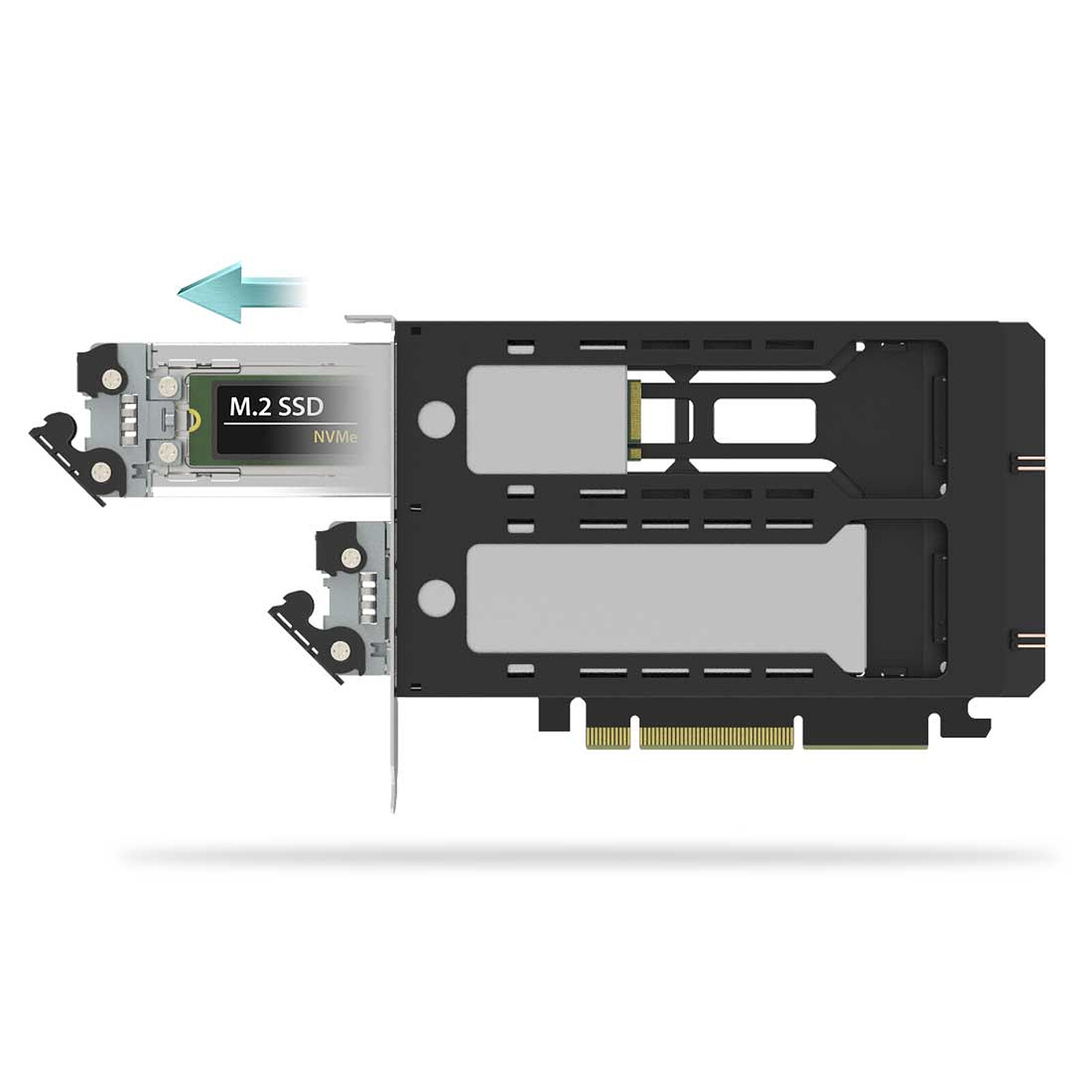

Thanks to ICY DOCK's innovative tool-less design, installing or replacing an M.2 NVMe SSD takes less than five seconds, eliminating the frustration of handling small screws. This state-of-the-art mechanism ensures a seamless and efficient drive maintenance workflow. The removable M.2 NVMe SSD tray (MB840TP-B) supports standard M.2 sizes including 2230, 2242, 2260, 2280 and 22110, ensuring maximum SSD compatibility.
Key features:
- Supports 2 NVMe PCIe M.2 SSDs with all drive lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm)
- PCIe 5.0 x8 interface (backwards compatible with PCIe 4.0/3.0)
- PCIe x4, x4 for PCIe 8x, or x4, x4, x4, x4, x4 for PCIe 16x is required to access both drives
- Removable drive tray with tool-free SSD installation design for easy servicing
- Compact design allows multiple bays to be installed side-by-side
- Eagle-hook locking system secures drive in place
- EMI grounding technology protects SSDs from damage caused by static electricity
- Anti-Vibration Technology (AVT) minimises noise and impact
- Active Power Technology (APT) reduces power consumption when no SSD is present
- PCIe power supply design eliminates unnecessary cables
- Thermal pad included for improved heat dissipation
- Optional SSD activity LED output for external monitoring
- SSD not included
- Dimensions: 171 x 120.8 x 21.6 mm - Weight 229.7 g
- 5-year manufacturer's warranty
