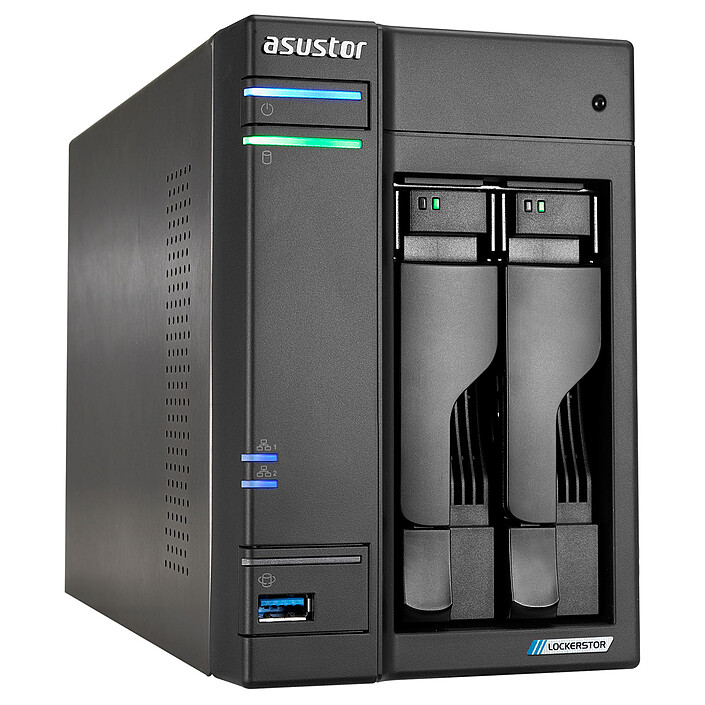

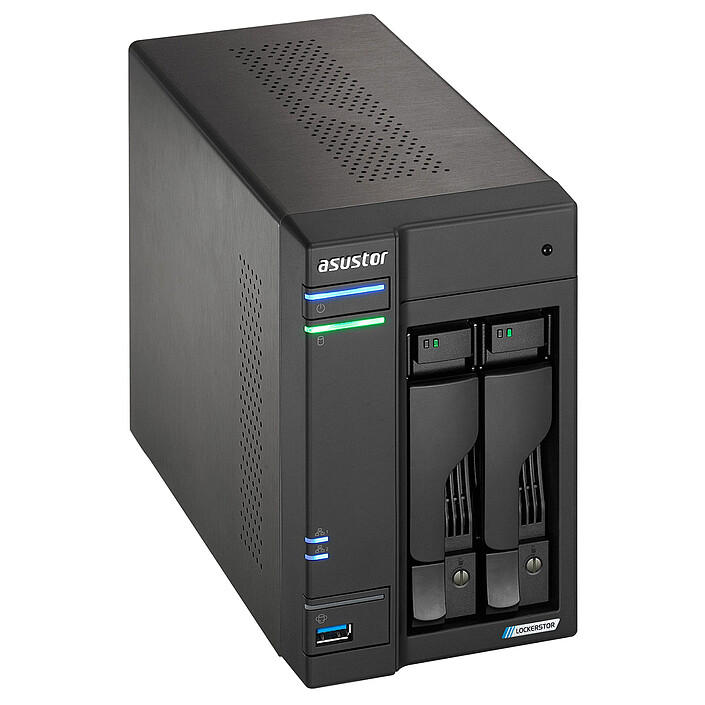

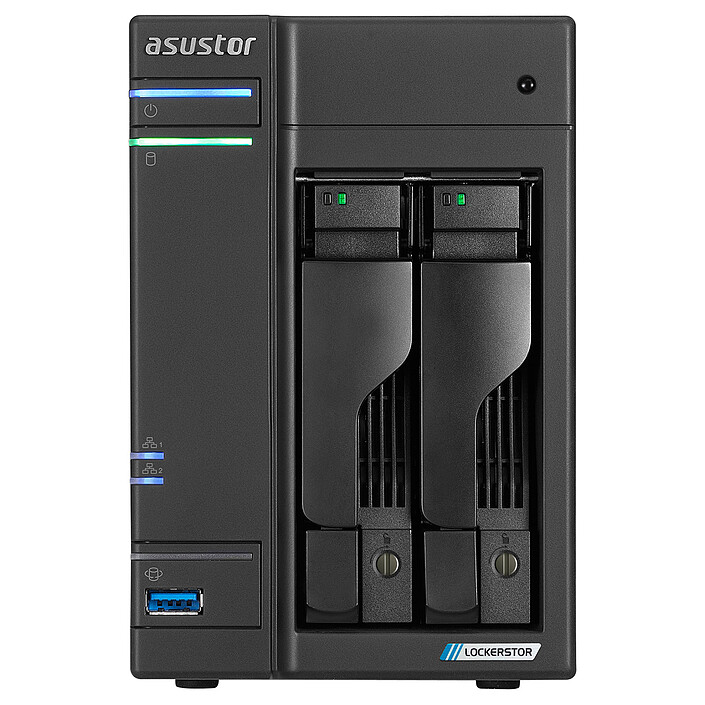

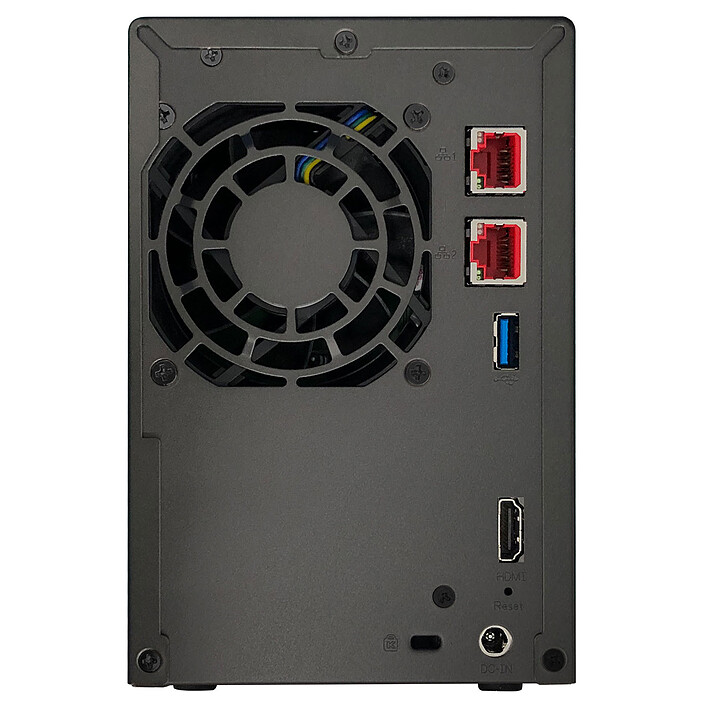

ASUSTOR Lockerstor 2 Gen 2 AS6702T
Barebone Server NAS 2 bays 4 GB DDR4 Intel Celeron N5105 - 2x LAN 2.5 GbE
Pictures may differ from actual products
ASUSTOR AS6702T is a 2.5"/3.5" SATA network attached storage server with four M.2 PCIe 3.0 slots for caching and/or SSD storage. Powered by an Intel Celeron N5015 Quad-Core processor and 4GB of DDR4 RAM it will be at home in any business environment.
Barebone Server NAS 2 bays 4 GB DDR4 Intel Celeron N5105 - 2x LAN 2.5 GbE
ASUSTOR AS67: Professional Grade NAS
The AS6702T Lockerstor 2 Gen 2 from ASUSTOR is a 2.5"/3.5" SATA NAS network storage server with four M.2 2280 PCIe 3.0 slots for caching and/or SSD storage. Powered by an Intel Celeron N5105 Quad-Core processor and 4GB of DDR4 RAM it will be at home in any business environment. Equipped with a rich network connectivity including 2 x 2.5 Gigabit Ethernet ports, it will avoid latency on your business network infrastructure.
Quad-Core Processor
The quad-core Intel Celeron N5105 processor features Intel's 10 nm process technology and up to 31% performance increase over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a burst frequency of up to 2.9 GHz, enabling efficient content creation.
Four M.2 slots
The Lockerstor Gen2 series of NAS devices comes with four M.2 slots for caching or storage or both. Use all slots for a single purpose or mix and match as needed.Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Faster than ever
Lockerstor Gen2 features two 2.5 GbE ports that more than double the performance of Gigabit Ethernet devices. But that's not all, with the recent introduction of multi-channel SMB support, your NAS will be able to combine the speed of multiple Ethernet ports for speeds well beyond 2.5 Gigabit.
Complete backup and virtualization solution
- MyArchive cold storage backups
- Snapshot Center, Cloud Backup Center, DataSync Center
- Full support for iSCSI/IP-SAN and NFS
- VMware, Citrix AND Hyper-V ready
- Supports virtualization and Docker applications
Key Features :
- Intel Celeron N5105 processor (Quad-Core 2.0 GHz / 2.9 GHz Burst - 4 MB Cache)
- 4 GB DDR4 SO-DIMMRAM (1 x 4 GB - 2 slots - 16 GB max.)
- 2 x LAN 2.5 GbE
- 2 x USB 3.1
- 2 x 2.5"/3.5" SATA 6 Gbps slots
- 4 x M.2 2280 PCIe NVMeslots (Read/Write cache or Single Disk / JBOD / RAID 0 / 1 / 5 / 6 / 10 storage)
- Network protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
- External file systems: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
- IPv6 compatible
- Supports up to 44 IP cameras
Select your criteria
General information |
Product name |
ASUSTOR Lockerstor 2 Gen 2 AS6702T |
Brand |
ASUSTOR | |
Model |
AS6702T | |
Processor |
CPU frequency |
2 GHz |
Memory size |
4 GB | |
Memory type |
DDR4 | |
Network |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) |
Network connector(s) |
2 X 2.5 Gigabit Ethernet - RJ45 Female | |
Wake On LAN |
Yes | |
Storage |
Capacity |
0 GB |
Internal interface |
4 X M.2 - PCI-E 3.0 x4 | |
| 2 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Hard drive format |
2" 1/2 | |
| 3" 1/2 | ||
| M.2 | ||
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
2 | |
RAID supported |
Yes | |
Supported RAID Modes |
Single Disk | |
| JBOD | ||
| 1 | ||
| 0 | ||
File system |
Btrfs | |
| Ext4 | ||
Connector(s) |
1 X HDMI Female | |
| 2 X USB 3.1 | ||
Compatibility |
Server functions |
FTP |
| Printing | ||
| Multimedia | ||
| Photo | ||
| Video surveillance | ||
| Virtualization | ||
| Web | ||
Windows ADS |
Yes | |
iSCSI (SCSI encapsulation) |
Yes | |
Download without PC |
Yes | |
Scalable |
Yes | |
Physical characteristics |
Rackable |
No |
Sound level |
17.7 dB | |
Consumption |
21 W | |
Width |
108 mm | |
Height |
163.5 mm | |
Depth |
230 mm | |
Weight |
2 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
