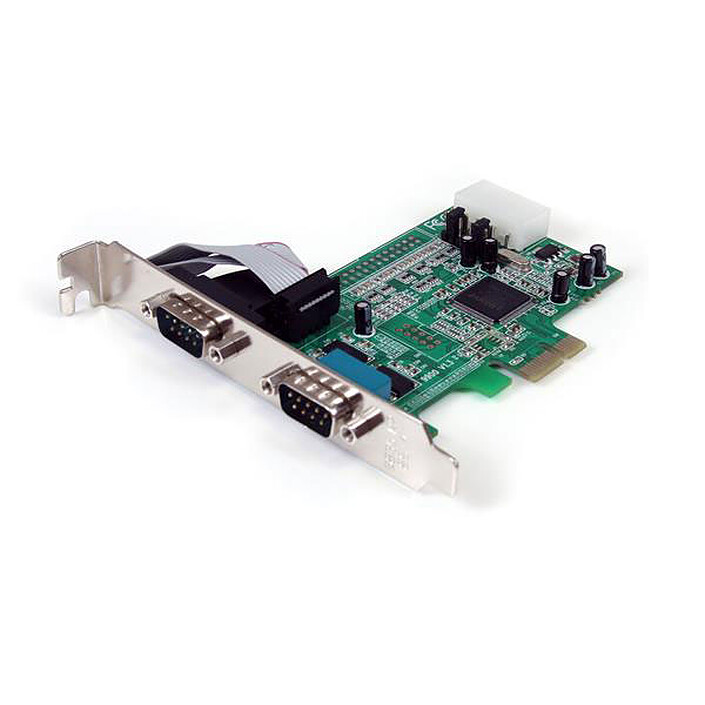

StarTech.com PCI Express Card with 2 DB-9 ports - UART 16550
2-port serial RS232 DB9 PCI Express card with UART 16550
Pictures may differ from actual products
The StarTech.com PEX2S553 card adds two high performance serial RS232 ports to your desktop or server to connect your devices and your equipment. It can be installed in any PCI Express slot to provide you with two serial UART16550 RS232 ports.
2-port serial RS232 DB9 PCI Express card with UART 16550
Overview
StarTech.com
Easily add the ports you need
The StarTech.com PEX2S553 card adds two high-performance RS232 serial ports to your desktop or server to connect your devices and serial equipment. It can be installed in any PCI Express slot to provide you with two 16550 RS232 UART serial ports. It offers a convenient solution for connecting your modern or older equipment to newer computer systems that do not have RS232 ports. The serial card is compliant with the PCI Express 1.0a specification and compatible with PCI Express x1, x2, x4, x8 and x16 slots.
Features :
- Two DB-9 16550 serial ports with data transfer rates up to 460 Kbps
- Includes low-profile/half-height mounting bracket
- Selectable power output on pin 9 for serial port
- Single native chip, single PCI Express lane
Specifications
Select your criteria
General information |
Product name |
StarTech.com PCI Express Card with 2 DB-9 ports - UART 16550 |
Brand |
StarTech.com | |
Model |
PEX2S553 | |
Technical specifications |
Bus |
PCI Express x1 |
Controllers |
Serial | |
Connector(s) |
2 X DB-9 Male | |
Supported OS |
Windows XP | |
| Windows Vista | ||
| Linux | ||
| Windows Server 2008 | ||
| Microsoft Windows 7 | ||
| Microsoft Windows 8 | ||
| Windows Server 2012 | ||
| Microsoft Windows 8.1 | ||
| Microsoft Windows 10 | ||
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 6 Dec 2017
