Those were the good old days! This product is no longer on sale

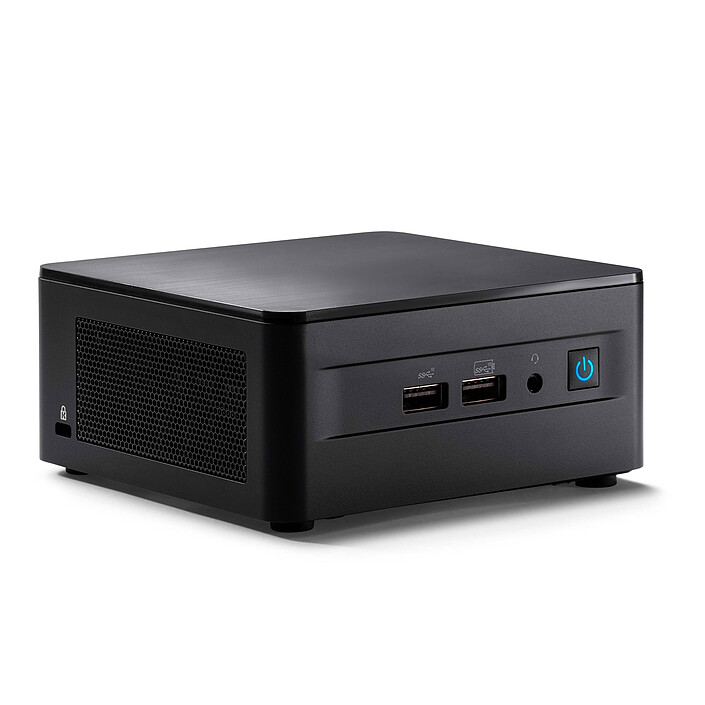

Intel NUC 12 Pro NUC12WSHi7 Intel Core i7-1260P Intel Iris Xe Graphics Wi-Fi 6E / Bluetooth 5.3 + 2.5 GbE LAN + M.2 and 2.5" slots (without display/memory/hard drive/system)
Barebone PC
Review Intel NUC 12 Pro NUC12WSHi7
Buy Intel NUC 12 Pro NUC12WSHi7
cheap Intel NUC 12 Pro NUC12WSHi7

Pictures may differ from actual products

Intel NUC 12 Pro NUC12WSHi7

Intel Core i7-1260P Intel Iris Xe Graphics Wi-Fi 6E / Bluetooth 5.3 + 2.5 GbE LAN + M.2 and 2.5" slots (without display/memory/hard drive/system)

Last price 749€95
Holy Moly!
Equivalent products suggestions:
ZOTAC ZBOX edge MI668
ZOTAC ZBOX edge MI668
779€95
ASUS NUC 12 Pro NUC12WSKv7
ASUS NUC 12 Pro NUC12WSKv7
759€95
ZOTAC ZBOX CI669 nano
ZOTAC ZBOX CI669 nano
749€95
ASRock NUCS BOX-1340P
ASRock NUCS BOX-1340P
649€95
ASRock 4X4 BOX-4800U
ASRock 4X4 BOX-4800U
579€95
ASUS NUC 11 Pro NUC11TNKi7
ASUS NUC 11 Pro NUC11TNKi7
669€95
Overview

All the power of a standard PC in the palm of your hand

TheIntel NUC 12 Pro NUC12WSHi70Z is a barebone PC that features a powerful 12th generation Intel Core i7 processor and supports up to 64GB of DDR4 RAM and PCI-E NVMe M.2 SSDs. Ultra-compact and easy to integrate, it will easily find its place in the office or at home. Delivered without RAM or hard drive, it will allow you to design a powerful custom Mini PC with ease.

Intel Core performance

Thanks to its 12th generation Intel Core processor, the Intel NUC offers both outstanding performance and low power consumption. The 12th generation Intel Core processors are packed with advanced features to improve productivity and entertainment quality. With one M.2 PCIe and one M.2 PCIe/SATA SSD slot, two RAM slots (up to 64GB) and one 2.5" drive slot, this NUC PC will deliver smooth and fast operation.

Uncompromisingly compact

The NUC Wall Street Canyon from Intel offers a compact format that allows it to be installed in many environments. Its reduced size does not prevent it from being efficient for office and multimedia use thanks to its Intel Core i5 processor and its numerous connection possibilities.

Information provided by our tech department IEC-320-C5 power cord (Mickey plug) not included.
Specifications
Select your criteria

General information

Product name

 Intel NUC 12 Pro NUC12WSHi7

Brand

 Intel

Model

 RNUC12WSHI70000

Processor and chipset

Integrated processor

 Yes

Processor

 Intel Core i7

CPU frequency

 3.4 GHz

Processor support

 N/A

Number of CPUs supported

 1

Memory

Memory format

 2 X SO-DIMM 260-pin (DDR4)

Memory Frequency(ies)

 DDR4 3200 MHz

Memory type

 DDR4

Memory technology

 Dual Channel

Dual Channel

 Yes

Maximum RAM capacity per slot

 32 GB

Maximum RAM capacity

 64 GB

Graphic

Integrated graphics controller

 Yes

Graphics chipset

 Intel Iris Xe Graphics

Expansion slots

Graphic connector(s)

 None

Storage

Hard drives connectors

 1 X Serial ATA 6Gb/s (SATA Revision 3)
1 X M.2 - PCI-E 4.0 x4
1 X M.2 PCI-E x1 + SATA 6Gb/s

M.2 support

 M.2 2280
M.2 2242

Optical drive type

 None

Audio

Audio Chipset

 Integrated

Network

Number of ports/Ethernet controler

 1 X Intel i225-V

Network standard(s)

 2.5 Gbps Gigabit Ethernet (2.5 GbE)

Wireless network standard(s)

 Wi-Fi 6E
Bluetooth 5.3

Connectivity

Front panel connectors

 1 X 3.5mm Jack Female Stereo
2 X USB 3.1

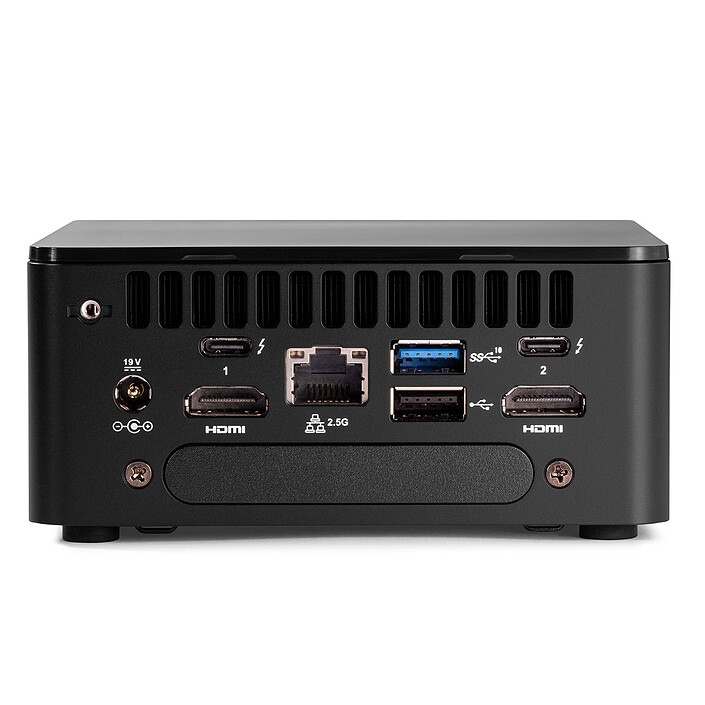

Rear panel connectors

 1 X USB 3.1
2 X Thunderbolt 4/USB-C
2 X HDMI Female
1 X USB 2.0
1 X RJ45 Female

Case

Number of 2.5" slots

 1

Compatibility

Supported OS

 Windows 11
Windows 10
Ubuntu 20.04 LTS
Red Hat Linux

Physical characteristics

Barebone format

 ITX

Width

 117 mm

Height

 54 mm

Depth

 112 mm

Warranties

Commercial warranty

 Seller 3 years

Legal warranty

 See terms & conditions

See all Intel products

See Intel Barebone PC section

Product referenced on 2 Sep 2022

Customer reviews
Global rating
9/10
based on 2 reviews Editorial and moderation guide
  • 50%
    1 review
  • 50%
    1 review
  • 0%
  • 0%
  • 0%
  • by Pingouin
    Posted on 31 Jan 2023
    Product bought from LDLC on 19 Jan 2023
    Number of reviews: 2 Average rating: 10

    Perfect with Gnu/Linux

    Hello.
    Installing a Debian 11 (bullseye).
    Tip: Update the bios BEFORE the installation.
    F2 / F7 / F10 or long press on the boot button to choose to boot on usb key (with the bios).
    Take the last version of the Debian installer (more recent Kernel) otherwise, the network card is not detected during the installation.
    Quite a few options in the bios for a small machine. Powerful, a Kernel compiles in a few minutes...
    No major problem with the graphics chip (i915 driver for the moment) but still complicated to make the video acceleration work (decode/encode) Intel makes an effort...
    I'm not sure if it's a good idea to use the same software as the one I'm using now, but I'm not sure if it's a good idea to use the same software as the one I'm using now...
    LDLC: Well, what can I say...we all know why we come here...and bravo for the technical service remark about the power cable!

    Review automatically translated
  • by StephaneC
    Posted on 16 Oct 2022
    Product bought from LDLC on 6 Oct 2022
    Number of reviews: 1 Average rating: 8

    Incredible little PC

    I've been using it for some time now and it's a great tool to help me with my work.
    The only thing I can't say is that it's a bit difficult to get it up and running (bios settings are rather spartan) and to install the OS. (for my part WIN11). I've been using it for a while now and it's a good idea to have it installed.
    The delivery, as usual super fast.

    Review automatically translated
