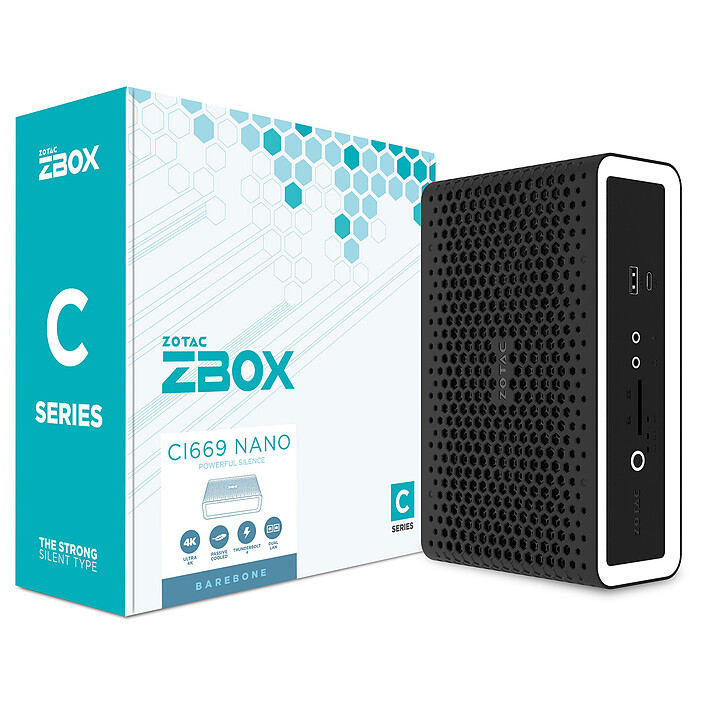

ZOTAC ZBOX CI669 nano
Intel Core i7-1355U Intel Iris Xe Graphics - Thunderbolt 4 - Wi-Fi 6/Bluetooth 5.2 (without display/memory/storage/system)
Pictures may differ from actual products
The ZOTAC ZBOX CI669 Nano is a barebone that lets you design your mini-PC for multimedia entertainment, the Internet and everyday applications. Its passive cooling means you can install it in any room in your home.
Intel Core i7-1355U Intel Iris Xe Graphics - Thunderbolt 4 - Wi-Fi 6/Bluetooth 5.2 (without display/memory/storage/system)
ZOTAC ZBOX CI669 nano : Mini PC with passive cooling
The ZOTAC ZBOX CI669 nano is a barebone that lets you design your own mini-PC for multimedia entertainment, the Internet and everyday applications. In your bedroom or living room, it will be discreet thanks to its reduced dimensions, its silent design and its sober and elegant look. Choose compactness and performance with the CI669 nano mini PC! This little concentrate of modern technology is powered by a 13th-generation Intel Core i7 processor.
Like all barebones, the ZOTAC ZBOX CI669 nano is just waiting for the compatible hardware you need to get up and running. Simply add an M.2 or 2.5" SSD of the capacity of your choice, DDR5 SO-DIMM RAM and the operating system that suits you best to enjoy the best in multimedia entertainment. The Zotac barebone is powered by a low-power Intel Core i7-1355U processor that will perform all your daily tasks with ease.
A high-performance mini-PC
- Intel Core i7-1355U processor (2 Performance-Cores 5 GHz Turbo + 8 Efficient-Cores 3.7 GHz Turbo - 12 Threads - 12 MB Cache)
- Up to 64 GB DDR5 SO-DIMM 4800/5200 MHz RAM (2 slots)
- 1 x 2.5" slot with SATA 6 Gbit/s interface and 1 x M.2 2230/2242 PCIe 4.0 x4
- Passive design for perfect silence
- Video outputs: HDMI 2.0b and DisplayPort 1.4 - 4K @ 60 Hz compatible
- 1 front Thunderbolt 4 port (Display Port compatible)
- 3-in-1 memory card reader (SD/SDHC/SDXC)
- Full network connectivity: Wi-Fi 6, Bluetooth 5.2
- 2.5 GbE LAN + 1 GbE LAN
Select your criteria
General information |
Product name |
ZOTAC ZBOX CI669 nano |
Brand |
ZOTAC | |
Model |
ZBOX-CI669NANO-BE | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i7 | |
CPU frequency |
1.7 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 262-pin (DDR5) |
Memory Frequency(ies) |
DDR5 4800 MHz | |
| DDR5 5200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel Iris Xe Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 |
| 1 X Serial ATA 6Gb/s (SATA Revision 3) | ||
M.2 support |
M.2 2242 | |
| M.2 2230 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated - 2.5 GbE |
Number of ports/Ethernet controler N°2 |
1 X Integrated - 100/1000 Mbps | |
Network standard(s) |
10/100/1000 Mbps | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Wireless network standard(s) |
Wi-Fi 6 AX | |
| Bluetooth 5.2 | ||
Connectivity |

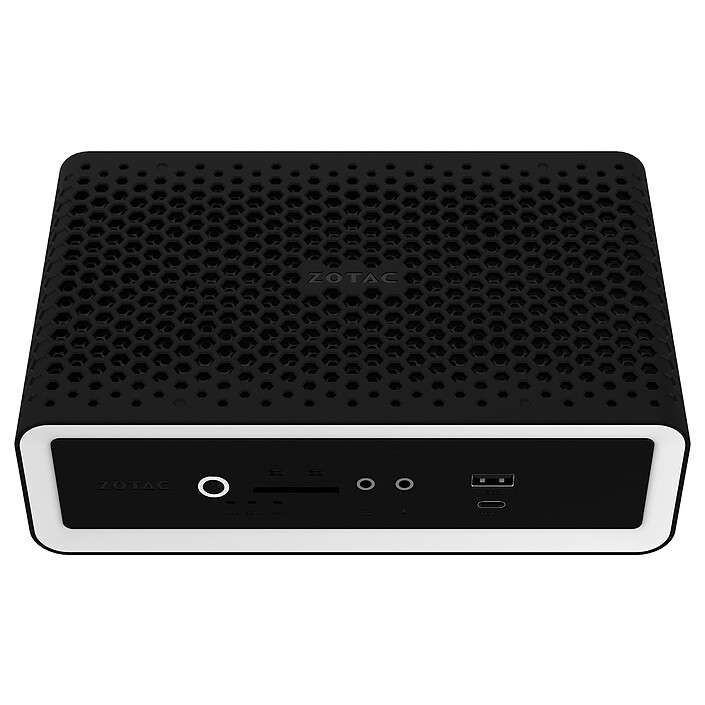

Front panel connectors |
SDXC |
| SDHC | ||
| SD (Secure Digital) | ||
| 1 X Thunderbolt 4 | ||
| 1 X USB 3.1 | ||
| 1 X Microphone (3.5mm Jack Female) | ||
| 1 X Headphone (3.5mm Jack Female) | ||

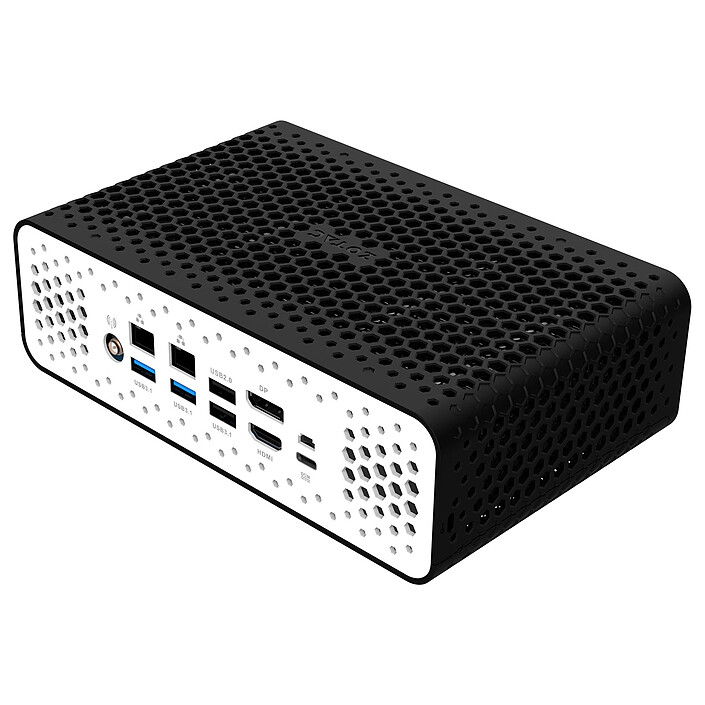

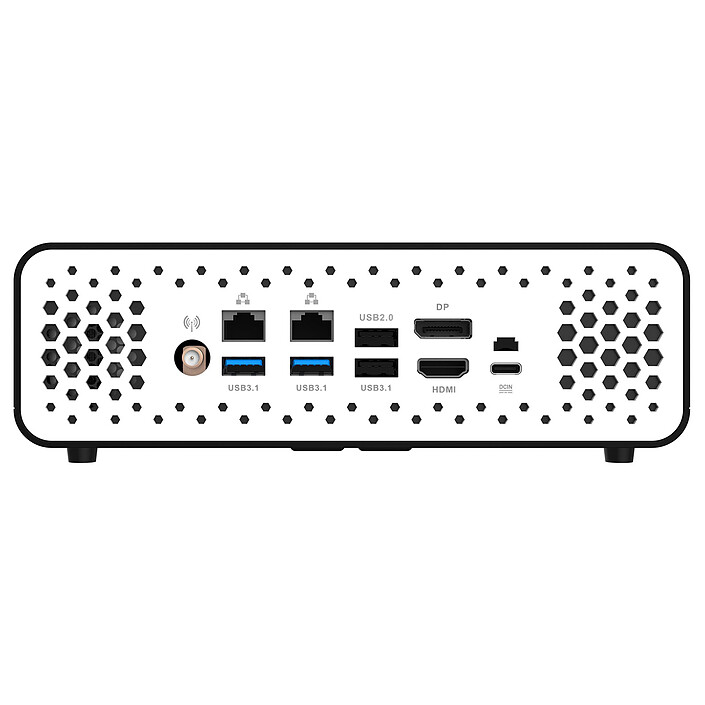

Rear panel connectors |
1 X HDMI Female | |
| 1 X DisplayPort Female | ||
| 3 X USB 3.1 | ||
| 1 X USB 2.0 | ||
| 2 X RJ45 Female | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
65 W | |
Compatibility |
Supported OS |
Microsoft Windows 11 |
Max CPU TDP |
15 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
204 mm | |
Height |
68 mm | |
Depth |
129 mm | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ZOTAC products
Product referenced on 17 Aug 2023
