Shuttle XPC slim DH610
Mini-Barebone (Intel H610 Express) (without processor/memory/storage/system)
Pictures may differ from actual products
The Shuttle XPC slim DH610 is a robust, compact barebone PC compatible with 12th and 13th generation Intel Core processors and supporting up to 3 screens. Easy to integrate, ideal for multitasking or intensive tasks, this is the professional PC par excellence.
Mini-Barebone (Intel H610 Express) (without processor/memory/storage/system)
Mini-PC for demanding professionals
The Shuttle XPC slim DH610 is a robust and compact barebone PC compatible with 12th and 13th generation Intel Core processors and supporting up to 3 screens. Easy to integrate, ideal for multitasking or intensive tasks, it is the professional PC par excellence. It can be used in environments with temperatures ranging from 0°C to 50°C.
Key features include

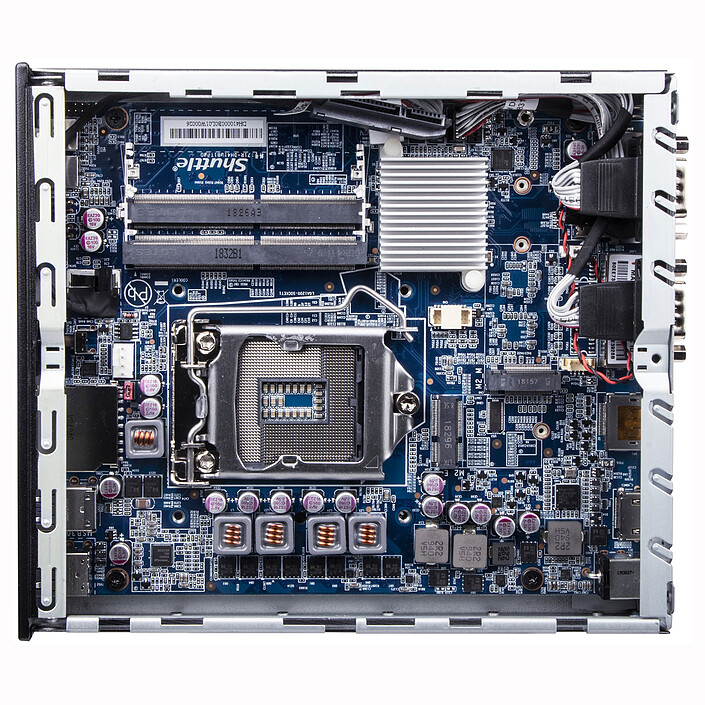

- Support for 12th and 13th generation Intel CPUs on socket LGA 1700 (max. TDP 65W)
- 2 DDR4 SODIMM RAM slots up to 3200 MHz (max. 64 GB)
- 1 slot for 2.5" SATA 6 Gbps SSD/HDD (max. 12.5 mm thick)
- 1 M.2 PCI-E 3.0 4x / SATA 6 Gbps slot (for M.2 2242/2260/2280 drive)
- 1 x 2.5 GbE LAN network port + 1 x Gigabit LAN network port
- 2 x DisplayPort 1.4a + 1 x HDMI 2.0b (for up to 3 displays)
- Windows 10/11 and Linux compatible
Select your criteria
General information |
Product name |
Shuttle XPC slim DH610 |
Brand |
Shuttle | |
Model |
DH610 | |
Processor and chipset |
Integrated processor |
No |
Processor |
Without processor | |
Processor support |
Intel 1700 | |
Number of CPUs supported |
1 | |
Chipset |
Intel H610 Express | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 2666 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
M.2 support |
M.2 2242 | |
| M.2 2260 | ||
| M.2 2280 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
6 | |
Network |
Number of ports/Ethernet controler |
Integrated Intel - 2.5 GbE |
Number of ports/Ethernet controler N°2 |
Integrated Intel - 10/100/1000 Mbps | |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| 10/100/1000 Mbps | ||
Connectivity |

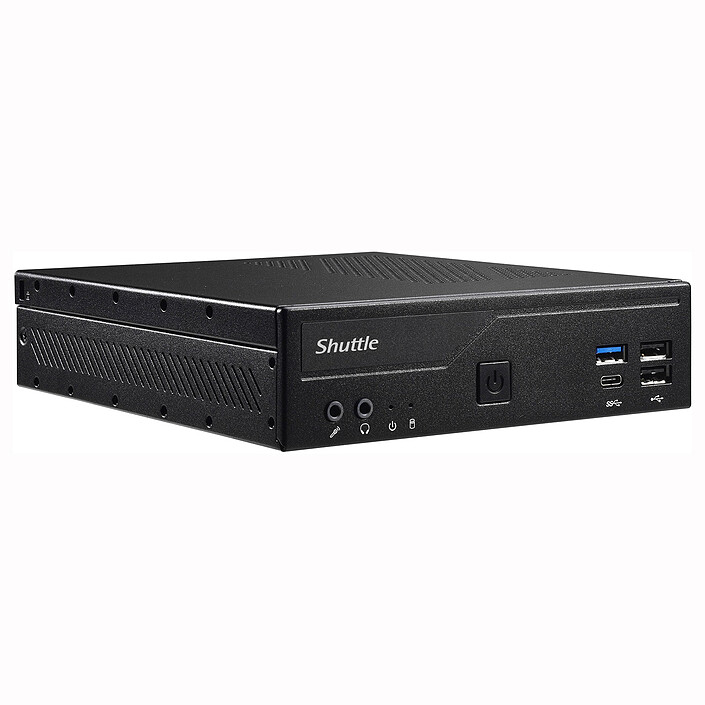

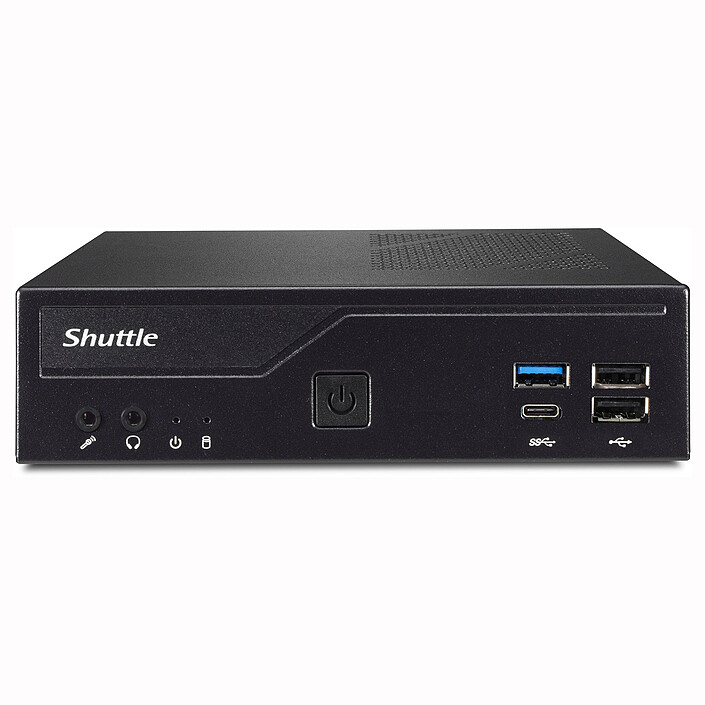

Front panel connectors |
Headphone (3.5mm Jack Female) |
| Microphone (3.5mm Jack Female) | ||
| 2 X USB 2.0 | ||
| 1 X USB 3.0 | ||
| 1 X USB 3.0 Type C | ||

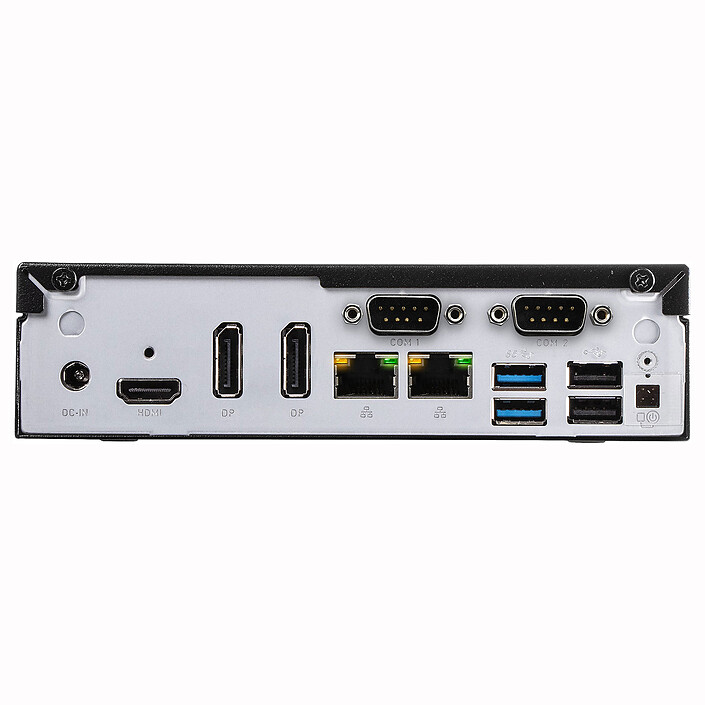

Rear panel connectors |
Port for Kensington lock | |
| 2 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 2 X USB 3.0 | ||
| 2 X DisplayPort Female | ||
| 1 X HDMI Female | ||
| 2 X Serial (RS-232) | ||
Case |
Number of 2.5" slots |
1 |
Power |
120 W | |
Compatibility |
Supported OS |
Microsoft Windows 11 |
| Microsoft Windows 10 | ||
| Linux | ||
Max CPU TDP |
65 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
190 mm | |
Height |
43 mm | |
Depth |
165 mm | |
Weight |
1.3 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Shuttle products
Product referenced on 28 Dec 2023
