Shuttle XPC nano NC40U7
Intel Core i7-1255U - DDR4 - SATA 6 Gbps - M.2 PCIe 4.0 - USB 3.1 - LAN 1 GbE (without display/memory/storage/system/Wi-Fi)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
All the power of a PC in a compact format
Shuttle's XPC nano NC40U7 is equipped with a low-power Intel Alder Lake-U processor. Equipped with an Intel Core i7-1255U processor, this barebone can hold up to 64 GB of DDR4 memory, two M.2 NVMe SSDs (1x PCIe 4.0 x4 and 1x PCIe 3.0 x4 or SATA 6 Gbit/s) and a 2.5" disk (HDD or SSD). Its wide-ranging connectivity means you can use this machine for all your needs: business, office or multimedia.
Key features
- Intel Core i7-1255U processor
- 2 DDR4 SO-DIMM 3200 MHz slots with up to 64 GB (2 x 32 GB max.)
- 1 slot M.2 2280 NVMe PCIe 4.0 x4 + 1 slot M.2 2280 NVMe PCIe 3.0 x4 / SATA 6 Gbps
- 2.5" slot (max. height 15 mm)
- 1 M.2 2230 slot for Wi-Fi expansion (to be purchased separately)
- 2 USB 3.1 10 Gbit/s ports + 5 USB 3.0 ports (including 1 Type C)
- 1 GbE LAN
- Up to 3 displays connected simultaneously: 1 x HDMI 2.0b + 2 x DisplayPort 1.4a (one via USB-C 3.0)
- Support VESA 75*75 and 100*100 included
Select your criteria
General information |
Product name |
Shuttle XPC nano NC40U7 |
Brand |
Shuttle | |
Model |
NC40U7 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i7 | |
CPU frequency |
4.7 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel Iris Xe Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 |
| 1 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
M.2 support |
M.2 2280 | |
Supported RAID Modes |
0 | |
| 1 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
C-Media CM6542 |
Network |
Number of ports/Ethernet controler |
1 X Intel i219 |
Network standard(s) |
10/100/1000 Mbps | |
Connectivity |

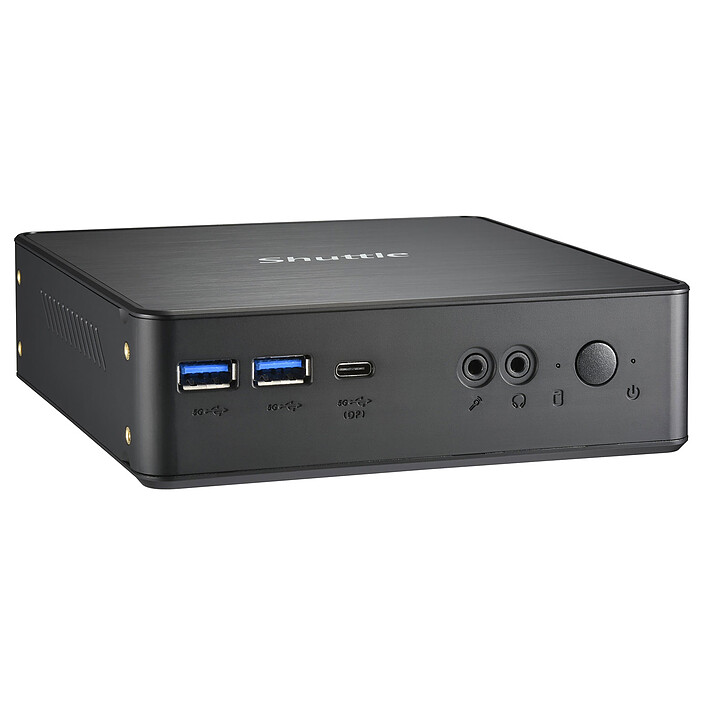

Front panel connectors |
2 X USB 3.0 |
| 1 X USB 3.0 Type C | ||
| Headphone (3.5mm Jack Female) | ||
| Microphone (3.5mm Jack Female) | ||

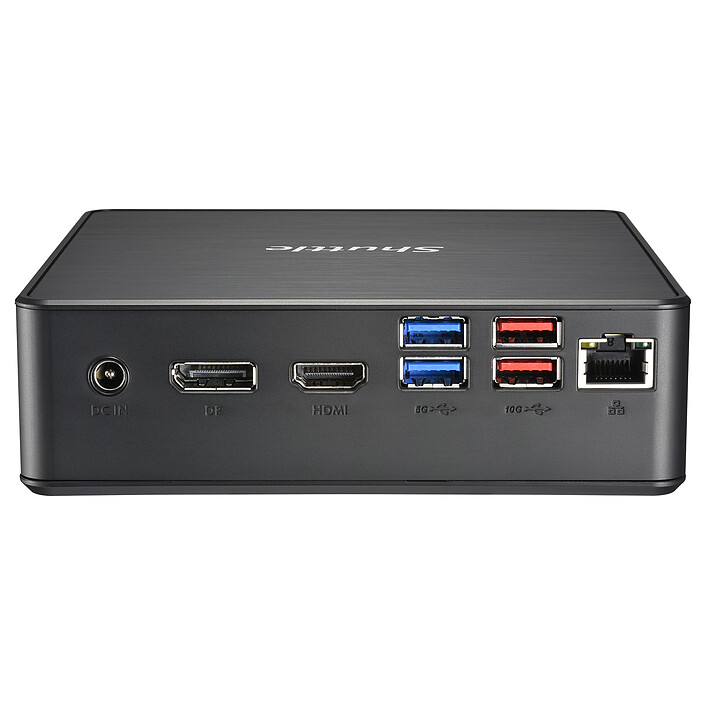

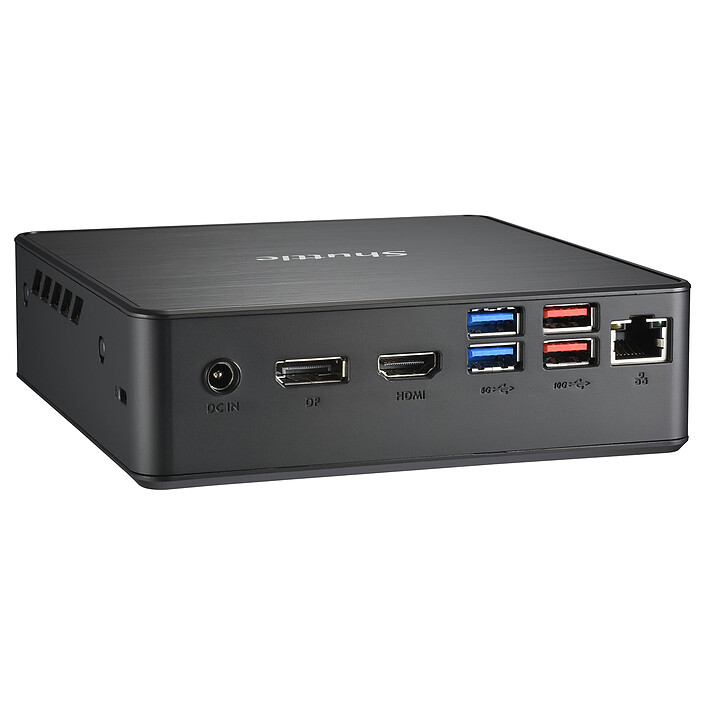

Rear panel connectors |
1 X RJ45 Female | |
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
| 2 X USB 3.0 | ||
| 2 X USB 3.1 | ||
Case |
Number of 2.5" slots |
1 |
Power |
65 W | |
Compatibility |
Supported OS |
Microsoft Windows 11 |
| Microsoft Windows 10 | ||
| Linux | ||
Max CPU TDP |
15 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
142 mm | |
Height |
42 mm | |
Depth |
142 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
