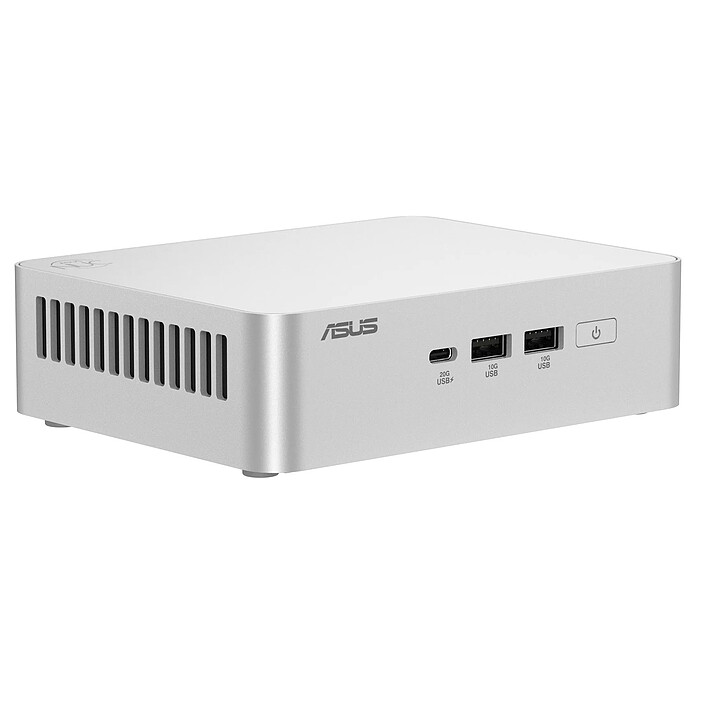

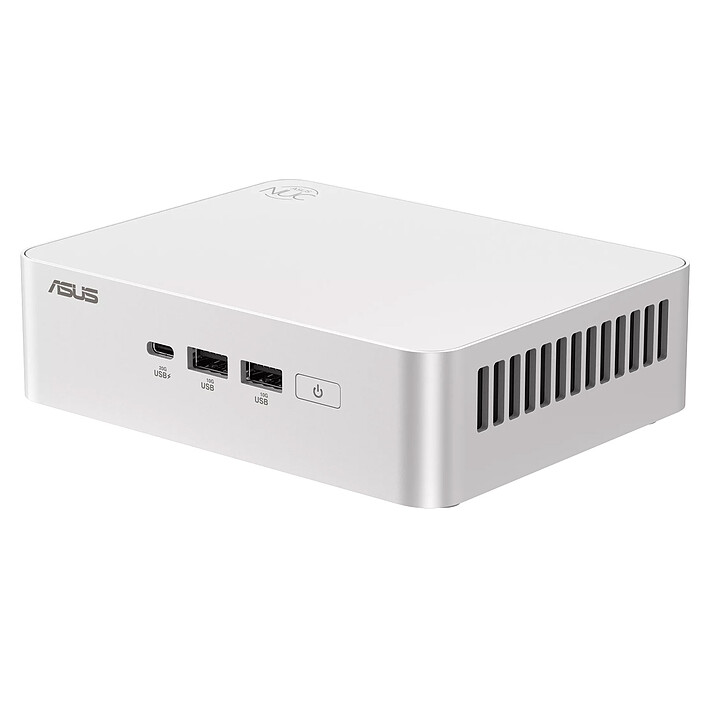

ASUS NUC 15 Pro+ RNUC15CRSU700002
Intel Core Ultra 7 255H Intel Arc Graphics Wi-Fi 7 / Bluetooth 5.4 + LAN 2.5 GbE + M.2 PCIe 5.0 slot (without display/memory/storage/system)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
ASUS Mini PC with Intel Core Ultra processor
TheASUS NUC 15 Pro+ delivers industry-leading performance thanks to the Intel Core Ultra Processor 2 Series family, all in a sleek and compact metal chassis. Its advanced thermal design ensures reliable performance and minimises fan noise, making it ideal for home and business users.

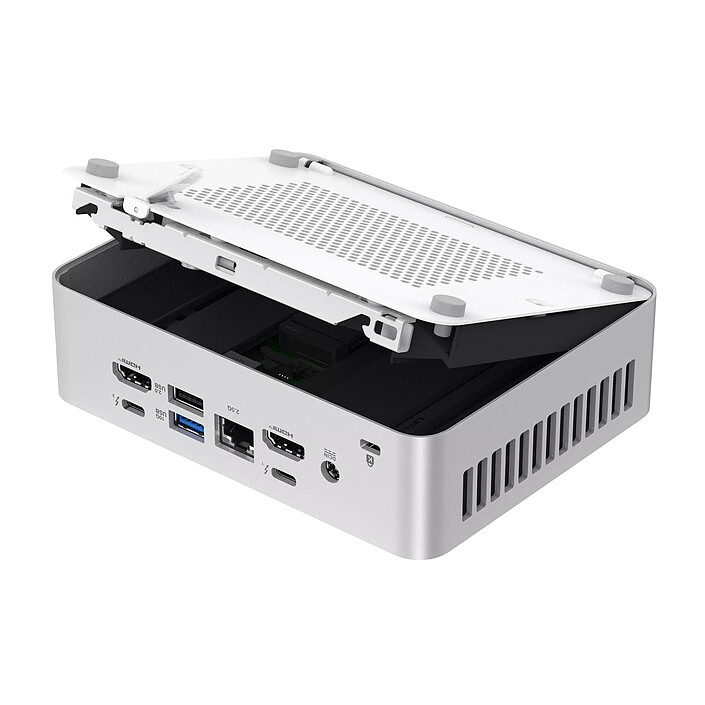

The ASUS NUC 15 Pro+ features an innovative spring-loaded, hinged lever design that transforms the upgrade experience into a seamless process. It allows users or IT staff to access the inside of the device without the need for tools, enabling quick and convenient RAM or storage upgrades. The ASUS NUC 15 Pro+ can be mounted on the back of a monitor, allowing flexible use of space in retail, hospitality and corporate environments.
Key Features
- Powered by Intel Core Ultra (2 Series) processors with up to 99 TOPS and 18% faster performance generation after generation for seamless operation
- Advanced thermal design ensures ultra-quiet cooling with 1.2 times less noise for a refined experience
- Intel Wi-Fi 7 and Bluetooth 5.4 deliver up to 2.4 times faster speeds and reliable, seamless connectivity
- Stylish 0.7L chassis with tool-less upgrades combines elegance and effortless customisation
- Supports up to four 4K displays via HDMI 2.1 and Thunderbolt 4, with intelligent power-down for improved energy efficiency
- Constructed from sustainable materials for long-lasting quality and eco-friendly design
Technical specifications
- Intel Core Ultra 7 255H processor
- 2 DDR5 SO-DIMM 5600 MHz/6400 MHz RAM slots (max. 96 GB)
- M.2 2280 PCIe 5.0 x4 slot + M.2 2242 PCIe 4.0 x4 slot
- Wi-Fi 7 + Bluetooth 5.4
- 2.5 GbE LAN
- 2 USB 3.1 + 1 USB-C 3.2 20 Gbps on front panel
Select your criteria
General information |
Product name |
ASUS NUC 15 Pro+ RNUC15CRSU700002 |
Brand |
ASUS | |
Model |
90AR00P3-M00040 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core Ultra 7 | |
CPU frequency |
5.1 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
AI Ready |
Yes | |
Memory |
Memory format |
2 X SO-DIMM 262-pin (DDR5) |
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
96 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel Arc Graphics 140T | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 |
| 1 X M.2 - PCI-E 5.0 x4 | ||
M.2 support |
1 X M.2 2242 | |
| 1 X M.2 2280 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Network |
Number of ports/Ethernet controler |
Intel i226-V |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wireless network standard(s) |
Bluetooth 5.4 | |
| Wi-Fi 7 | ||
Connectivity |

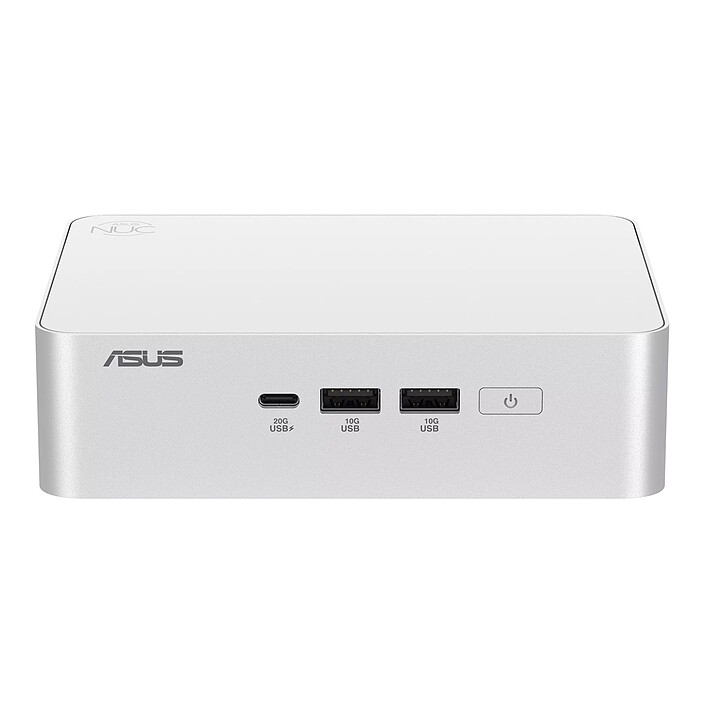

Front panel connectors |
2 X USB 3.1 |
| 1 X USB 3.2 Type C | ||

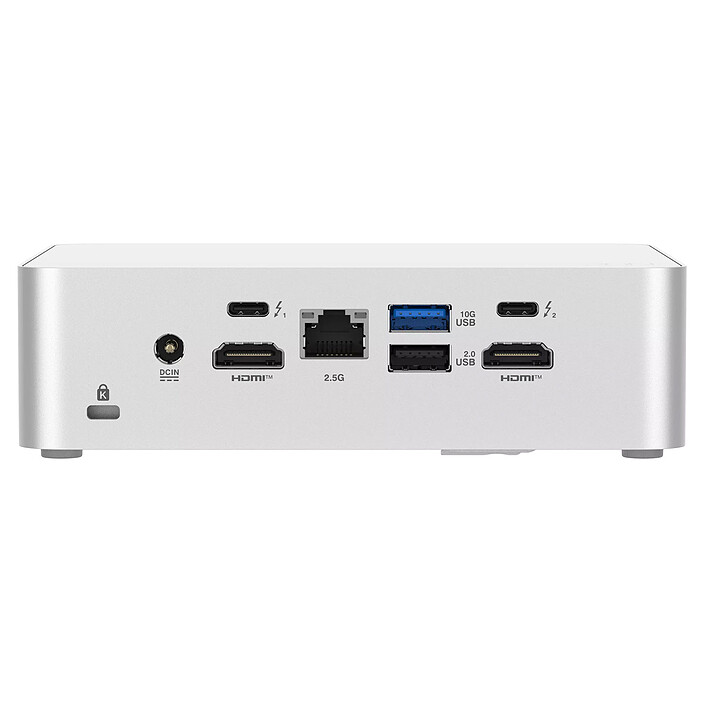

Rear panel connectors |
1 X RJ45 Female | |
| 1 X USB 2.0 | ||
| 1 X USB 3.1 | ||
| 2 X Thunderbolt 4/USB-C | ||
| 2 X HDMI 2.1 Female | ||
Case |
Power |
150 W |
Compatibility |
Supported OS |
Microsoft Windows 11 |
Max CPU TDP |
45 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
144 mm | |
Height |
42 mm | |
Depth |
112 mm | |
Weight |
600 g | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
