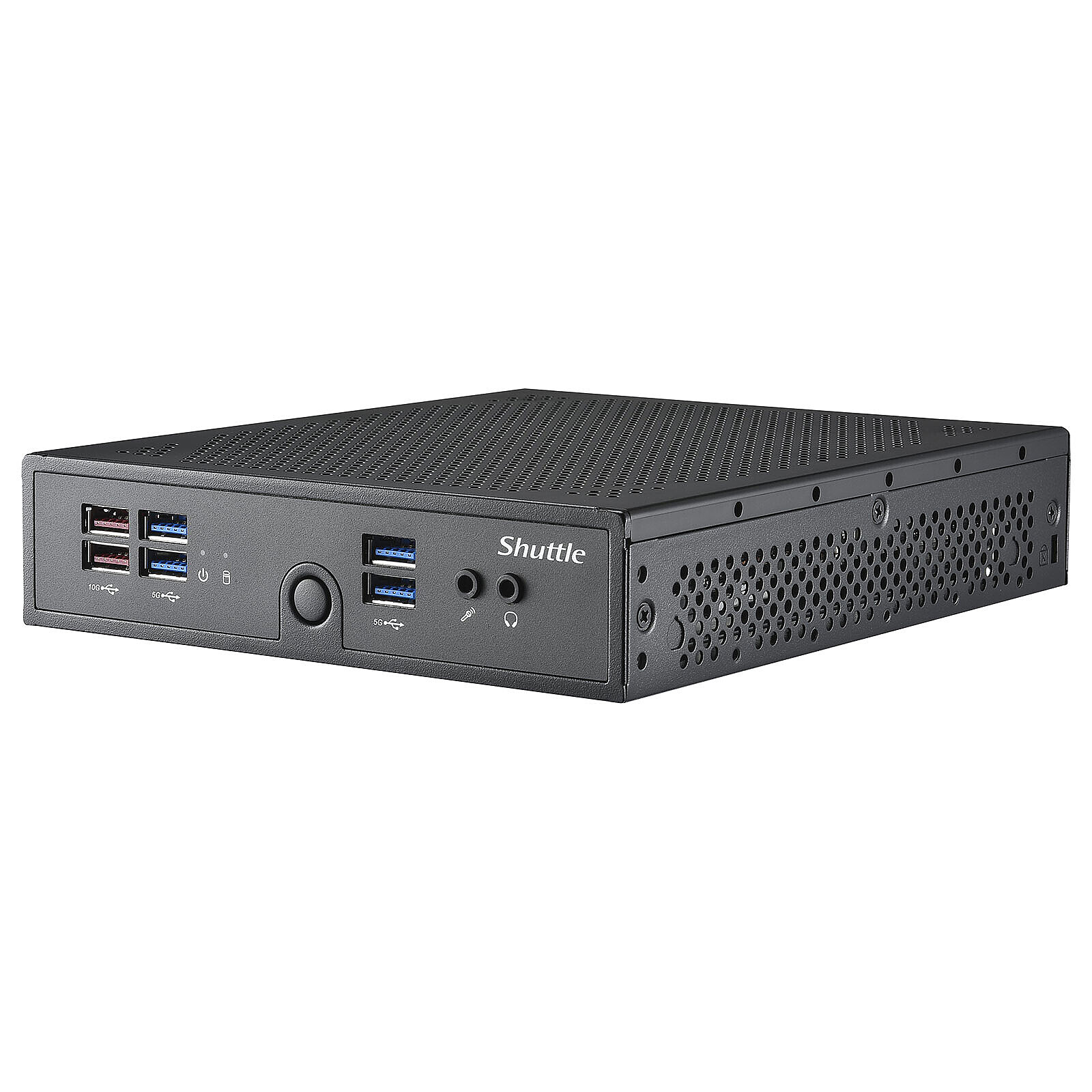

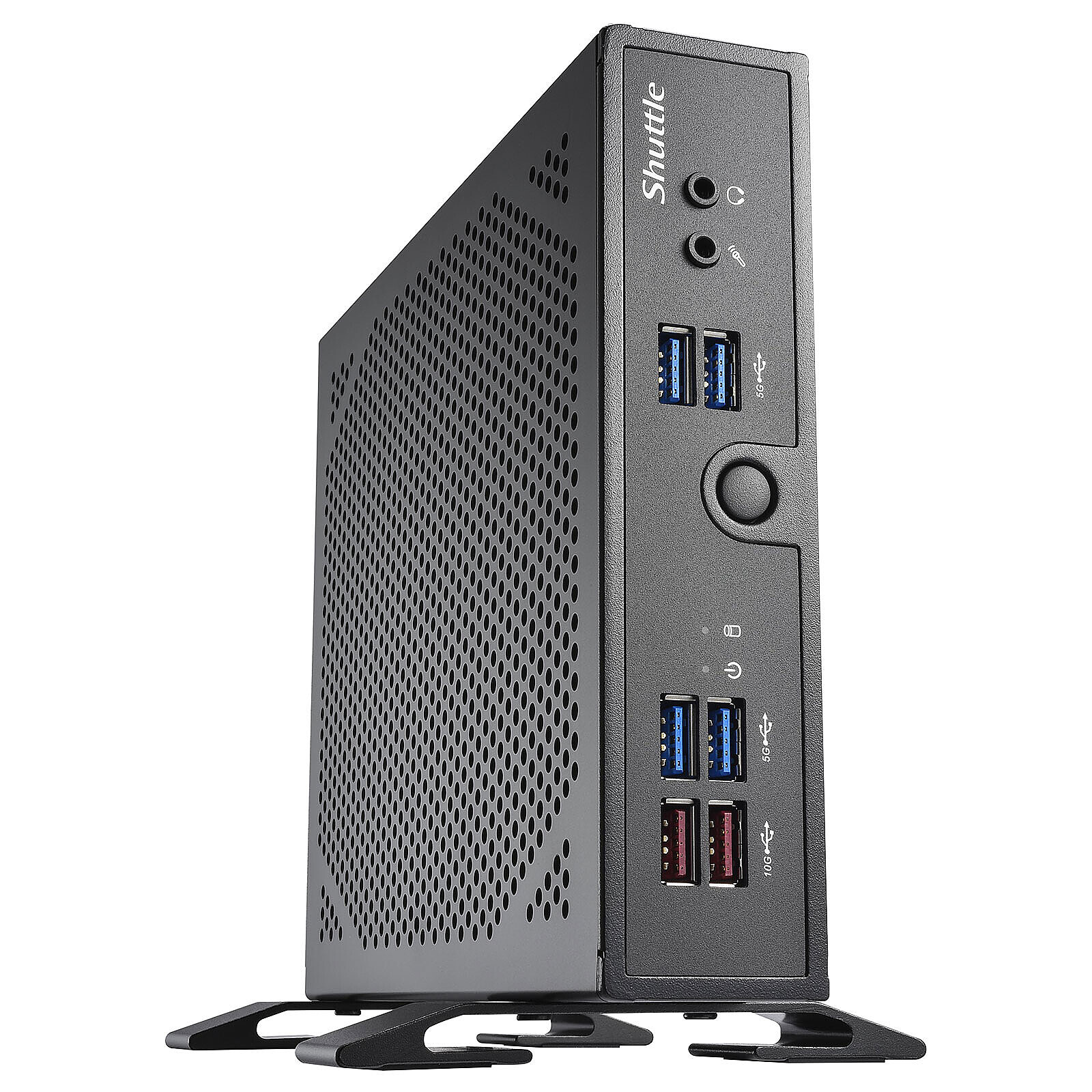

Shuttle XPC slim DS50U3
Intel Core i3-1315U - DDR5 - SATA 6 Gbps - M.2 PCIe 4.0 - USB 3.1 - LAN 2.5 GbE (without display/memory/storage/system/Wi-Fi)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Fanless mini-PC for continuous operation
The Shuttle XPC slim DS50U3 is a robust, compact barebone PC featuring an Intel Core i3-1315U processor and up to 3 screens. Easy to integrate, ideal for multitasking or intensive tasks, it's the ultimate professional PC. It can be used 24/7, thanks to its passive dissipation.
Key features
- Intel Core i3-1315U processor
- 2 DDR5 SODIMM RAM slots up to 5200 MHz (max. 96 GB)
- 1 2.5" SATA 6 Gbps SSD/HDD slot (max. 9.5 mm thick)
- 1 M.2 2280 PCIe NVMe 4.0 4x + M.2 2280 SATA 6 Gbps slot
- 1 2.5 GbE LAN network port + 1 Gigabit LAN network port
- 2 USB 3.1 10 Gbit/s ports + 4 USB 3.0 ports + 2 USB 2.0 ports
- 1 M.2 2230 slot for Wi-Fi extension (to be purchased separately)
- 1 x DisplayPort 1.4 + 1 x HDMI 2.0b + 1 xVGA (up to 3 screens)
- Support VESA 75*75 and 100*100 + vertical support included
Select your criteria
General information |
Product name |
Shuttle XPC slim DS50U3 |
Brand |
Shuttle | |
Model |
DS50U3 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i3 | |
CPU frequency |
4.5 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 262-pin (DDR5) |
Memory Frequency(ies) |
DDR5 5200 MHz | |
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
96 GB | |
Graphic |
Integrated graphics controller |
No |
Graphics chipset |
Intel UHD Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s |
| 1 X M.2 - PCI-E 4.0 x4 | ||
| 1 X Serial ATA 6Gb/s (SATA Revision 3) | ||
M.2 support |
M.2 2280 | |
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC888S |
Number of audio channels |
6 | |
Network |
Number of ports/Ethernet controler |
Intel i226 |
Number of ports/Ethernet controler N°2 |
Intel i219 | |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| 10/100/1000 Mbps | ||
Connectivity |

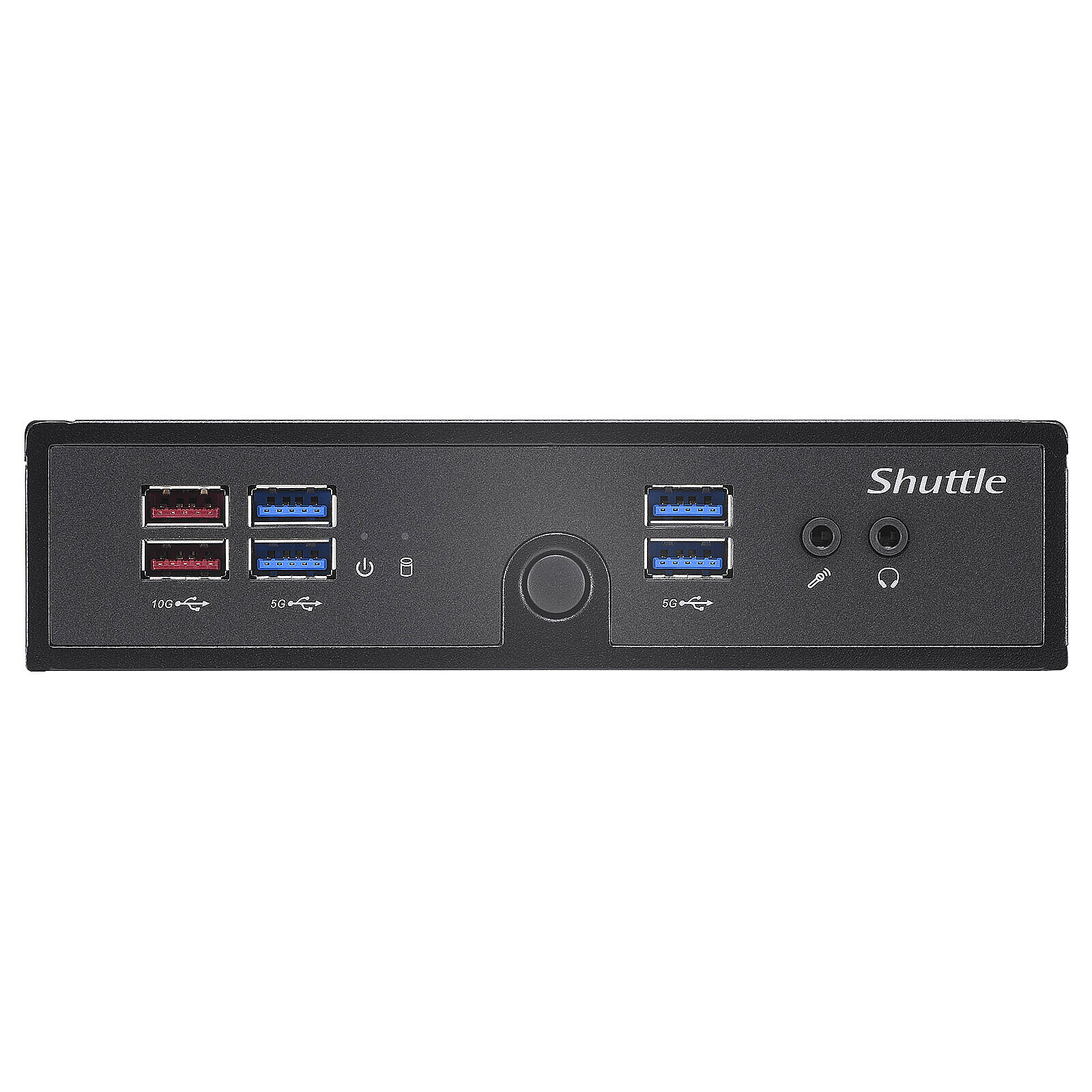

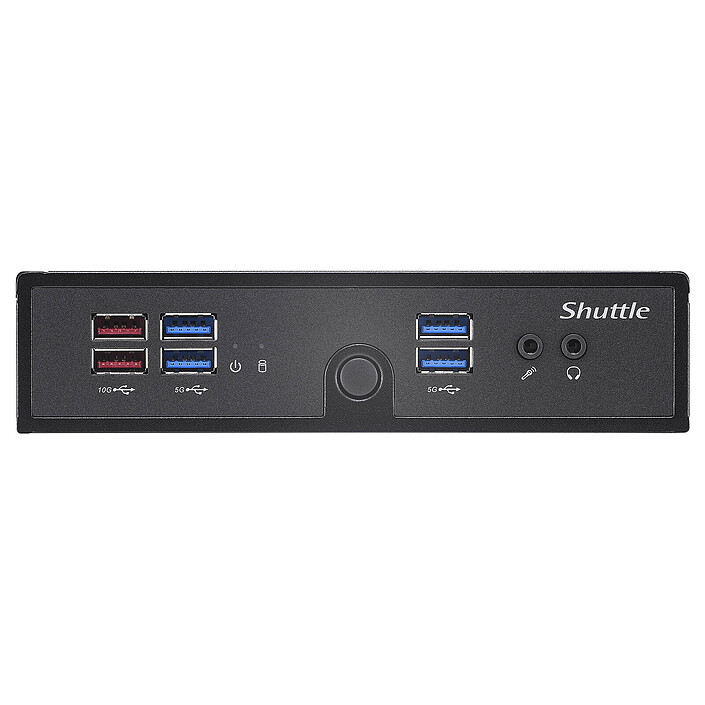

Front panel connectors |
Headphone (3.5mm Jack Female) |
| Microphone (3.5mm Jack Female) | ||
| 4 X USB 3.0 | ||
| 2 X USB 3.1 | ||

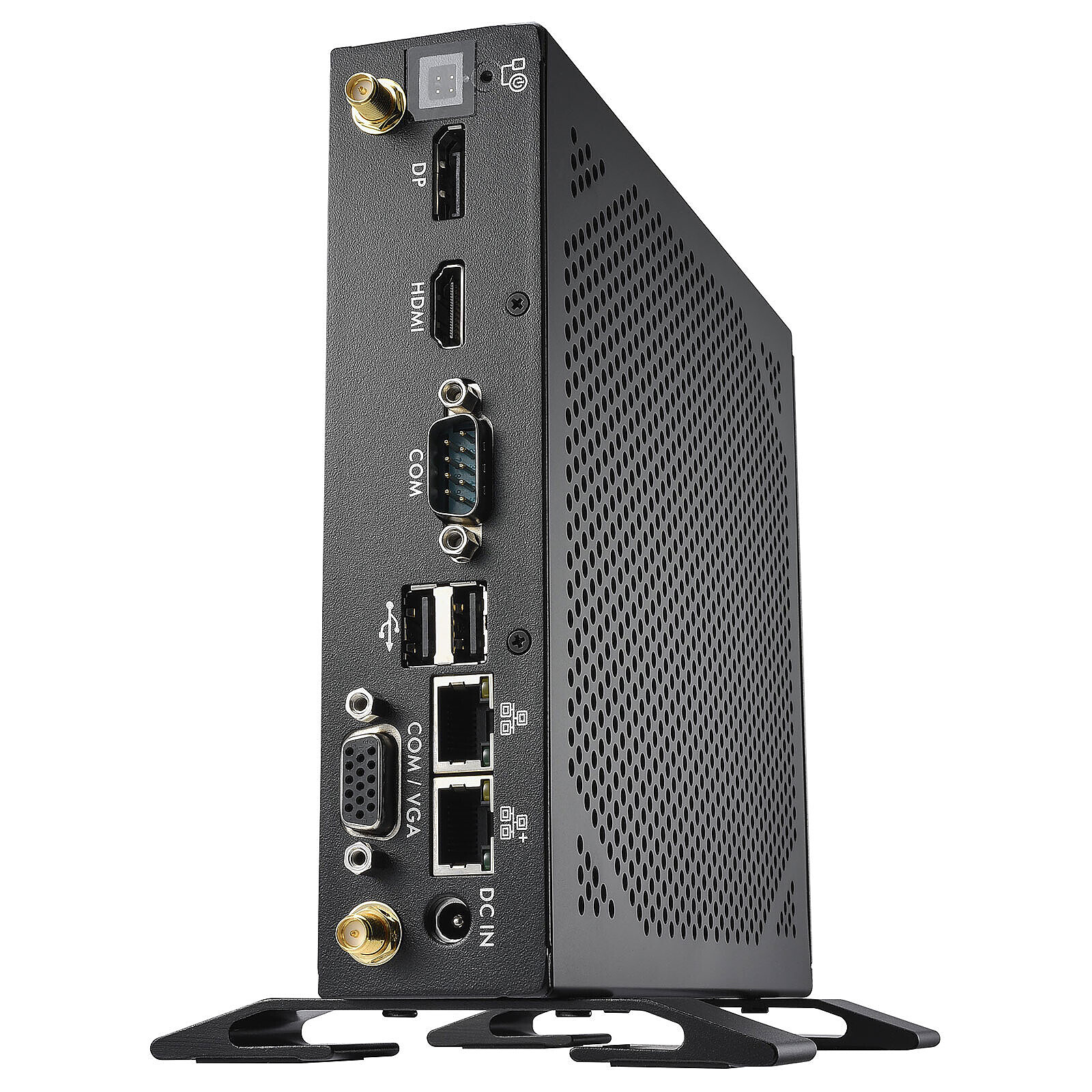

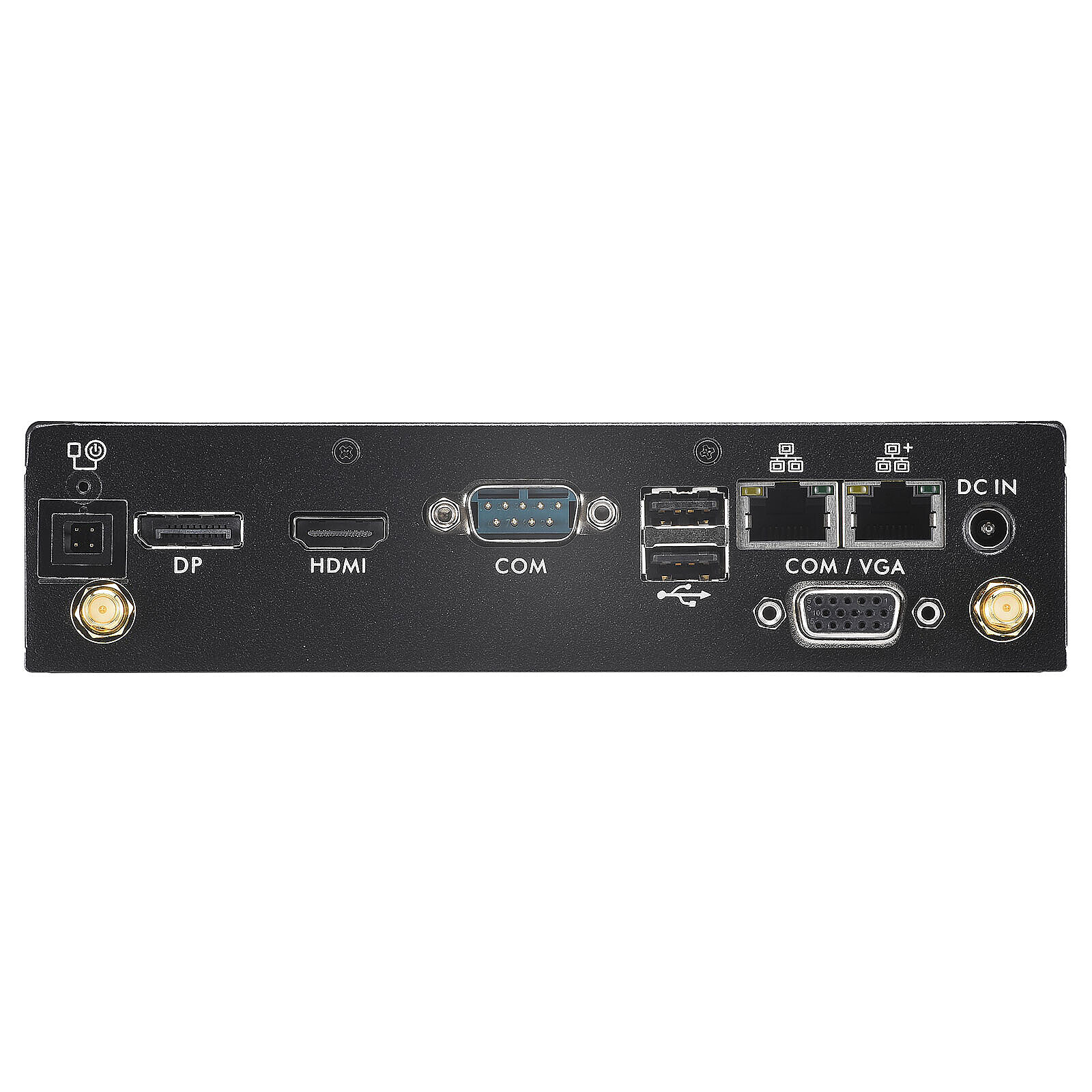

Rear panel connectors |
Port for Kensington lock | |
| 2 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
| 1 X Serial (RS-232) | ||
| 1 X VGA (D-sub 15 Female) | ||
Case |
Number of 2.5" slots |
1 |
Power |
90 W | |
Compatibility |
Supported OS |
Microsoft Windows 11 |
| Microsoft Windows 10 | ||
| Linux | ||
Max CPU TDP |
15 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
200 mm | |
Height |
39.5 mm | |
Depth |
165 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
See all Shuttle products
Product referenced on 7 Aug 2025
For the moment, there are no customer reviews.Write a review
