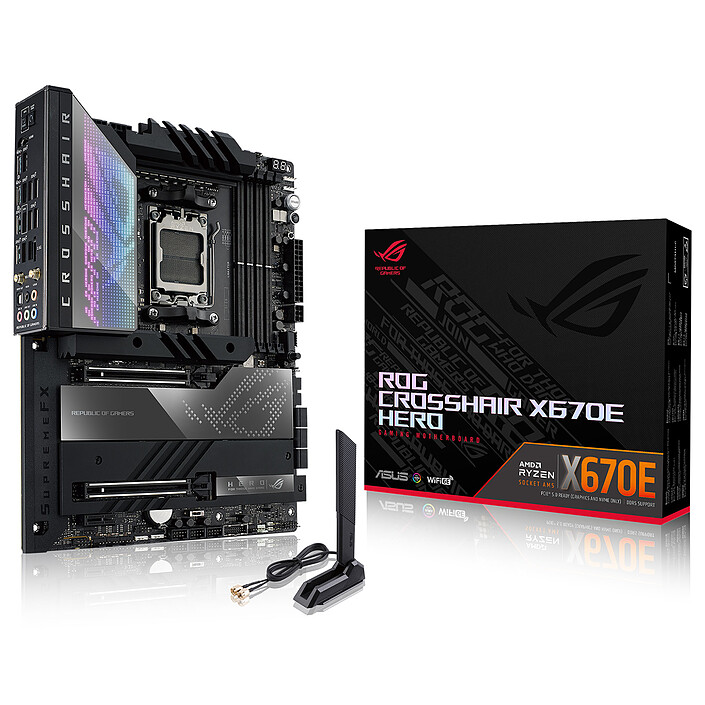

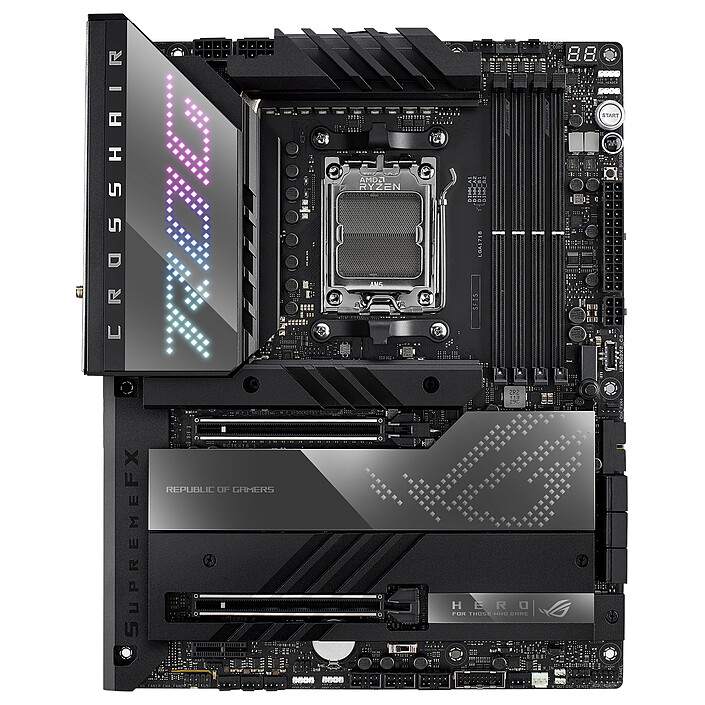

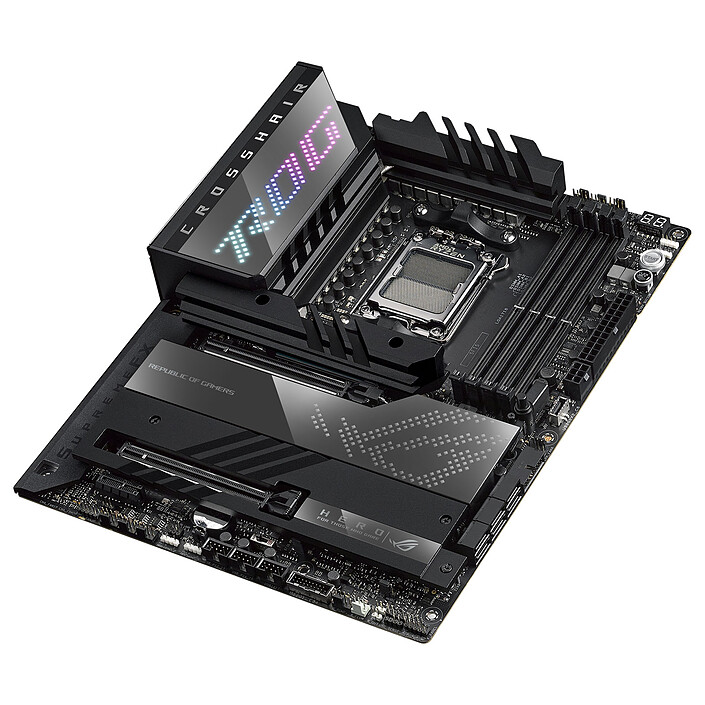

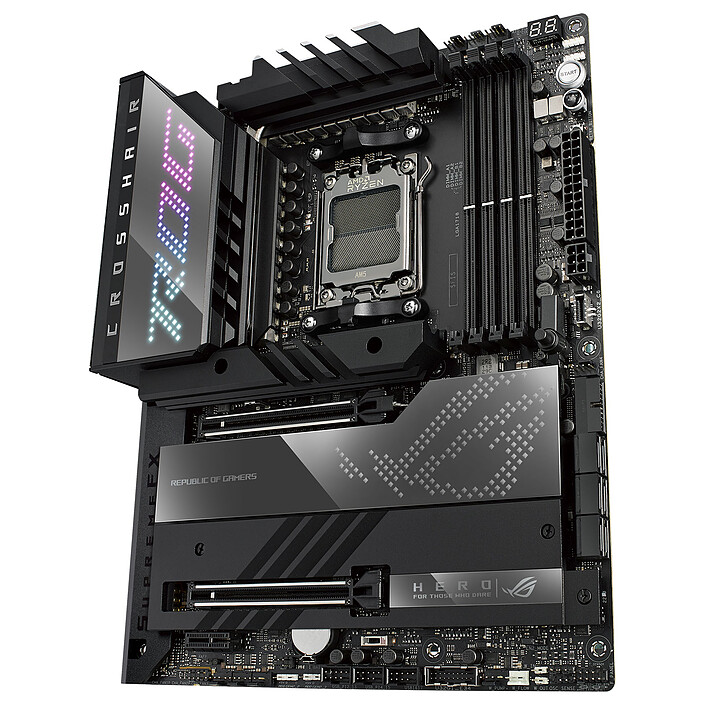

ASUS ROG CROSSHAIR X670E HERO
ATX Socket AM5 AMD X670E motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB 4.0 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Pictures may differ from actual products
The ASUS ROG CROSSHAIR X670E HERO motherboard is ideal for building a Gaming PC with the most advanced technologies thanks to its AMD AM5 socket and compatibility with AMD Ryzen 7000 processors. It supports DDR5 RAM, graphics cards and PCI-Express 5.0 SSDs.
ATX Socket AM5 AMD X670E motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB 4.0 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
ASUS ROG CROSSHAIR X670E HERO : AM5 Gaming Motherboard
The ASUS ROG CROSSHAIR X670E HERO motherboard is ideal for designing a Gaming PC with the most advanced technologies thanks to its AMD AM5 socket and compatibility with AMD Ryzen 7000 processors. It supports DDR5 RAM, PCI-Express 5.0 graphics cards, PCIe 5.0 and 4.0 M.2 SSDs, 2.5 GbE LAN and Wi-Fi 6E connectivity, as well as USB 4.0 & 3.2.
ASUS CROSSHAIR X670E HERO plus :
- AMD AM5 socket for AMD Ryzen 7000 processor
- 4 Dual-ChannelDDR5 8000 MHz (O.C.) memory slots
- 2 x PCI-Express 5.0 16x (16x/8x) ports
- 2 x M.2 PCIe 5.0 x4 + 2 x M2 PCIe 4.0 x4
- Audio 7.1 Surround Realtek ALC4082 and DAC ESS SABRE9218PQ
- Networks LAN 2.5 GbE + Wi-FI 6E & Bluetooth 5.2
- 2 x USB 4.0
Play in the best conditions
The high frequencies of AMD Ryzen Zen 4 processors are a real advantage when it comes to gaming. Choose the right components and build a high-performance gaming PC that's latency-free and ready when you are. Get the edge over your opponents and reach new heights with AMD Ryzen 7000 processors and AMD AM5 motherboards.
AMD Ryzen 7000 processors deliver performance across the board. They'll help you create faster, achieve your goals faster and save time all the time. From 3D rendering to exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
ASUS ROG CROSSHAIR X670E HERO |
Brand |
ASUS | |
Model |
90MB1BC0-M0EAY0 | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X670E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8000 MHz | |
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 1 X PCI Express 5.0 x16 (x8) | ||
Number and Type of slots |
1 X PCI Express 4.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC4082 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Intel i225-V |
Network standard(s) |
Bluetooth 5.2 | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X M.2 - PCI-E 4.0 x4 | |
| 2 X M.2 - PCI-E 5.0 x4 | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

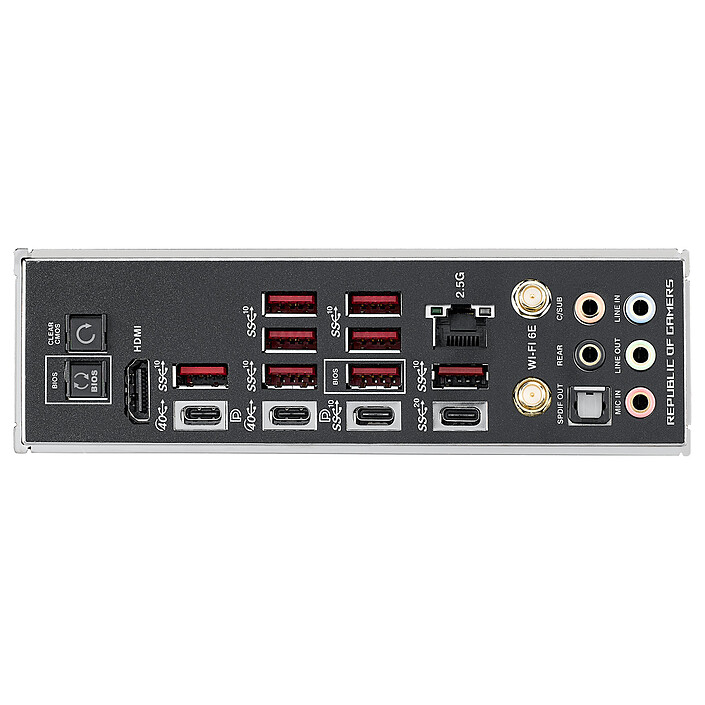

Rear panel connectors |
2 X SMA Female | |
| 5 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 1 X RJ45 Female | ||
| 8 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.2 Type C | ||
| 2 X USB 4 Type C | ||
Additional connectors |
1 X Internal USB 3.2 Type C | |
| 4 X Internal USB 3.0 | ||
| 6 X Internal USB 2.0 | ||
| 1 X PCI Express 6 Pin | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
