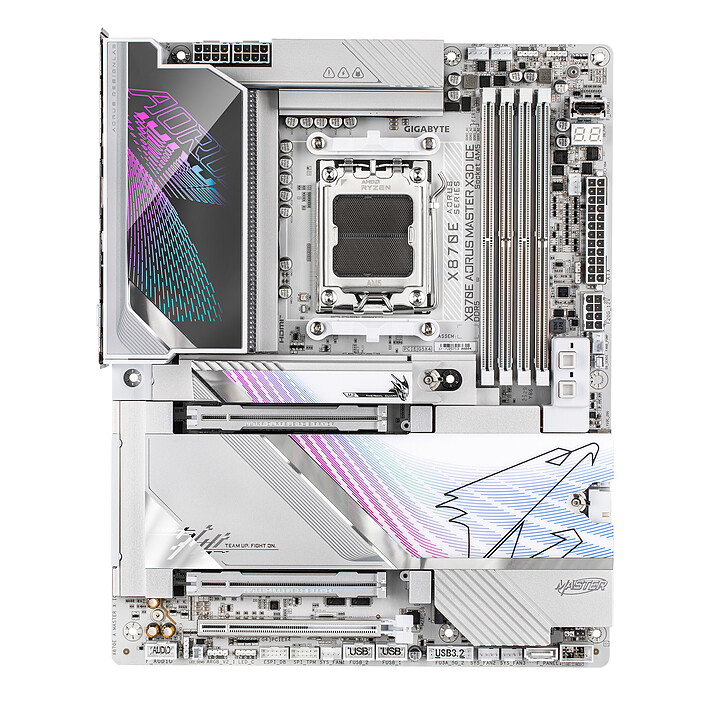

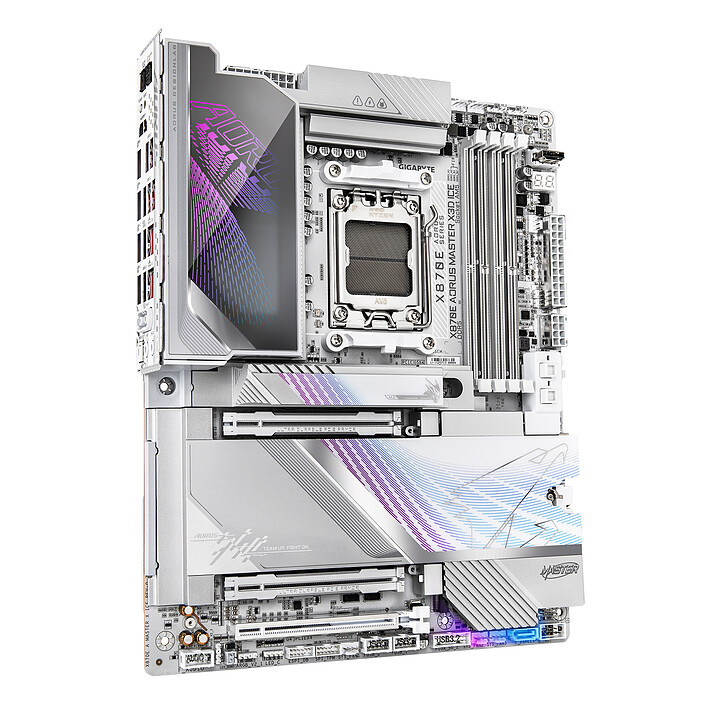

Gigabyte X870E AORUS MASTER X3D ICE
ATX Socket AM5 AMD X870E motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - Wi-Fi 7/Bluetooth 5.4 - 5 GbE + 10 GbE LAN
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
AM5 socket, DDR5 and PCI-Express 5.0 gaming motherboard
The Gigabyte X870E AORUS MASTER X3D ICE motherboard features the AMD X870E chipset, making it ideal for building a high-performance gaming rig. Its AMD AM5 socket allows it to support AMD Ryzen 7000/8000/9000 processors. It has 4 DDR5 slots and can utilise graphics cards and M.2 NVMe SSDs with PCI Express 5.0 for breathtaking performance. It offers comprehensive connectivity with 10 GbE LAN, Wi-Fi 7 and Bluetooth 5.3, as well as USB 3.2 and 4.0.
Advantages of the Gigabyte X870E AORUS MASTER X3D ICE
- AMD AM5 socket for AMD Ryzen 7000/8000/9000 processors
- X3D Turbo 2.0 mode for AI-boosted performance with a single click
- 4 DDR5 9000 MHz (OC) dual-channel memory slots with EXPO and XMP support
- Next-generation storage: 2 x M.2 PCIe 5.0 + 3 x M.2 PCIe 4.0
- EZ-Latch Plus Duo: Quick lock/unlock of PCIe 5.0 x16 and M.2 (no screws required)
- Efficient heat dissipation with heat sinks on VRMs (VRM Thermal Armour) and for M.2 SSDs with Thermal Guard
- Wi-Fi 7 and Bluetooth 5.4 + 5 GbE / 10 GbE LAN
- High-quality audio with Realtek ALC1220 chipset
- Full USB connectivity including 2 USB4 Type C ports
- Q-Flash Plus: BIOS update without installing a processor, memory or graphics card
Gaming in the best conditions
The high frequencies of AMD Ryzen Zen 5 processors are a real boon for gamers. Choose the right components and design a powerful, lag-free gaming PC that's ready to go when you need it. Gain an edge over your opponents and reach new heights with AMD Ryzen 9000 processors and AMD AM5 motherboards.
Select your criteria
General information |
Product name |
Gigabyte X870E AORUS MASTER X3D ICE |
Brand |
Gigabyte | |
Model |
X870E A MASTER X ICE | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8400 MHz | |
| DDR5 8600 MHz | ||
| DDR5 8800 MHz | ||
| DDR5 9000 MHz | ||
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 4800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x16 (x4) | |
| 1 X PCI Express 5.0 x16 (x8) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1220 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Integrated - 10 GbE |
Network standard(s) |
5 Gbps Gigabit Ethernet (5 GbE) | |
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
| Bluetooth 5.4 | ||
| Wi-Fi 7 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 2 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 4.0 2x | ||
Number of M.2 slot(s) |
5 | |
Supported RAID Modes |
1 | |
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

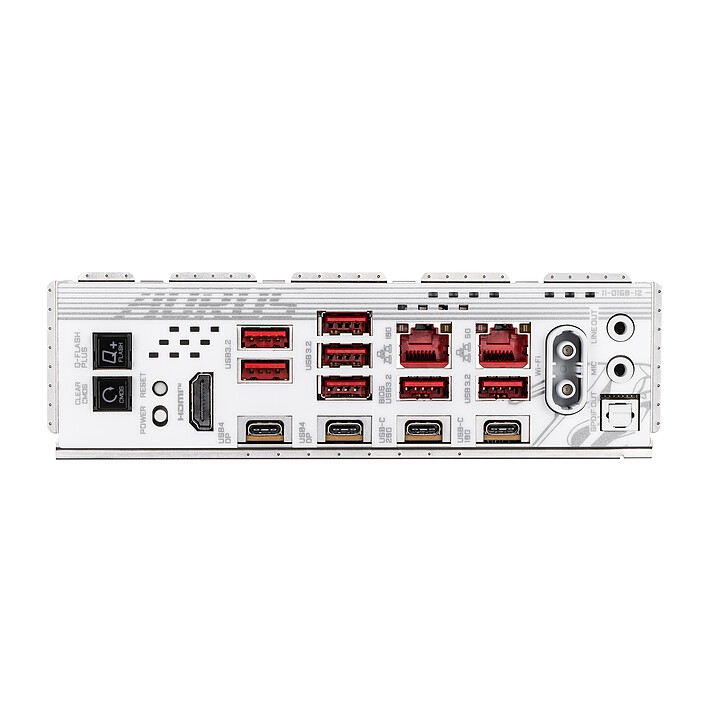

Rear panel connectors |
2 X USB4 (Type-C) | |
| 1 X Digital audio S/PDIF Optical | ||
| 1 X HDMI Female | ||
| 7 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.2 Type C | ||
| 2 X RJ45 Female | ||
| BIOS Flash Update | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 4 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X PCI Express 8 Pin | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
