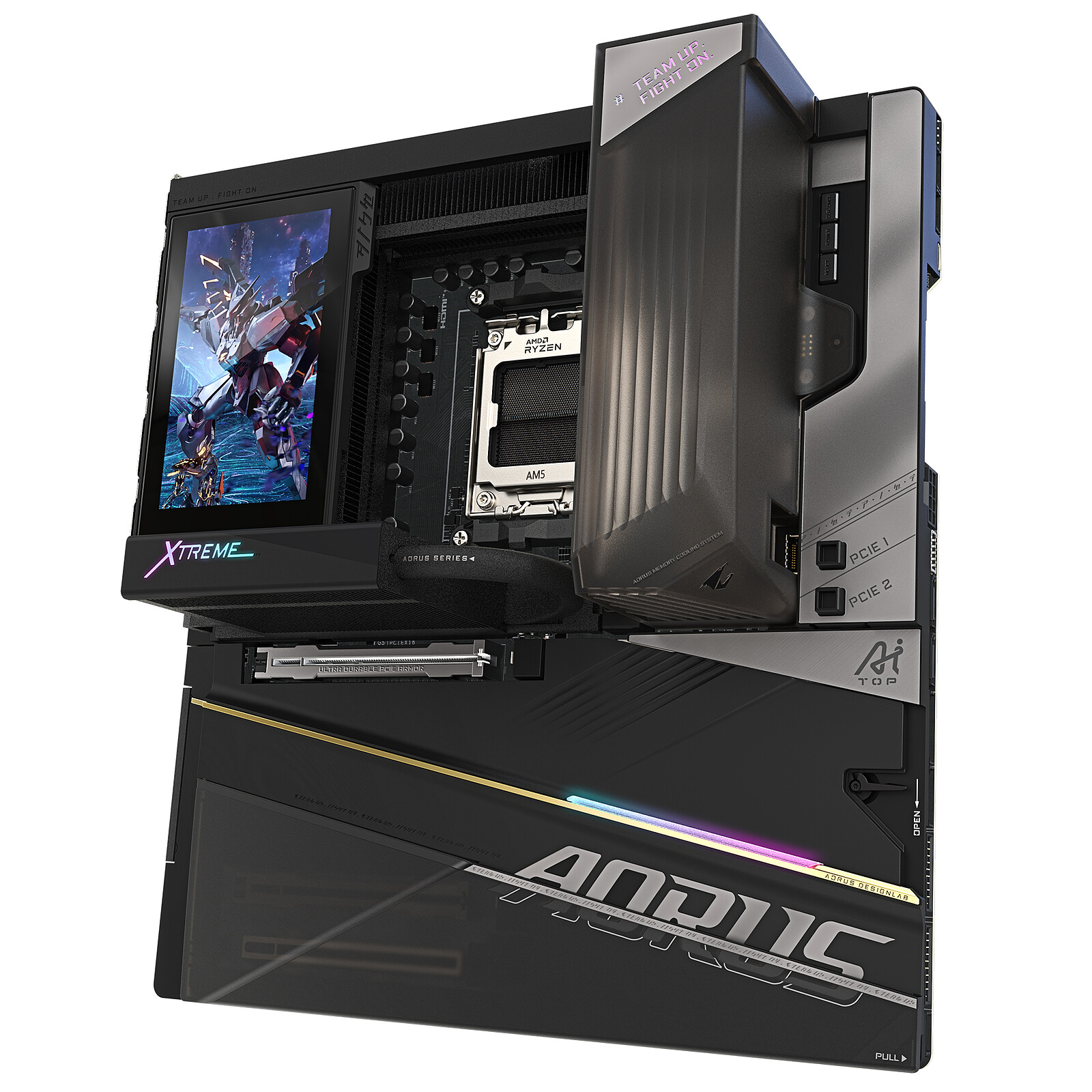

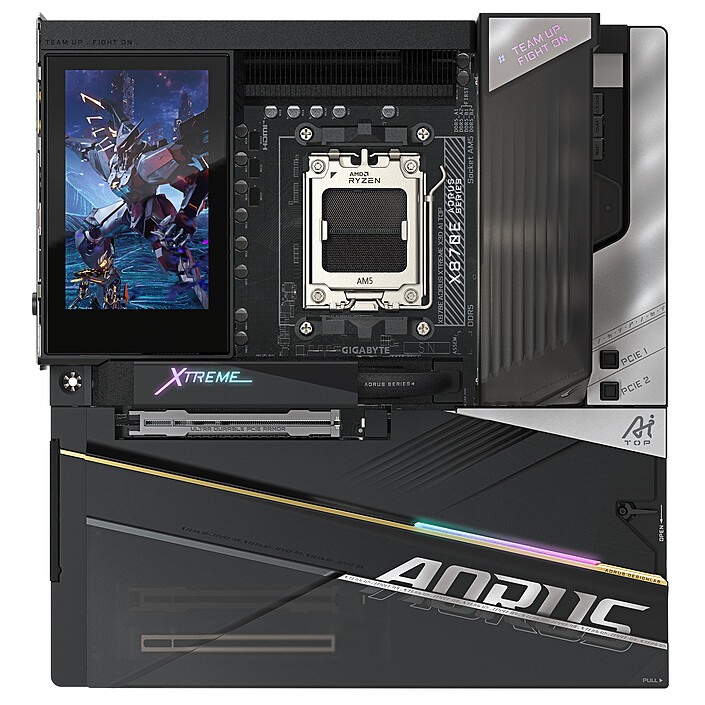

Gigabyte X870E AORUS XTREME X3D AI TOP
E-ATX Socket AM5 AMD X870E motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - Wi-Fi 7/Bluetooth 5.4 - 10 GbE LAN
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
High-performance gaming motherboard
The Gigabyte X870E AORUS XTREME X3D AI TOP motherboard represents the pinnacle of AM5 motherboard engineering designed for AMD Ryzen X3D processors. Designed for demanding gamers and computer enthusiasts, it incorporates cutting-edge technologies such as X3D Turbo Mode 2.0, a dynamic optimisation system powered by artificial intelligence that can get the most out of X3D processors for a smoother and more responsive experience. This board also emphasises memory performance, energy efficiency, thermal stability and ease of overclocking, while offering comprehensive modern connectivity and unparalleled robustness for high-end configurations.
The advantages of the Gigabyte X870E AORUS ELITE X3D
- Socket AM5 with AMD X870E chipset
- Integrated 5-inch LCD screen: real-time system information or dynamic logo display
- AI technologies: X3D Turbo Mode 2.0 with real-time CPU parameter optimisation
- Memory: 4 x dual-channel DDR5 DIMMs with advanced profile support and overclocking
- Expansion slots: 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, 1 x PCIe 4.0 x4
- Storage: 5 x M.2 slots (2 x PCIe 5.0, 3 x PCIe 4.0) and 2 x SATA 6Gb/s ports
- Power supply & VRM: 24*+2+2 phase design with powerful connectors and advanced thermal cooling
- Cooling: M.2 Thermal Guard XTREME, CPU Thermal Matrix, premium fans and heat pipes
- Network connectivity: Dual 10 GbE Ethernet, Wi-Fi 7 with directional antennas
- USB Ports: 2 x USB4 (USB Type-C), 1 x USB3.2 Gen2x2 Type-C, 1 x USB3.2 Gen2 Type-C, 8 x USB3.2 Gen2
- Audio: High-end audio solution with ESS ES9280A DAC + 2x ESS ES9080
- Ease of assembly: Numerous EZ-Latch systems, EZ-Debug Zone and advanced DIY support
- Design and durability: PCB Mastery, Ultra Durable protection and RGB Fusion
Gaming in the best conditions
The high frequencies of AMD Ryzen Zen 5 processors are a real boon for gamers. Choose the right components and design a powerful, lag-free gaming PC that's ready to go when you need it. Gain the edge over your opponents and reach new heights with AMD Ryzen 9000 processors and AMD AM5 motherboards.
Select your criteria
General information |
Product name |
Gigabyte X870E AORUS XTREME X3D AI TOP |
Brand |
Gigabyte | |
Model |
X870E A XTR X AI TOP | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4400 MHz | |
| DDR5 9000 MHz | ||
| DDR5 8800 MHz | ||
| DDR5 8600 MHz | ||
| DDR5 8400 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 5.0 x16 (x8) | |
| 1 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Network |
Number of ports/Ethernet controler |
2 X Integrated - 10 GbE |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
| Wi-Fi 7 | ||
| Bluetooth 5.4 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 2x | ||
| 2 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
5 | |
Supported RAID Modes |
1 | |
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

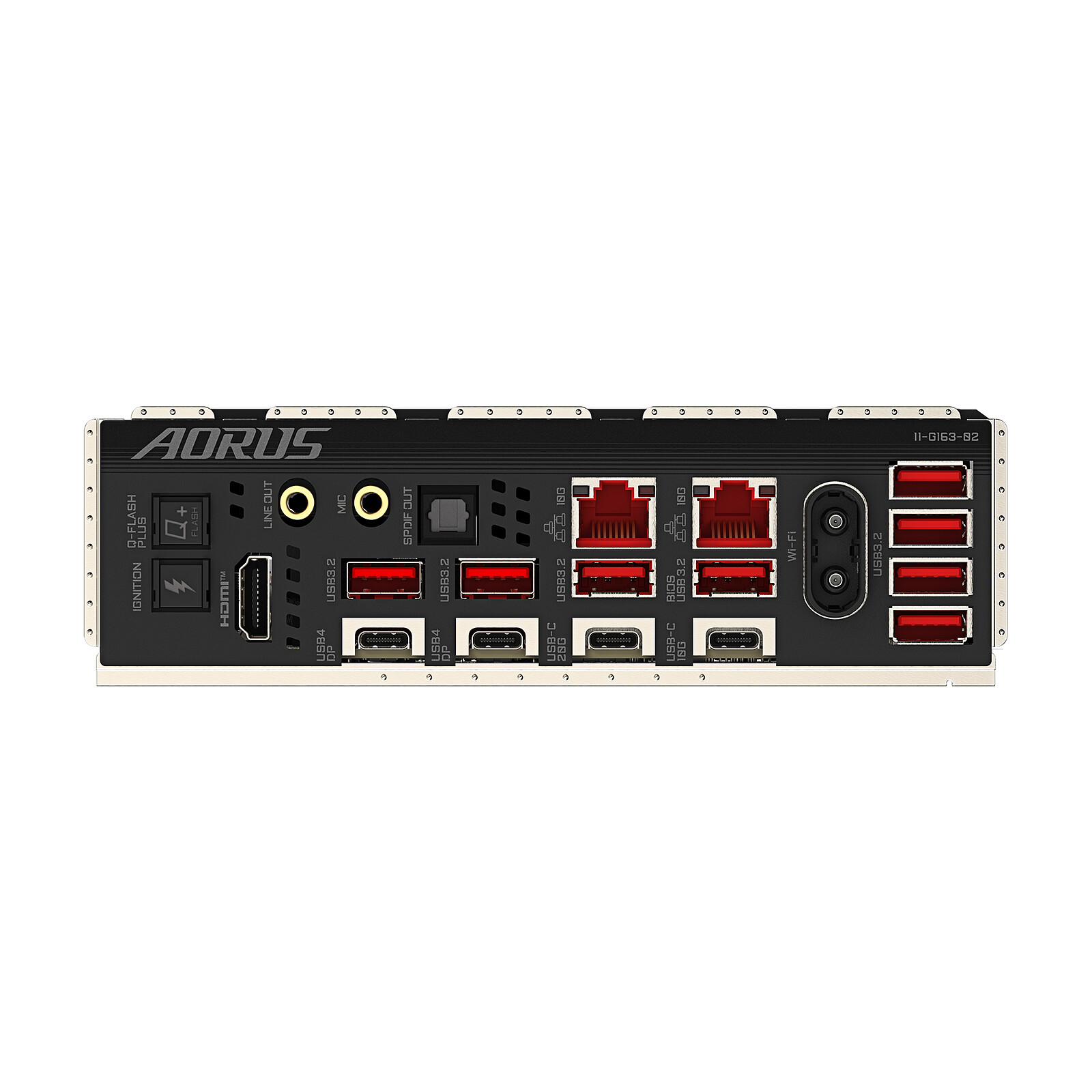

Rear panel connectors |
1 X USB 3.1 Type C | |
| 1 X USB 3.2 Type C | ||
| 2 X USB4 (Type-C) | ||
| 1 X HDMI Female | ||
| 8 X USB 3.1 | ||
| 3 X USB 3.0 | ||
| 2 X RJ45 Female | ||
| BIOS Flash Update | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
2 X +12V (Power supply P8) | |
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X PCI Express 8 Pin | ||
| Front panel audio | ||
| 1 X Addressable LED RGB connector(s) | ||
| 1 X Internal USB 3.1 Type C | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
285 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
