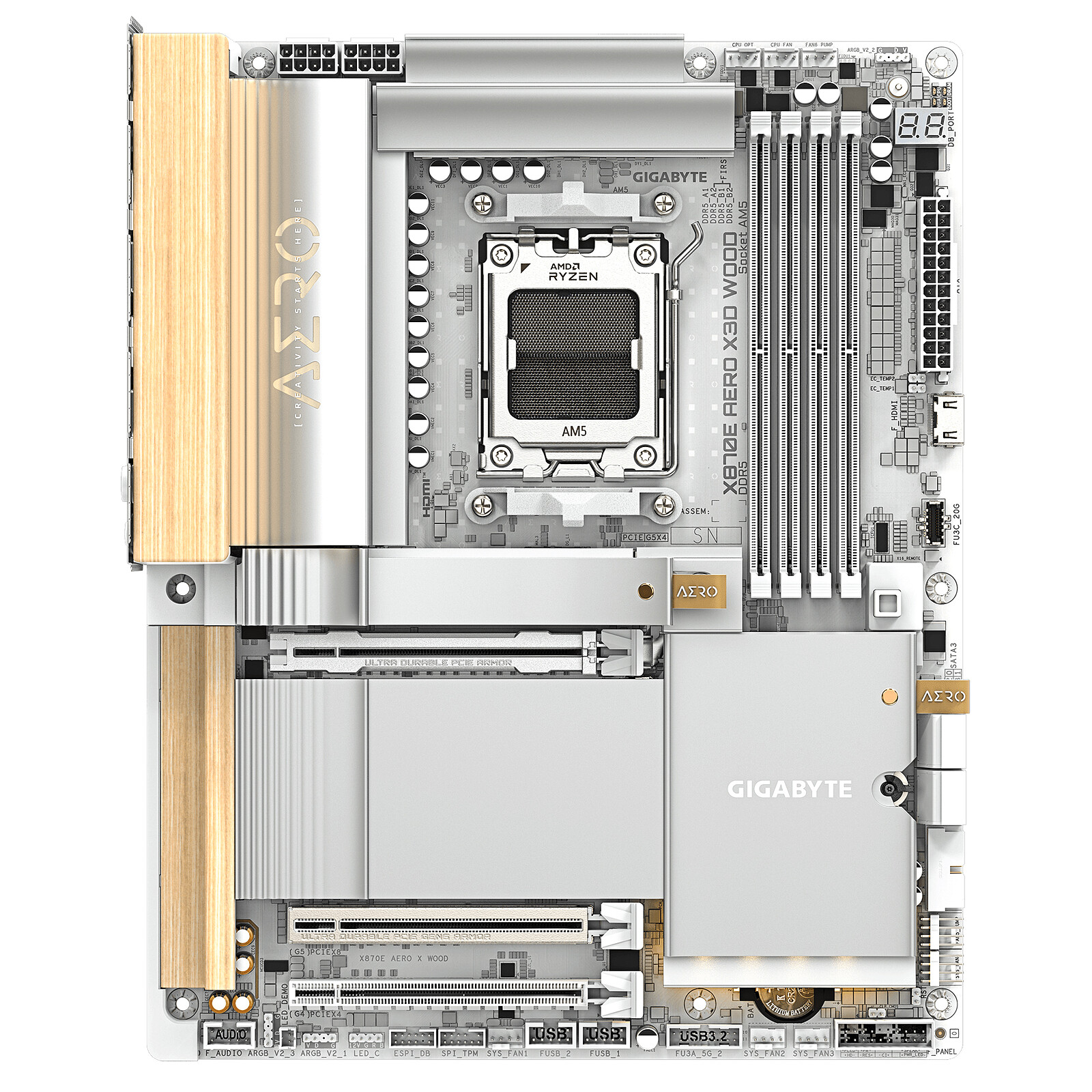

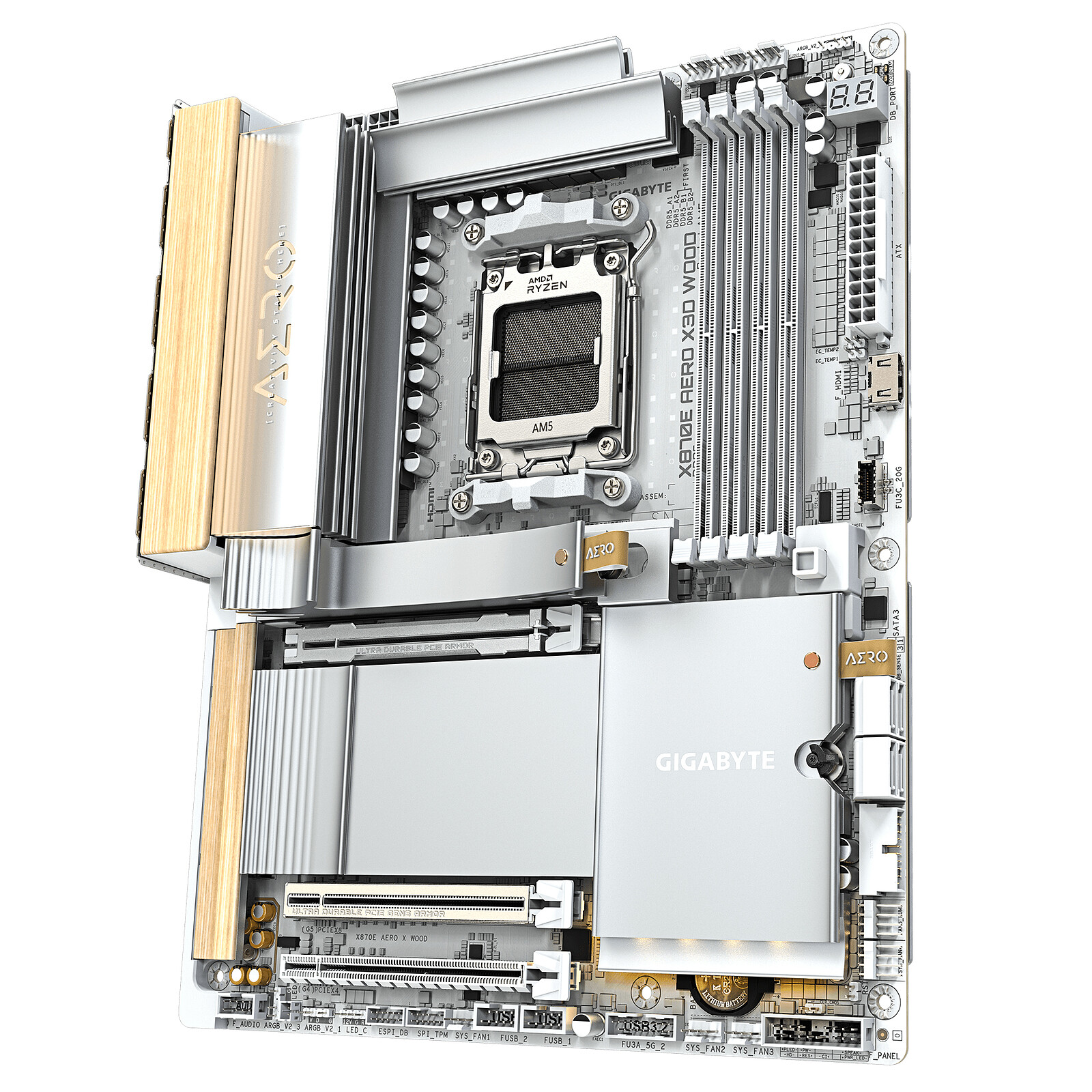

Gigabyte X870E AERO X3D WOOD
ATX Socket AM5 AMD X870E motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - Wi-Fi 7/Bluetooth 5.4 - 5 GbE LAN
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
AM5 socket, DDR5 and PCI-Express 5.0 gaming motherboard
The Gigabyte X870E AERO X3D WOOD motherboard features the AMD X870E chipset, making it ideal for building a high-performance gaming rig. Its AMD AM5 socket allows it to support AMD Ryzen 7000/8000/9000 processors. It has 4 DDR5 slots and can utilise graphics cards and M.2 NVMe SSDs with PCI Express 5.0 for breathtaking performance. It offers comprehensive connectivity with 5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4, as well as USB 3.2 and USB4.
The advantages of the Gigabyte X870E AERO X3D WOOD
- Elegant design with wooden parts and removable elements via leather tabs
- AMD AM5 socket for AMD Ryzen 7000/8000/9000 processors
- X3D Turbo 2.0 mode for AI-boosted performance with a single click
- 4 Dual-Channel DDR5 9000 MHz (OC) memory slots with EXPO and XMP support
- Next-generation storage: 2 x M.2 PCIe 5.0 + 2 x M.2 PCIe 4.0
- EZ-Latch: Quick lock/unlock of PCIe 5.0 x16, M.2 (no screws required) and M.2 heat sinks
- Efficient heat dissipation with heat sinks on VRMs (VRM Thermal Armour) and for M.2 SSDs with Thermal Guard
- Wi-Fi 7 and Bluetooth 5.4 + 2x 5 GbE LAN
- High-quality audio with Realtek ALC1220 HD chipset
- 2 USB4 ports (USB-C format)
- Q-Flash Auto Scan
Gaming in the best conditions
The high frequencies of AMD Ryzen Zen 5 processors are a real boon for gamers. Choose the right components and design a powerful, lag-free gaming PC that's ready to go when you need it. Gain an edge over your opponents and reach new heights with AMD Ryzen 9000 processors and AMD AM5 motherboards.
Select your criteria
General information |
Product name |
Gigabyte X870E AERO X3D WOOD |
Brand |
Gigabyte | |
Model |
X870E AERO X WOOD | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4400 MHz | |
| DDR5 9000 MHz | ||
| DDR5 8800 MHz | ||
| DDR5 8600 MHz | ||
| DDR5 8400 MHz | ||
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 5.0 x16 (x8) | |
| 1 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1220 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
2 X Realtek 5 GbE |
Network standard(s) |
Bluetooth 5.4 | |
| Wi-Fi 7 | ||
| 5 Gbps Gigabit Ethernet (5 GbE) | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 2 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

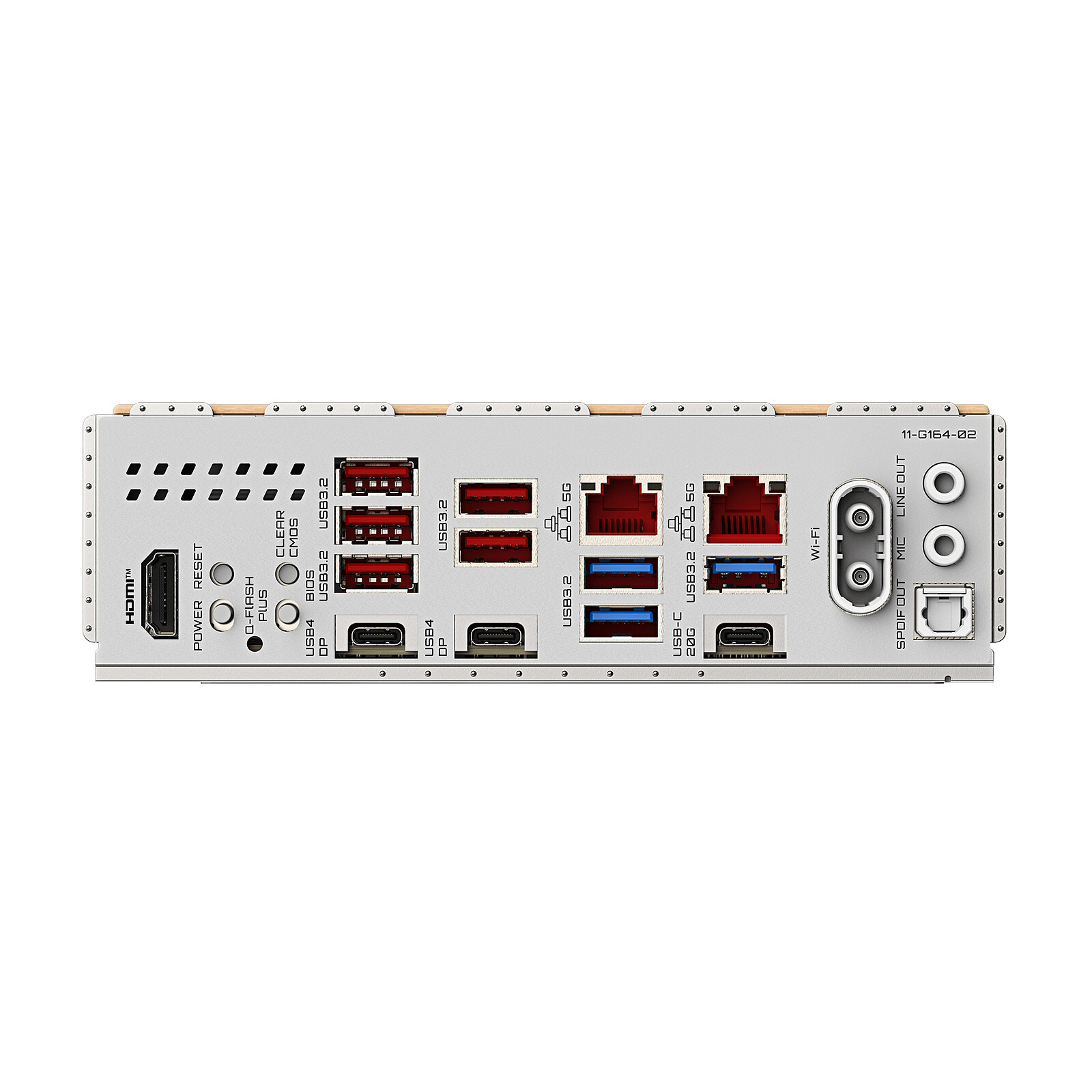

Rear panel connectors |
1 X USB 3.2 Type C | |
| 2 X USB4 (Type-C) | ||
| 1 X Digital audio S/PDIF Optical | ||
| 1 X HDMI Female | ||
| 5 X USB 3.1 | ||
| 3 X USB 3.0 | ||
| 2 X RJ45 Female | ||
| BIOS Flash Update | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
3 X Addressable LED RGB connector(s) | |
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
