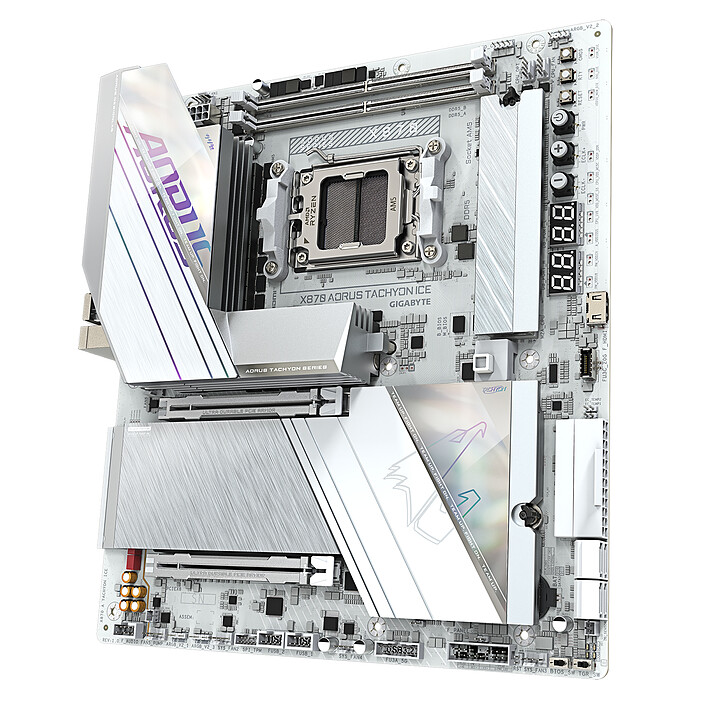

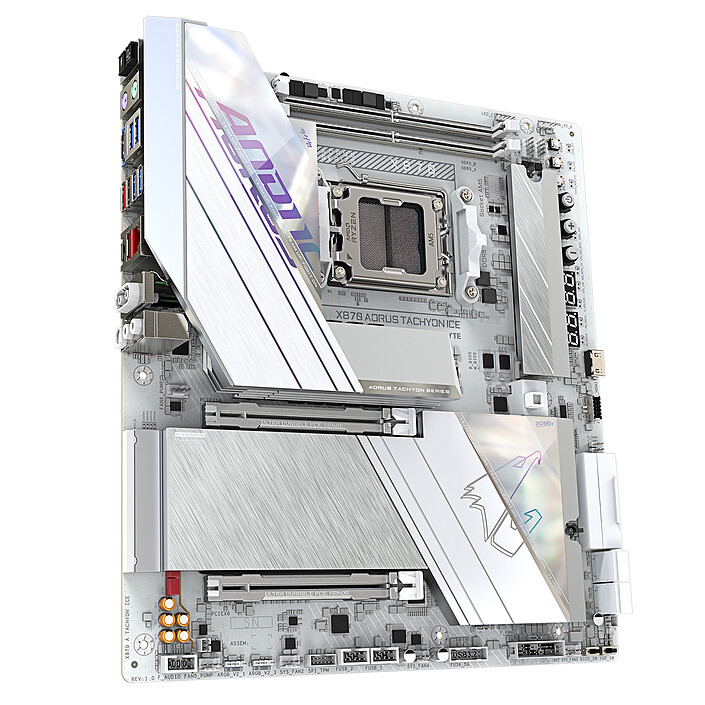

Gigabyte X870 AORUS TACHYON ICE
E-ATX Socket AM5 motherboard AMD X870 - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - Wi-Fi 7 - LAN 5 GbE
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Gaming socket AM5 motherboard in E-ATX format
The Gigabyte X870 AORUS TACHYON ICE motherboard in E-ATX format features the AMD X870 chipset , making it ideal for laying the foundations of a high-performance gaming configuration. Its AMD AM5 socket enables it to support a AMD Ryzen 7000/8000/9000 processor. It has 2 DDR5 slots and can use PCI Express 5.0-standard M.2 NVMe graphics cards and SSDs for breathtaking performance. It has full connectivity with 5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4, as well as USB 3.2 and 4.0.
Gigabyte X870 AORUS TACHYON ICE extras
- Socket AMD AM5 for AMD Ryzen 7000/8000/9000 processor
- 2 dual-channelDDR5 9600 MHz (OC)memory slots with EXPO and XMP support
- 18+2+2 Twin Digital VRM
- Next-generation storage: 1 x M.2 PCIe 5.0 + 2 x M.2 PCIe 4.0
- Efficient heat dissipation
- Wi-Fi 7 and Bluetooth 5.4 + 5 GbE LAN
- High-quality audio with Realtek ALC1220 chipset
- Q-Flash Plus: BIOS update without installing a processor, memory or graphics card
- RAID 0, 1, 5, 10 support (RAID 5 with Ryzen 9000 CPU only)
Play in the best conditions
The high frequencies of AMD Ryzen Zen 5 processors are a real boon for gamers. Choose the right components and design a super-powerful Gaming PC, with no latency and ready to serve when you need it. Get the edge over your rivals and reach new heights with AMD Ryzen 9000 processors and AMD AM5 motherboards.
Select your criteria
General information |
Product name |
Gigabyte X870 AORUS TACHYON ICE |
Brand |
Gigabyte | |
Model |
4719331874933 | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870 |
Memory |
Memory format |
2 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8400 MHz | |
| DDR5 8600 MHz | ||
| DDR5 8800 MHz | ||
| DDR5 9200 MHz | ||
| DDR5 9600 MHz | ||
| DDR5 8200 MHz | ||
| DDR5 4400 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6666 MHz | ||
| DDR5 6800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 5.0 x16 (x8) | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1220 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek 5 GbE |
Network standard(s) |
5 Gbps Gigabit Ethernet (5 GbE) | |
| Wi-Fi 7 | ||
| Bluetooth 5.4 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |
Rear panel connectors |
BIOS Flash Update | |
| 2 X MiniDin 6 Female (PS/2) | ||
| 1 X USB4 (Type-C) | ||
| 1 X Digital audio S/PDIF Optical | ||
| 1 X HDMI Female | ||
| 3 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
4 X Internal USB 2.0 | |
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 3 X Addressable LED RGB connector(s) | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
275 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
