ASUS ROG CROSSHAIR X870E EDITION 20
E-ATX motherboard, AMD AM5 socket, AMD X870E - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - 10 GbE LAN + Wi-Fi 7/Bluetooth 5.4 - ROG RYUJIN 360 Edition 20
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
ASUS ROG CROSSHAIR X870E EDITION 20

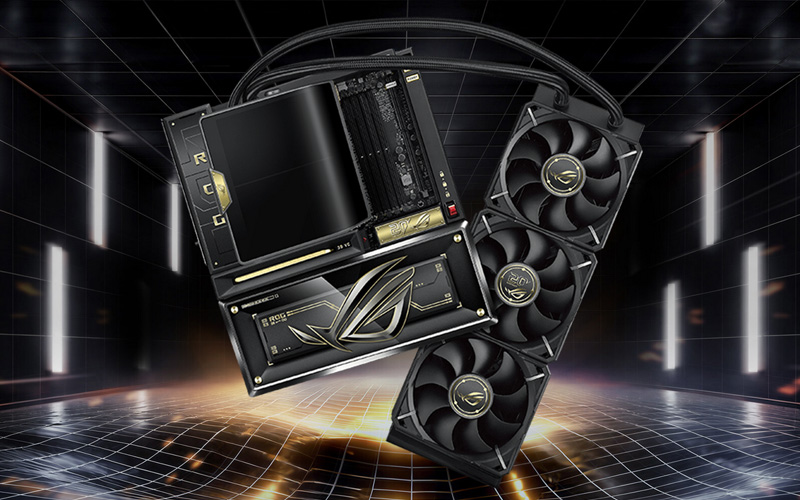

Celebrating 20 years of Republic of Gamers, the ASUS ROG CROSSHAIR X870E EDITION 20 is an exceptional E-ATX motherboard designed to unlock the full potential of AMD Ryzen processors on the AM5 socket. Its 24+2+2-phase power delivery, premium copper thermal design, DDR5 support and numerous M.2 slots make it an ideal platform for the most ambitious gaming and content creation builds. This anniversary edition also stands out with its exclusive design and its ROG RYUJIN 360 EDITION 20 liquid cooling system included, specially developed to optimize CPU cooling.
ASUS ROG CROSSHAIR X870E EDITION 20
- AMD AM5 socket for AMD Ryzen 9000/8000/7000 processor
- 4 DDR5 memory slots up to 9200 MHz (O.C.) Dual-Channel
- 2 PCI-Express 5.0 16x slots
- Up to 9 M.2 slots with the ROG Hyper M.2 expansion card and the ROG Q-DIMM.2 module
- 2 USB4 40 Gbps ports (Type-C) compatible with DP-ALT Mode
- Intel 5 GbE LAN + Wi-Fi 7 and Bluetooth 5.4 network
- ASUS ROG RYUJIN 360 EDITION 20 liquid cooling system
Gaming in the best conditions
The high frequencies of AMD Ryzen processors are a real advantage in games. Choose the right components and build an ultra-powerful Gaming PC, with no lag and ready to go when needed. Gain the upper hand over your opponents and reach new heights thanks to AMD Ryzen 9000/8000/7000 processors and AMD AM5 motherboards.
AMD Ryzen 9000 processors perform brilliantly in every area. They will let you create faster, reach your goals more quickly and save time at all times. Whether it is 3D rendering or exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, numerous processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
ASUS ROG CROSSHAIR X870E EDITION 20 |
Brand |
ASUS | |
Model |
90MB1PD0-M0EAY0 | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 9200 MHz | |
| DDR5 9000 MHz | ||
| DDR5 8800 MHz | ||
| DDR5 8600 MHz | ||
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7400 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 (x8) |
| 1 X PCI Express 5.0 x16 | ||
Number and Type of slots |
None | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC4082 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated - 10 GbE |
Number of ports/Ethernet controler N°2 |
1 X Integrated - 10 GbE | |
Network standard(s) |
Bluetooth 5.4 | |
| Wi-Fi 7 | ||
| 2 X 10 Gbps Gigabit Ethernet (10 GbE) | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 2x | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 4 X M.2 - PCI-E 5.0 x4 | ||
| 4 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
9 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 0 | ||
| 1 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |
Rear panel connectors |
2 X USB4 (Type-C) | |
| 2 X RJ45 Female | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| 2 X SMA | ||
| 4 X USB 3.1 Type C | ||
| 8 X USB 3.1 | ||
| BIOS Flash Update | ||
Additional connectors |
Front panel audio | |
| 1 X PCI Express 8 Pin | ||
| 2 X Internal USB 3.2 Type C | ||
| 4 X Internal USB 3.0 | ||
| 6 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
277 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
