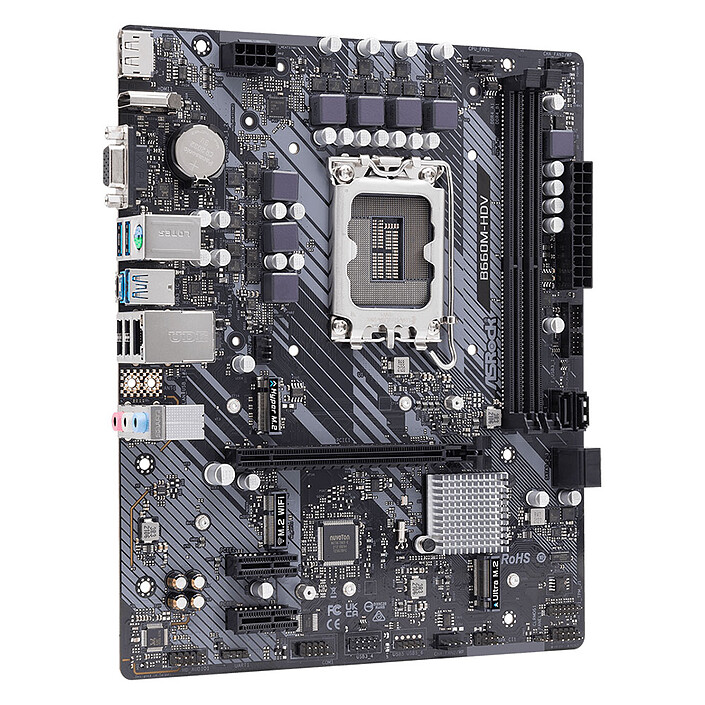

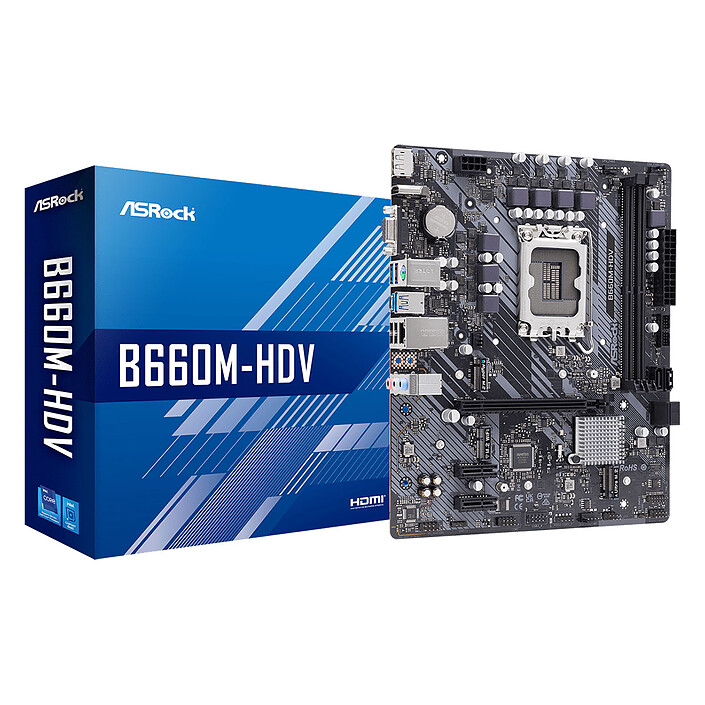

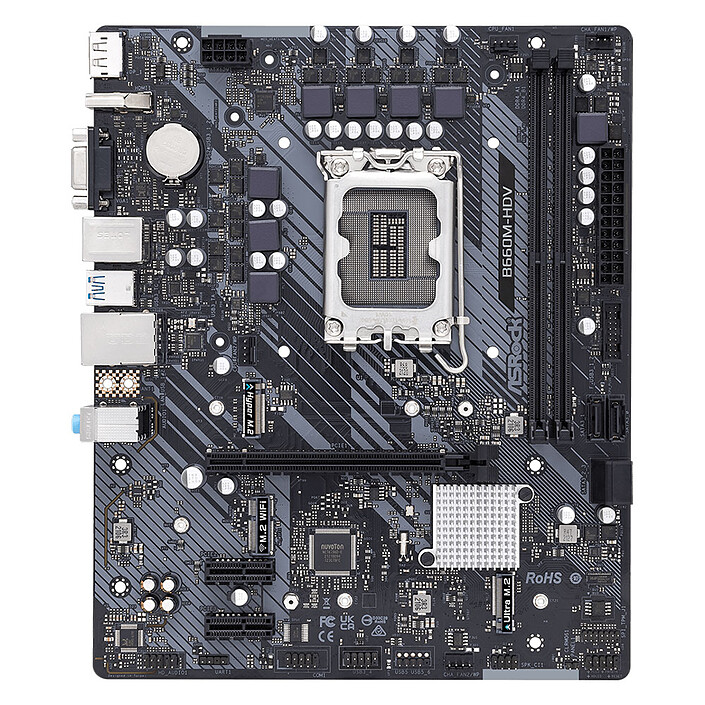

ASRock B660M-HDV
Micro ATX Socket 1700 Intel B660 Express Motherboard - 2x DDR4 - M.2 PCIe 4.0 - USB 3.0 - PCI-Express 4.0 16x - Gigabit LAN
Last price 112€94
Unlock the full potential of your Intel Core processor
The ASRock B660M-HDV motherboard is designed to host Intel processors on socket LGA 1700. It will allow the assembly of a powerful and efficient configuration at a controlled cost. Streaming, intensive multitasking, multimedia creation, gaming, it is the ideal solution to design a last generation PC. It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4.0 drives as well as USB 3.0 peripherals.
ASRock B660M-HDV
- Support for 12th generation Intel Core processors on socket LGA 1700
- DDR4 memory support, up to 5066 MHz (OC)
- 6 Phase Power Design
- Audio 7.1 (Realtek ALC897 Audio Codec)
- 4 SATA 6 Gb/s ports
- M.2 PCIe 4.0 x4
- VGA, HDMI and DisplayPort video outputs
- Micro-ATX format
All the power of Intel processors
With high frequencies, achieve high performance in games. Confidently take on your opponents or explore new worlds with a revolutionary processor architecture that focuses on what matters. 12th generation Intel processors are simply designed for the next generation of gaming.
Select your criteria
General information |
Product name |
ASRock B660M-HDV |
Brand |
ASRock | |
Model |
B660M-HDV | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B660 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5066 MHz | |
| DDR4 5000 MHz | ||
| DDR4 4933 MHz | ||
| DDR4 4866 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 4700 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3300 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 4333 MHz | ||
| DDR4 4300 MHz | ||
| DDR4 4200 MHz | ||
| DDR4 4066 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3666 MHz | ||
| DDR4 3800 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel I219-V |
Network standard(s) |
10/100/1000 Mbps | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |

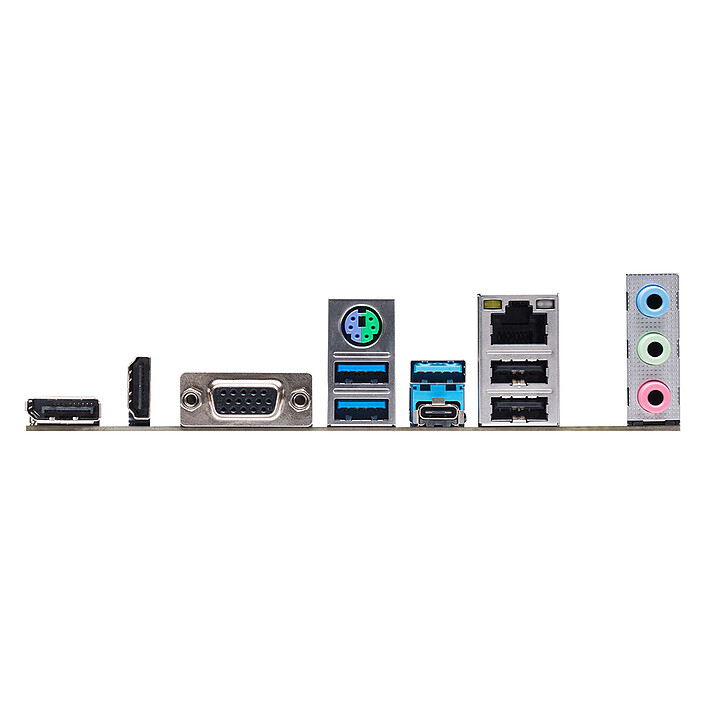

Rear panel connectors |
3 X 3.5mm Jack Female Stereo |
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 3 X USB 3.0 | ||
| 1 X USB 3.0 Type C | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
| 1 X VGA (D-sub 15 Female) | ||
Additional connectors |
1 X +12V (Power supply P8) | |
| 1 X ATX 24 Pin | ||
| 3 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
201 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 7 Jan 2022
