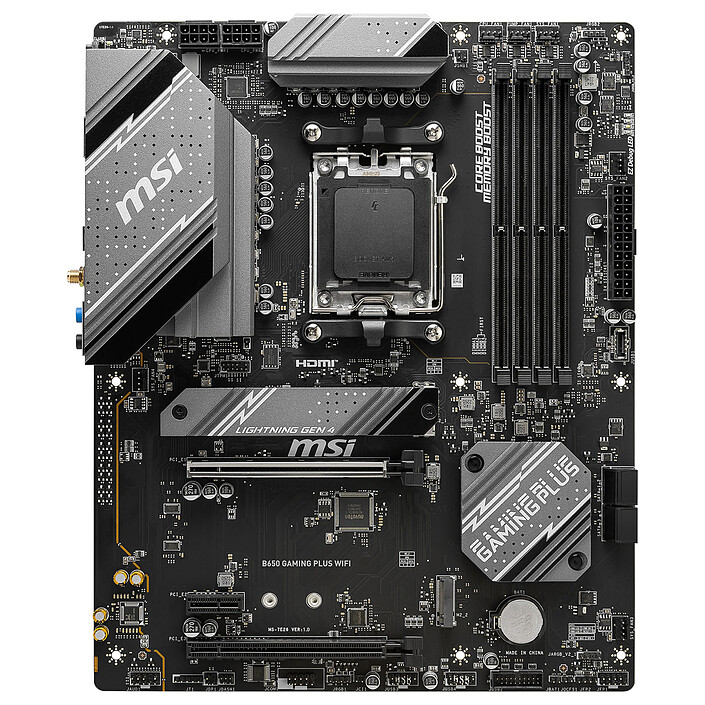

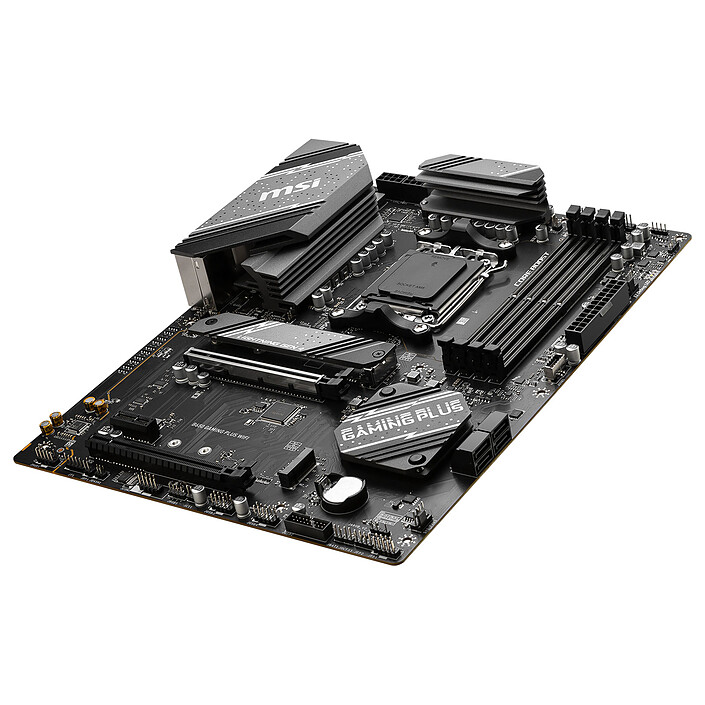

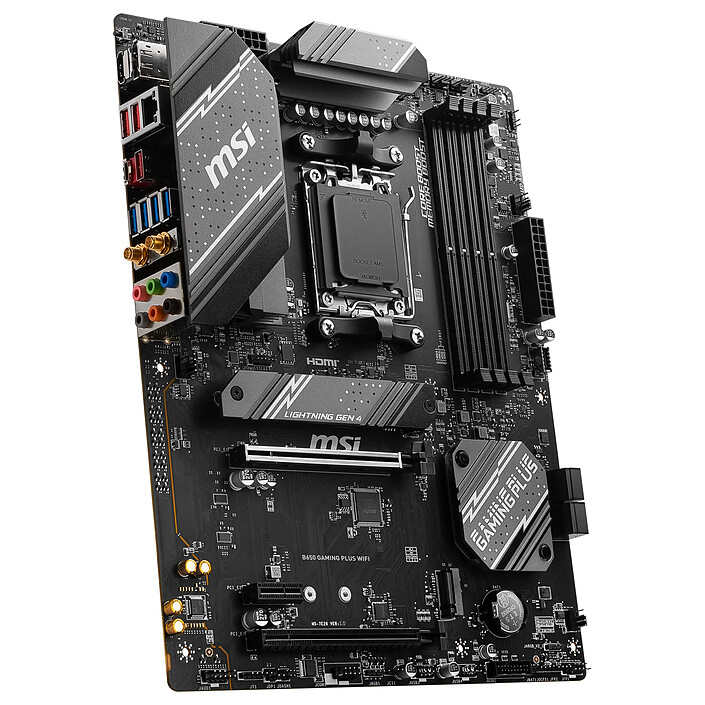

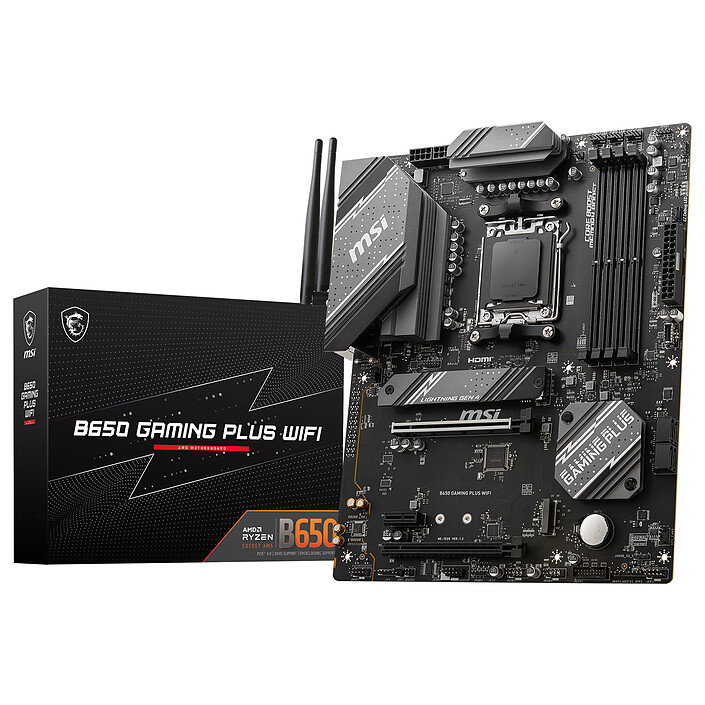

MSI B650 GAMING PLUS WIFI.
ATX Socket AM5 motherboard AMD B650 - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E/Bluetooth 5.3.
Pictures may differ from actual products
The MSI B650 GAMING PLUS WIFI is an all-rounder for AMD Ryzen processors on socket AM5. It will enable you to design a high-performance gamer PC based on the most powerful components on the market, such as AMD Ryzen 7000/8000/9000 processors and PCI-Express 4.0 16x graphics cards.
ATX Socket AM5 motherboard AMD B650 - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E/Bluetooth 5.3.
Available from 149€96 on the outlet deals
Overview
Unleash your processor's potential
The MSIPRO B650-P WIFI is a versatile motherboard for AMD Ryzen processors on socket AM5. It will enable you to design a high-performance gamer PC based on the most powerful components on the market, such as AMD Ryzen 7000/8000/9000 processors, PCI-Express 4.0 16x graphics cards, M.2 NVMe PCIe 4.0 disks and DDR5 RAM. The B650 GAMING PLUS WIFI motherboard from MSI's PRO range meets the demands of professionals by combining durability with essential functionality.
MSI B650 GAMING PLUS WIFI
- Support for AMD Ryzen 7000/8000/9000 series desktop processors
- Support for DDR5 7200 MHz memory
- Core Boost: Premium layout and digital power supply design to support more cores and deliver better performance
- Memory Boost: Advanced technology to deliver pure data signals for optimum performance, stability and compatibility
- High-end thermal solution: 7 W/mK pads, additional thermal pads and M.2 Shield Frozr are designed for a high-performance system.
- Ultra-fast data transfer with PCIe 4.0 and M.2 Lightning PCIe 4.0 x4 connectors
- 2.5 GbE LAN connector and Wi-Fi 6E standard for a fast, stable connection
- Mystic Light technology for RGB LED backlighting with 16.7 million colours
- Audio Boost for perfect audio quality and a more immersive experience
Play in the best conditions
The high frequencies of AMD Ryzen Zen 4 processors are a real advantage when it comes to gaming. Choose the right components and design a super-powerful Gaming PC that's latency-free and ready when you are. Get the edge over your opponents and reach new heights with AMD Ryzen 7000/8000/9000 processors and AMD AM5 motherboards.
The AMD Ryzen 7000/8000/9000 processors are powerful in every way. They will enable you to create faster, achieve your objectives more quickly and save time all the time. Whether it's 3D rendering or exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Information provided by our tech department
The motherboard's compatibility with AMD 9000 series processors requires a BIOS update. LDLCCONTEXT:The MSI B650 GAMING PLUS WIFI is versatile for AMD Ryzen processors on socket AM5. It will enable you to design a high-performance gamer PC based on the most powerful components on the market, such as the AMD Ryzen 7000/8000/9000 processors and PCI-Express 4.0 16x graphics cards].
Specifications
Select your criteria
General information |
Product name |
MSI B650 GAMING PLUS WIFI. |
Brand |
MSI | |
Model |
B650 GAMING PLUS WIFI | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B650 |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 7200 MHz | |
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
| 1 X PCI Express 4.0 x16 (x4) | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125BG |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| Wi-Fi 6E | ||
| Bluetooth 5.3 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

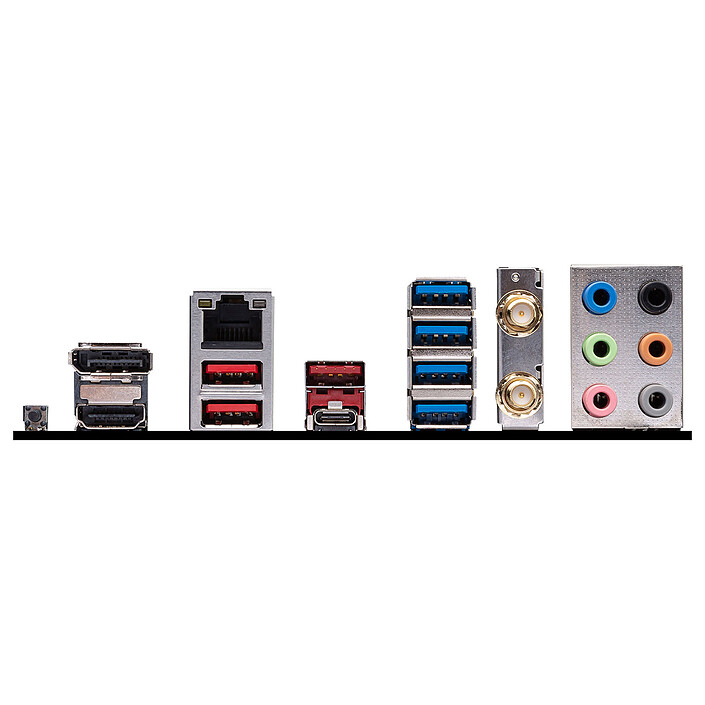

Rear panel connectors |
1 X HDMI Female | |
| 1 X DisplayPort Female | ||
| 1 X USB 3.2 Type C | ||
| 3 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| 6 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X +12V (Power supply P8) | |
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| Chassis intrusion | ||
| Front panel audio | ||
| 2 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
| Serial (RS-232) | ||
| 1 X Internal USB 3.1 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
304.8 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Office | |
| Gamer | ||
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
