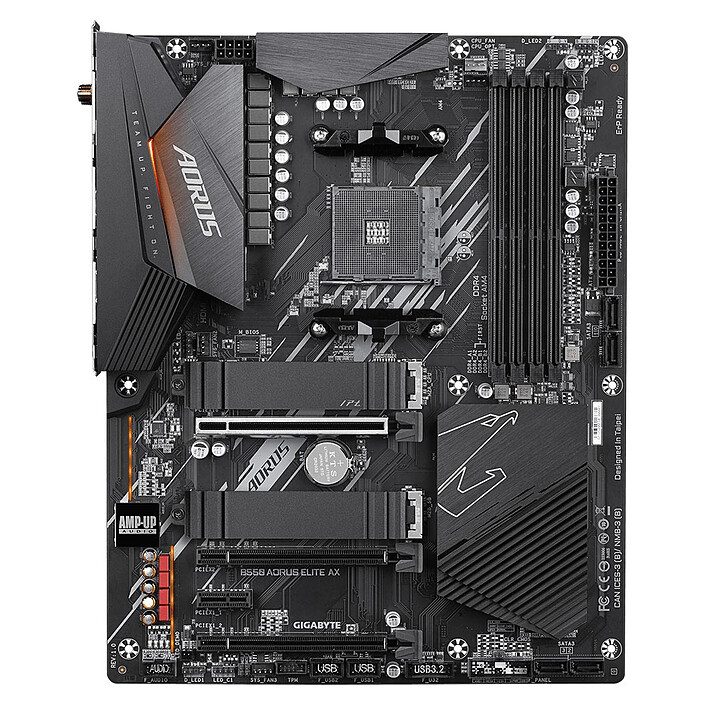

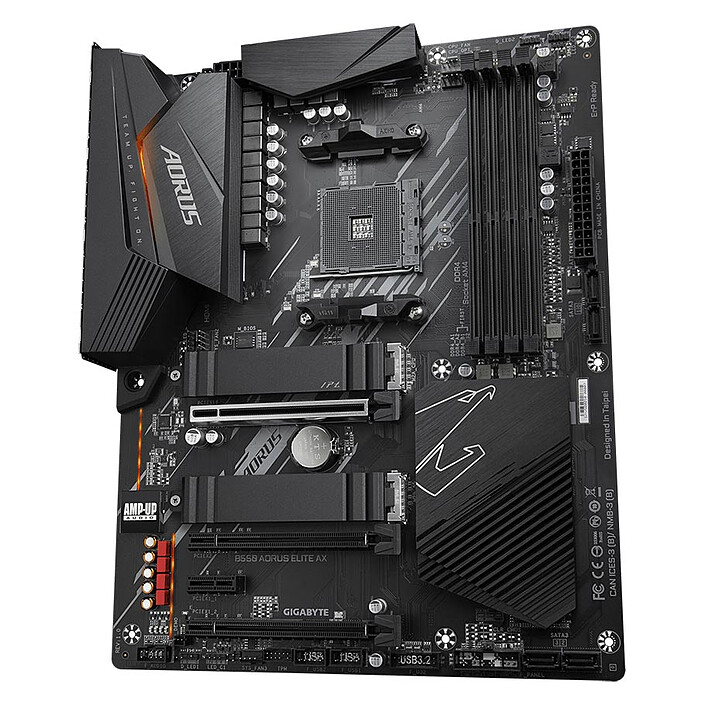

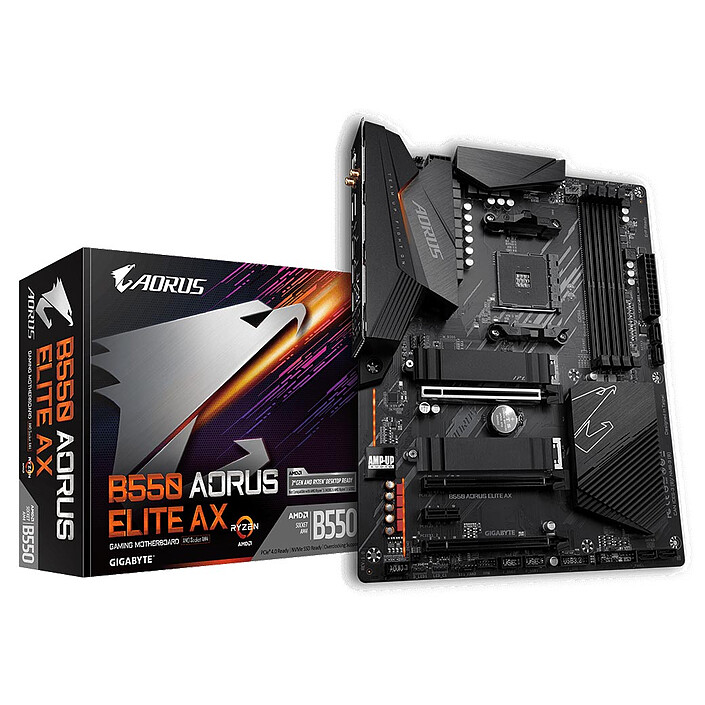

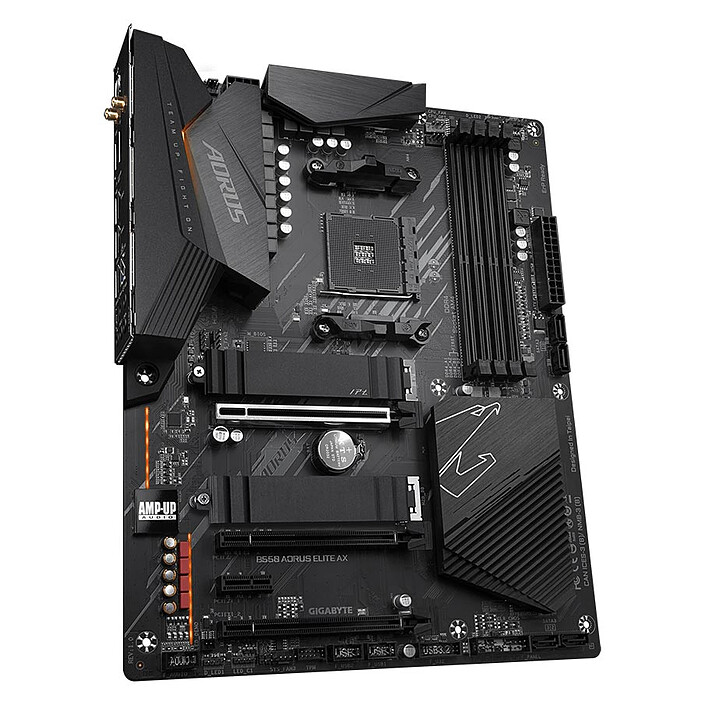

Gigabyte B550 AORUS ELITE AX
ATX Socket AM4 AMD B550 motherboard - 4 x DDR4 - SATA 6Gb/s M.2 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE Wi-Fi 6 AX
Last price 179€95
Gaming motherboard socket AM4 and PCI-Express 4.0
The Gigabyte B550 AORUS ELITE AX motherboard will be perfect for assembling a future-proof gaming system. Designed for 3rd generation AMD Ryzen processors (core name Matisse) on AMD AM4 socket, it supports up to 128GB DDR4, PCI-Express 4.0 graphics cards and also SATA (6Gbit/s) and M.2 (SATA and PCIe 4.0 x4) hard drives and SSDs . The Gigabyte B550 AORUS ELITE AX motherboard also features the latest Gigabyte software and RGB Fusion 2.0 technology.
The advantages of the Gigabyte B550 AORUS ELITE AX
The AORUS motherboards are Gigabyte's most powerful ever. Featuring an aggressive and stylish design, unique innovations and durability, there is no doubt that these new AORUS solutions will meet the needs of the most demanding gamers and users.
- AMD AM4 Socket for AMD Ryzen 3000 and 5000processors
- 4 Dual-Channel DDR4 4733 MHz (OC) memory slots
- Smart Fan 5cooling control
- AMP-UP Audio with ALC1200 and WIMA capacitors
- 2.5GbE LAN with Bandwidth Management + 6 AX Wi-Fi and Bluetooth 5.0
- RGB Fusion 2.0 (4 RGB connectors, 2 addressable)
- Q-Flash Plus: BIOS upgrade without installing CPU, RAM or graphics card
- Pre-installed IO Shield for easy installation
Zen 3 Microarchitecture
When you have the most advanced processor architecture for gamers and content creators, the possibilities are endless. Whether you're playing the latest games, designing the next skyscraper, or using data, you need a powerful processor that can handle it all and more. There's no doubt about it, the AMD Ryzen 5000 series desktop processors are setting a new standard for gamers and artists alike.
Select your criteria
General information |
Product name |
Gigabyte B550 AORUS ELITE AX |
Brand |
Gigabyte | |
Model |
B550 AORUS ELITE AX | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B550 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4733 MHz | |
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3800 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3300 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x16 (x1) | |
| 1 X PCI Express 3.0 x16 (x2) | ||
| 1 X PCI Express 3.0 x1 | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1200 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Realtek 2.5 GbE |
Network standard(s) |
Wi-Fi 6 AX | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.0 | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

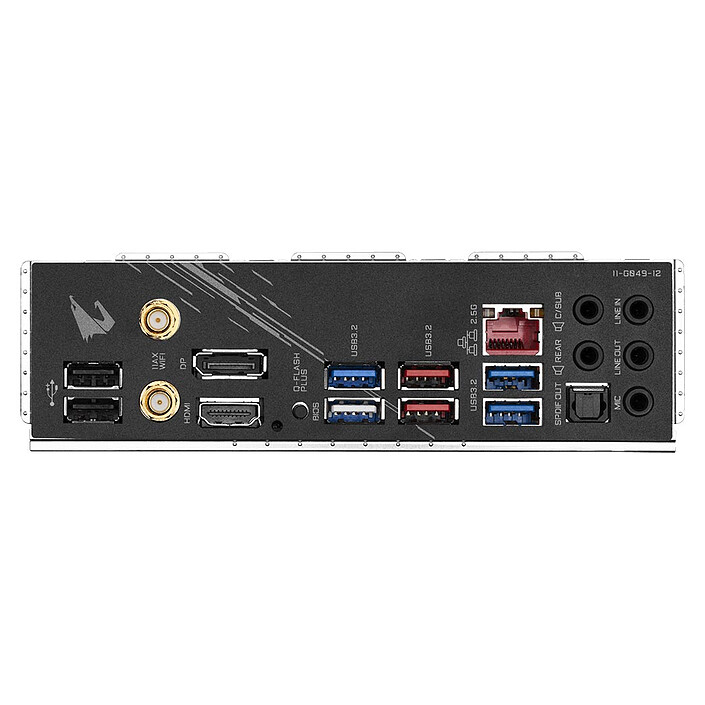

Rear panel connectors |
1 X HDMI Female |
| 1 X DisplayPort Female | ||
| 2 X SMA Female | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 2 X USB 3.1 | ||
Additional connectors |
2 X Internal USB 3.0 | |
| 4 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| Front panel audio | ||
| TPM | ||
| 2 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
