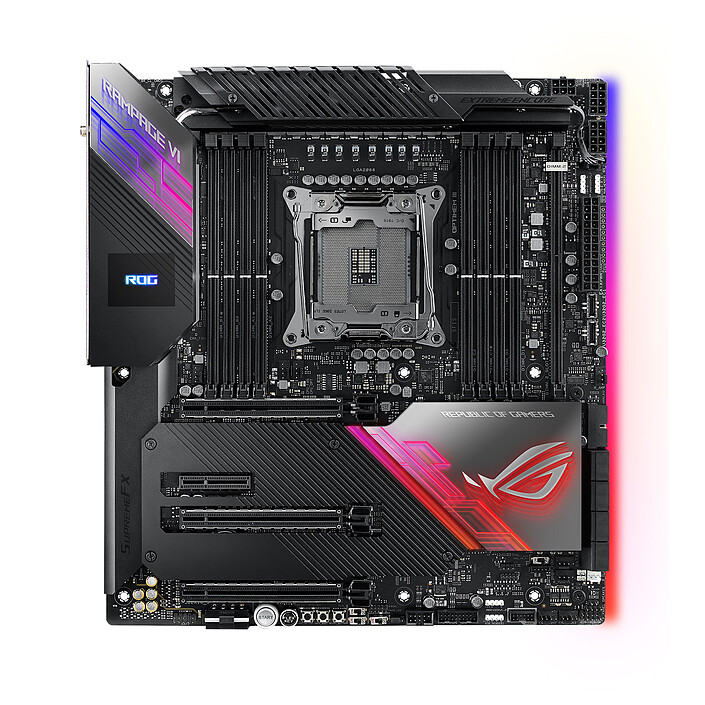

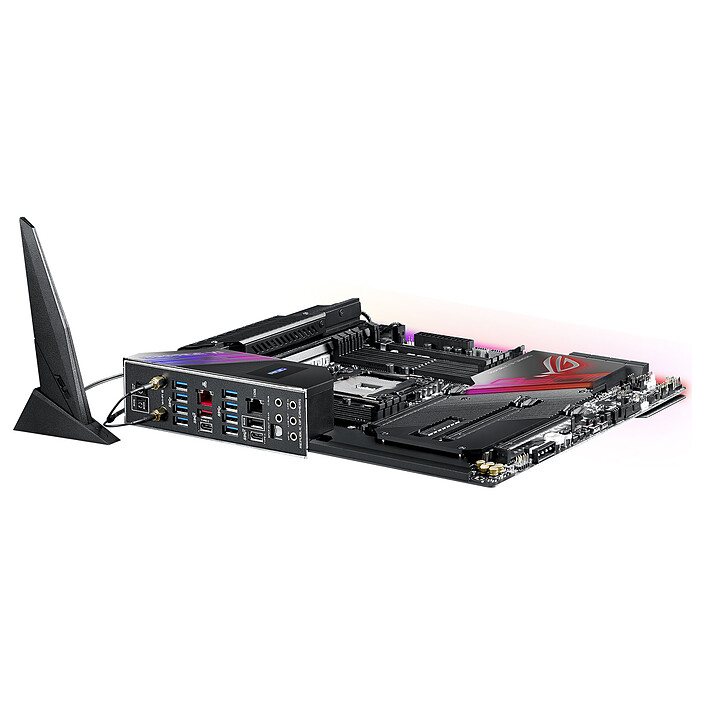

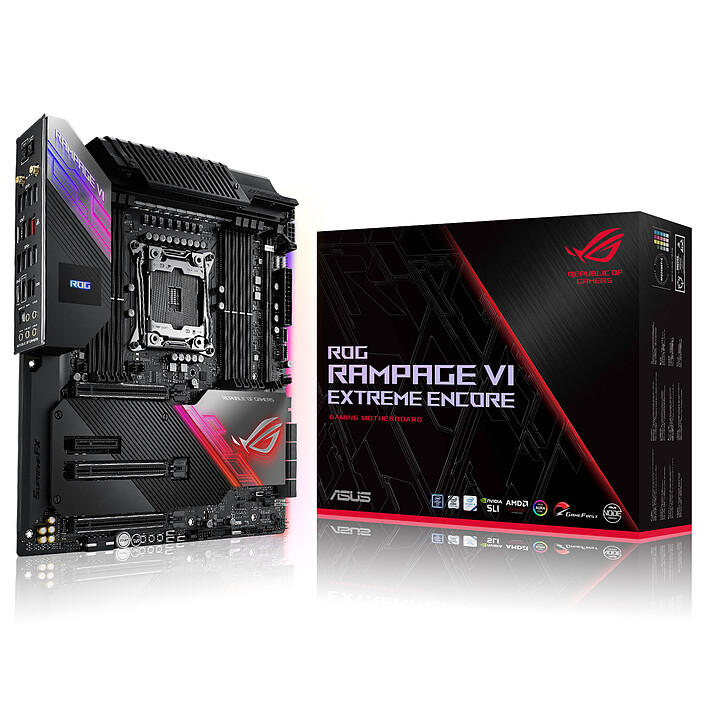

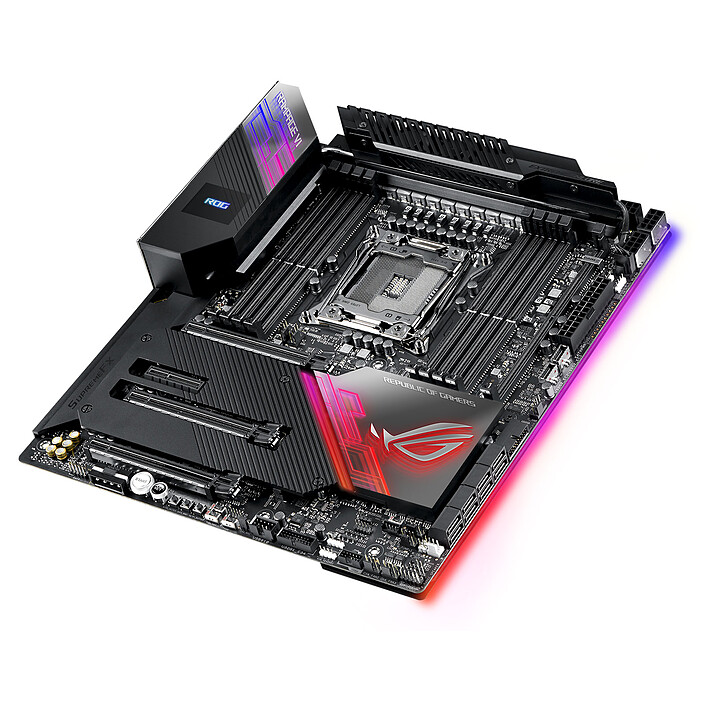

ASUS ROG Rampage VI Extreme Encore
E-ATX Socket 2066 Intel X299 Express motherboard - 8x DDR4 - SATA 6Gb/s M.2 - USB 3.2 2x2 - 3x PCI-Express 3.0 16x - WiFi AX/Bluetooth 5.0 - LAN 10 GbE
Last price 809€95
Holy Moly!
Equivalent products suggestions:
Overview
ASUS
Aura Sync RGB, Intel Core X-series, AI Overclocking, Wi-Fi 6, 10 Gbps Network
TheASUS ROG Rampage VI Extreme Encore is a high-end motherboard designed to optimize gaming performance and let you get the most out of your components. Based on the Intel X299 chipset, it supports Intel processors on socket LGA 2066, DDR4 RAM, PCI-Express 3.0 graphics cards as well as SATA 6 Gbps and M.2 PCIe 3.0 x4 NVMe drives . It also benefits from a complete connectivity and the latest wired and wireless communication standards: USB 3.2, Wi-Fi 6 AX, Bluetooth 5.0, Ethernet 10 GbE...
ASUS ROG STRIX X299-E GAMING II motherboard plus
- Intel LGA 2066 socket: to host the most powerful Intel processors
- AI Overclocking: to quickly optimize and set the performance of your machine in OC mode
- Up to 256 GB DDR4 4266 Mhz (OC)
- USB-C 3.2 (2x2) 20 Gbps port
- Comprehensive cooling: heatsinks and backplate for better heat dissipation, active VRM cooling
- Next-generation connectivity: PCIe NVMe 3.0 x4 compatible M.2 slots and an internal USB 3.1 Type-Cfront panel connector
- High performance wired and wireless networking: Wi-Fi 6 (802.11ax) with MU-MIMO, Bluetooth 5.0, 10 Gbps Ethernet and Intel GigabitEthernet
- ROG DIMM.2 with slots for two additional M.2 PCIe 3.0 x4 slots
High-end hardware
TheASUS ROG Rampage VI Extreme Encore incorporates reliable and robust components and has been designed to be efficient and perform over time. Circuits, components and chipsets are perfectly cooled to ensure long-term reliability. With less heating, the board's electronics deliver better performance through increased efficiency.

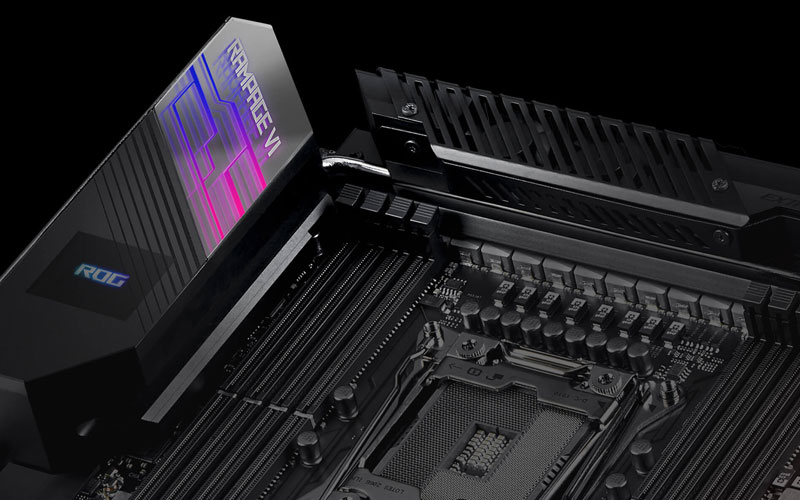

- VRM Heatsink: A heatsink and two 40mm fans provide ultra-efficient active cooling

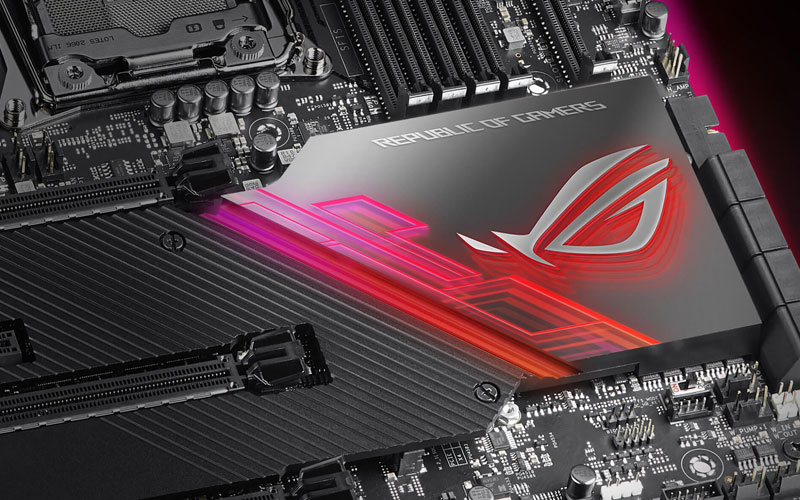

- M.2 Heatsinks: Aluminium heatsink covering and cooling the two M.2 slots
- Backplate: For improved heat dissipation with a thermal pad especially useful for VRMs and other components
Software Optimisations

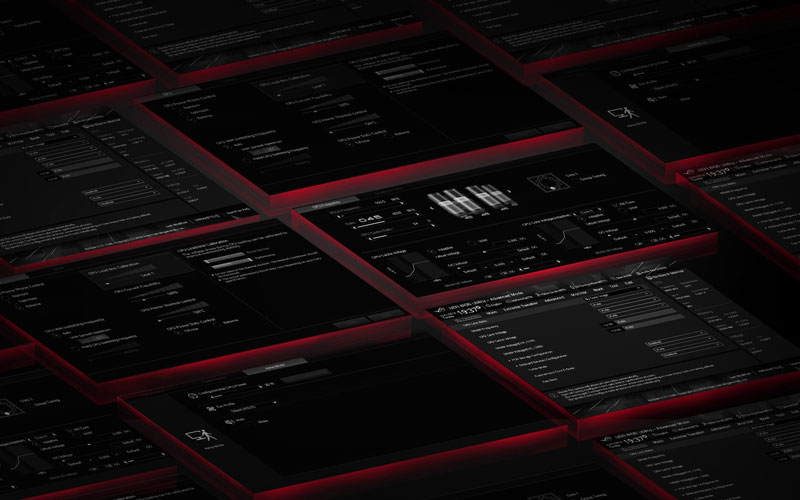

AI Overclocking is an ASUS utility that allows you to fine-tune the overclocking settings of components. It also provides valuable system feedback by monitoring component performance. AI Overclocking offers many options to the user depending on their needs or level of knowledge. Intuitive and easy to use, it is suitable for both novices and experienced users.
Specifications
Select your criteria
General information |
Product name |
ASUS ROG Rampage VI Extreme Encore |
Brand |
ASUS | |
Model |
90MB11K0-M0EAY0 | |
Processor |
Processor support |
Intel 2066 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel X299 Express |
Memory |
Memory format |
8 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4266 MHz | |
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3800 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3300 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Quadruple Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
No | |
Expansion slots |
Graphic connector(s) |
2 X PCI Express 3.0 x16 |
| 1 X PCI Express 3.0 x16 (x8) | ||
Number and Type of slots |
1 X PCI Express 3.0 x4 | |
Multi-GPU type |
3-way CrossFireX | |
| 3-way SLI | ||
| CrossFireX | ||
| SLI | ||
Audio |
Audio Chipset |
ROG SupremeFX |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X AQUANTIA AQC107 |
Number of ports/Ethernet controler N°2 |
1 X Intel I219-V | |
Network standard(s) |
Wi-Fi 6 AX | |
| 10/100/1000 Mbps | ||
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
| Bluetooth 5.0 | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 8 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

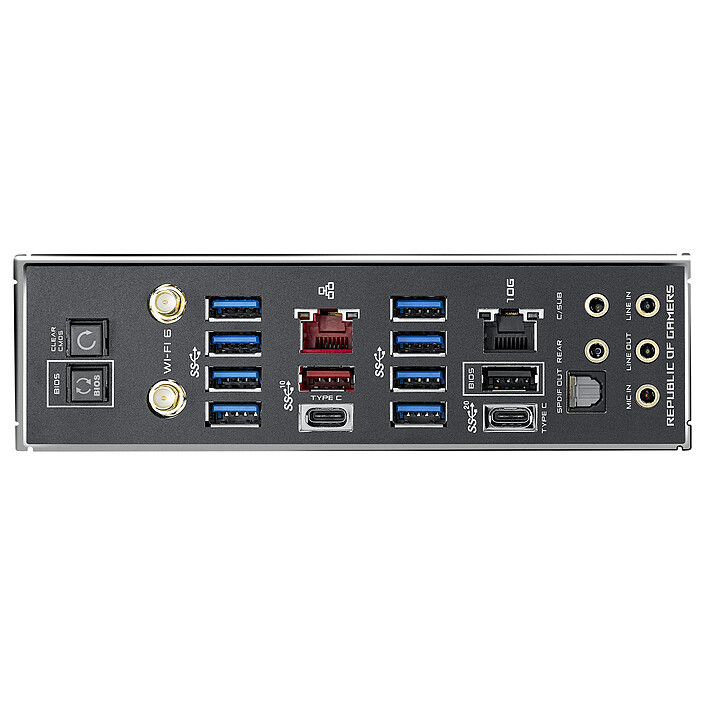

Rear panel connectors |
2 X SMA Female |
| 5 X 3.5mm Jack Female Stereo | ||
| BIOS Flash Update | ||
| 2 X RJ45 Female | ||
| 8 X USB 3.0 | ||
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.2 Type C | ||
Additional connectors |
1 X PCI Express 6 Pin | |
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 2 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
277 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 26 Nov 2019
