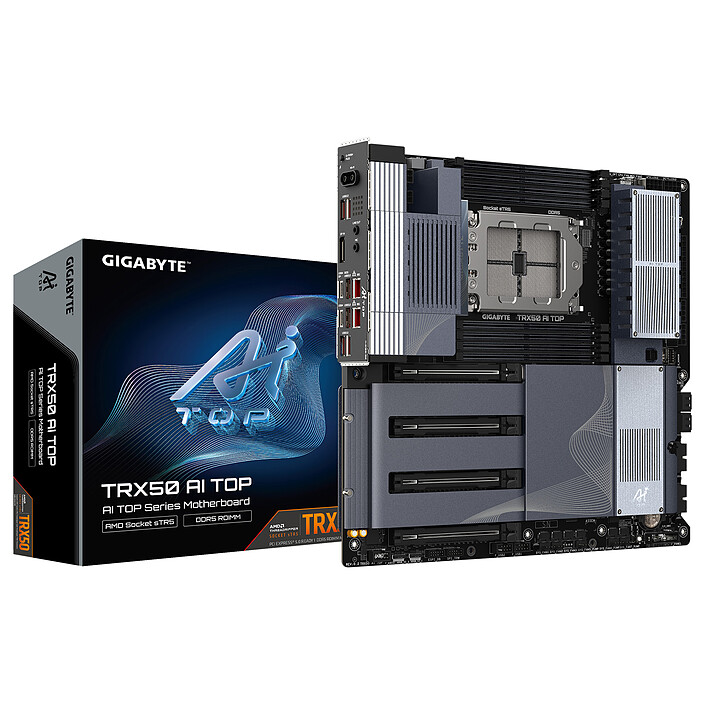

Gigabyte TRX50 AI TOP-2B
E-ATX Socket sTR5 AMD TRX50 Motherboard - 8x DDR5 - M.2 PCIe 5.0 - USB4 - Wi-Fi 7/Bluetooth 5.3 - 10 GbE LAN - 2x PCI-Express 5.0 16x
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9

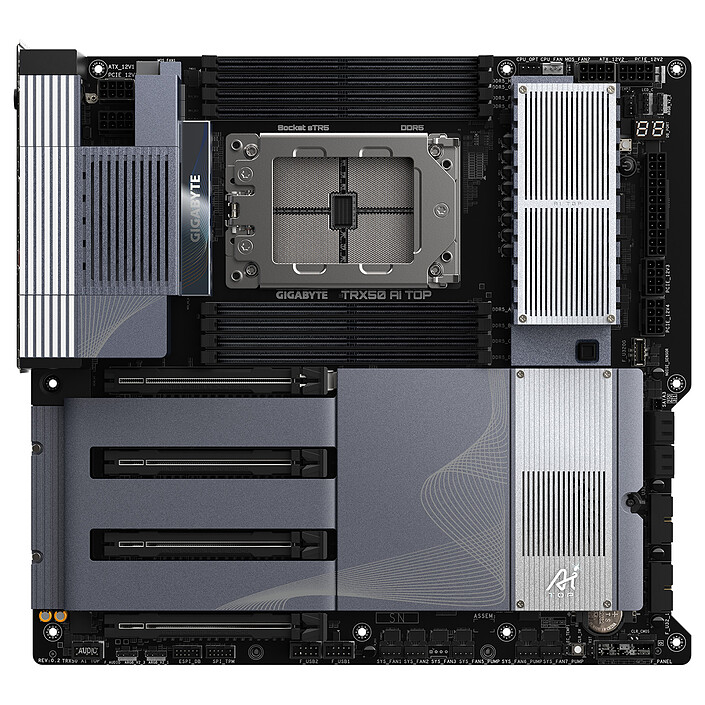

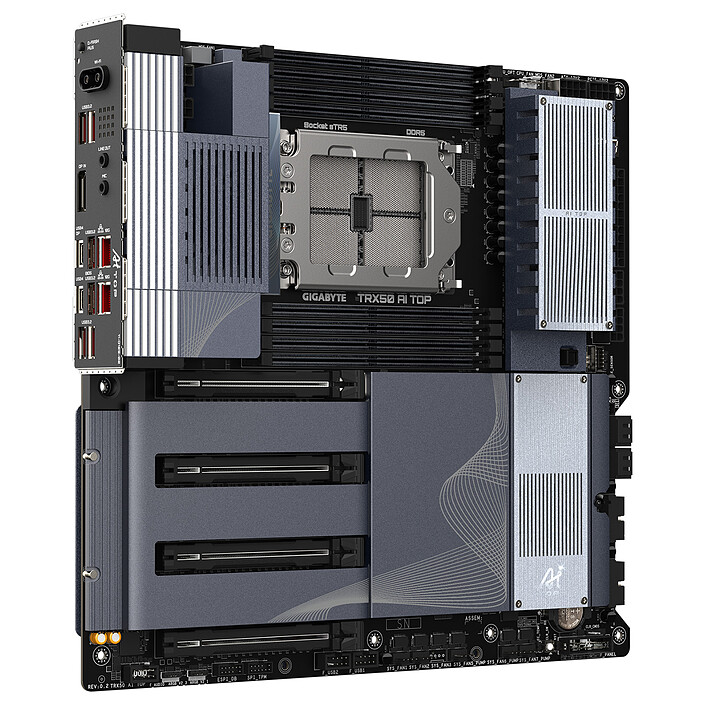

Motherboard for professional workstations
The Gigabyte TRX50 AI TOP-2B workstation motherboard is designed for users seeking high performance. It supports powerful AMD Ryzen Threadripper PRO 9000/7000WX and Threadripper 9000/7000 multi-core processors on AMD sTR5 sockets, 4-channel DDR5 RAM, M.2 PCIe 5.0 SSDs and PCI-Express 5.0 graphics cards for exceptional performance. These incredible features will allow you to build a powerful, future-proof workstation for virtual reality, ultra-intensive multitasking, digital editing, or music and video editing.
Gigabyte TRX50 AI TOP-2B
- AMD sTR5 socket for AMD Ryzen Threadripper PRO 9000/7000WX and Threadripper 9000/7000 processors
- 16+8+4 Digital VRM Phases
- 8 DDR5 8000 MHz 4/8-Channel memory slots
- 4x M.2 PCIe 5.0 x4 (only 3 functional in PCIe 4.0 x4 with a Threadripper 9000/7000)
- 4 PCI-Express 5.0 16x ports
- USB 3.2 and USB4 ports
- Wireless connectivity: Wi-Fi 7 / Bluetooth 5.3
- 2 x 10 GbE LAN
Ever more power
A powerful processor is a godsend for gamers and ultra-demanding users looking for performance and efficiency. AMD Ryzen Threadripper PRO 9000/7000 processors are designed to meet these demands. They are ultra-powerful, have a large number of cores and a very high cache. And to respond to even the slightest demand, AMD Precision Boost 2 technology will push the core frequency to the max when you need it most!
Select your criteria
General information |
Product name |
Gigabyte TRX50 AI TOP-2B |
Brand |
Gigabyte | |
Model |
TRX50 AI TOP-2B | |
Processor |
Processor support |
AMD sTR5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD TRX50 |
Memory |
Memory format |
8 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8000 MHz | |
| DDR5 6600 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7800 MHz | ||
Memory type |
DDR5 ECC | |
Memory technology |
Quadruple Channel | |
Maximum RAM capacity per slot |
256 GB | |
Maximum RAM capacity |
2048 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
No | |
Expansion slots |
Graphic connector(s) |
4 X PCI Express 5.0 x16 |
Number and Type of slots |
None | |
Audio |
Audio Chipset |
Realtek ALC4080 |
Number of audio channels |
2 | |
Network |
Number of ports/Ethernet controler |
2 X Marvell AQtion AQC113C - 10 GbE |
Network standard(s) |
Bluetooth 5.3 | |
| Wi-Fi 7 | ||
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X M.2 - PCI-E 5.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

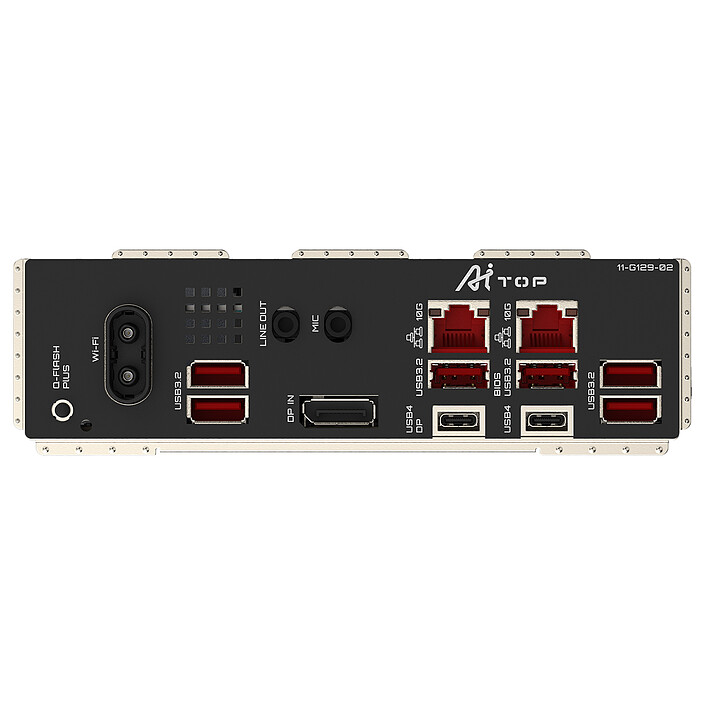

Rear panel connectors |
2 X USB4 (Type-C) | |
| 2 X SMA | ||
| 6 X USB 3.1 | ||
| 2 X RJ45 Female | ||
| BIOS Flash Update | ||
| 2 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X ATX 24 Pin | |
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X LED RGB connector(s) | ||
| 3 X Addressable LED RGB connector(s) | ||
| 4 X PCI Express 8 Pin | ||
| 2 X +12V (Power supply P8) | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
330 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Server | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Giga-Byte Technology BV |
Postal address |
Steenoven 24, 5626 DK Eindhoven, Netherlands | |
Electronic Address |
EU.grp@gigabyte.com |
See all Gigabyte products
Product referenced on 26 Jan 2026
