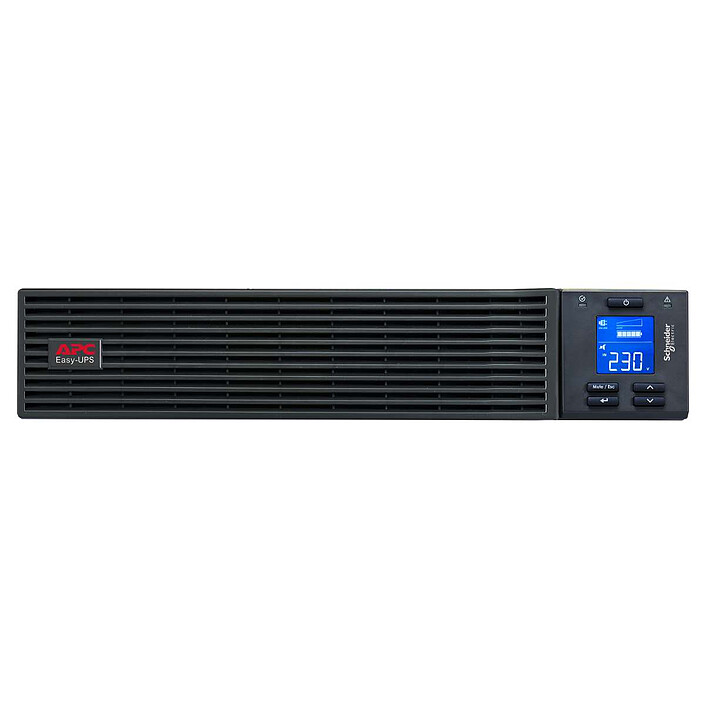

APC Easy UPS SRV - single-phase on-line UPS - 230V - 3KVA - IEC - Rack
3000 VA / 230 V single-phase on-line UPS - IEC - Rack
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Optimal power protection for your critical equipment
The Easy UPS SRV SRV3KRIRK-E is a single-phase on-line double-conversion UPS designed to provide high-quality power protection, even under the most unstable conditions. With a power rating of 3 kVA / 2700 W and a pure sine wave, it ensures stable and secure power supply for your sensitive equipment, whether servers, workstations, or network devices.
This model stands out for its high energy efficiency, particularly in ECO mode, which reduces energy consumption without compromising protection. It is equipped with a sealed internal lead-acid battery providing extended runtime, with temperature-compensated smart charging to optimize battery life (3 to 5 years). The multifunction LCD interface allows real-time monitoring of UPS status, load levels, and alerts (low battery, overload, etc.).
The Easy UPS SRV is designed to integrate perfectly into a 2U rack environment, with 6x IEC 60320 C13 and 1x IEC 60320 C19 connections for broad compatibility. It supports a 230 V AC single-phase input voltage (compatible with 220 V and 240 V) and a frequency of 50/60 Hz. Thanks to its automatic and manual internal bypass, it ensures seamless transition during maintenance or in the event of a failure. Serial port and USB connectivity allow easy integration into your monitoring systems.
Main features:
- On-Line double-conversion topology : Maximum protection against outages, power surges, and electrical disturbances.
- Rated power : 3000 VA / 2700 W with a crest factor of 3:1 and harmonic distortion of 3 %.
- Runtime and battery : Internal sealed lead-acid battery, typical recharge time of 4 hours, lifespan of 3 to 5 years.
- Energy efficiency : Up to 88 % at full load, with an ECO mode for energy savings.

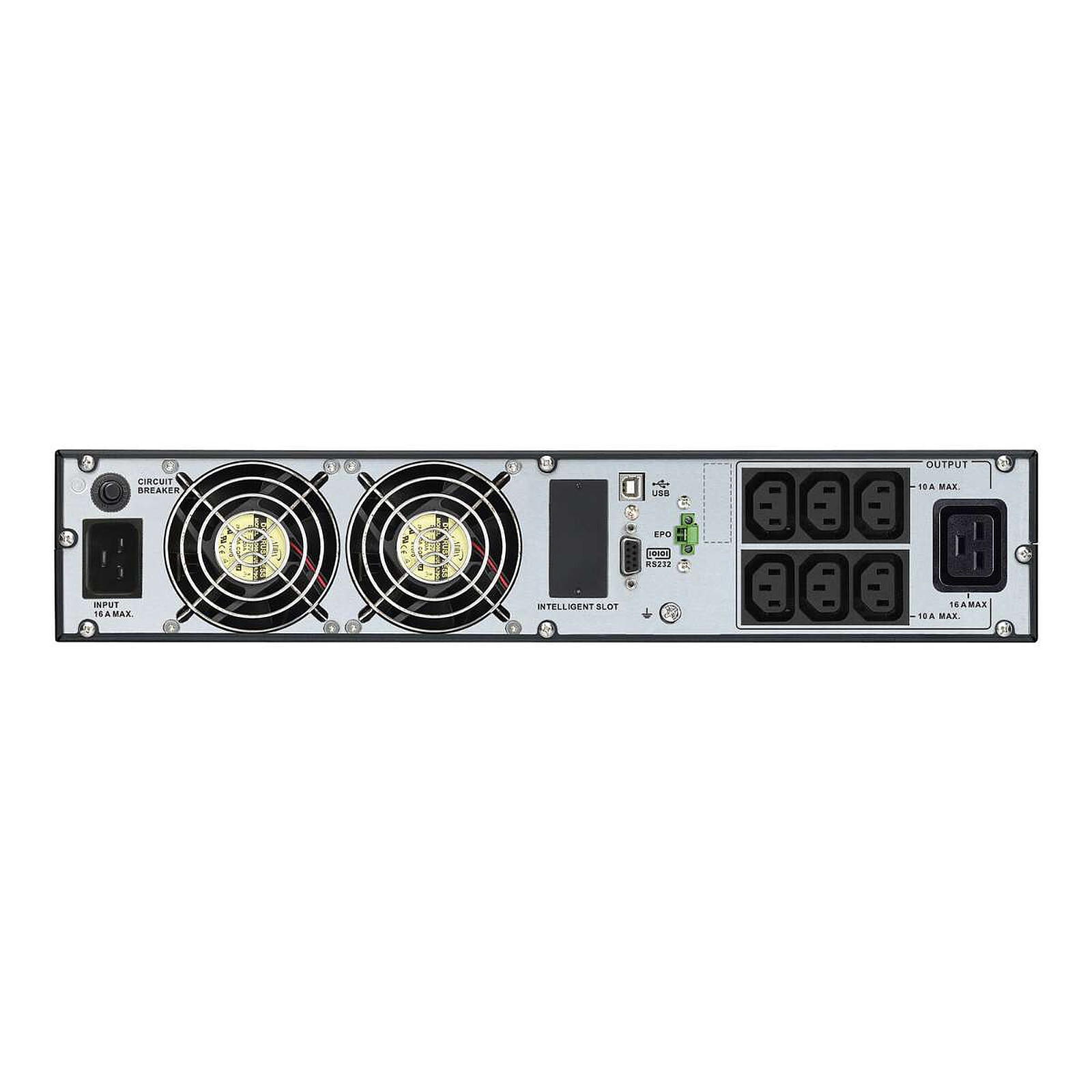

- Connectivity : 6 IEC 60320 C13 outlets and 1 IEC 60320 C19 outlet, serial port and USB for monitoring.
- Rack-mountable design : 2U format, dimensions 438 x 632 x 86 mm, weight 28,5 kg, black color (RAL 7010).
- Certifications : Compliant with CE, UKCA, TISI, EN/IEC 62040-1 and EN/IEC 62040-2 standards.
- Environment : Operation between 0 °C and 40 °C, relative humidity of 0 to 95 % (non-condensing), noise level of 50 dBA.
- Warranty : 24 months for peace of mind.
Select your criteria
General information |
Product name |
APC Easy UPS SRV - single-phase on-line UPS - 230V - 3KVA - IEC - Rack |
Brand |
APC | |
Model |
SRV3KRIRK-E | |
Main characteristics |
Technology |
ON-Line |
Type of product to protect |
Server | |
| Critical server | ||
Inverter power (VA) |
3000 VA | |
Inverter power (W) |
2700 W | |
Manageable |
Yes | |
Connectivity |
Number of sockets |
6 |
Connector(s) |
6 X IEC C13 | |
Physical characteristics |
Power inverter format |
Rack |
Width |
438 mm | |
Length |
632 mm | |
Thickness |
86 mm | |
Weight |
28.5 kg | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Schneider Electric |
Postal address |
Le Hive - 35 rue Joseph Monier 92500 RUEIL MALMAISON France | |
Electronic Address |
support.particuliers@se.com |
See all APC products
Product referenced on 3 Jun 2026
For the moment, there are no customer reviews.Write a review
