Eaton 9SX Gen2 9SX5KIRT3UG2
On-Line Dual Conversion UPS USB Lead Acid Battery/Serial 5000VA 5000W, 8x C13 + 3x C19, 3U (Tower/Rack 3U)
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
High performance UPS

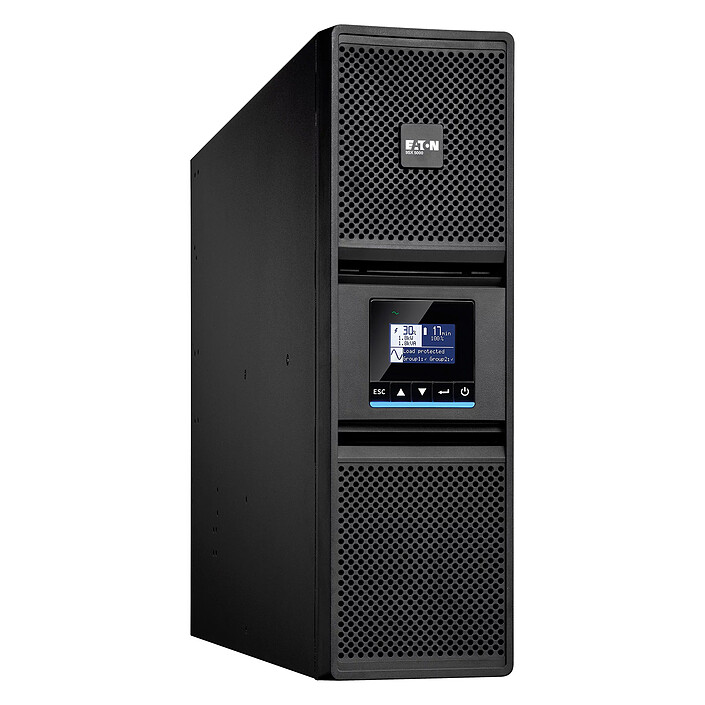

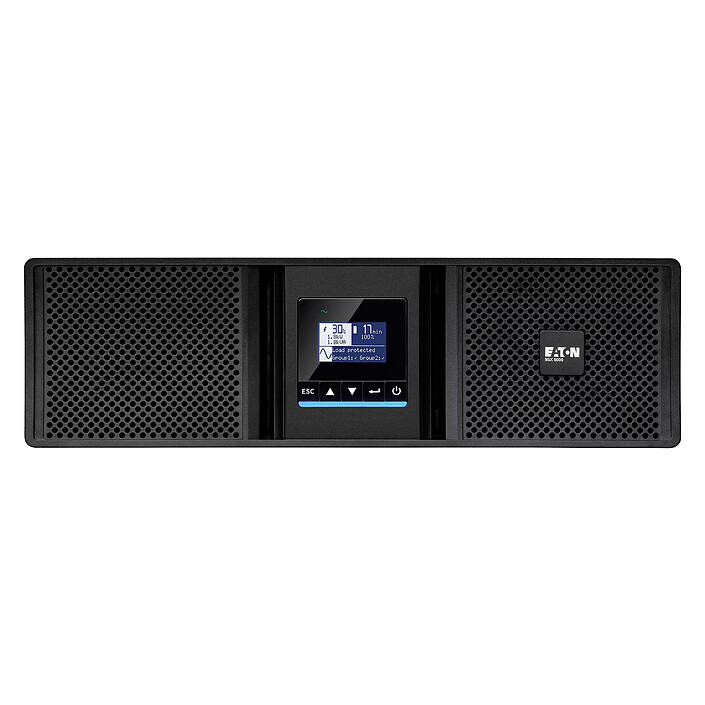

TheEaton 9SX Gen2 UPS provides battery backup and power management for mission-critical equipment in data centers, distributed IT infrastructures, Edge networks, network racks and server rooms. Save space with high power density: up to 6kW of power in 3U form factor.
Connect a wide range of equipment
The 9SX Gen2 UPS have a large number of sockets, so you can connect a wide range of equipment. The 5/6 kVA models offer 3 C19 sockets and 8 C13 sockets, while the 8/11 kVA models are equipped with 4 C19 sockets and 8 C13 sockets. This gives you the flexibility you need to meet all your power distribution requirements.
Advanced battery management
Eaton's ABM+ technology uses predictive analysis to accurately determine the condition of the battery and predict the ideal time to replace it, based on its actual conditions of use. In this way, untimely service interruptions and early battery replacements can be avoided. Optimised ABM+ charging also increases battery life by up to 50%
Key features :
- Dual-conversion on-line UPS
- Constantly regulates voltage and frequency
- Energy Star certified, reduces energy and cooling costs
- 3U format
- Provides more real power (watts) to protect more equipment with a unity power factor
- Internal bypass ensures continuity of service in the event of UPS failure
- Graphical LCD display
- Rack mounting kit supplied as standard
- Hot-swappable batteries
Select your criteria
General information |
Product name |
Eaton 9SX Gen2 9SX5KIRT3UG2 |
Brand |
Eaton | |
Model |
9SX5KIRT3UG2 | |
Main characteristics |
Technology |
ON-Line |
Type of product to protect |
Server | |
Inverter power (VA) |
5000 VA | |
Inverter power (W) |
5000 W | |
Scalable |
Yes | |
Manageable |
Yes | |
Connectivity |
Number of sockets |
11 |
Connector(s) |
8 X IEC C13 | |
| 3 X IEC C19 | ||
Physical characteristics |
Power inverter format |
Rack |
| Tower | ||
Width |
440 mm | |
Length |
684 mm | |
Thickness |
130 mm | |
Weight |
43.1 kg | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
Eaton Industries (France) SAS |
Postal address |
110 Rue Blaise Pascal 38334 Montbonnot Saint-Martin France | |
Electronic Address |
eif_compliance@eaton.com |
