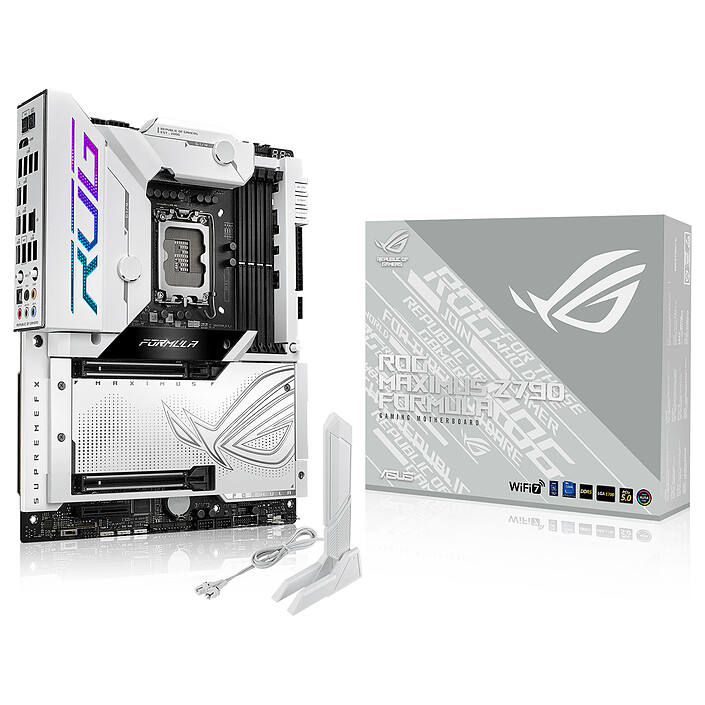

ASUS ROG MAXIMUS Z790 FORMULA
ATX Socket 1700 Intel Z790 Express Motherboard - 4x DDR5 - M.2 PCIe 5.0 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 5 GbE - Wi-Fi 7/Bluetooth 5.4
Pictures may differ from actual products

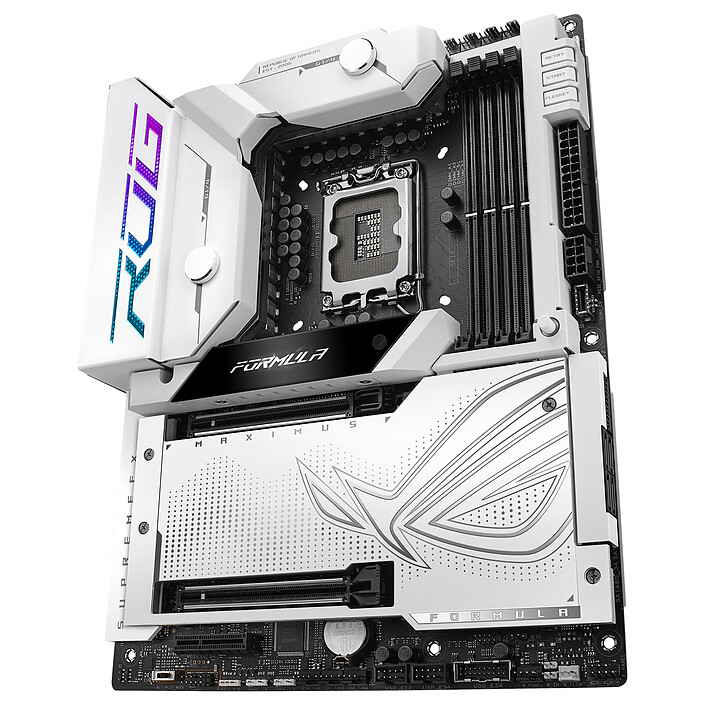

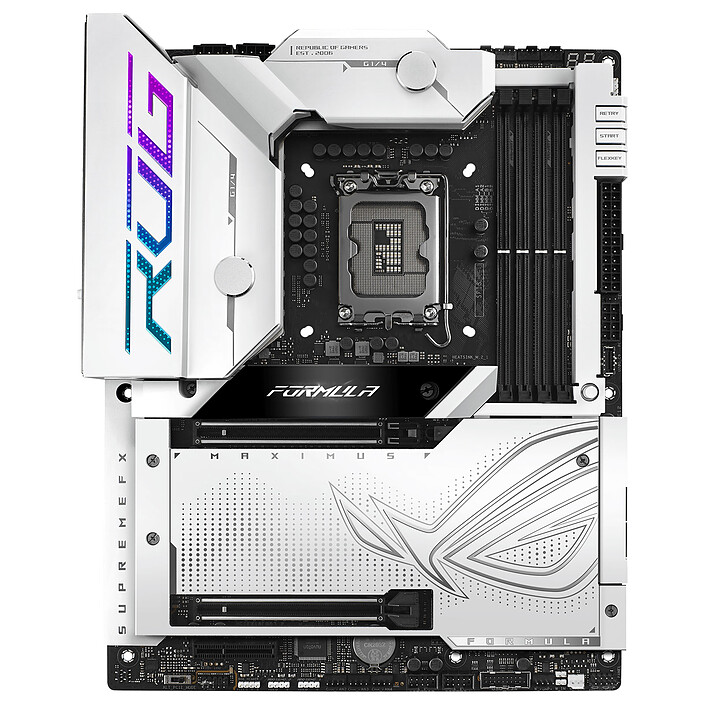

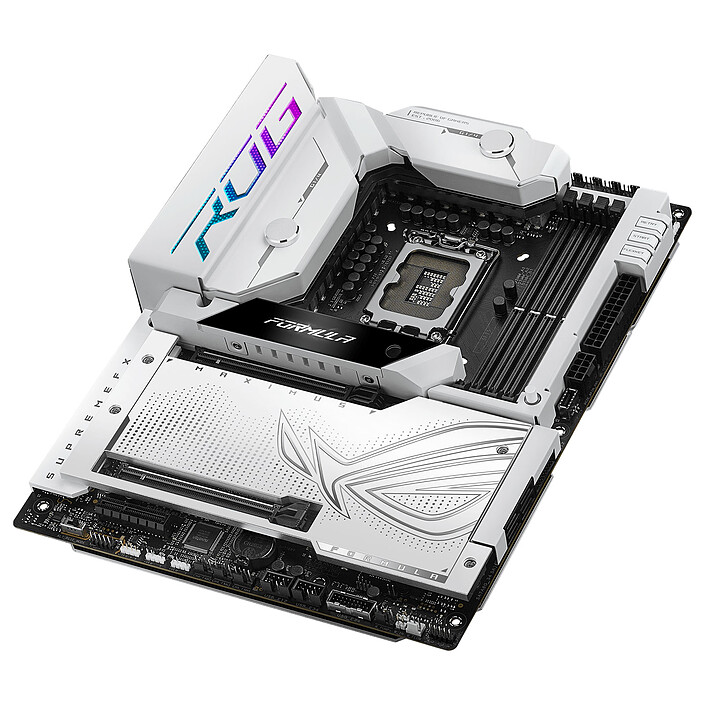

The ASUS ROG MAXIMUS Z790 FORMULA motherboard is designed to accommodate 12th, 13th and 14th generation Intel Core hybrid processors on Intel LGA 1700 socket. It will be the base of choice for a configuration focused on performance and productivity.
ATX Socket 1700 Intel Z790 Express Motherboard - 4x DDR5 - M.2 PCIe 5.0 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 5 GbE - Wi-Fi 7/Bluetooth 5.4
Overview
ASUS
ASUS ROG MAXIMUS motherboard for Intel Core Raptor Lake Refresh
The ASUS ROG MAXIMUS Z790 FORMULA motherboard is designed to host 12th, 13th and 14th generation Intel Core hybrid processors on Intel LGA 1700 socket. It will be the base of choice for a configuration focused on performance and productivity. Designed for demanding gamers looking for long-term performance and reliability, ASUS ROG MAXIMUS motherboards let you get the most out of your components.
ASUS ROG MAXIMUS Z790 FORMULA
- Support for 12th, 13th and 14th generation Intel Core processors on socket LGA 1700
- Support for DDR5 8000 MHz memory (OC)
- 1 M.2 PCIe 5.0 x4 slot + 4 M.2 PCIe 4.0 4x slots
- PCI-Express 5.0 16x port
- ROG Supreme FX 7.1 ALC4082 audio code
- Thunderbolt 4 ports
- LAN 5 GbE
- Wi-Fi 7 & Bluetooth 5.4
- Waterblock for VRM
Ever higher
Intel Core 14? generation desktop processors offer the most complete platform for using the gaming technologies you want. Support for DDR4 and DDR5 gives you the choice of memory configuration. Support for Thunderbolt 4 technology offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream as much as you want at the same time.
Specifications
Select your criteria
General information |
Product name |
ASUS ROG MAXIMUS Z790 FORMULA |
Brand |
ASUS | |
Model |
90MB1FS0-M0EAY0 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z790 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8000 MHz | |
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7400 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 (x8) |
| 1 X PCI Express 5.0 x16 | ||
Number and Type of slots |
1 X PCI Express 4.0 x4 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC4082 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek 5 GbE |
Network standard(s) |
5 Gbps Gigabit Ethernet (5 GbE) | |
| Wi-Fi 7 | ||
| Bluetooth 5.4 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 5.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 4 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
5 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

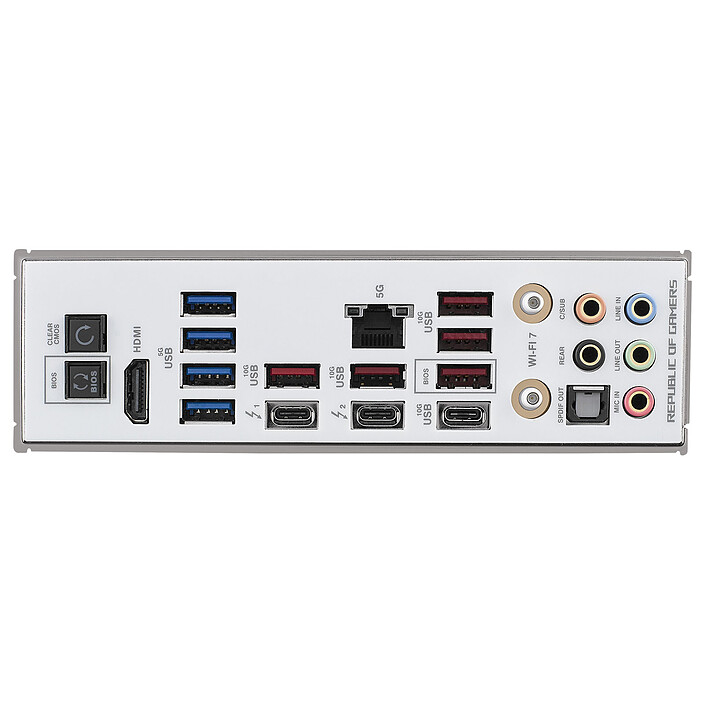

Rear panel connectors |
2 X Thunderbolt 4/USB-C | |
| 1 X HDMI Female | ||
| 1 X USB 3.1 Type C | ||
| 5 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 3 X Addressable LED RGB connector(s) | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| Front panel audio | ||
| 1 X PCI Express 8 Pin | ||
| 1 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
