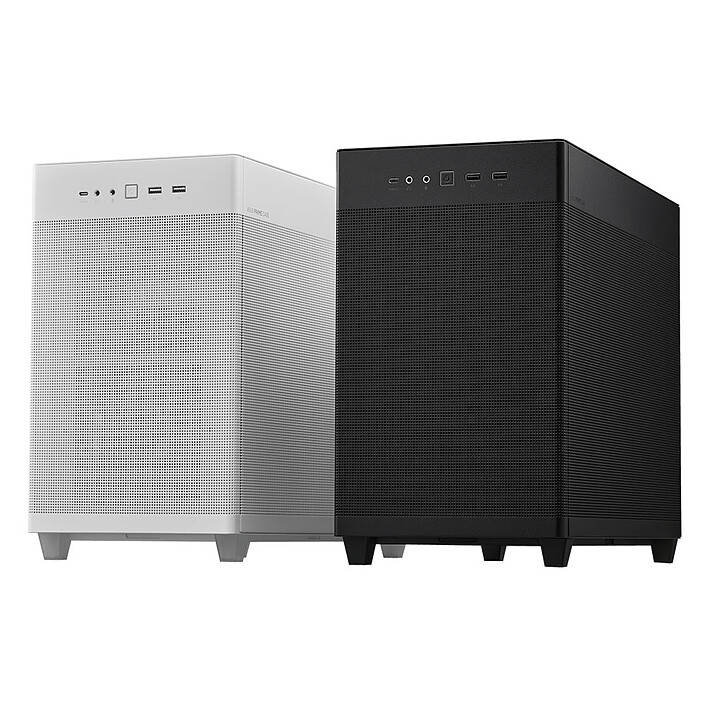

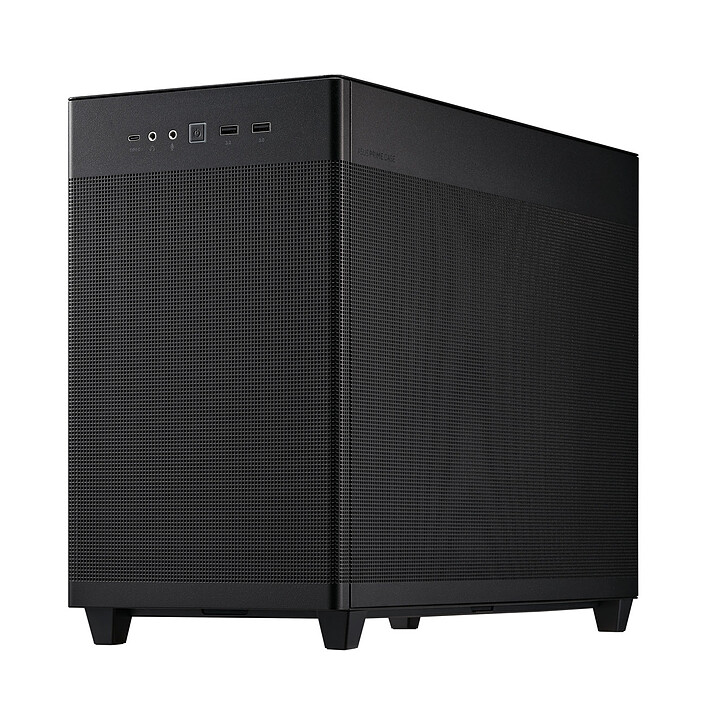

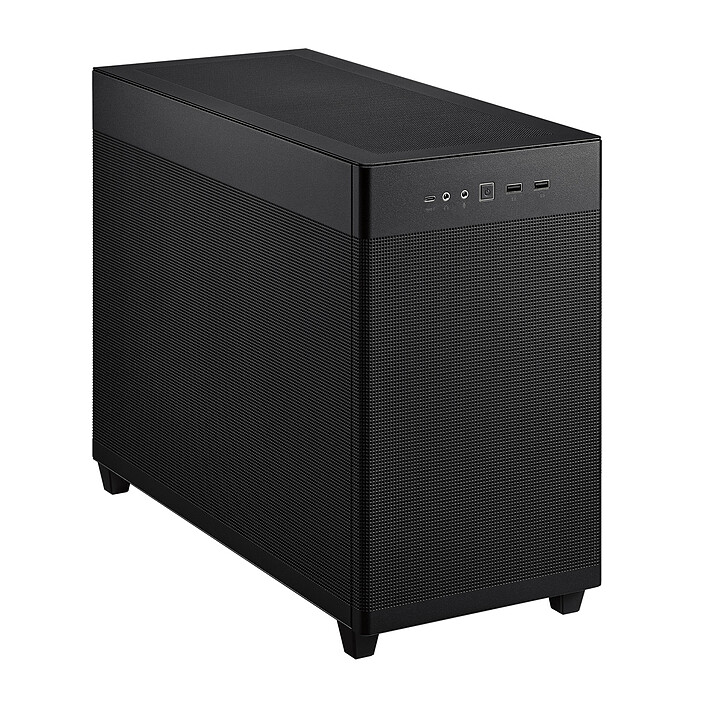

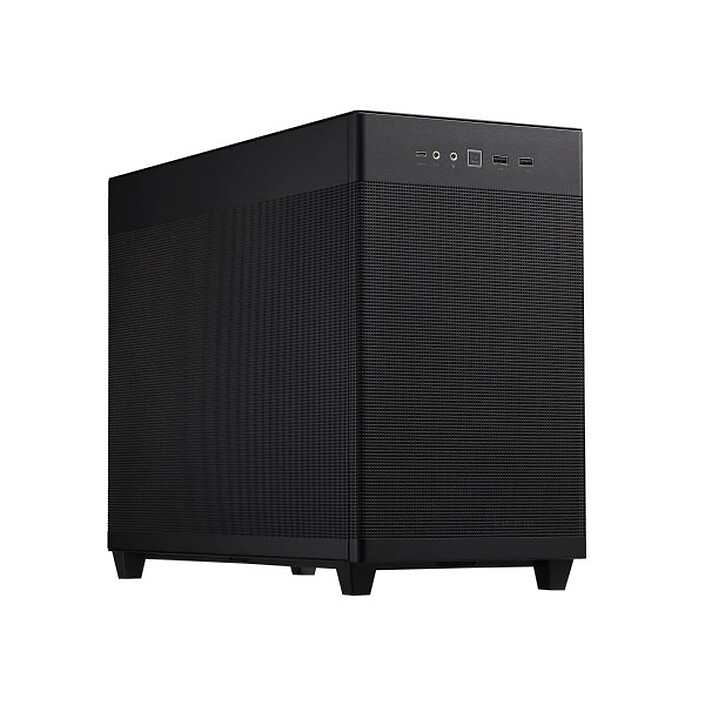

ASUS Prime AP201 Black

Mini Tower case with MESH panels and front panel

Pictures may differ from actual products

Great design and room for all your components despite its compact size, that's what the stylish ASUS Prime AP201 Mini Tower PC case offers. Its MESH design provides excellent cooling performance and a modern, original look.

Mini Tower case with MESH panels and front panel

Overview

ASUS Prime AP201

Great design and space for all your components despite its compact size, that's what the elegant ASUS Prime AP201 Mini Tower PC case offers. Its MESH design gives it excellent cooling performance and a modern, original look. Compatible with the most powerful AIO processor cooling systems (compatible with radiators up to 360mm) as well as the latest generation of graphics cards (up to 338mm in length), the ASUS Prime AP201 will allow you to design a powerful, elegant and discreet PC.

Custom PC

The ASUS Prime AP201 is a sleek 33-litre MicroATX case with tool-less side panels and a quasi-filtering mesh that supports 360mm coolers, graphics cards up to 338mm in length and standard ATX power supplies.

Design and function

  • Filter-like mesh panels: A mesh design with over 57,000 precision-machined 1.5mm holes increases airflow and provides an attractive view of your system components.
  • Optimised cooling: With support for radiators up to 360 mm.
  • Industry-leading space efficiency: Despite a footprint of 33L, the AP201 supports ATX PSUs up to 180mm long, graphics cards up to 338mm long, custom liquid cooling and various storage devices.
  • Tool-free side panels: A simple but secure clip mechanism allows the side panels to be easily removed from the chassis and prevents them from becoming accidentally dislodged.
  • Large cable management: The AP201 features an extended motherboard tray with strategically placed cut-outs and 32mm of space to store cables out of sight.
  • Front USB Type-C support: The front of the AP201 features a USB 3.2 Gen 2 Type-C port, allowing users to experience transfer speeds of up to 10 Gbps.
Specifications
Select your criteria

General information

Product name

ASUS Prime AP201 Black

Brand

ASUS

Model

90DC00G0-B39000

Main characteristics

Graphic card max. length

338 mm

Max height CPU fan

170 mm

Power supply max. length

180 mm

Power format

ATX/EPS

Case format

Mini tower

Use

Media Center
Gamer
Office

Motherboard format

Micro ATX
Mini ITX

Power supply supplied

No

Design

Screwless fixing system

Yes

Case color

Black

Front color

Black

Integrated display

No

Mesh front

Yes

Glass

No

Tempered glass

No

LED RGB

No

ARGB LED

No

Water cooling compatible

Yes

Motherboard connector location

Standard connectors (on the motherboard)

Expansion slots

Number of PCI slots

4

Low profile

No

Number of invisible 3.5" slots

1

Number of 2.5" slots

3

Front connectivity

Location of expansion ports

Front

Connector(s) available

Headphone (3.5mm Jack Female)
Microphone (3.5mm Jack Female)
2 X USB 3.0
1 X USB 3.1 Type C

Cooling

Number of rear fan(s) slots

1 X 120mm

Quantity of rear fan(s) supplied

1

Quantity of above fan(s) supplied

0

Water cooling

AIO radiator compatibility

120mm radiator
140mm radiator
240mm radiator
280mm radiator
360mm radiator

Front AIO slot(s)

N/A

Above AIO slot(s)

120mm radiator
140mm radiator
240mm radiator
280mm radiator
360mm radiator

Rear AIO slot(s)

120mm radiator

Physical characteristics

Width

205 mm

Height

350 mm

Depth

460 mm

Weight

5.8 kg

Volume

33 l

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 18 Apr 2023

Customer review
Global rating
8/10
based on 1 review Editorial and moderation guide
  • 0%
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • by Louis G
    Posted on 22 Dec 2023
    Product bought from LDLC on 28 Sep 2023
    Number of reviews: 4 Average rating: 9

    Good case optimised to extract heat passively

    It's a good, well-ventilated case, built mainly of metal (probably steel).
    Only the feet are plastic.

    On the other hand, the panels are attached with plastic clips (there are one or two spares) but it would have been much better to have had screws.

    Also, you have to be careful not to spill water on the case, because if you do, everything will leak onto the electronics...

    Similarly, the case is designed for water cooling, so there's a lot of space in the upper part of the case which is useless unless you use water cooling, which is perfectly useless in such a case as all the heat comes out directly...

    In the end, it's still a good case that's highly optimised for extracting heat passively, and in fact I put in a gaming configuration with a Ryzen 9 7945 pro and an RX 6700 xt. The system doesn't exceed 70°C despite the fact that there's only one fan at the bottom of the case, which blows cool air over the graphics card.

    Despite the comment that may seem positive, I think there are very probably similar cases that are cheaper and meet the specifications, or that are of better quality, so don't hesitate to compare with others.

    Review automatically translated
