Pictures may differ from actual products

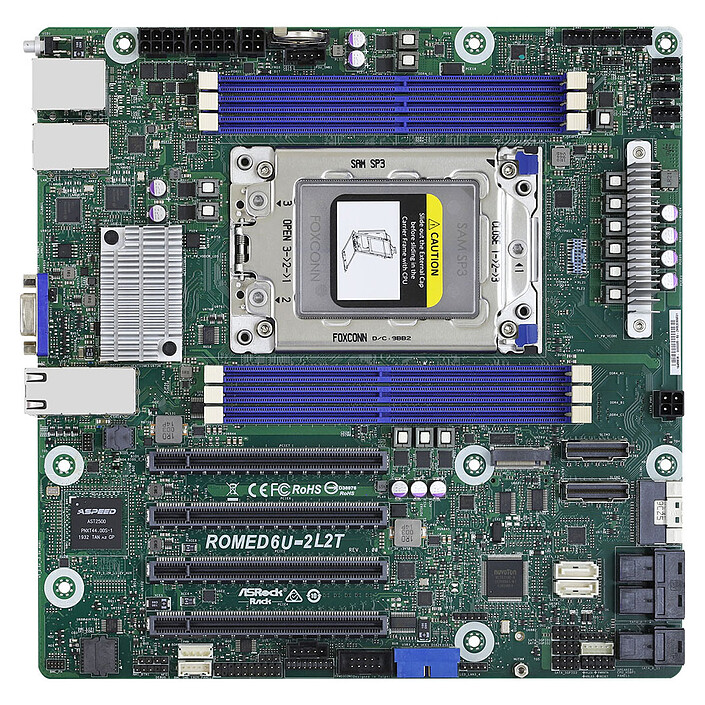

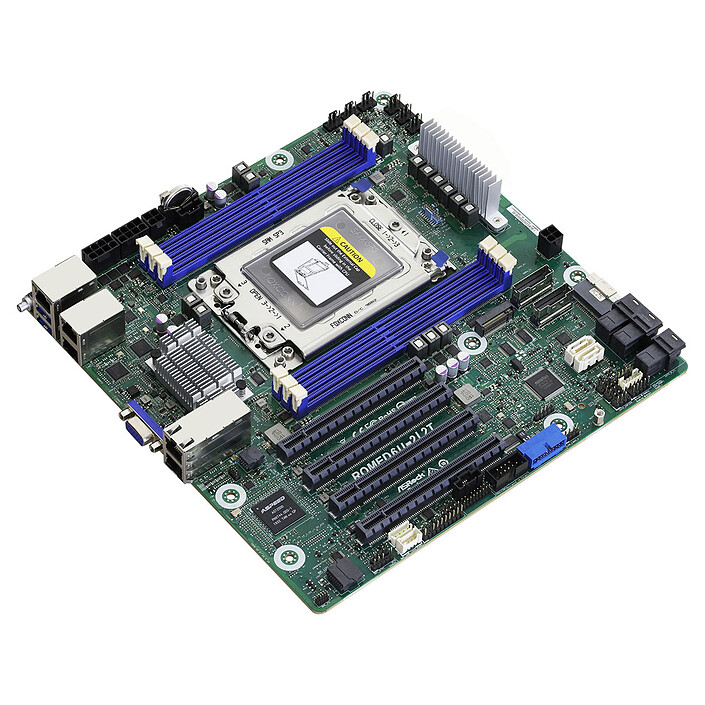

ASRock Rack ROMED6U-2L2T
Micro ATX Socket SP3 motherboard - 6x DDR4 - M.2 PCIe 4.0 - USB 3.0 - PCI-Express 4.0 16x - LAN 10 GbE
Last price 649€94
ASRock Rack ROMED6U-2L2T : SP3 Server Motherboard
The ASRock Rack ROMED6U-2L2T motherboard is designed to host AMD EPYC 7002 and 7003 processors. It will allow the assembly of a reliable and powerful workstation or server while offering many configuration possibilities. Thanks to the support of PCI-Express 4.0 16x graphics cards, SATA 6Gb/s and M.2 disks, DDR4 RAM and USB 3.0, this motherboard is ideal for professional use in a server or workstation.
ASRock Rack ROMED6U-2L2T motherboard advantages :
- AMD SP3 socket for AMD EPYC 7002 and 7003 processor
- 6 DDR4 3200 Mhz memory slots (capacity per module: RDIMM 64 GB max, LRDIMM 128 GB max, RDIMM/LRDIMM-3DS 32 GB max, NVDIMM-N 32 GB max)
- 2x M.2 PCIe 4.0 x4 / SATA 6Gb/s, 3x Mini-SAS HD, 1 xSlim SAS (PCIe 4.0 x8), 2x SlimSAS HD (PCIe 4.0 8x or 8x SATA 6 Gb/s)
- 4 x PCI-Express 4.0 16x ports
- 10 GbE Intel X710-AT2 LAN
- Aspeed AST2500 controller
Select your criteria
General information |
Product name |
ASRock Rack ROMED6U-2L2T |
Brand |
ASRock | |
Model |
ROMED6U-2L2T | |
Processor |
Processor support |
AMD SP3 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
N/A |
Memory |
Memory format |
6 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
Memory type |
DDR4 ECC | |
| DDR4 ECC Registered | ||
Memory technology |
6-Channel | |
Maximum RAM capacity per slot |
256 GB | |
Maximum RAM capacity |
1536 GB | |
Graphic |
Integrated graphics controller |
Yes |
Compatible graphics core integrated in the CPU |
No | |
Graphics chipset |
ASPEED AST2400 | |
Expansion slots |
Graphic connector(s) |
4 X PCI Express 4.0 x16 |
Number and Type of slots |
None | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
None |
Network |
Number of ports/Ethernet controler |
1 X Intel X710-AT2 |
Number of ports/Ethernet controler N°2 |
1 X Realtek RTL8211E | |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
| 10/100/1000 Mbps | ||
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 4 X Slim SAS | ||
| 3 X Mini SAS HD | ||
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
Number of M.2 slot(s) |
1 | |
Connectivity |

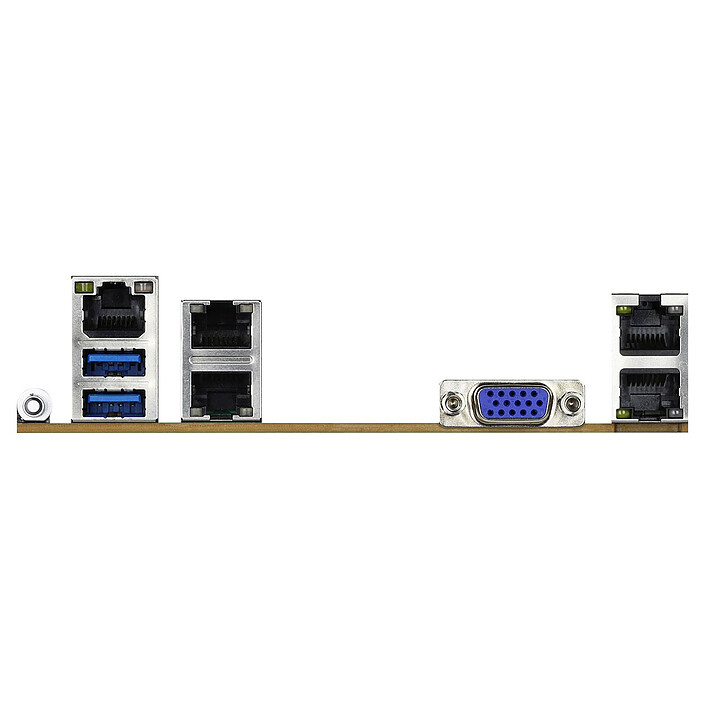

Rear panel connectors |
2 X Gigabit Ethernet - RJ45 Female |
| 1 X 10 Gigabit Ethernet - RJ45 Female | ||
| 1 X VGA (D-sub 15 Female) | ||
| 2 X USB 3.0 | ||
| 1 X RJ45 Female (Management) | ||
Additional connectors |
1 X PCI Express 6 Pin | |
| 1 X Serial (RS-232) | ||
| 1 X Internal USB 3.0 | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| 2 X +12V (Power supply P4) | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Server | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
