ASUS ROG STRIX X870E-H GAMING WIFI7 HATSA MIKU EDITION
ATX Socket AM5 motherboard AMD X870E - 4x DDR5 - M.2 PCIe 5.0 - USB4 - PCI-Express 5.0 16x - LAN 5 GbE + Wi-Fi 7/Bluetooth 5.4
579€95
Recycling charge of 0€50
Create a price drop alert
1
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
579€95
In stock
Build a PC with this product
Overview
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSA MIKU EDITION
Unleash the potential of your AMD Ryzen 9000 processor with the ASUS ROG STRIX X870E-H GAMING WIFI7 H motherboardATSUNE MIKU EDITION. Specially designed to host the AMD Ryzen 9000/8000/7000 series processors, this top-of-the-range motherboard offers first-class performance, remarkable efficiency and advanced configuration options.
Benefits of this motherboard :
- Socket AMD AM5 for AMD Ryzen 9000/8000/7000 processor
- 4 dual-channelDDR5 8400 MHz (O.C.) memory slots
- PCI-Express 5.0 16x port
- 3 x M.2 PCIe 5.0 x4 + 2 x M.2 PCIe 4.0 x4
- Audio ROG SupremeFX ALC4080
- 2 x USB4 40 Gbps (Type-C)ports, DP-ALT Mode compatible
- Intel 5 GbE LAN + Wi-Fi 7 and Bluetooth 5.4
Gaming in the best conditions
The high frequencies of AMD Ryzen processors are a real advantage when it comes to gaming. Choose the right components and design a super-powerful Gaming PC, with no latency and ready to serve when you need it. Get the edge over your opponents and reach new heights with AMD Ryzen 9000/8000/7000 processors and AMD AM5 motherboards.
The AMD Ryzen 9000 processors deliver performance in every area. They will enable you to create faster, achieve your objectives more quickly and save time all the time. Whether it's 3D rendering or exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Specifications
Select your criteria
General information |
Product name |
ASUS ROG STRIX X870E-H GAMING WIFI7 HATSA MIKU EDITION |
Brand |
ASUS | |
Model |
90MB1MA0-M0EAY0 | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X870E |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8000 MHz | |
| DDR5 7900 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x16 (x4) | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek 5 GbE |
Network standard(s) |
Bluetooth 5.4 | |
| Wi-Fi 7 | ||
| 5 Gbps Gigabit Ethernet (5 GbE) | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 3 X M.2 - PCI-E 5.0 x4 | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
5 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

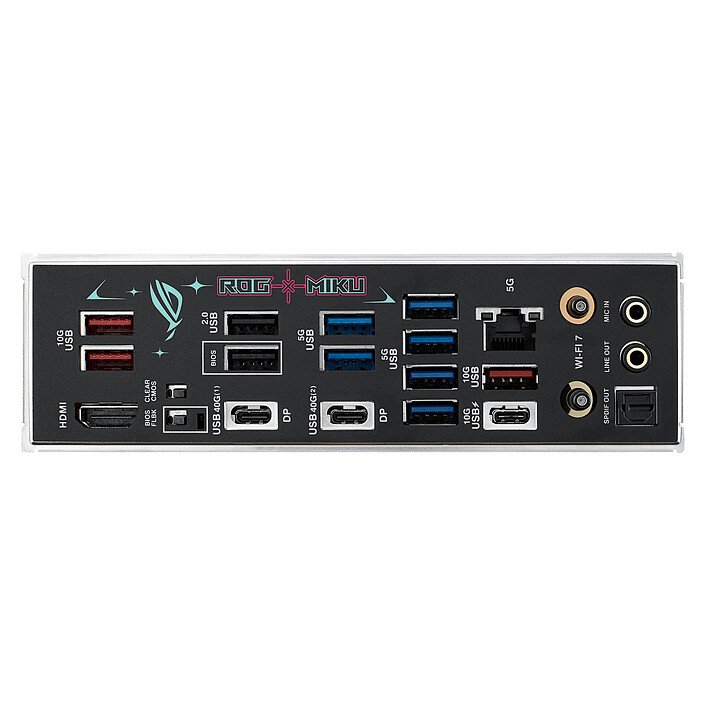

Rear panel connectors |
1 X HDMI Female | |
| 2 X USB4 (Type-C) | ||
| 1 X USB 3.1 Type C | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.1 | ||
| 1 X RJ45 Female | ||
| 1 X Digital audio S/PDIF Optical | ||
| 2 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
3 X Addressable LED RGB connector(s) | |
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
ASUS Computer GmbH |
Postal address |
Harkort STR. 21-23, 40880 RATINGEN, GERMANY | |
Electronic Address |
ProducSafety@asus.com |
See all ASUS products
Product referenced on 22 Oct 2025
Customer reviews
-
Number of reviews: 12 Average rating: 10
-
Number of reviews: 2 Average rating: 10
Magnificent
The motherboard is magnificent. As for the connections on the back, frankly, it has everything you need, whether for performance or collection. Go for it with your eyes closed.
Review automatically translated -
Number of reviews: 4 Average rating: 10
Simple and effective
Everything is guided!
The socket is pretty simple to install the CPU.
The integrated heat sinks for the SSDs are just perfect!
Ram and GPU are just as easy to install.Review automatically translated
