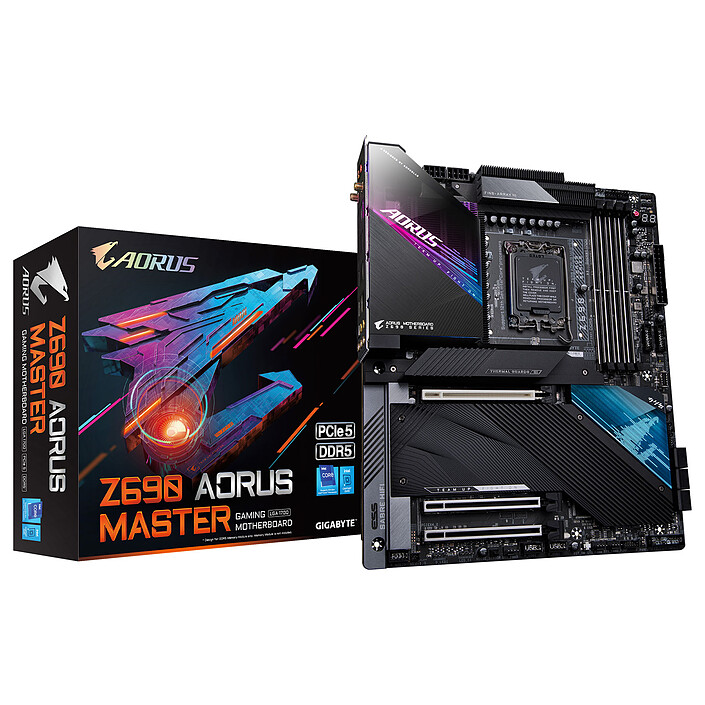

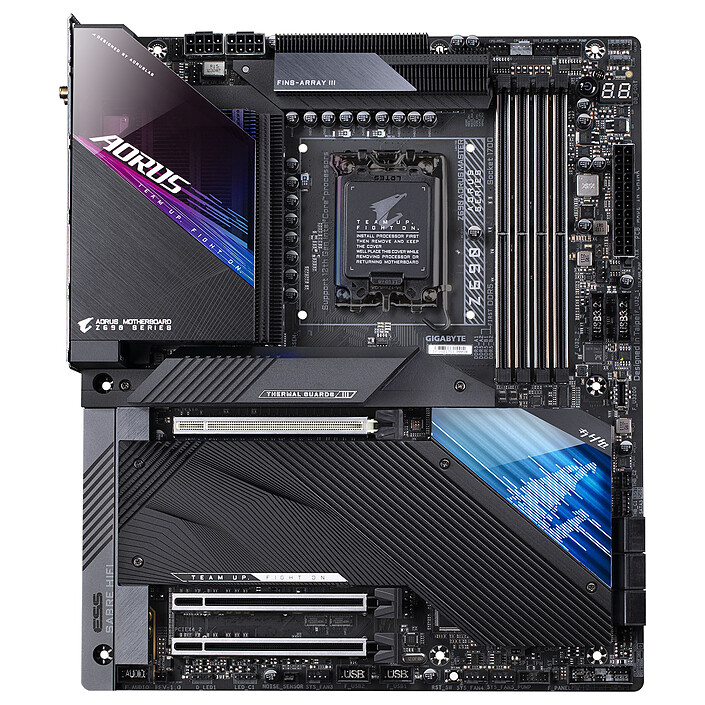

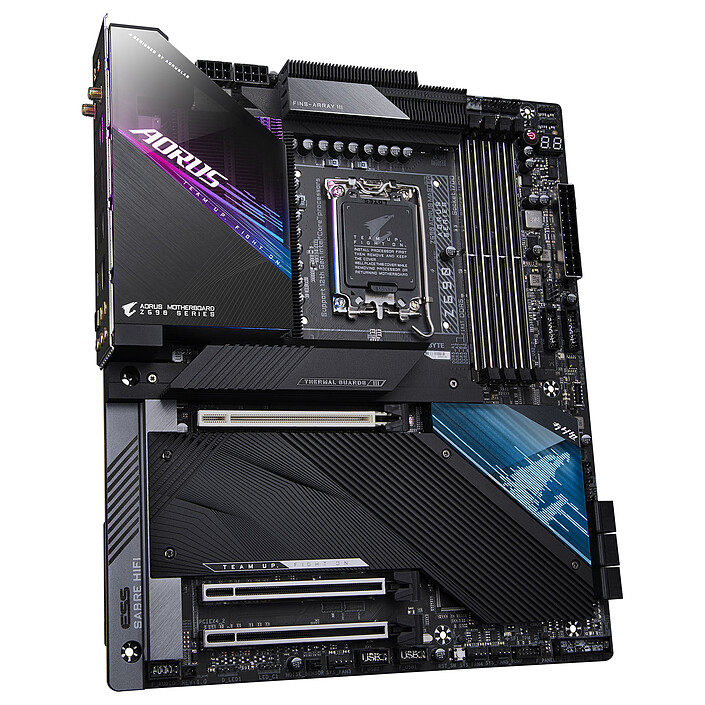

Gigabyte Z690 AORUS MASTER
ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - LAN 10 GbE - Wi-Fi 6E - PCI-Express 5.0 16x
Last price 549€95
Holy Moly!
Equivalent products suggestions:
Overview
Gigabyte
Gigabyte AORUS Motherboard for 12th Generation Intel Core Processor
Based on the Intel Z690 Express chipset, the Gigabyte Z690 AORUS MAS TER motherboard will serve as the foundation for your high-performance processor-based gaming PC with Gigabyte-exclusive features like Smart Fan 6. It supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR5 RAM as well as USB 3.1 and 3.2 devices.
Gigabyte Z690 AORUS MASTER
- Support for 12th generation Intel Core processors on socket LGA 1700
- DDR5 memory support
- 19+1+2 direct VRM with 105A power stage and tantalum polymer capacitors
- PCI-Express 5.0 16x
- RGB FUSION 2.0 compatible with addressable LEDs and RGB LED strips
- 10 Gigabit Network + Wi-Fi 6E
Spectacular performance
The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, as they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.
Specifications
Select your criteria
General information |
Product name |
Gigabyte Z690 AORUS MASTER |
Brand |
Gigabyte | |
Model |
Z690 AORUS MASTER | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z690 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 6400 MHz | |
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 4000 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 2 X PCI Express 3.0 16x (x4) | ||
Number and Type of slots |
None | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC1220-VB |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Marvell AQtion AQC113C - 10 GbE |
Network standard(s) |
Wi-Fi 6E | |
| 10 Gbps Gigabit Ethernet (10 GbE) | ||
| Bluetooth 5.2 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 | |
| 2 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

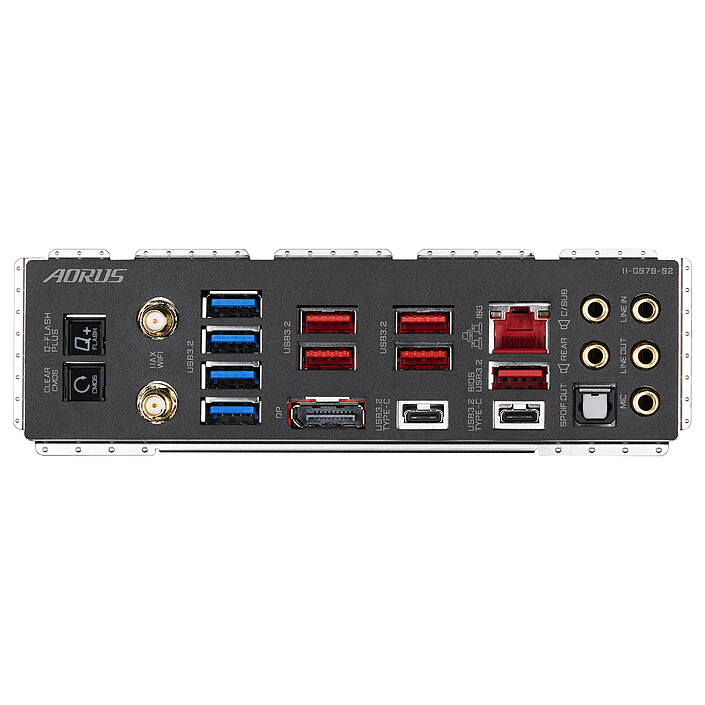

Rear panel connectors |
1 X DisplayPort Female |
| 1 X USB 3.2 Type C | ||
| 1 X USB 3.1 Type C | ||
| 5 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Male Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 2 X Thunderbolt | ||
Physical characteristics |
Motherboard format |
E-ATX |
Length |
305 mm | |
Width |
259 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
