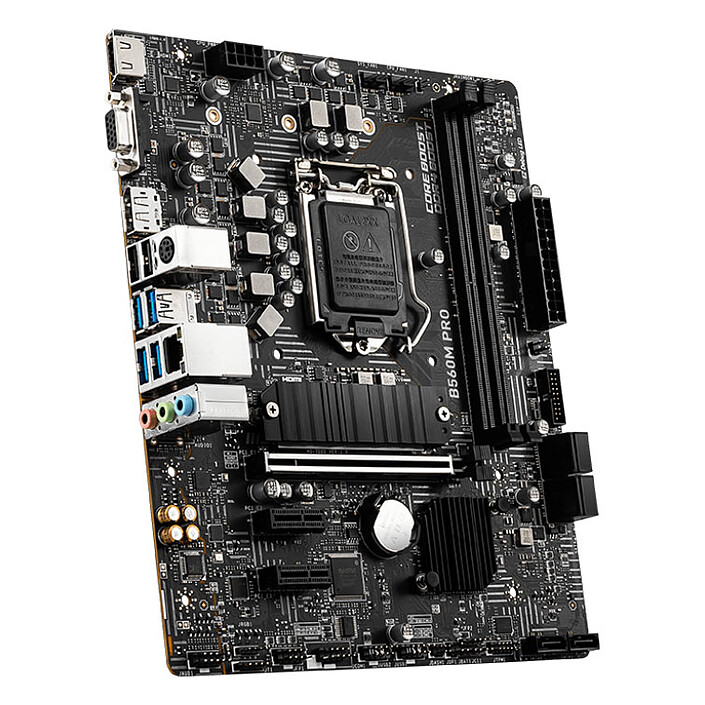

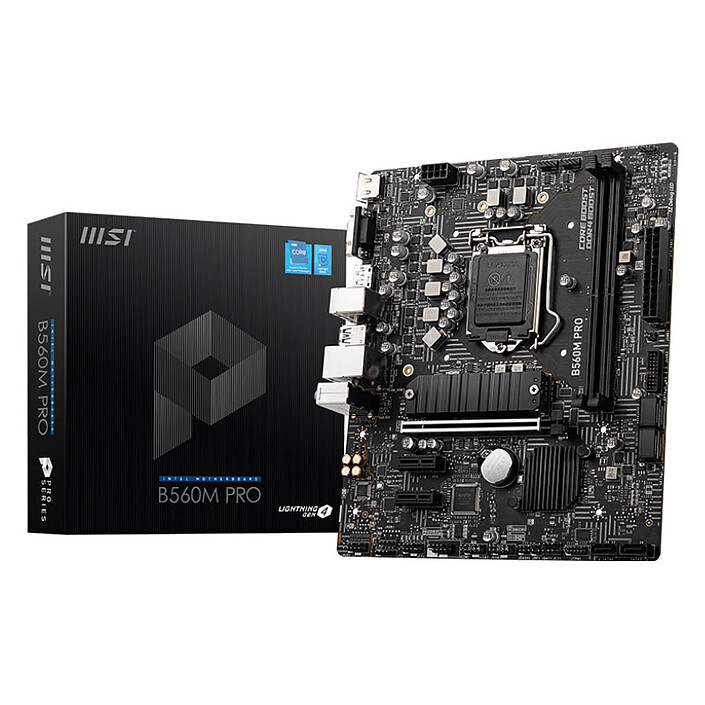

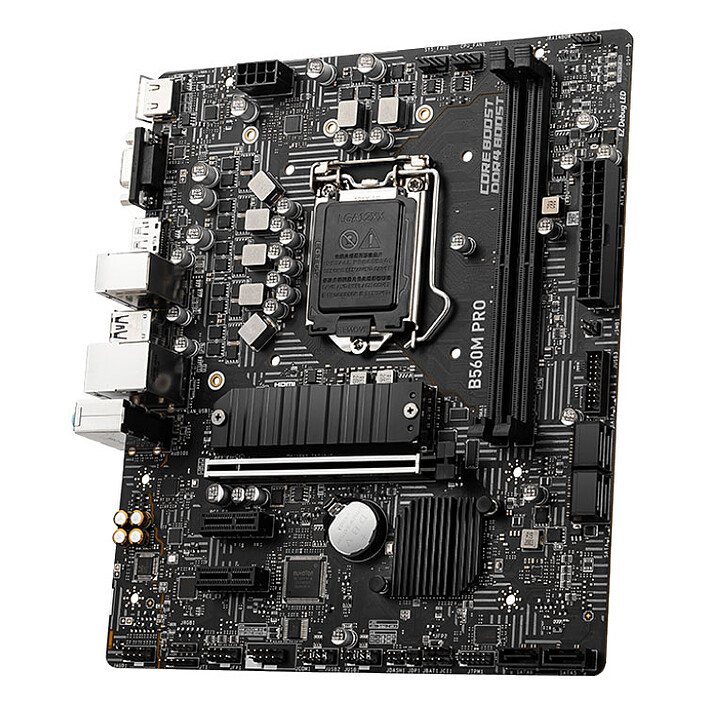

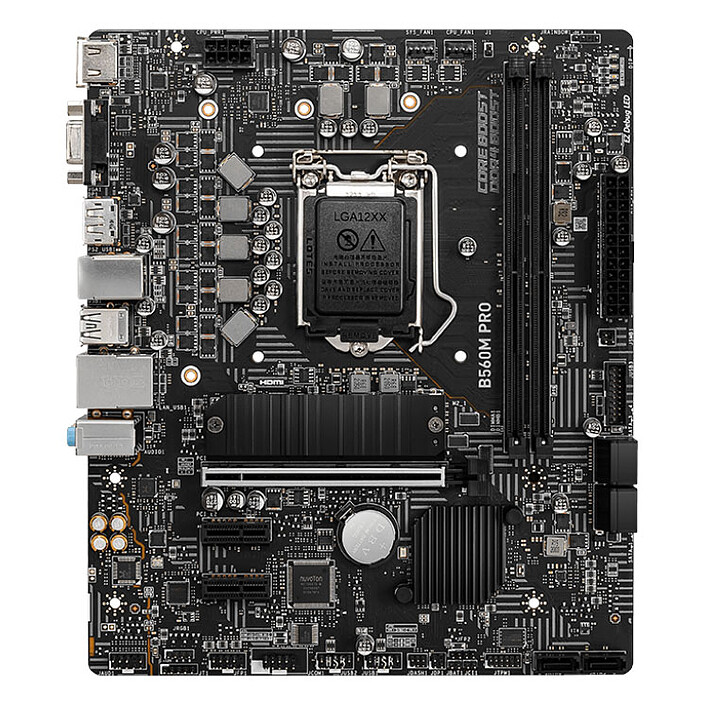

MSI B560M PRO
Micro ATX Socket 1200 Intel B560 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.0 - PCI-Express 4.0 16x - LAN 2.5 GbE
Last price 119€95
Pro Motherboard for Intel Rocket lake CPU
The MSI B460M PRO is designed to accommodate the 10th and 11th generation Intel processors on socket LGA 1200. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a balanced and powerful gaming PC.
It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E NVMe drives, and USB 3.0 peripherals. With MSI build quality and a host of MSI features, it's a great investment for the long term.
MSI B560M PRO
- Support for 10th and 11th generation Intel Core processors on LGA 1200 socket
- DDR4 memory support, up to 5200 MHz (OC)
- Core Boost for powering multi-core processors
- Turbo M.2 slot running on PCI-E Gen4 x4 to improve performance of NVMe SSDs
- Audio Boost: High quality audio for outstanding sound quality
- Steel Armor Slot to protect the graphics card from bending and electromagnetic waves
- 2.5 GbE LAN connector for a fast and smooth online experience
11th Generation Intel Core Processor
The 11th generation Intel Core Rocket Lake-S processor propels you to even more power with its PCI-Express 4. 0 compatibility andHyper Threading across the entire range from Core i3 to Core i9. Its Turbo frequencies go ever higher while maintaining the same TDP as previous generations. Peak performance and fluidity are the order of the day for everyone, whether it's for office, creative or gaming use.
Select your criteria
General information |
Product name |
MSI B560M PRO |
Brand |
MSI | |
Model |
B560M PRO | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B560 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5100 MHz | |
| DDR4 5066 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 5000 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4533 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125B |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Storage |
RAID supported |
No |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 | |
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Connectivity |

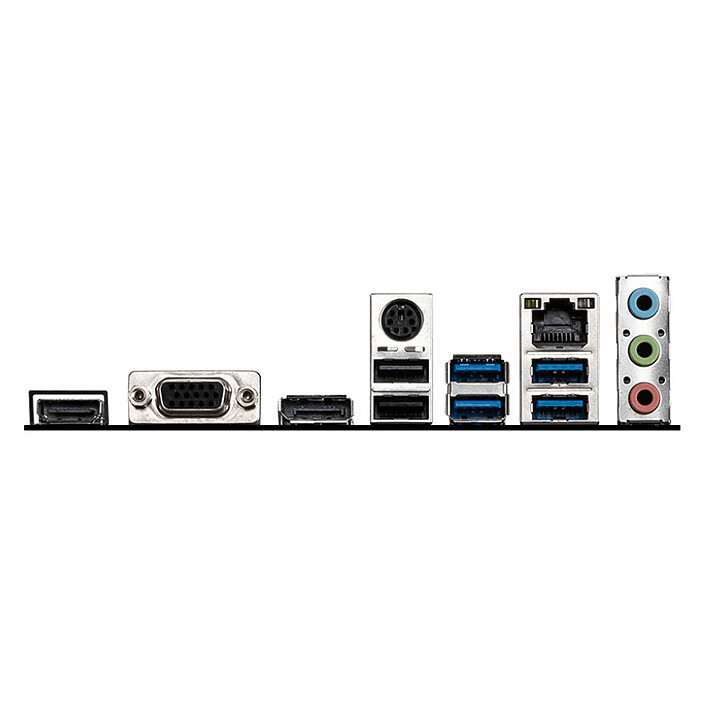

Rear panel connectors |
3 X 3.5mm Jack Female Stereo |
| 1 X MiniDin 6 Female (PS/2) | ||
| 1 X RJ45 Female | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
| 1 X VGA (D-sub 15 Female) | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 1 X Addressable LED RGB connector(s) | ||
| TPM | ||
| 1 X Front panel audio | ||
| 1 X Chassis intrusion | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Serial (RS-232) | ||
| 2 X Internal USB 2.0 | ||
| 1 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
236 mm | |
Width |
202 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Gamer | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
