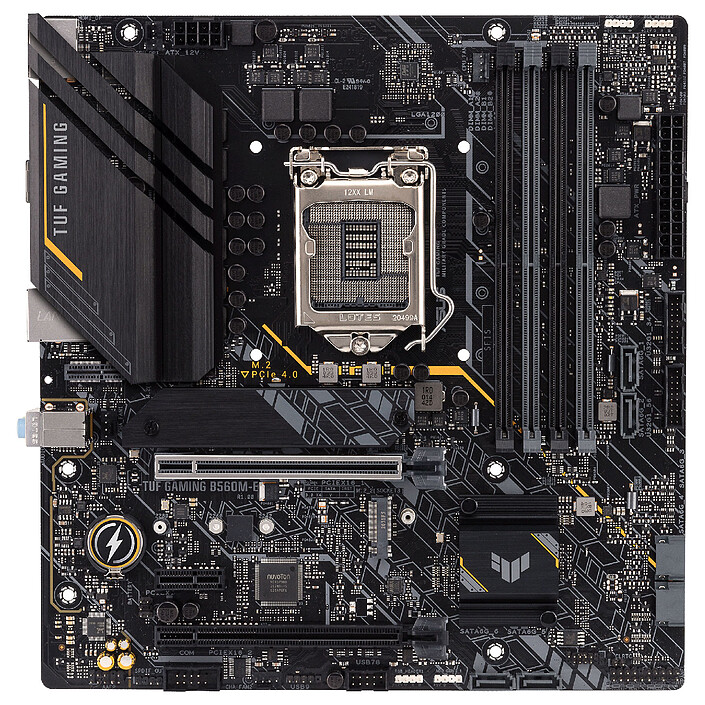

ASUS TUF GAMING B560M-E
Micro ATX Socket 1200 Intel B560 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.1 - LAN 2.5 GbE - PCI-Express 4.0 16x
Last price 175€94
Gaming Motherboard for 10th and 11th Generation Intel Core Processor
ASUS TUF Gaming Motherboards are designed for demanding gamers looking for long term performance and reliability. They allow you to get the most out of your components thanks to a unique design made of robust materials and exclusive utilities. They incorporate gaming features and combine the advantages of new Intel processors with ASUS' iconic design and features.
The ASUS TUF GAMING B560M-E motherboard is designed to support 10th and 11th generation Intel processorson socket LGA 1200. It will allow the assembly of a gaming configuration with a controlled cost and a unique look. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR4 RAM, PCI-Express 4.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4.0 drives and USB 3.0 and USB 3.1 peripherals.
ASUS TUF GAMING B560M-E
- Support for 10th and 11th generation Intel Core processors on socket LGA 1200
- Optimised power supply: 8+1 phase DrMOS, 6-layer PCB, ProCool socket and durable capacitors for a more stable power supply
- Full cooling: VRM heatsink, PCH heatsink, M.2 heatsink, hybrid fan connectors and Fan Xpert 2+
- Two-way AI Noise-Cancelation: Reduces noise from the microphone and audio output for clearer conversations when gaming or video conferencing
- Gaming Network: 2.5 GbE LAN
10th Generation Intel Core Processor
The 11th generation Intel Core Rocket Lake-S processor propels you to even more power with its PCI-Express 4. 0 compatibility andHyper Threading across the entire range from Core i3 to Core i9. Its Turbo frequencies go ever higher while maintaining the same TDP as previous generations. Peak performance and fluidity are the order of the day for everyone, whether it's for office, creative or gaming use.
Select your criteria
General information |
Product name |
ASUS TUF GAMING B560M-E |
Brand |
ASUS | |
Model |
90MB1850-M0EAY0 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B560 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5000 MHz | |
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3600 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
| 1 X PCI Express 3.0 16x (x4) | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Realtek 2.5 GbE |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
No |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
| 1 X M.2 - PCI-E 4.0 x4 | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Connectivity |
Rear panel connectors |
2 X SMA Female |
| 3 X 3.5mm Jack Female Stereo | ||
| 1 X RJ45 Female | ||
| 4 X USB 2.0 | ||
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
Additional connectors |
2 X Internal USB 3.0 | |
| 2 X Internal USB 2.0 | ||
| 1 X Serial (RS-232) | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| Chassis intrusion | ||
| Front panel audio | ||
| TPM | ||
| 2 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
234 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 3 Jun 2021
