Pictures may differ from actual products

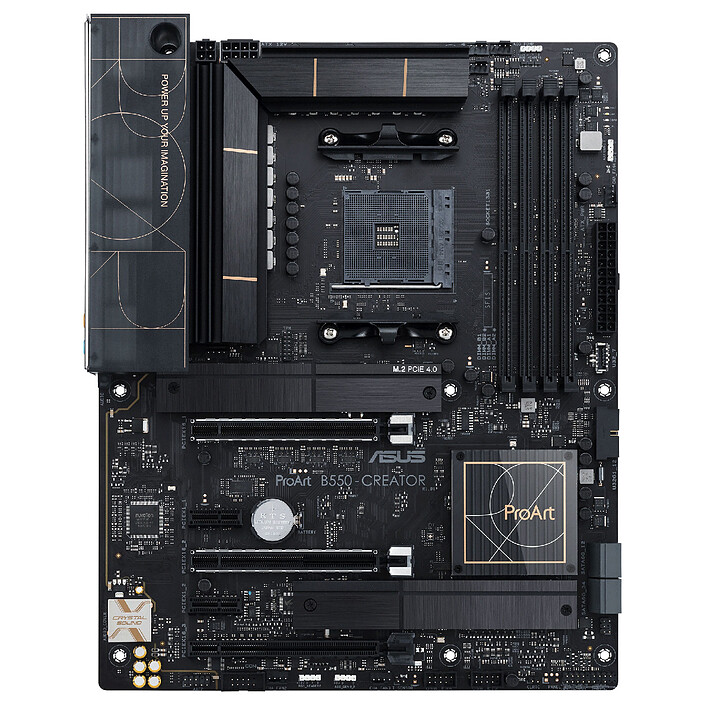

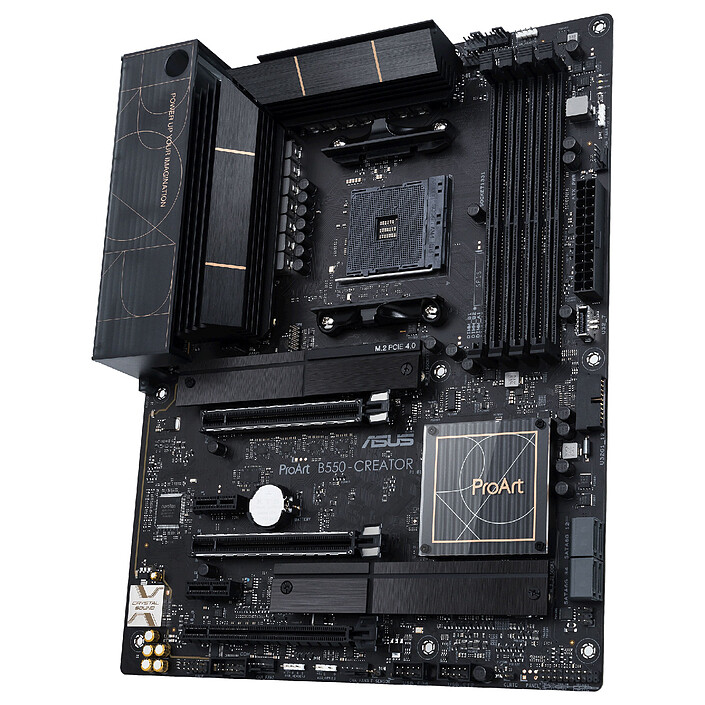

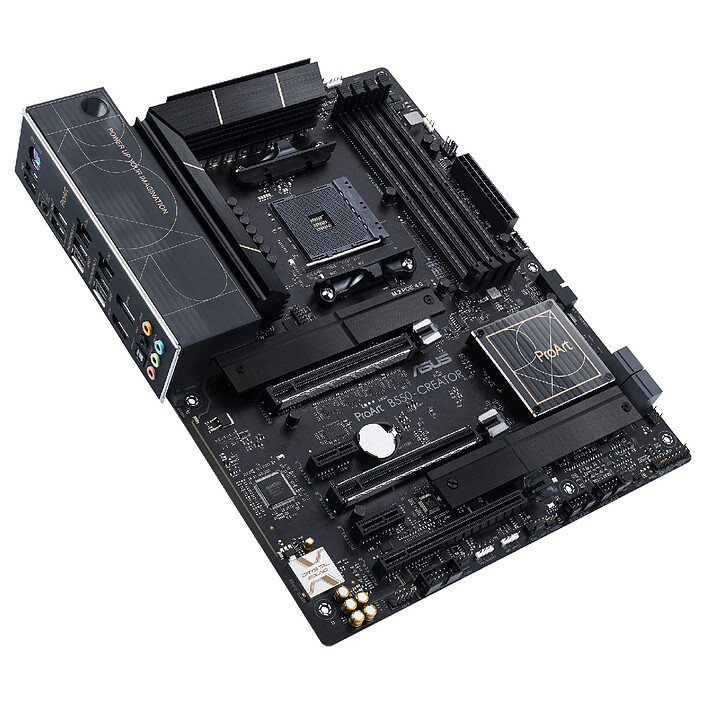

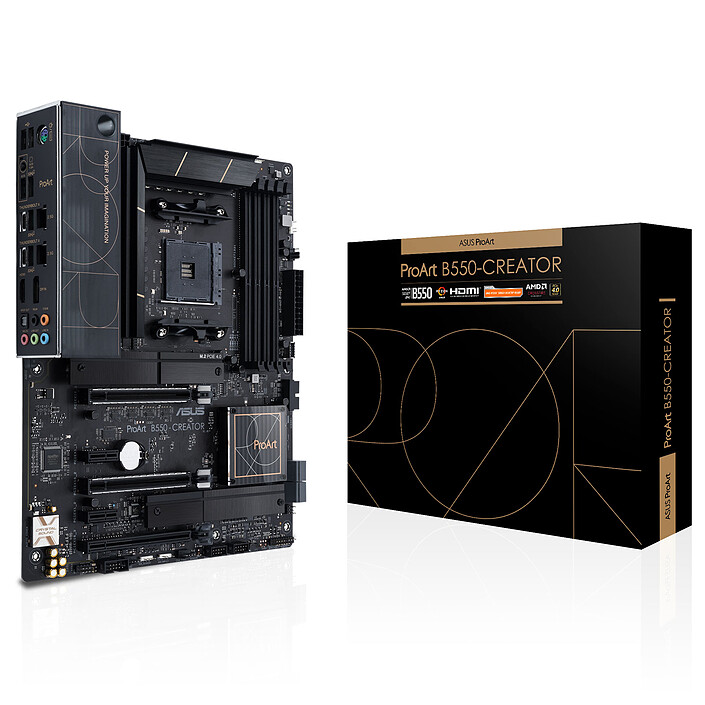

ASUS ProArt B550-CREATOR
ATX Socket AM4 AMD B550 Motherboard - 4x DDR4 - M.2 PCIe 4.0 - Thunderbolt 4 - PCI-Express 16x - LAN 2.5 GbE
Last price 289€94
ProArt Motherboard for Content Creators
ASUS ProArt motherboards are designed and engineered for content creators looking for long-term performance and reliability. They make the most of their components with a unique design made of robust materials and exclusive utilities. They incorporate gaming features and combine the benefits of new AMD processors with ASUS' iconic design and features.
Ready for 3rd generation AMD Ryzen processors (named Core Matisse) and above, the ASUS motherboard is designed to support the new AMD Ryzen processors.the ASUS ProArt B550-CREATOR motherboard is ideal for designing a high-performance, balanced PC for content creators. PCI-Express 4.0 support takes you to new heights. With support for DDR4 RAM up to 128GB, PCI-Express 4.0 graphics cards, M.2 PCIe 4.0 4x drives, and Thunderbolt 4, the ASUS ProArt B550-CREATOR motherboard takes advantage of the best of the best with the AMD B550 chipset.
The advantages of the ProArt B550-CREATOR
- AMD AM4 socket for AMD Ryzen 3000/4000/5000 processor
- 4 DDR4 5100 MHz Dual-Channel (O.C.) memory slots
- Full I/O interface: Dual USB-C Thunderbolt 4, Dual Ethernet 2.5GbE, HDMI 2.1 and DisplayPort 1.2
- PCI 4.0 interface compatible
- No thermal slowdown: 12+2 phase power supply with special alloy coils and durable capacitors
- Advanced security: USB port management, blacklisted software and On/Off registry editor via ASUS Control Center Express software
- ProArt Benefits: Two-Way AI Noise technology for clearer online communications; and ProArt Creator Hub with CreationFirst for easier control of system settings
- Guaranteed Stability: Uninterrupted operation, enhanced compatibility and SafeSlot technology for durability
Zen 3 Microarchitecture
When you have the most advanced processor architecture for gamers and content creators, the possibilities are endless. Whether you're playing the latest games, designing the next skyscraper, or using data, you need a powerful processor that can handle it all and more. There's no doubt about it, the AMD Ryzen 5000 series desktop processors are setting a new standard for gamers and artists alike.
Select your criteria
General information |
Product name |
ASUS ProArt B550-CREATOR |
Brand |
ASUS | |
Model |
PROART B550-CREATOR | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B550 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5100 MHz | |
| DDR4 4866 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4466 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x8) |
| 1 X PCI Express 4.0 x16 | ||
| 1 X PCI Express 3.0 16x (x4) | ||
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
SupremeFX S1220A |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
2 X Intel i225-V |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

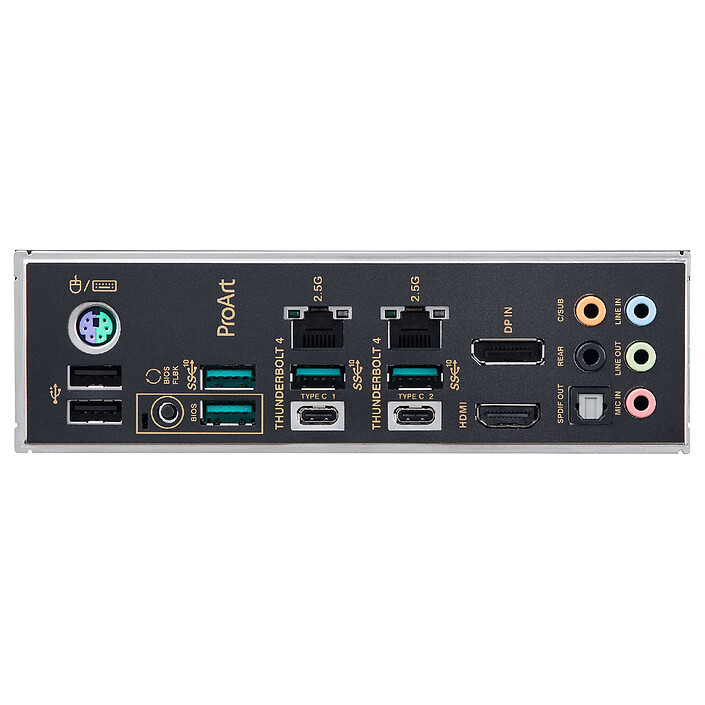

Rear panel connectors |
1 X HDMI Female |
| 2 X Thunderbolt 4/USB-C | ||
| 1 X DisplayPort Female (Input) | ||
| 4 X USB 3.1 | ||
| 2 X USB 2.0 | ||
| 2 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| BIOS Flash Update | ||
| 1 X S/PDIF digital audio | ||
| 5 X 3.5mm Jack Female Stereo | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| TPM | ||
| 1 X +12V (Power supply P4) | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Serial (RS-232) | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Office | |
| Gamer | ||
| Multimedia | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
