The ASUS Prime series is designed to unlock the potential of 10th Generation Intel Core processors. Featuring a robust design and comprehensive cooling solutions, the Prime H410 Series motherboards offer users a wide range of hardware performance optimization options through included software.
The ASUS PRIME H410M-E motherboardis designed to support Intel's 10th generation Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a gaming configuration at a controlled cost. Office, multimedia, multitasking, light multimedia creation, it is the ideal solution to design a versatile family PC. It also supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s drives and USB 3.0 peripherals.
High performance in games, virtual reality without slowing down, intensive multitasking, the 10th generation Intel Core processors are ultra versatile and at ease in all situations. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
Select your criteria
General information |
Product name |
ASUS PRIME H410M-E |
Brand |
ASUS | |
Model |
90MB13H0-M0EAY0 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel H410 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8111H |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 3.0 x2 + SATA 6 Gb/s | ||
Connectivity |

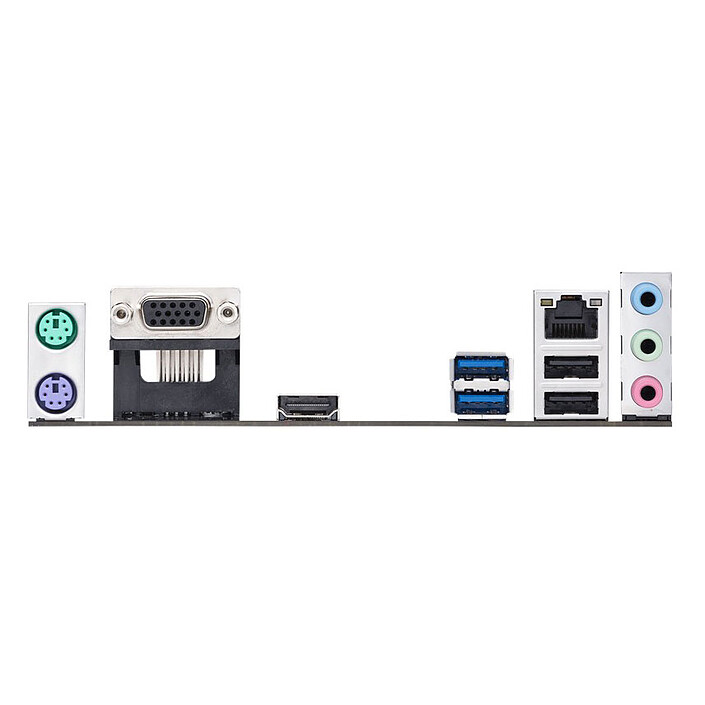

Rear panel connectors |
1 X VGA (D-sub 15 Female) |
| 1 X HDMI Female | ||
| 2 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 2 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
Internal S/PDIF | |
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Serial (RS-232) | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
226 mm | |
Width |
203 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASUS products
Product referenced on 27 May 2020
A good budget asus motherboard with a m2 ssd slot on socket 1200.
Asus quality is present and the board is well designed with many classic ports. I bought it to mount a htpc on a celeron with 2 x 4gb ddr4 2133mhz, 1 ssd m2 and 1 gt1030, the installation of win 10 was very easy and allows the design of a robust and scalable quality machine over time.
A reasonable choice which proves that who can less can more.
A card that doesn't bother with frills. It has all the essentials to run an office and multimedia PC.
I'm taking off one star because I spent a few hours installing Windows 10 and all my wife's apps (some of you will recognize yourself!), only to learn that to install Windows 11 I'll have to reinstall everything. Indeed, the BIOS is not in UEFI by default and if you activate the Secure Boot, my disk is not recognized anymore. A warning in the box would have been welcome.
