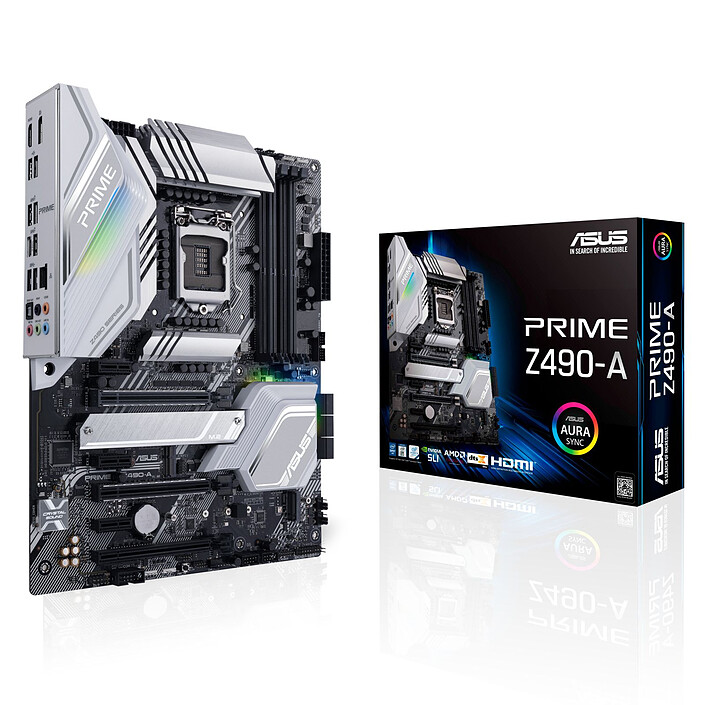

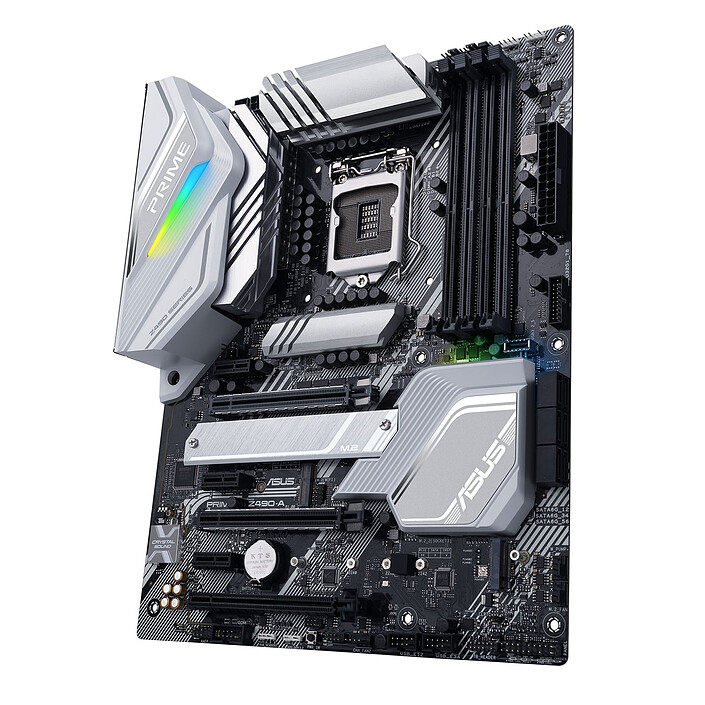

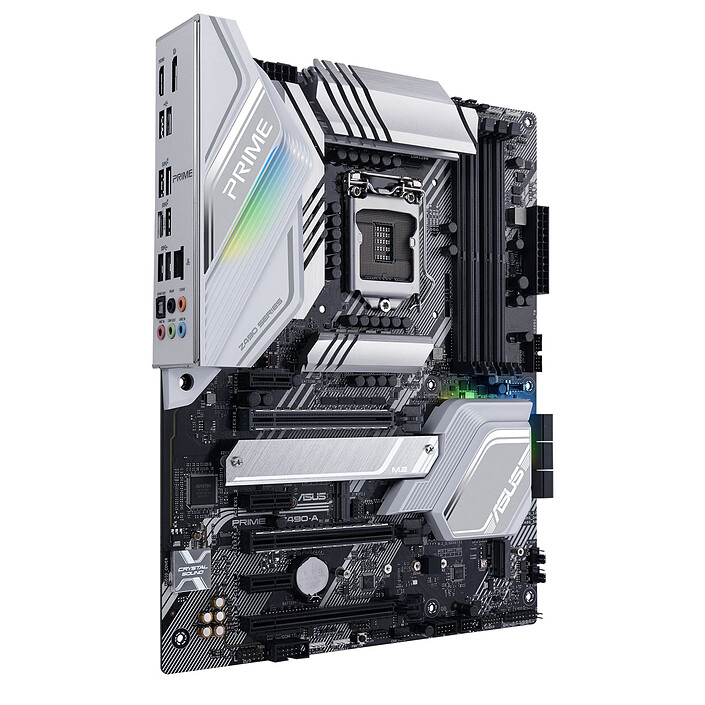

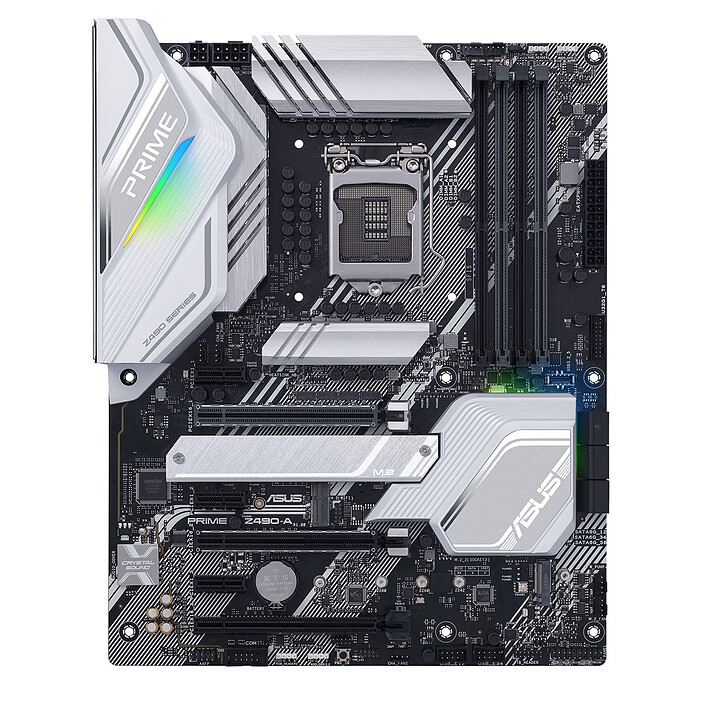

ASUS PRIME Z490-A

ASUS quality at its best!

I bought this card to replace an ASUS Z67-A with a Core i5 Haswell.
Combined with a Core-i7 10700K, 32GB of 3600Mhz RAM and an EK watercooler that I had previously, it's a new lease of life for my computer.
The assembly is not particularly difficult if you follow the manual and take a minimum of time to do it right.
The design of the card is particularly well done and coupled with the RGB LEDs in the RAM and a WS2812B LED strip, this can only give a very nice result.
The UEFI BIOS is comprehensive and has many options for cooling management.
The rear panel and expansion slots on the card are well supplied and should cover my needs for years to come.
So why only a 9/10 rating? I would have liked a slightly more affordable price.

General information	Product name	ASUS PRIME Z490-A
	Brand	ASUS ASUS
	Model	90MB1390-M0EAY0
Processor	Processor support	Intel 1200
Processor	Number of CPUs supported	1
Chipset	Chipset	Intel Z490 Express
Memory	Memory format	4 X DIMM 288-pin (DDR4)
	Memory Frequency(ies)	DDR4 4600 MHz
		DDR4 4533 MHz
		DDR4 4400 MHz
		DDR4 4300 MHz
		DDR4 4266 MHz
		DDR4 4133 MHz
		DDR4 4000 MHz
		DDR4 3866 MHz
		DDR4 3800 MHz
		DDR4 1866 MHz
		DDR4 2133 MHz
		DDR4 2400 MHz
		DDR4 2666 MHz
		DDR4 3733 MHz
		DDR4 3600 MHz
		DDR4 3466 MHz
		DDR4 3400 MHz
		DDR4 3333 MHz
		DDR4 3300 MHz
		DDR4 2933 MHz
		DDR4 3200 MHz
	Memory type	DDR4
	Memory technology	Dual Channel
	Maximum RAM capacity per slot	32 GB
	Maximum RAM capacity	128 GB
Graphic	Integrated graphics controller	No
Graphic	Compatible graphics core integrated in the CPU	Yes
Expansion slots	Graphic connector(s)	1 X PCI Express 3.0 x16 (x8)
		1 X PCI Express 3.0 16x (x4)
		1 X PCI Express 3.0 x16
	Number and Type of slots	3 X PCI Express 3.0 x1
	Multi-GPU type	SLI
	Multi-GPU type	CrossFireX
Audio	Audio Chipset	Realtek S1220A
Audio	Number of audio channels	8
Network	Number of ports/Ethernet controler	Intel i225-V
	Network standard(s)	10/100/1000 Mbps
	Network standard(s)	2.5 Gbps Gigabit Ethernet (2.5 GbE)
Storage	RAID supported	Yes
	Hard drives connectors	6 X Serial ATA 6Gb/s (SATA Revision 3)
	Hard drives connectors	2 X M.2 - PCI-E 3.0 x4
	Supported RAID Modes	5
		10
		1
		0

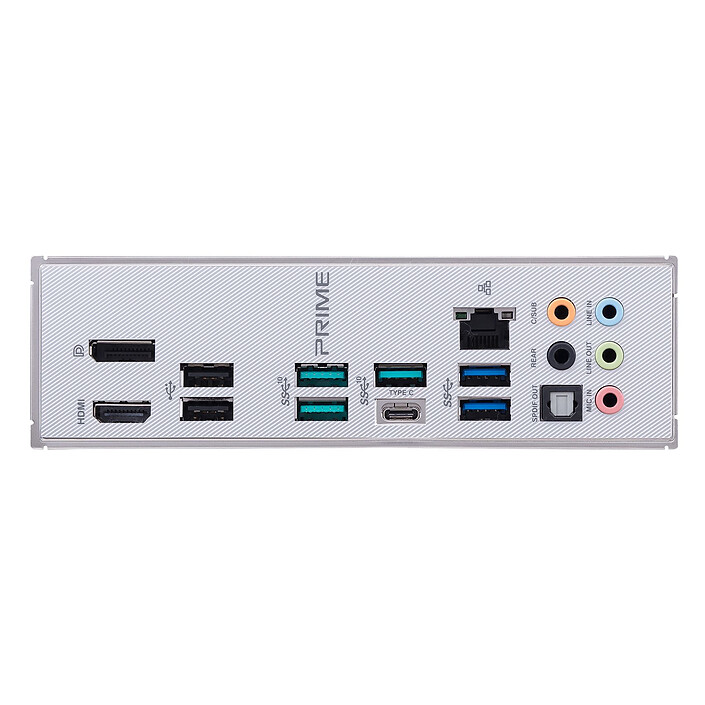

Connectivity	Rear panel connectors	1 X HDMI Female
		1 X DisplayPort Female
		1 X USB 3.1 Type C
		3 X USB 3.1
		2 X USB 3.0
		2 X USB 2.0
		1 X RJ45 Female
		1 X Digital audio S/PDIF Optical
		5 X 3.5mm Jack Female Stereo
	Additional connectors	2 X LED RGB connector(s)
		2 X Addressable LED RGB connector(s)
		Front panel audio
		Chassis intrusion
		1 X +12V (Power supply P4)
		1 X +12V (Power supply P8)
		1 X ATX 24 Pin
		4 X Internal USB 2.0
		2 X Internal USB 3.0
Physical characteristics	Motherboard format	ATX
	Length	305 mm
	Width	244 mm
Equipment	Advanced overclocking features	Yes
	Use	Gamer
	LED	Yes
Warranties	Commercial warranty	Seller 2 years
Warranties	Legal warranty	See terms & conditions

ATX Socket 1200 Intel Z490 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCI-E NVMe - USB 3.1 - 3x PCI-Express 3.0 16x
