Pictures may differ from actual products

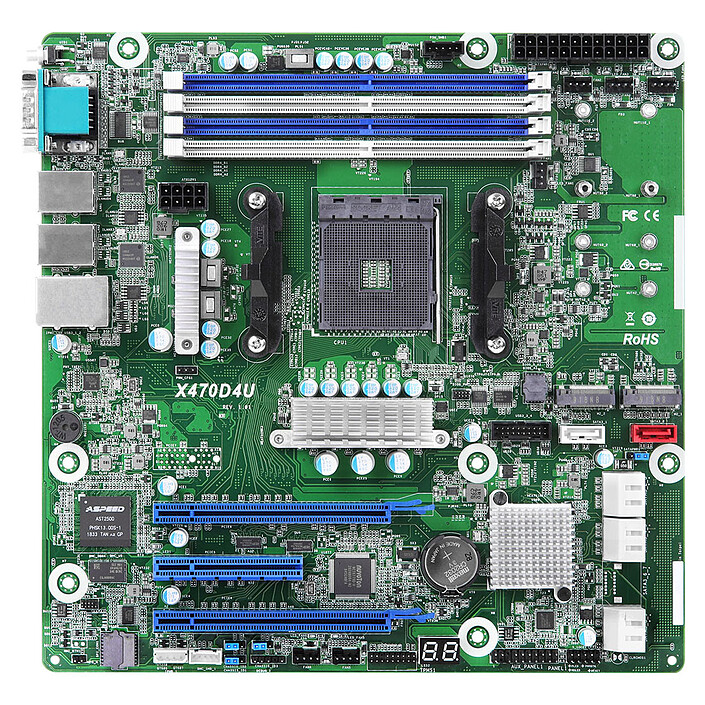

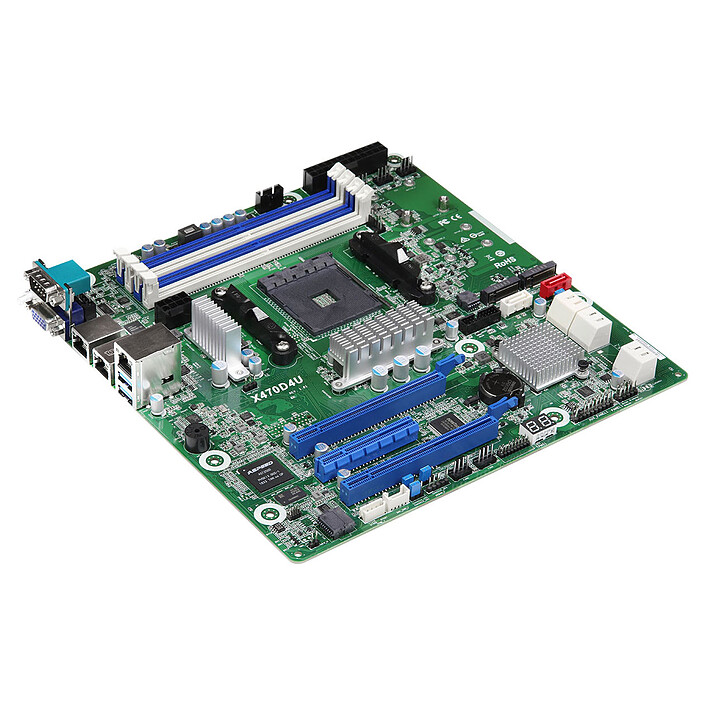

Based on the AMD X470 chipset, the ASRock Rack X470D4U motherboard is designed to accommodate AMD Ryzen 2000, AMD Ryzen Pro 2000 and Ryzen 3000 processors. It will allow the assembly of a reliable and powerful workstation or server while offering a reduced size. With support for PCI-Express 3.0 16x graphics cards, SATA 6Gb/s and M.2 disks, DDR4 RAM and USB 3.0, this motherboard is ideal for professional server and workstation use.
Select your criteria
General information |
Product name |
ASRock Rack X470D4U |
Brand |
ASRock | |
Model |
X470D4U | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X470 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
| DDR4 2933 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
Memory type |
DDR4 | |
| DDR4 ECC | ||
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
Yes |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
ASPEED AST2400 | |
Video memory size |
16 MB | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 (x8) |
| 1 X PCI Express 3.0 x16 | ||
Number and Type of slots |
1 X PCI Express 3.0 x4 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
None |
Network |
Number of ports/Ethernet controler |
2 X Intel I210-AT |
Number of ports/Ethernet controler N°2 |
1 X Realtek RTL8211E | |
Network standard(s) |
10/100/1000 Mbps | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X M.2 - PCI-E 3.0 x2 + SATA 6 Gb/s | |
| 8 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

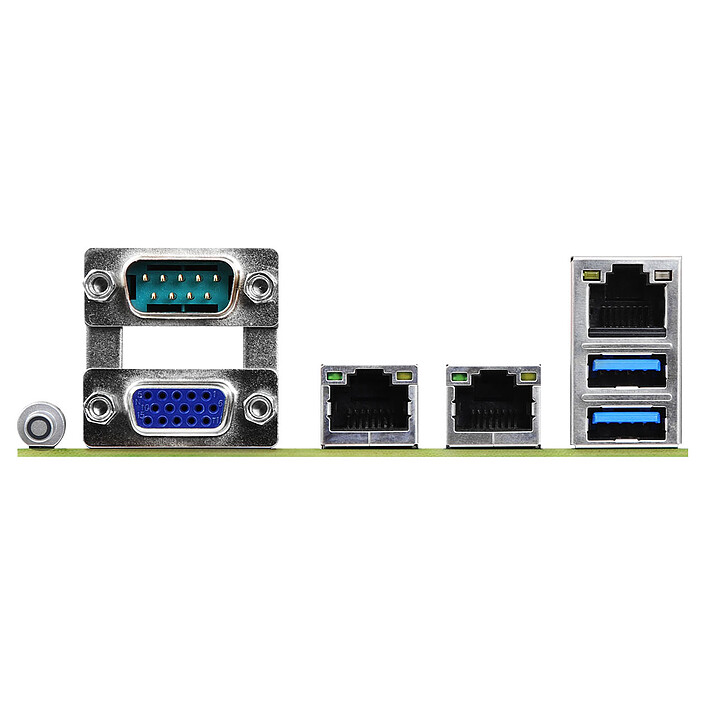

Rear panel connectors |
1 X Serial (RS-232) |
| 2 X RJ45 Female | ||
| 1 X RJ45 Female (Management) | ||
| 2 X USB 3.0 | ||
| 1 X VGA (D-sub 15 Female) | ||
Additional connectors |
TPM | |
| Chassis intrusion | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Server | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 4 Feb 2020
The processor socket is extremely close to the memory slots. Once the fan is mounted, whatever the model, 2 slots are inaccessible!
The after-sales service leads me on by trying to make me buy different fans and systematically deletes the comments.
The buyer still has the right to know that the real capacities of this product are being lied about.
An affordable and correct IPMI card.
Simple and accessible implementation. Remote management allows quick installation without keyboard/mouse/display.
Beware of the memory slot next to the socket, it is not accessible with some heat sinks including the Wraith Stealth, choose one depending on the amount of memory you want and the case...
The delivered manual is more than succinct but available online in full version. But the management interface is simple enough to do without.
The two stars less for the memory slot problem.
Great compromise for a home server, I highly recommend. Some difficulties with installation, refer to the online documentation for error codes.
