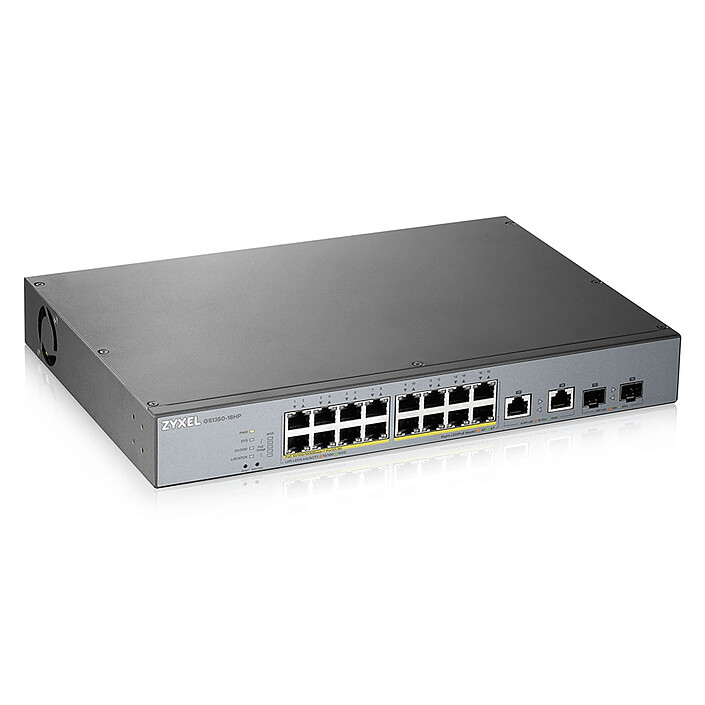

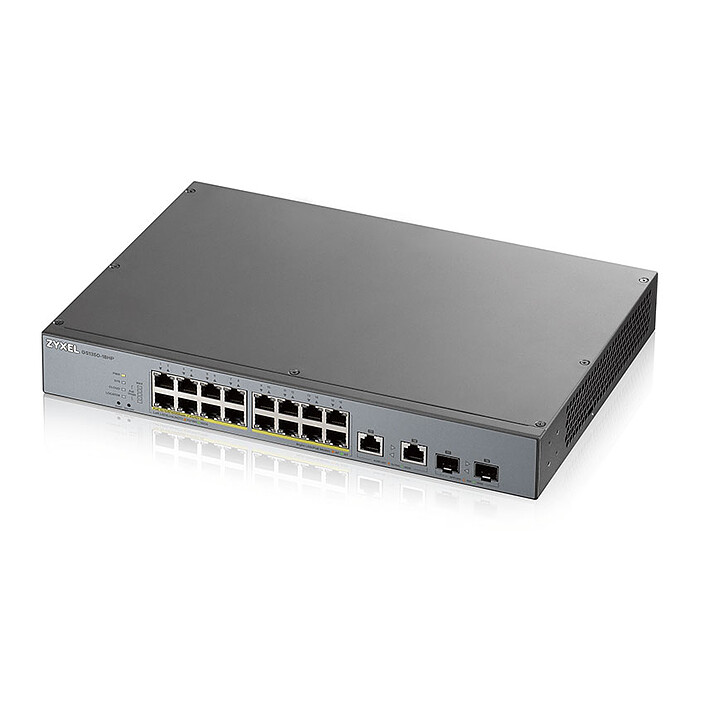

ZyXEL GS1350-18HP

16-port PoE+ 100/1000 Mbps manageable smart switch + 2 x 1 GbE/SFP combo ports

Pictures may differ from actual products

The Zyxel GS1350 series offers smart manageable Gigabit switches with 5 to 24 PoE+ ports optimised for video surveillance. The GS1350 series features an extended range mode that enables remote deployments of up to 250m, compared with the standard 100m.

16-port PoE+ 100/1000 Mbps manageable smart switch + 2 x 1 GbE/SFP combo ports

Overview

16-port switch dedicated to video surveillance

The Zyxel GS1350 series offers smart manageable Gigabit switches with 5 to 24 PoE+ ports optimised for video surveillance. The GS1350 series features an extended range mode that enables remote deployments of up to 250m, compared with the standard 100m. It can be easily configured via Nebula Control Center for unified, cloud-based management, or with its user-friendly web GUI if you still prefer local settings.

PoE switch with extended reach

Traditionally, PoE switches provide power and data within 100 metres. The GS1350 series addresses the need to deploy an IP camera or power devices over an existing Cat 5e cable to remote locations. By activating the extended range mode, remote deployments of up to 250 m can be achieved instantly.

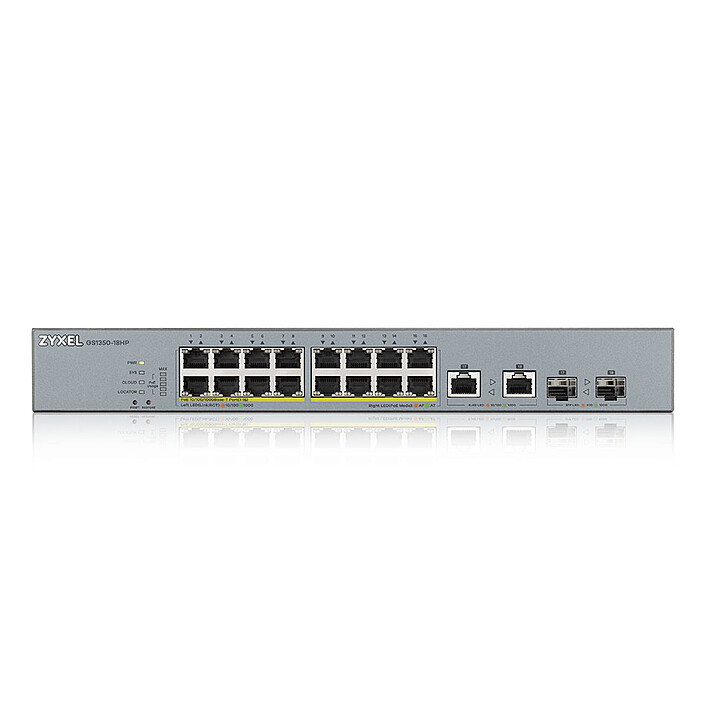

The GS1350 Series includes four models with large power budgets of up to 375 W to meet the power requirements of multiple IP cameras. The intuitive LED indicator on the front panel enables PoE status to be inspected in real time. In addition, the one-touch "Restore" button on the GS1350 series enables effortless recovery from configuration errors.

Simplified management with a focus on video surveillance

The GS1350 series joins the Zyxel NebulaFlex Pro family, which allows you to easily switch between standalone management and the intuitive Nebula cloud management platform with Pro Pack 1 year provided in just a few clicks. Both management options have dedicated monitoring features to help you easily manage your monitoring network.

The GS1350 Series offers an intelligent and intuitive web-based user interface experience specifically for your surveillance applications. Monitor your cameras and PoE status at a glance and configure your surveillance network with ease.

Key features :

  • 16-port PoE+ Gigabit Ethernet 100/1000 Mbps switch + 2 x 1 GbE copper/SFP combo ports
  • 16 ports compatible with long range 250 metres (limited to the power of the PoE standard (15.4W) and the 10 Mbps data rate)
  • PoE budget: 375 Watts
  • Switching capacity: 36 Gbps
  • 2 management modes: Standalone or Cloud via Nebula Flex
  • IPv6 compatible
  • Compatible SFP modules: SFP-1000T, SFP-BX1310-10-D, SFP-BX1490-10-D, SFP-LHX1310-40-D, SFP-LX-10-D, SFP-SX-D, SFP-ZX-80-D
  • Nebula Pro Pack 1 year included
Specifications
Select your criteria

General information

Product name

ZyXEL GS1350-18HP

Brand

Zyxel

Model

GS1350-18HP-EU0101F

Technical specifications

Number of ports

16

Network standard(s)

100/1000 Mbps

Number of 10/100/1000 Mbps ports

16

Number of SFP combo (RJ45/Fiber) ports

2

Rackable

Yes

Manageable

Yes

SNMP

Yes

PoE (Power over Ethernet)

Yes

PoE standard

PoE+ (30W)

Number of PoE ports

16

Max. PoE budget

250 W

IPv6 compatible

Yes

Width

330 mm

Depth

230 mm

Height

44 mm

Weight

2.42 kg

Consumption

300.9 W

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 30 Jun 2023
