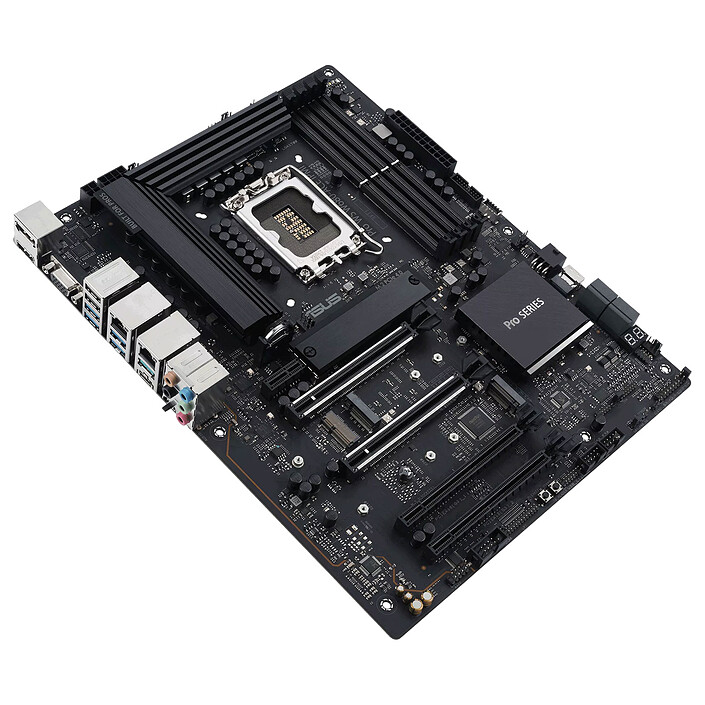

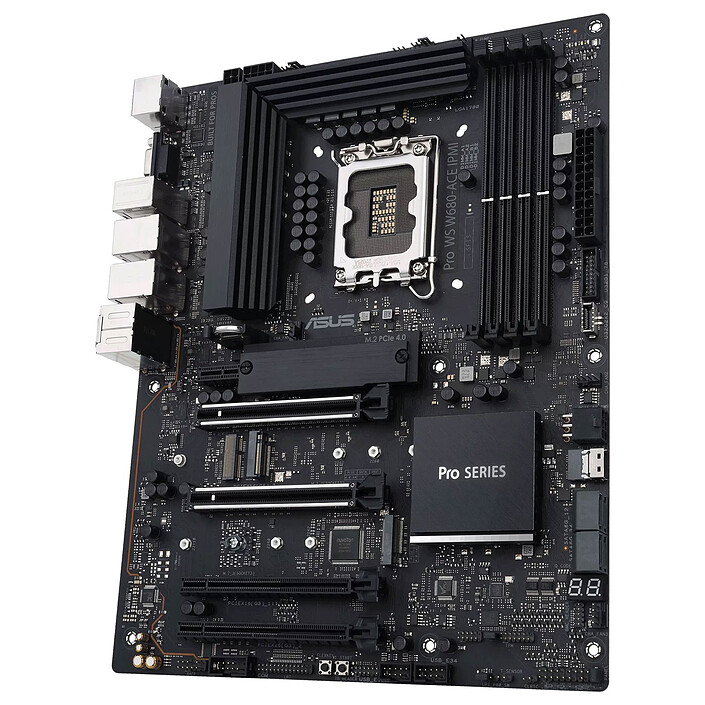

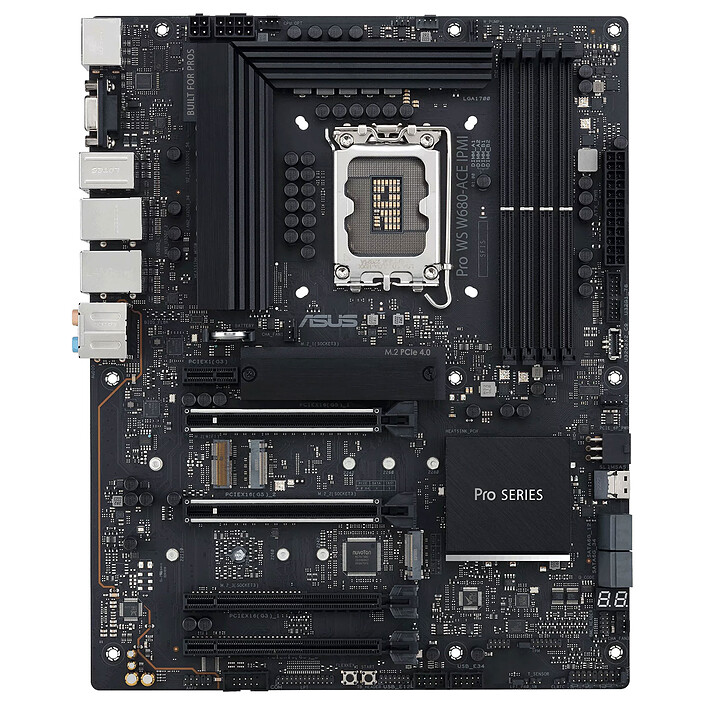

ASUS Pro WS W680-ACE IPMI
ATX Socket 1700 Intel W680 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - Dual LAN 2.5 GbE - PCI-Express 5.0 16x
Last price 649€94
ASUS Pro WS W680-ACE IPMI
ASUS Pro Workstation motherboards are designed for professionals in deep learning, animation, 3D rendering or multimedia production. With expandable graphics, extensive storage, full connectivity, and outstanding performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, which also makes it an efficient and cost-effective option for IT administrators.
The ASUS Pro WS W680-ACE IPMI motherboard is designed to support 12th and 13th generation Intel processors on socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of handling all professional tasks. Multitasking, multimedia creation, it is the ideal solution to design a high performance workstation. It also supports DDR5 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E 5. 0 drives, and USB 3.1 and USB 3.2 devices.
ASUS Pro WS W680-ACE IPMI
- Support for 12th & 13th generation Intel Core processors on socket LGA 1700
- DDR5 memory support, up to 6400 MHz (OC)
- IPMI expansion card bundle: equipped with a dedicated Ethernet controller for the BMC chip to provide the intelligence of its IPMI architecture
- Enhanced power solution: DrMOS, ProCool connector and durable capacitors for stable power supply
- Advanced security management: USB port management, software blacklisting and Regedit enable/disable commands via ASUS Control Center Express
- Tested for 24/7 operation, validated for broad compatibility and equipped with SafeSlot and SafeDIMM for increased durability
- Dual LAN 2.5 GbE
Higher and higher
The 13th generation Intel Core desktop processors offer the most complete platform for using the gaming technologies you want. Support for DDR4 and DDR5 gives you the choice of memory configuration. Thunderbolt 4 support offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream at the same time, as much as you want.
Select your criteria
General information |
Product name |
ASUS Pro WS W680-ACE IPMI |
Brand |
ASUS | |
Model |
90MB1DN0-M0EAY0 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel W680 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4800 MHz | |
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
Memory type |
DDR5 | |
| DDR5 ECC | ||
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 1 X PCI Express 5.0 x16 (x8) | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
| 2 X PCI Express 4.0 x16 (x4) | ||
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
2 X Integrated Intel - 2.5 GbE |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X Slim SAS | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 3 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 5 | ||
| 10 | ||
Connectivity |

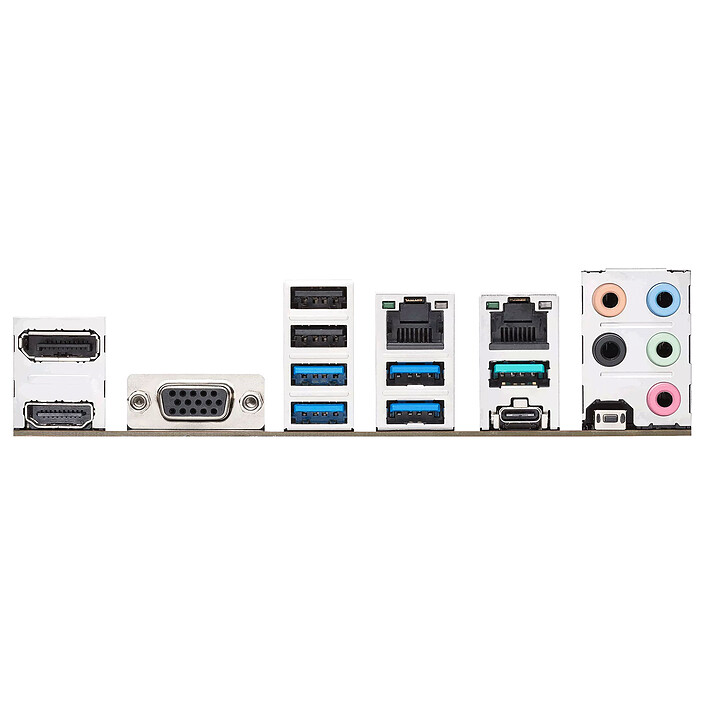

Rear panel connectors |
1 X VGA (D-sub 15 Female) |
| 1 X HDMI Female | ||
| 1 X DisplayPort Female | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 2 X RJ45 Female | ||
| 5 X 3.5mm Jack Female Stereo | ||
Additional connectors |
Front panel audio | |
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X +12V (Power supply P4) | ||
| 1 X PCI Express 6 Pin | ||
| Parallel port | ||
| Serial (RS-232) | ||
| 1 X Thunderbolt | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
| Office | ||
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
