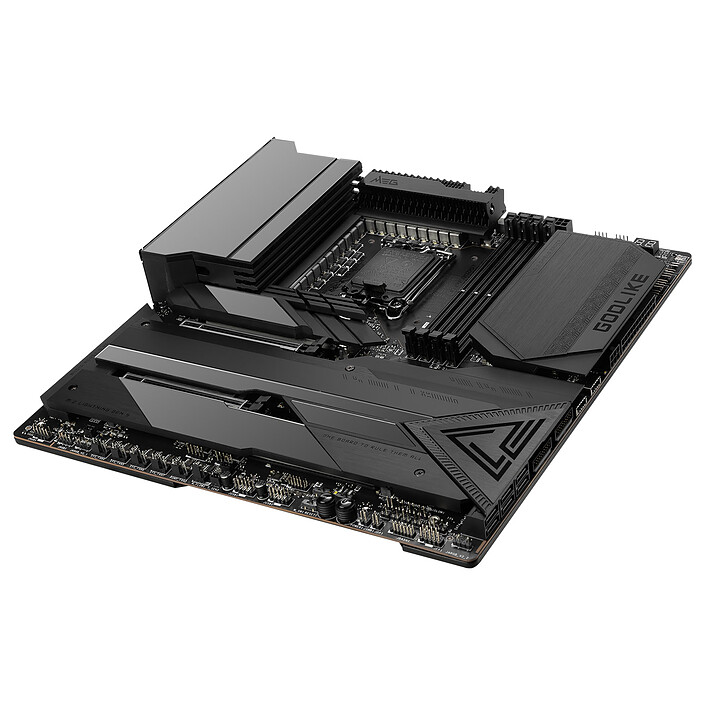

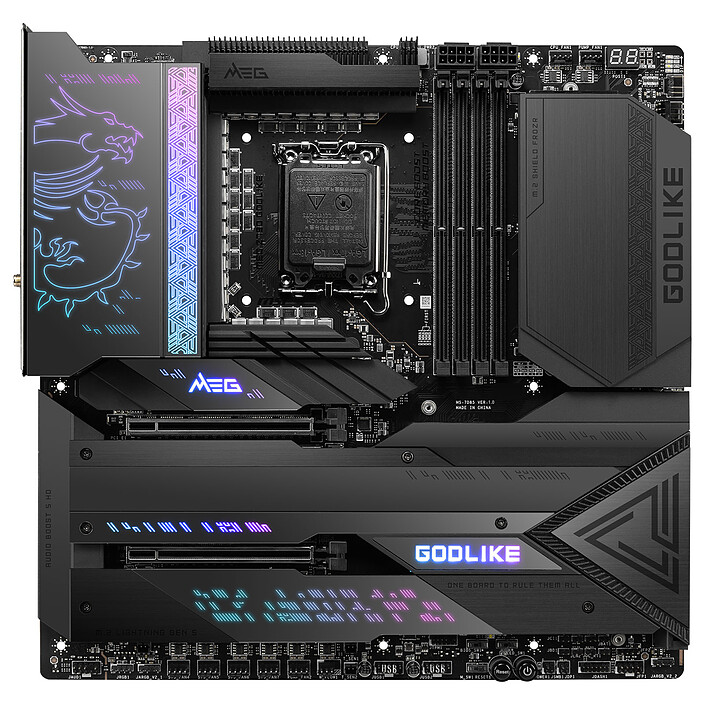

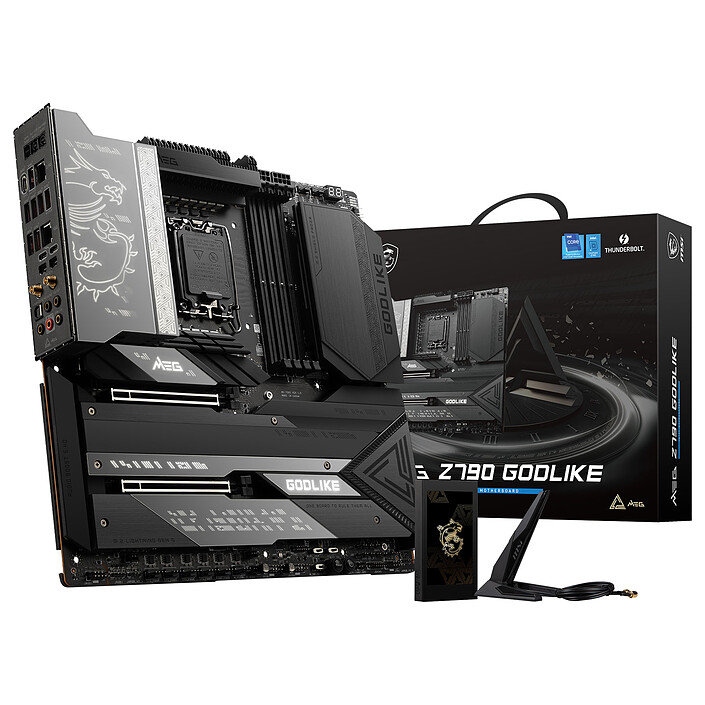

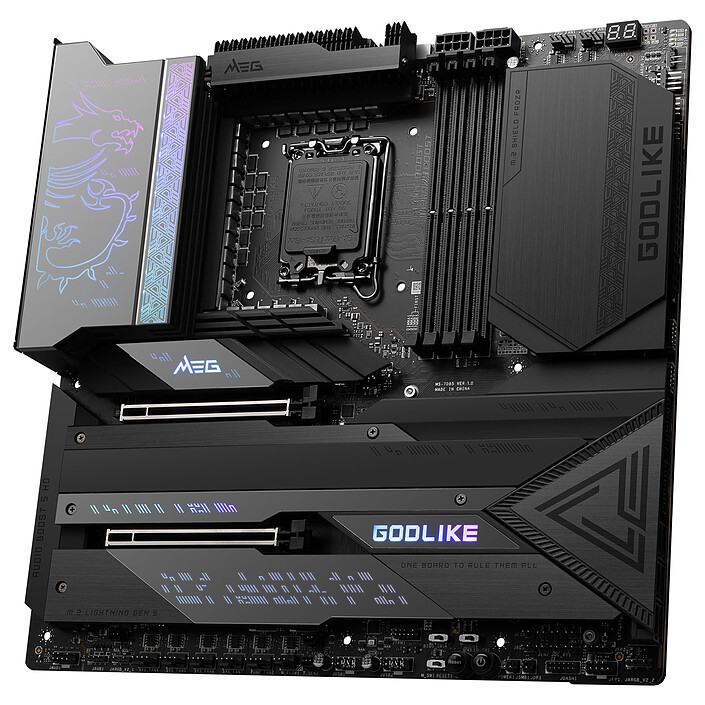

MSI MEG Z790 GODLIKE
E-ATX Socket 1700 Intel Z790 Express Motherboard - 4x DDR5 - M.2 PCIe 5.0 - USB 3.2 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 10 GbE - Wi-Fi 6E/Bluetooth 5.2
Last price 1 399€94
Harness the full power of your Intel Core processor
Designed to accommodate 12th and 13th generation Intel Core hybrid processors on Intel LGA 1700 socket, the MSI MEG Z790 GODLIKE motherboard will serve as a solid foundation for a gaming, streaming, multitasking, or multimedia creation-oriented setup. It is the ideal solution for designing a high-end, high-performance PC.
MSI MEG Z790 GODLIKE
- Support for 12th and 13th generation Intel Core processors on socket LGA 1700
- DDR5 memory support up to 7600+ MHz (OC)
- 1 x M.2 PCIe 5.0 4x slot + 5 x M.2 PCIe 4.0 4x slots + 1 x M.2 PCIe 3.0 4x slot
- PCI-Express 5.0 16x slot
- Audio Boost 5 HD for perfect audio quality and a more immersive experience with an audio processor combining an ESS DAC and an amplifier
- M.2 Shield Frozr slot that keeps the SSD cool
- Thunderbolt 4 ports
- 10 GbE LAN + 2.5 GbE LAN
- Wi-Fi 6E/Bluetooth 5.2
Always higher
The 13th generation Intel Core desktop processors offer the most complete platform for using the gaming technologies you want. Support for DDR4 and DDR5 gives you the choice of memory configuration. Thunderbolt 4 support offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream at the same time, as much as you want.
Select your criteria
General information |
Product name |
MSI MEG Z790 GODLIKE |
Brand |
MSI | |
Model |
MEG Z790 GODLIKE | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z790 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 7600 MHz | |
| DDR5 7400 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 1 X PCI Express 5.0 x16 (x8) | ||
Number and Type of slots |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Marvell AQtion AQC113CS -10 GbE |
Number of ports/Ethernet controler N°2 |
1 X Integrated Intel - 2.5 GbE | |
Network standard(s) |
Wi-Fi 6E | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.2 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 | |
| 5 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 5.0 x4 | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
7 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

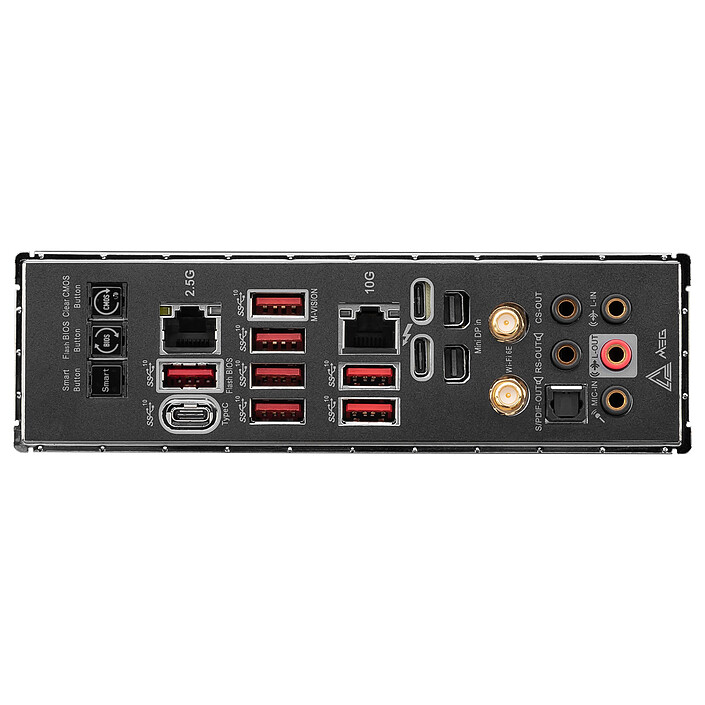

Rear panel connectors |
Thunderbolt 4/USB-C |
| 2 X Mini DisplayPort (Input) | ||
| 1 X USB 3.1 Type C | ||
| 7 X USB 3.1 | ||
| 2 X RJ45 Female | ||
| 1 X BIOS Flash Update | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
1 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X PCI Express 6 Pin | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| 2 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
E-ATX |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
