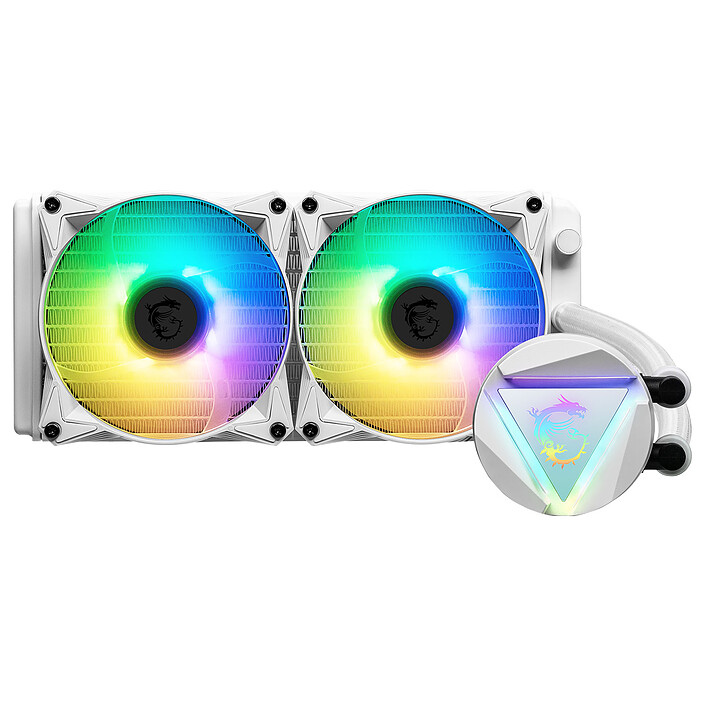

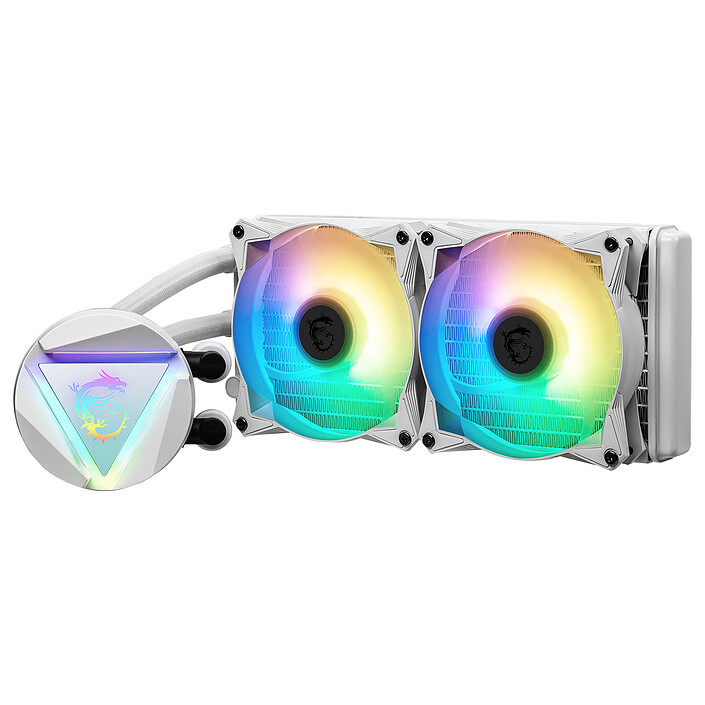

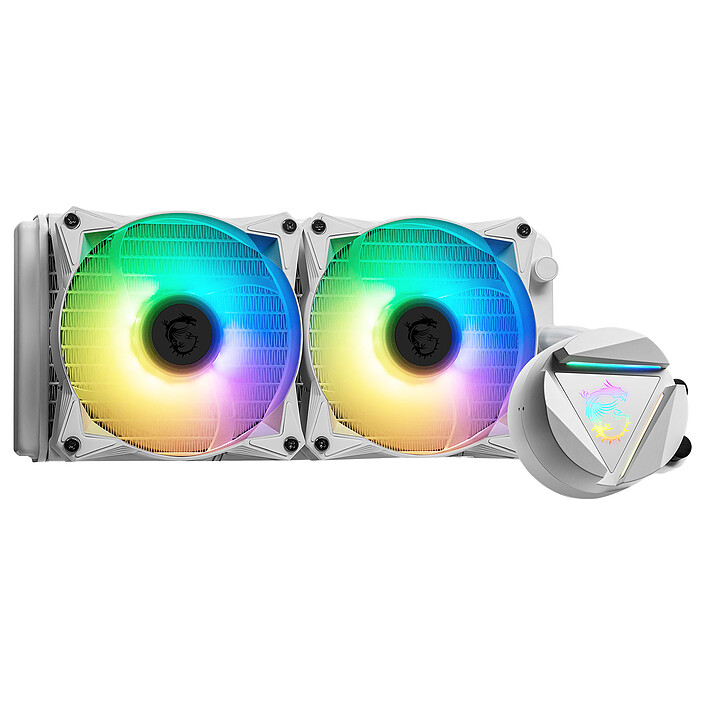

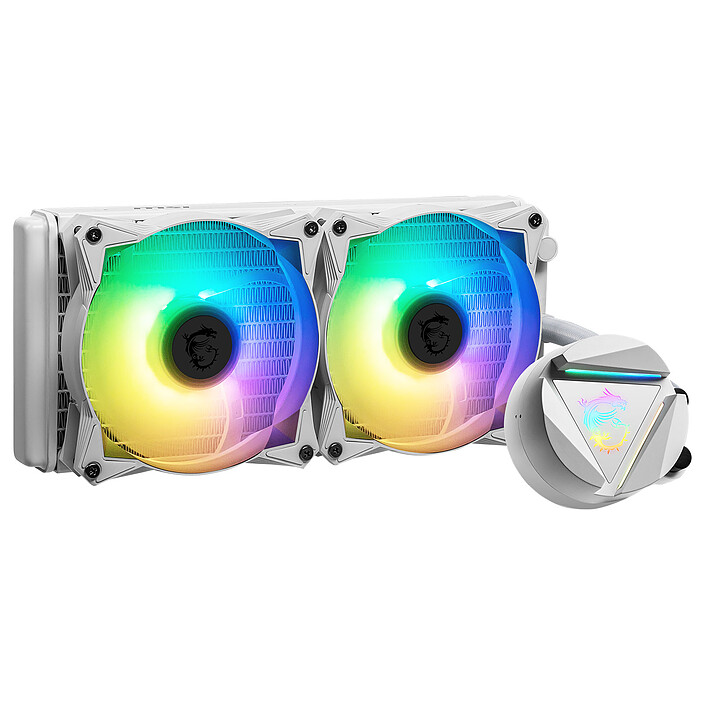

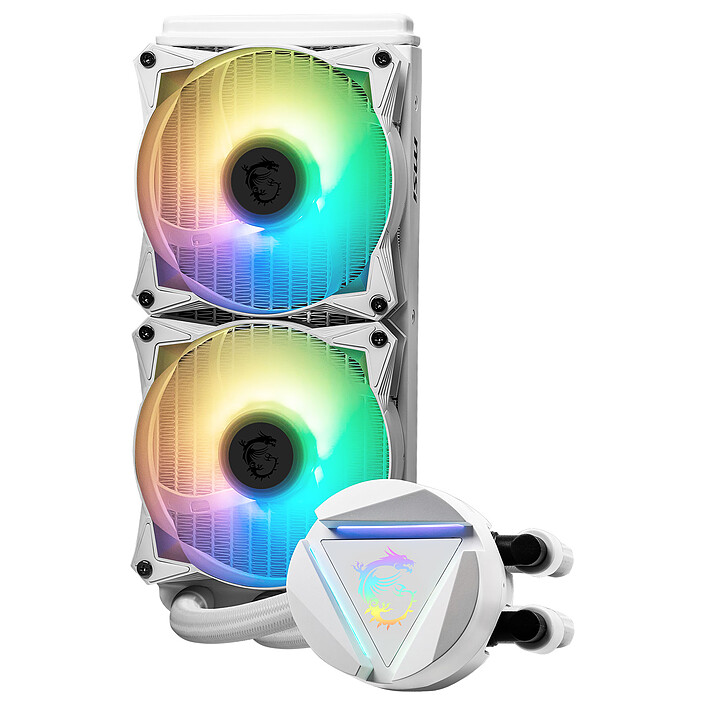

The MAG CORELIQUID 240R V2 WHITE from MSI has everything you are looking for in a watercooling cooler. It combines quality materials that offer exemplary durability with highly efficient heat dissipation technologies. Users can even enjoy benefits such as ARGB lighting and a 270-degree rotating block head that is simple to use. On top of that, its CPU block boasts a unique irregular aesthetic that is both elegant and artistic. Every component of the MAG CORELIQUID 240R V2 is designed with one ultimate goal in mind: to provide your processor with efficient cooling without compromise.
Mount the CPU block in any orientation, turn its head up to 270 degrees and hold it upright to achieve the flawless look you want. The MAG CORELIQUID 240R V2 pump has been integrated into the radiator to dampen and reduce noise.
The MAG CORELIQUID 240R V2 has a durable three-phase motor at the heart of the pump that generates minimal vibration for long-lasting operation. For even greater efficiency, MSI has developed a split-path design that dissipates heat through the radiator quickly. The cooled liquid is then pumped back into the loop. For added reliability, the tubes are constructed with three layers of plastic mesh and a reinforced mesh exterior.
Connect and sync the MAG CORELIQUID 240R V2 WHITE with any MSI case with DIY 2.0 technology. Take advantage of strategically positioned pin locations, including a dedicated fan-pump header.
Rugged yet designed for flexibility, this MAG CORELIQUID watercooling kit has been designed with a secure installation kit, compatible with a number of Intel and AMD motherboards. It is compatible with Intel Socket and CPU Socket LGA 115X, LGA1200, LGA1366, LGA 1700, LGA2011(3), LGA2066 / AMD Socket AM5, AM4, FM2(+), FM1, AM3(+), AM2(+).
Select your criteria
General information |
Product name |
MSI MAG CORELIQUID 240R V2 WHITE |
Brand |
MSI | |
Model |
306-7ZW1B50-813 | |
Technical specifications |
Use |
Processor |
Processor support |
AMD AM2 | |
| AMD AM2+ | ||
| AMD AM3 | ||
| AMD AM3+ | ||
| AMD AM4 | ||
| AMD FM1 | ||
| AMD FM2 | ||
| AMD FM2+ | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1155 | ||
| Intel 1156 | ||
| Intel 1200 | ||
| Intel 1366 | ||
| Intel 1700 | ||
| Intel 2011 | ||
| Intel 2011-v3 | ||
| Intel 2066 | ||
| Intel 1851 | ||
| AMD AM5 | ||
Color |
White | |
Luminous |
Yes | |
LED color |
Multicolored | |
Connector(s) |
1 X Addressable LED RGB connector(s) | |
| 2 X 4-pin Female | ||
Ball bearing |
Yes | |
PWM |
Yes | |
Cooling type |
Water cooling | |
Fan diameter |
120 mm | |
Min sound level |
14.3 dB | |
Max sound level |
34.3 dB | |
Minimum rotation speed |
500 RPM | |
Maximum rotation speed |
2000 RPM | |
Min airflow |
21.63 CFM | |
Max airflow |
78.73 CFM | |
Pressure |
2.39 mm/H2O | |
Material(s) |
Plastic | |
| Aluminum | ||
Use |
Gamer | |
AIO radiator compatibility |
240mm radiator | |
Dimensions |
Height (fan included) |
52 mm |
Width (fan included) |
274 mm | |
Depth (fan included) |
120 mm | |
Height |
27 mm | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
See all MSI products
Product referenced on 20 Jan 2022
Hello
I give a 5 star rating to this AIO MSI mag coreliquid 360 v2, which cools my AMD Ryzen processor very well, and its rgb rendering is really nice - what more could you ask for!
I'm very pleased with this watercooling system, which enabled me to replace my old "be quiet Pure Rock Pro 3 black" ventirad, which was too bulky for me to fit my two RAM bars in the right slots on my motherboard.
It makes very little noise and cools my Ryzen 5 7600X processor without a hitch.
The RGB can be set to several colours, it's easy to install, and the instructions can be retrieved using a QR Code, although a paper guide would have been welcome too.
Ordered and received quickly.
There's nothing to say, everything was perfect. There's nothing to say, everything was perfect. See you soon for a new purchase!
There are no instructions on how to fit the fridge and fans correctly so that they are positioned in the right direction.
Changing a faulty part, work done to perfection, easily, they're pros. If I have a problem again, I'll see about a future purchase? I know where to go. LDLC
Quick handling of my watercooling replacement. Very competent person and affordable price.
So overall the product complies with the order, the negative point is that the manufacturers no longer provide instructions, so you have to scan the QRcode and read it on your phone, which is not at all practical.
Otherwise it mounts quite well once you understand.
It's all in the title
Build quality: good
Cooling: perfectly stable and efficient for my configuration (ryzen7-7700X)
Negative point: I find it noisy!
I bought this product because my old ventirad wasn't working any more. Having an MSI case and motherboard, I thought it was a good idea. Since then, even when playing games, my processor never exceeds 70 degrees (and no more than 50 degrees for office use).
I have had this product 2 times in 2 different PC's and it has always done its job regardless of the processor the first was an i7-10700k and the other more recently called the best processor the 9800x3D no problems with heating or anything else.
