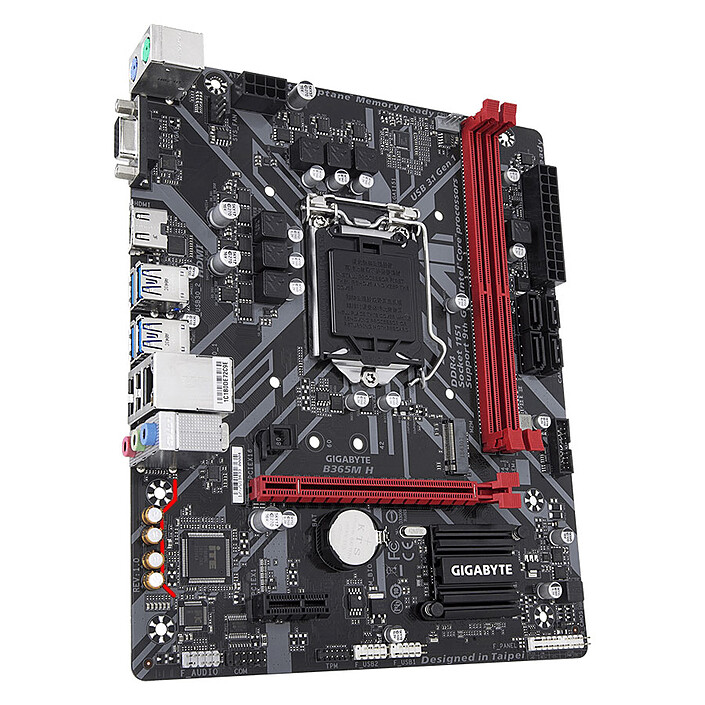

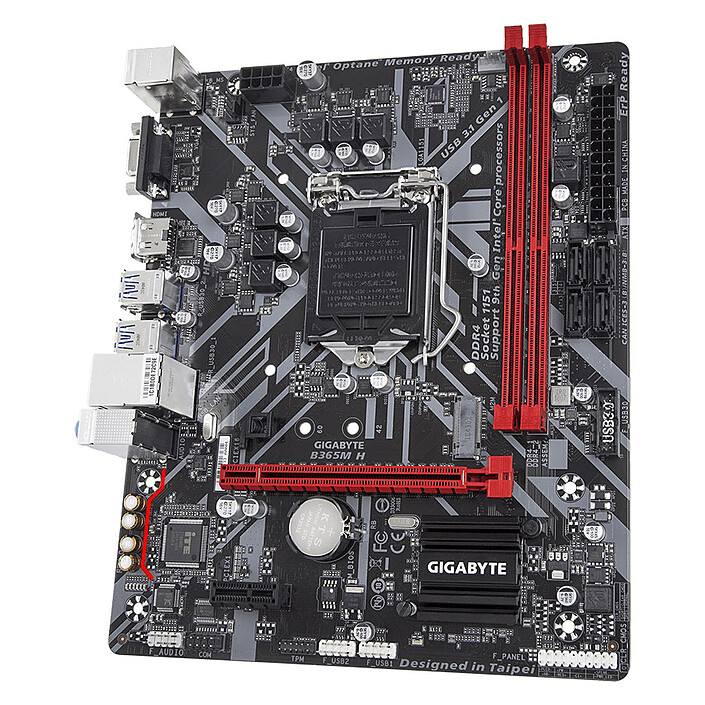

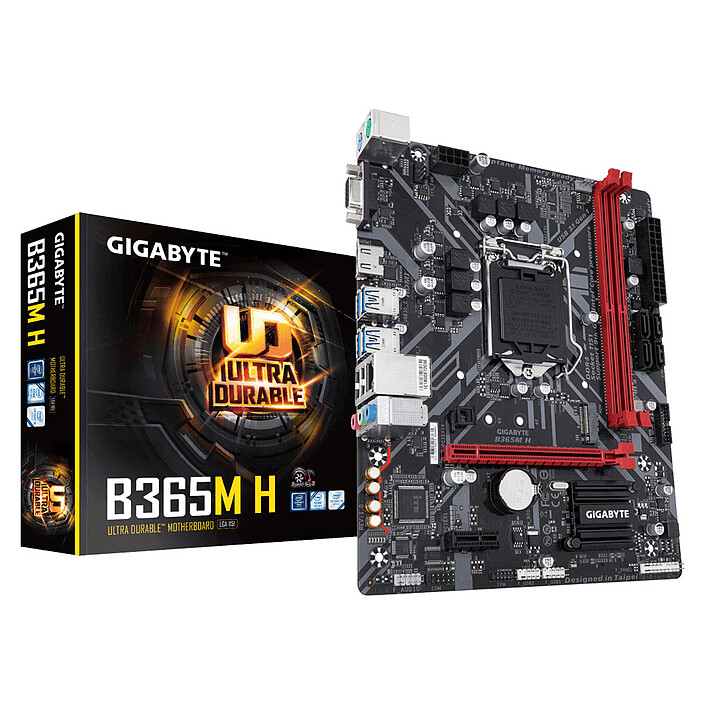

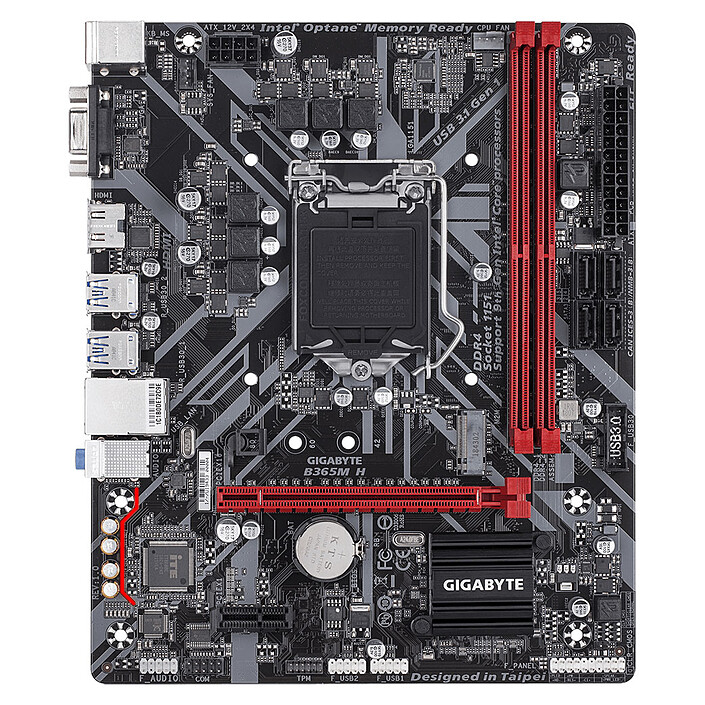

Gigabyte B365M H
Micro ATX Socket 1151 Intel B365 Express motherboard - 2x DDR4 - SATA 6Gb/s M.2 - USB 3.0 - 1x PCI-Express 3.0 16x
Last price 66€95
Gigabyte Motherboard for Intel Core 9th Generation Processor
The Gigabyte B365M H motherboard is designed for the Intel Coffee Lake and Coffee Lake Refresh processors (8th and 9th generation). Based on the Intel B365 Express chipset, it will serve as the foundation for your multimedia or office PC with a high-performance processor and Gigabyte-exclusive features. It supports 8th and 9th generation Intel Core processors, PCI-Express 3.0 16x graphics cards, SATA 6 Gbps and M.2 drives, DDR4 RAM and USB 3.0 devices.
Gigabyte B365M H motherboard benefits:
This motherboard is part of the Gigabyte Ultra Durable from Gigabyte. A range designed to last, with tough, proven materials and a unique 2oz copper based PCB. This improved PCB promotes chip and component cooling, is more resistant to electromagnetic interference and allows for safe overclocking.
- Support for 8th and 9th generation Intel Coreprocessors on socket 1151
- Supports DDR4 RAM (max. 32 GB)
- 1 x PCI-Express 3.0 16x ports
- 4 SATA 6 Gbps ports + 1 M.2 port (PCIe Gen3 x4 & SATA 6 Gbps)
- USB 3.0 ports
- 3 video outputs : HDMI, DVI-D and VGA
- HD Audio ALC 887
- Gigabit Lan network
Premium Performance
Use one of the most powerful processors on the market and design the machine of your dreams. Intel Core i7, Intel Core i5, Intel Core i3... you have the best choice for playing the latest video games, enjoying Virtual Reality, watching movies, creating and editing video content, sharing photos and more!
With the power you need and high-quality integrated graphics, the Intel Core processor lets you do it all - just like that! Add a PCI-Express 3.0 16x graphics card to suit your needs and you've got a custom PC with exceptional performance.
Intel B365 Express Chipset
The Intel B365 Express Chipset is packed with advanced features to help you get the most out of your Intel Coffee Lake platform. Affordable and powerful, it's designed for users looking for versatility. Whether you're a gaming PC or a multimedia system, the Intel B365 Express chipset is a great value for money. It is also less expensive and more accessible than the Intel Z390 Express Chipset, which is more suitable for high-end machines.
Platforms based on the Intel B360 Express Chipset support DDR4 RAM, SATA 6Gb/s disks, PCI-Express 3.0 16x graphics cards, USB 3.0 and USB 3.1 peripherals as well as SATA Express, M.2 and U.2 (depending on the model).
Select your criteria
General information |
Product name |
Gigabyte B365M H |
Brand |
Gigabyte | |
Model |
GA-B365M H | |
Processor |
Processor support |
Intel 1151 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B365 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
16 GB | |
Maximum RAM capacity |
32 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek GbE LAN |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
Connectivity |

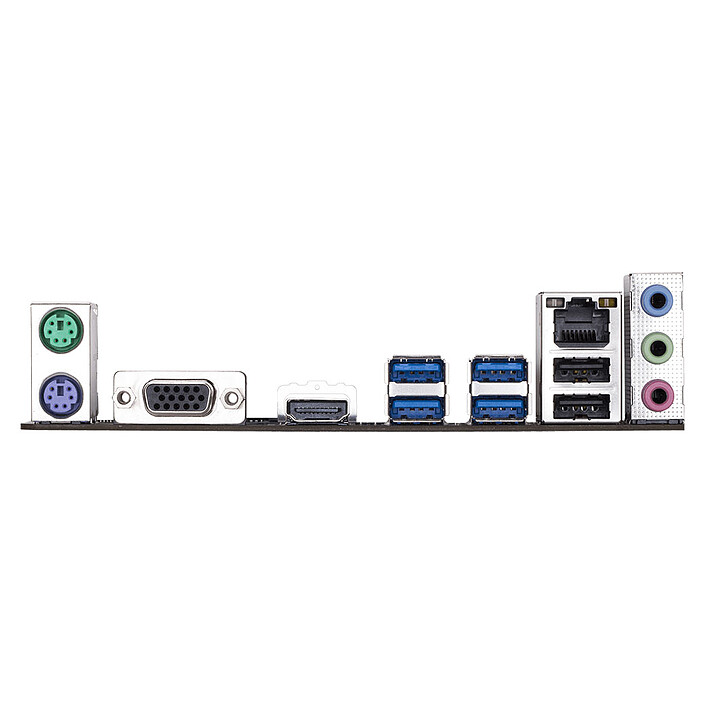

Rear panel connectors |
1 X VGA (D-sub 15 Female) |
| 1 X HDMI Female | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 2 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
TPM | |
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
226 mm | |
Width |
185 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Gamer | ||
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all Gigabyte products
Product referenced on 16 Sep 2019
