Pictures may differ from actual products

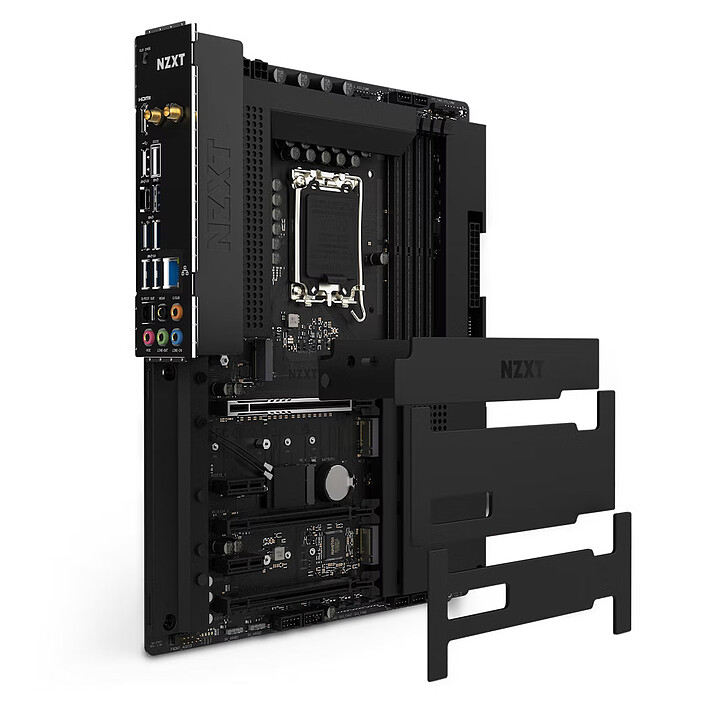

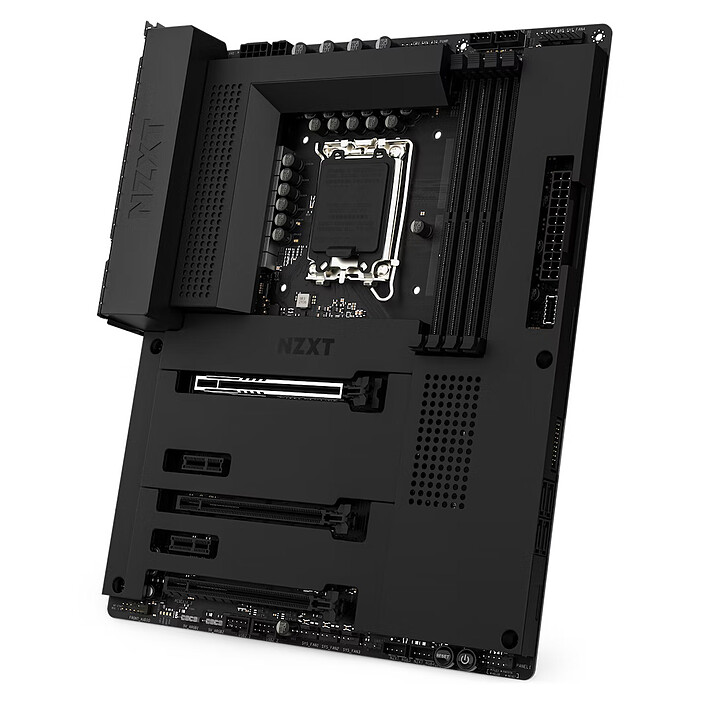

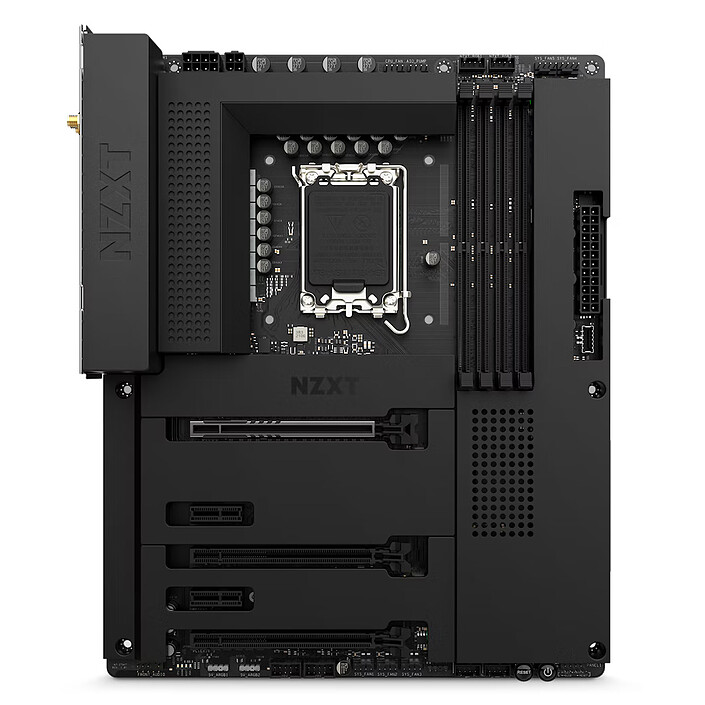

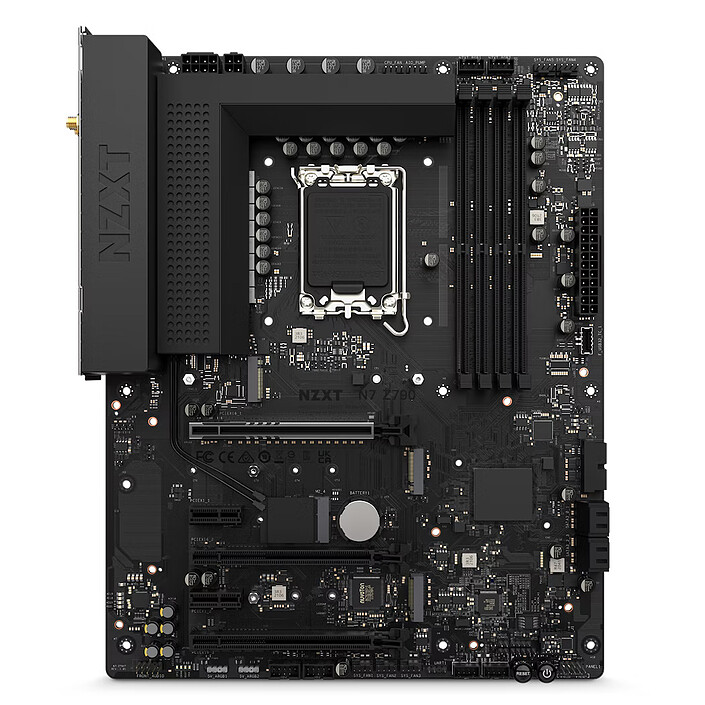

NZXT N7 Z790 - Black
ATX Socket 1700 Intel Z790 Express motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - Wi-Fi 6E - Bluetooth 5.2 - LAN 2.5 GbE
Last price 349€94
NZXT N7 Z790: Everything you need and more
The NZXT N7 Z790 motherboard is stylish and packed with smart features. It will also give your PC an extraordinary look. Designed to accommodate 12th and 13th generation Intel processors on socket LGA 1700, it is based on the Intel Z790 Express chipset. It will enable you to assemble a Gaming configuration equipped with a high-performance processor and with exclusive NZXT features, such as support for PCI-Express 5.0 16x graphics cards, M.2, DDR4 RAM and USB 3.2, this state-of-the-art motherboard is ideal for gaming and Virtual Reality enthusiasts.
.jpg)
NZXT N7 Z790
- Full cover in black or white with integrated heatsink for the best M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles in NZXT CAM with seven independent fan channels
- Integrated rear I/O protection and efficient layout for optimal configuration
- 16+1+2 DrMOS power phase design with 57g PCB
- Wi-Fi 6E and Bluetooth 5.2 wireless connectivity
- Three M.2 PCIe 4.0 slots
- Support for DDR5 up to 6000 MHz and Intel XMP 3.0
- 8-channel high-definition audio
Hearts at work
Designed to meet the needs of today's gamers. The latest version of Intel's powerful hybrid architecture is ideal for enhancing your gaming experience. Performance cores unleash their talent to get the best out of the latest games and gaming software. Efficient-cores let you work, play solo and, more importantly, with others. Last but not least, Intel Thread Director allows you to enjoy top gaming fluidity and ensures that your PC doesn't slow down, even when it's running background tasks.
Select your criteria
General information |
Product name |
NZXT N7 Z790 - Black |
Brand |
NZXT | |
Model |
N7-Z79XT-B1 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z790 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4400 MHz | |
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
| 2 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC1220 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8125BG |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| Bluetooth 5.2 | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
Connectivity |
Motherboard connector location |
|

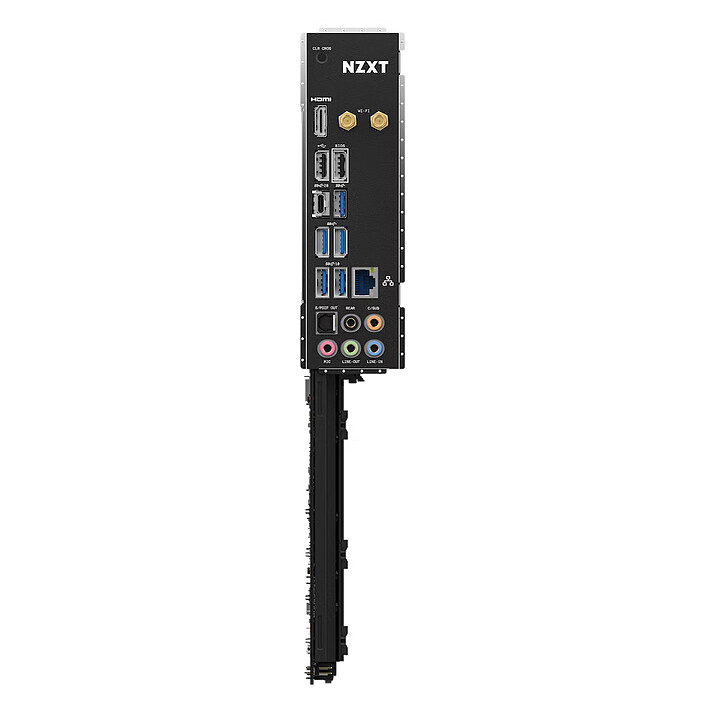

Rear panel connectors |
1 X HDMI Female | |
| 1 X USB 3.2 Type C Female | ||
| 2 X USB 3.1 | ||
| 3 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X Addressable LED RGB connector(s) | |
| 1 X +12V (Power supply P4) | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 4 X LED RGB connector(s) | ||
| 1 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all NZXT products
Product referenced on 1 Mar 2023
