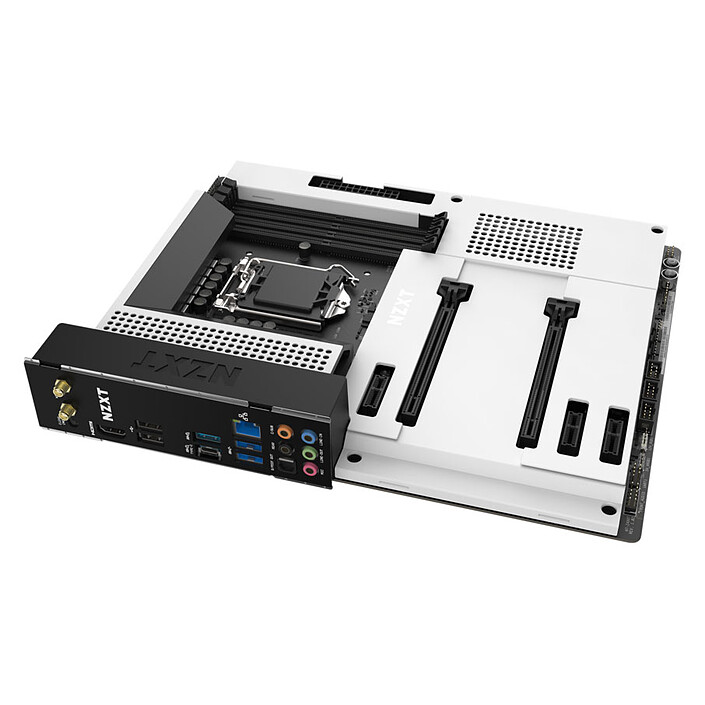

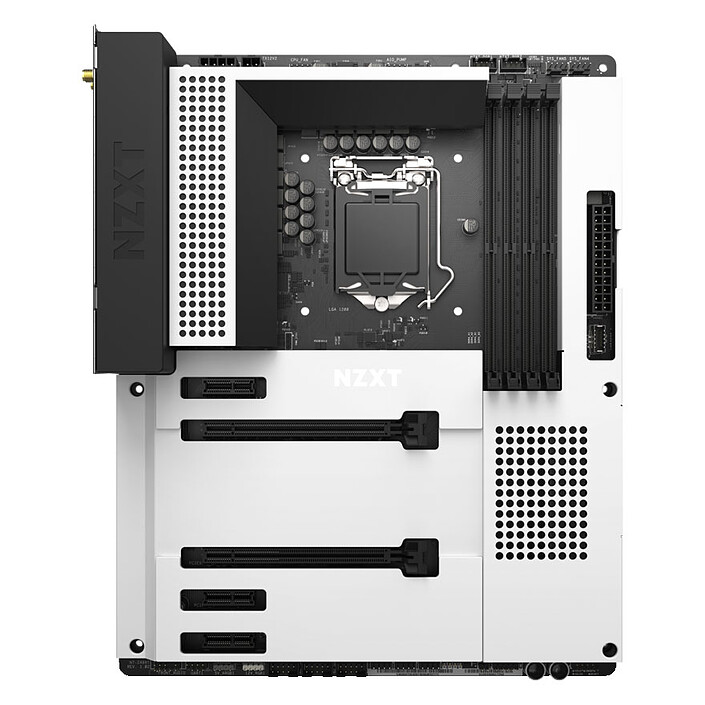

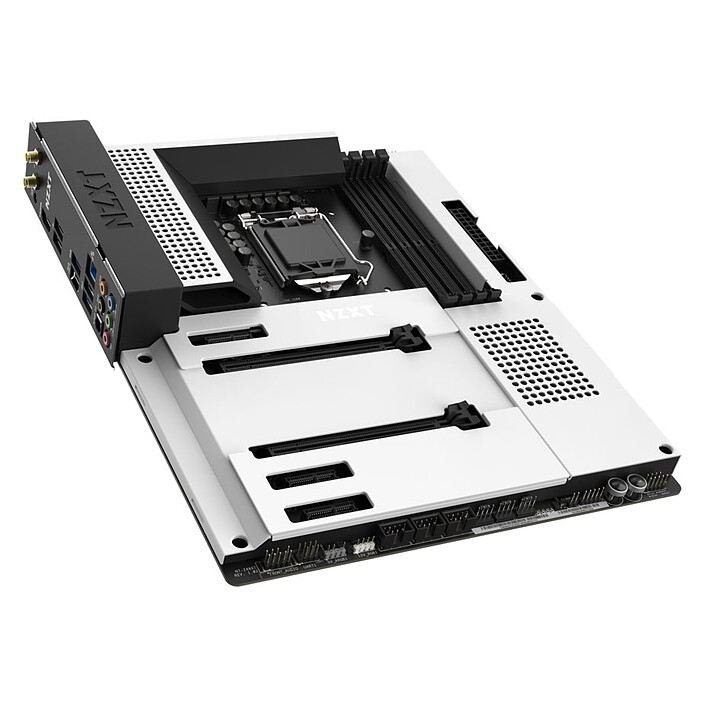

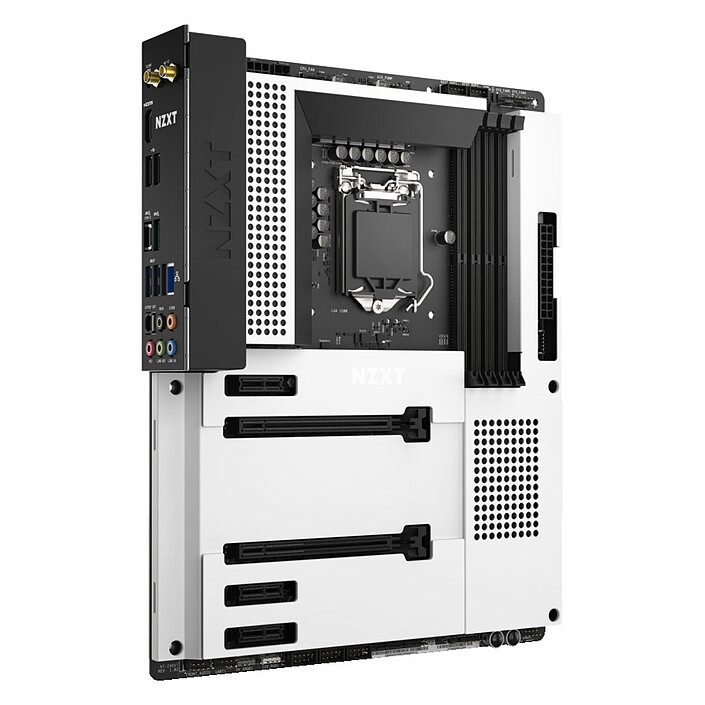

NZXT N7 Z490 - White

ATX Socket 1200 Intel Z490 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 - USB 3.1 - 2x PCI-Express 3.0 16x - Wi-Fi AX - Bluetooth 5.1 - LAN 2.5 GbE

Last price 249€95
Holy Moly!
Overview

NZXT N7 Z490: Everything you need and more

The NZXT N7 Z490 motherboard is stylish and packed with smart features. It will also give your PC an extraordinary look. Designed to accommodate the 10th generation Intel Core processors (Intel Comet Lake-S), it is based on the Intel Z490 Express chipset. It will allow the assembly of a Gaming configuration equipped with a powerful processor and with exclusive NZXT features. With support for PCI-Express 3.0 16x graphics cards, M.2 drives, DDR4 RAM and USB 3.1, this state-of-the-art motherboard is ideal for gaming and Virtual Reality enthusiasts.

NZXT N7 Z490

The NZXT N7 Z490 motherboards are designed with gamers in mind, featuring the best components and exclusive features for high performance. Overclocking, HD audio and fine tuning are all there to help gamers achieve their winning goals.

  • Intel 1200 socket for 10th generation Intel Coreprocessor
  • 4 Dual-Channel DDR4 4266 MHz (OC) memory slots (max. 128 GB)
  • 4 SATA 6Gb/s ports with RAID 0/1/5/10
  • 2x M.2 PCIe 3.0 4x (1 M.2 SATA 6Gbps compatible)
  • 2 x PCI-Express 3.0 16x (16x or 16x/4x) with AMD CrossFireX Multi-GPU support (2-way)
  • USB 3.1 ports (including 1 internal connector)

10th Generation Intel Core Processor

High-performance gaming, no-slowdown virtual reality, and intensive multitasking - 10th-generation Intel Core processors are ultra-versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.

Specifications
Select your criteria

General information

Product name

NZXT N7 Z490 - White

Brand

NZXT

Model

N7-Z49XT-W1

Processor

Processor support

Intel 1200

Number of CPUs supported

1

Chipset

Chipset

Intel Z490 Express

Memory

Memory format

4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

DDR4 4266 MHz
DDR4 4000 MHz
DDR4 3866 MHz
DDR4 3733 MHz
DDR4 3600 MHz
DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2800 MHz
DDR4 2933 MHz
DDR4 3466 MHz
DDR4 3400 MHz
DDR4 3333 MHz
DDR4 3300 MHz
DDR4 3200 MHz
DDR4 3000 MHz

Memory type

DDR4

Memory technology

Dual Channel

Maximum RAM capacity per slot

32 GB

Maximum RAM capacity

128 GB

Graphic

Integrated graphics controller

No

Compatible graphics core integrated in the CPU

Yes

Expansion slots

Graphic connector(s)

1 X PCI Express 3.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

3 X PCI Express 3.0 x1

Multi-GPU type

CrossFireX

Audio

Audio Chipset

Realtek ALC1220

Number of audio channels

8

Network

Number of ports/Ethernet controler

1 X Realtek RTL8125BG

Network standard(s)

Wi-Fi 6 AX
2.5 Gbps Gigabit Ethernet (2.5 GbE)
Bluetooth 5.1

Wi-Fi

Yes

Storage

RAID supported

Yes

Hard drives connectors

4 X Serial ATA 6Gb/s (SATA Revision 3)
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s
1 X M.2 - PCI-E 3.0 x4

Supported RAID Modes

10
5
1
0

Connectivity

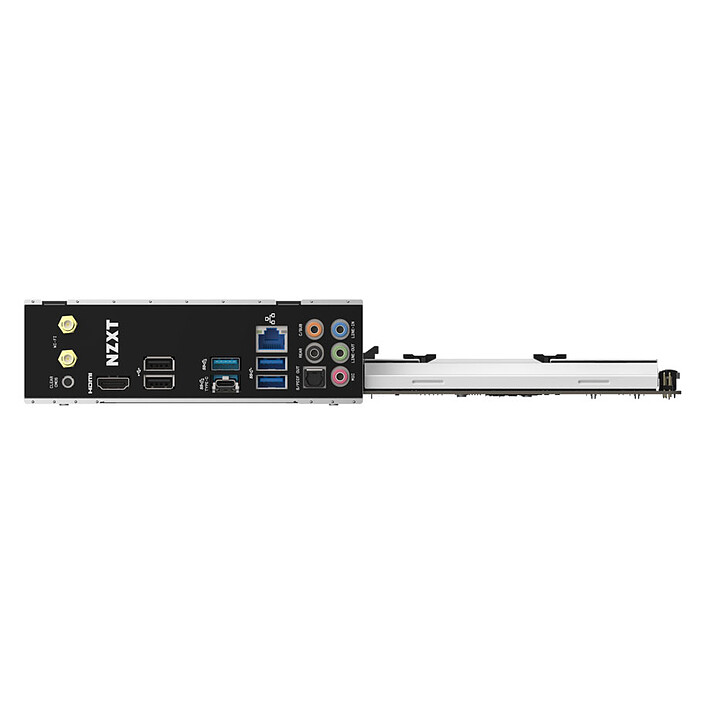

Rear panel connectors

2 X SMA Female
5 X 3.5mm Jack Female Stereo
1 X Digital audio S/PDIF Optical
1 X RJ45 Female
2 X USB 2.0
2 X USB 3.0
1 X USB 3.1
1 X USB 3.1 Type C
1 X HDMI Female

Additional connectors

2 X LED RGB connector(s)
1 X Addressable LED RGB connector(s)
Front panel audio
1 X +12V (Power supply P4)
1 X +12V (Power supply P8)
1 X ATX 24 Pin
6 X Internal USB 2.0
2 X Internal USB 3.0

Physical characteristics

Motherboard format

ATX

Length

305 mm

Width

244 mm

Equipment

Advanced overclocking features

Yes

Use

Gamer

LED

No

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 19 Oct 2020

Customer review
Global rating
10/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by Jean-francois M
    Posted on 15 Jan 2021
    Product bought from LDLC on 8 Jan 2021
    Number of reviews: 14 Average rating: 8

    A stormtrooper card, one!

    Argh, a multilingual sheet for the installation they call "manual". Fortunately I've already set up some configurations, but I'm putting myself in the shoes of a beginner... No driver CD either, you have to download them from the site. I can't take away a star for this, it doesn't take away from the card itself.
    I liked the SATA ports (x4 only) on the horizontal side. This avoids having tails in the air and positions them in the right direction towards the peripherals. The white side makes the inside of the case very clean and bright (provided you hide the cables well and they are long enough). There are RGB connectors that can be managed with the NZXT CAM software available for download and the fan speed can be adjusted. It has the latest in networking and USB ports (by the way, there are USB 3.2 (Gen 1 & 2) ports which are not mentioned in the LDLC datasheet).
    However, I have two complaints. The motherboard screw heads on my Cosmos case are too wide to fit through the hole in the white shroud (this was not a problem with my old Maximus Formula board). So I have to find smaller screw heads (I don't know if this is the norm nowadays).
    Which brings me to the second point, the removal of the fairing is a bit hot, the big bottom part comes off very well, but there is a bit higher up that extends next to the memory strips, the fairing almost touches the memory strip slot, and of course you have to decant right there... but what a great idea!!! (visible in the product photos) trying to get something flat in there by levering on the memory slot gives you a few cold sweats. Breathe, breathe, zenitude 0 GHz, we'll get there. The M.2 accesses are independent, phew.
    After that, this ASUS NZTX alliance is very beneficial, for the price, it's a good deal.

    Review automatically translated
