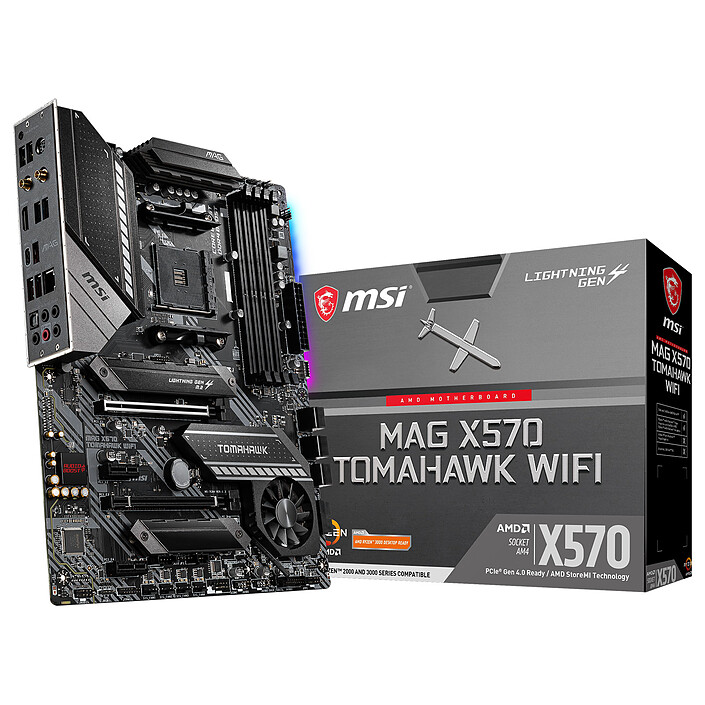

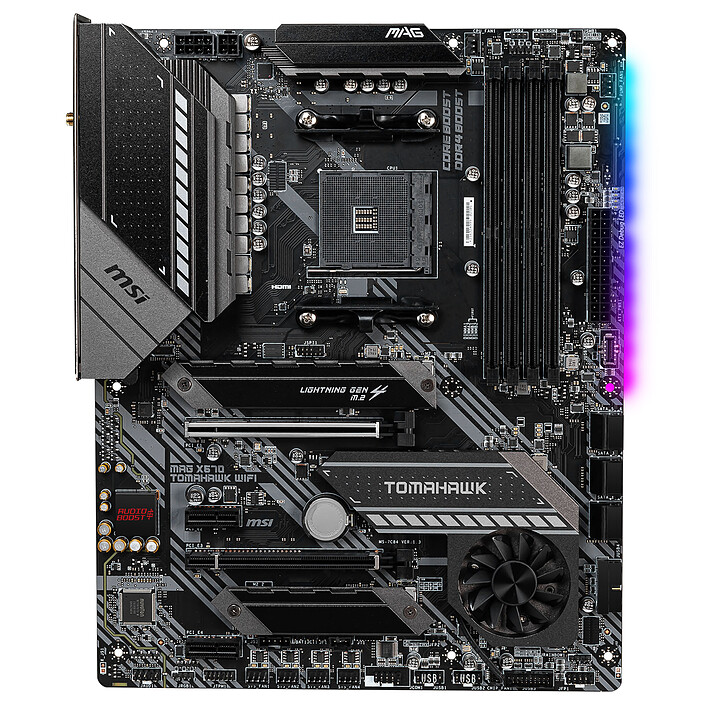

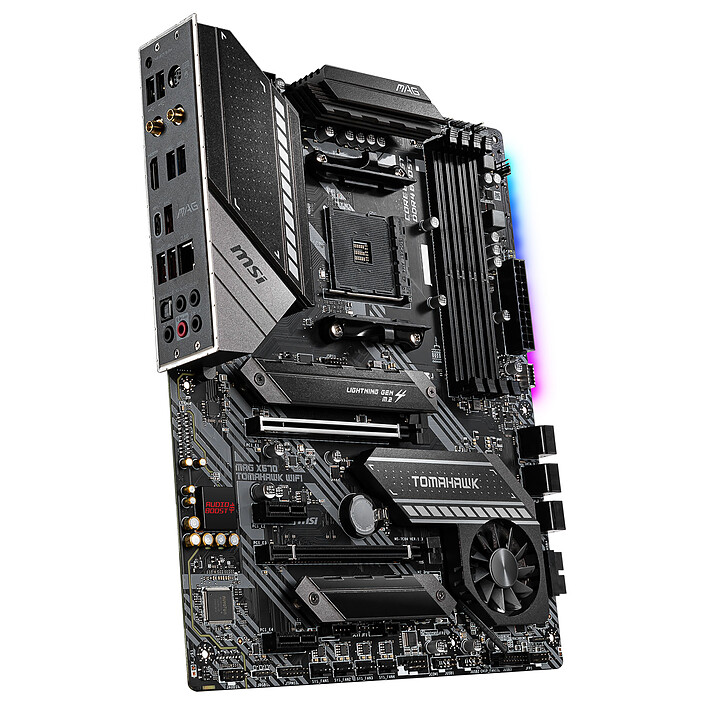

Equipped with the AMD X570 chipset, the MSI MAG X570 TOMAHAWK WIFImotherboard with its AM4 socket is designed to accommodate 3rd generation AMD Ryzen processors and remains compatible with 2nd generation ones. It will allow you to compose a configuration Gaming It will allow you to build a configuration with the latest technological advances: PCI-Express 4.0 for graphics cards and M.2 SSDs, management of 128 GB of DDR4 RAM. Its complete network connectivity with 6 AX Wi-Fi and a Realtek 2.5 GbE LAN controller will allow you to reduce latencies. Everything is there for an exhilarating gaming experience, it's up to you!
The MPG X570 GAMING PRO CARBON WIFI motherboard from MSI features a number of technologies to optimise cooling. For example, the Frozr heatsink on the X570 chipset incorporates a fan that remains off when the system is not in use. M.2 SSDs are protected by an M.2 Shield Frozr heatsink, which provides additional cooling capacity for better throughput.
Connect RGB LED ribbons to your PC and synchronise colours and effects with compatible devices using a single application: Mystic Light Sync. This application allows you to instantly customise the look of your PC by choosing from a wide range of colours and lighting effects. You can change the colours via the Mystic Light app installed on a smartphone or the Gaming App installed on the PC.
Select your criteria
General information |
Product name |
MSI MAG X570 TOMAHAWK WIFI |
Brand |
MSI | |
Model |
MAG X570 TOMAHAWK WIFI | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X570 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 4000 MHz | |
| DDR4 3866 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3066 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4533 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 1866 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x4) |
| 1 X PCI Express 4.0 x16 | ||
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC1200 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125B |
Network standard(s) |
Wi-Fi 6 AX | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.1 | ||
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

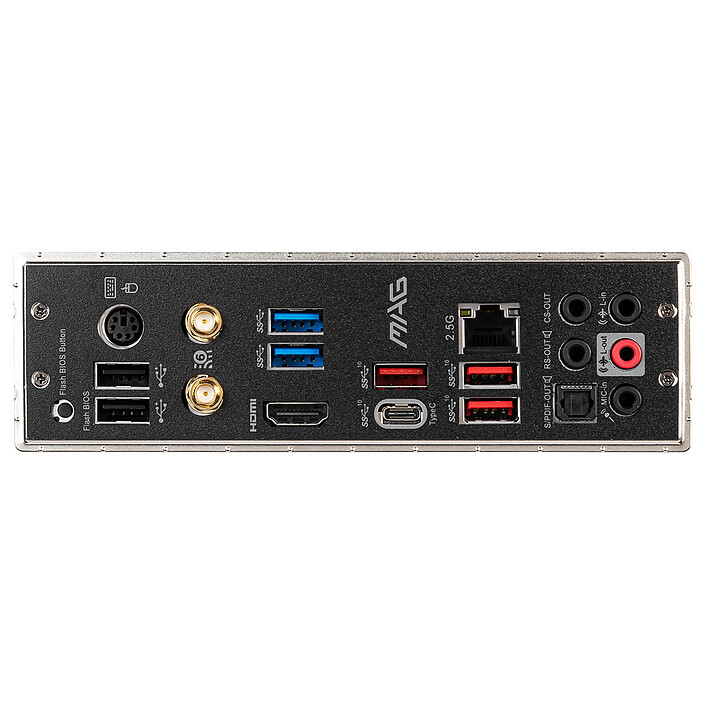

Rear panel connectors |
1 X HDMI Female |
| 1 X USB 3.1 Type C | ||
| 3 X USB 3.1 | ||
| 2 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| BIOS Flash Update | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| TPM | ||
| Front panel audio | ||
| Chassis intrusion | ||
| 1 X +12V (Power supply P4) | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
