MSI PRO Z890-P WIFI6E
ATX Motherboard Socket 1851 Intel Z890 Express - 4x DDR5 - M.2 PCIe 5.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 5 GbE - Wi-Fi 6E/Bluetooth 5.3
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Support your Intel Core Ultra processor towards AI
The MSI PRO Z890-P WIFI6E motherboard featuring the Intel LGA 1851 socket is able to accommodate Intel Core Ultra Arrow Lake-S processors optimized for AI. Featuring state-of-the-art connectivity, the MSI PRO Z890-P WIFI6E also offers a PCI-Express 5.0 x16 slot and an M.2 PCIe 5.0 x4 slot to accommodate the fastest components to satisfy gamers and content creators. On the network side, nothing is missing since a 5 Gbps LAN connector is available in addition to wireless Wi-Fi 6 and Bluetooth 5.3 connectivity.
MSI PRO Z890-P WIFI6E
- Support for Intel Core Ultra Arrow-Lake-S processors on LGA 1851 socket
- Support for DDR5 9200 MHz memory
- 1 M.2 PCIe 5.0 x4 slot + 3 M.2 PCIe 4.0 4x slots + 4 SATA 6 Gbps ports
- PCI-Express 5.0 16x port
- Audio Boost for superior sound quality
- LAN 5 GbE
- Wi-Fi 6E/Bluetooth 5.3
Key features
- Frozr AI Cooling: Automatic fan adjustment based on CPU and GPU temperatures.
- M.2 SSD heatsink to get the best performance out of it.
- EZ PCIe Clip II: One-finger graphics card ejection mechanism.
- EZ M.2 Shield Frozr II: Easy installation and ejection of M.2 NVMe SSDs.
Intel Core Ultra Arrow-Lake-S processors
Get ready to enter the new era of gaming, choose an AI PC equipped with an Intel Core Ultra processor. Enjoy top-level performance for streaming and gaming. Entrust AI-related tasks such as background removal, audio optimization and auto-framing to the neural processing unit (NPU) and enjoy ideal streaming and gaming conditions.
Select your criteria
General information |
Product name |
MSI PRO Z890-P WIFI6E |
Brand |
MSI | |
Model |
PRO Z890-P WIFI6E | |
Processor |
Processor support |
Intel 1851 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z890 |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 4400 MHz | |
| DDR5 9200 MHz | ||
| DDR5 8600 MHz | ||
| DDR5 8400 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 8200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x16 (x1) | |
| 2 X PCI Express 4.0 x16 (x4) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8126 |
Network standard(s) |
5 Gbps Gigabit Ethernet (5 GbE) | |
| Bluetooth 5.3 | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 5.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 3 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 0 | ||
| 1 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

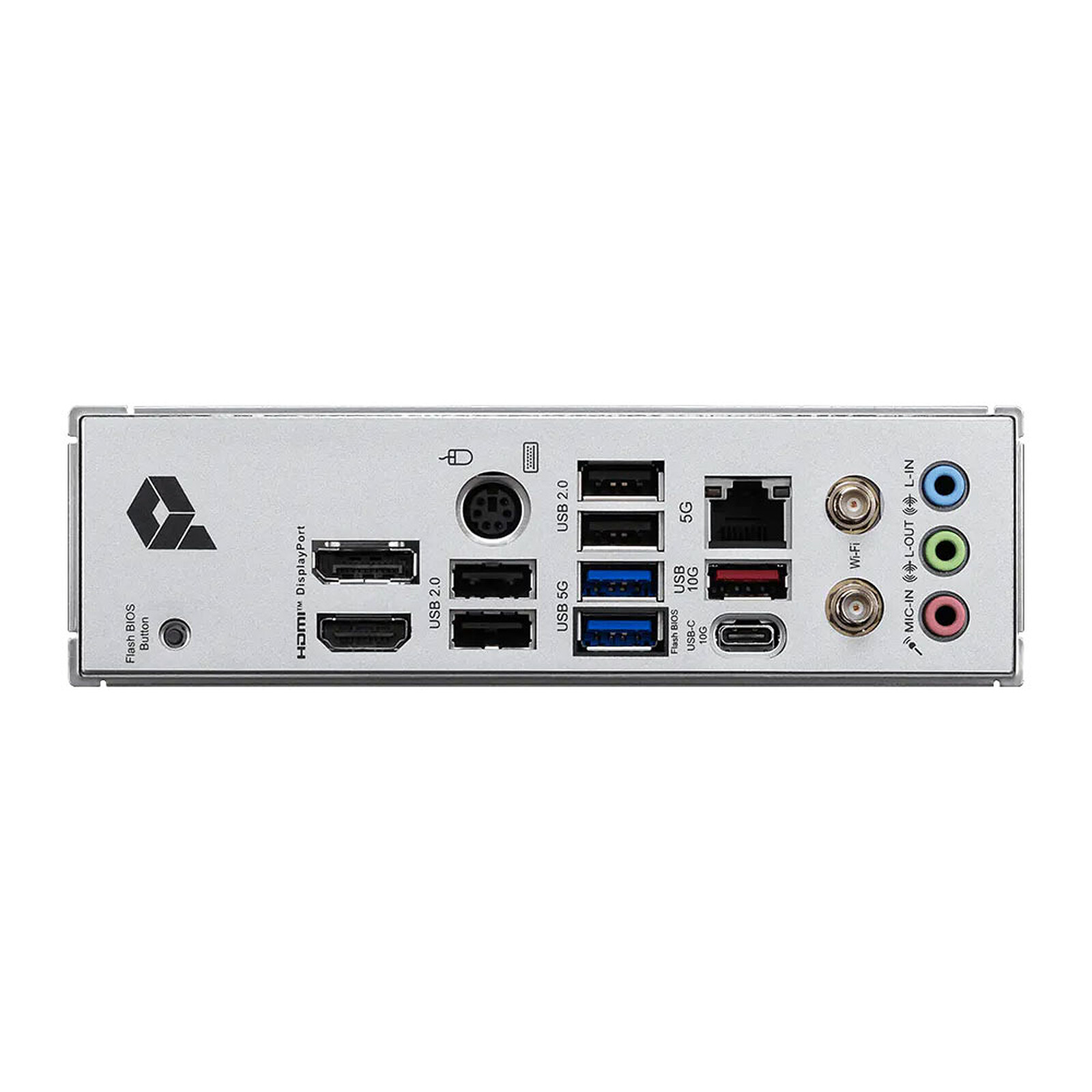

Rear panel connectors |
1 X DisplayPort Female | |
| 2 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 1 X HDMI Female | ||
| 1 X USB 3.1 Type C | ||
| 1 X USB 3.1 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
3 X Addressable LED RGB connector(s) | |
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 4 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X PCI Express 8 Pin | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
304.8 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
| Multimedia | ||
| Office | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
