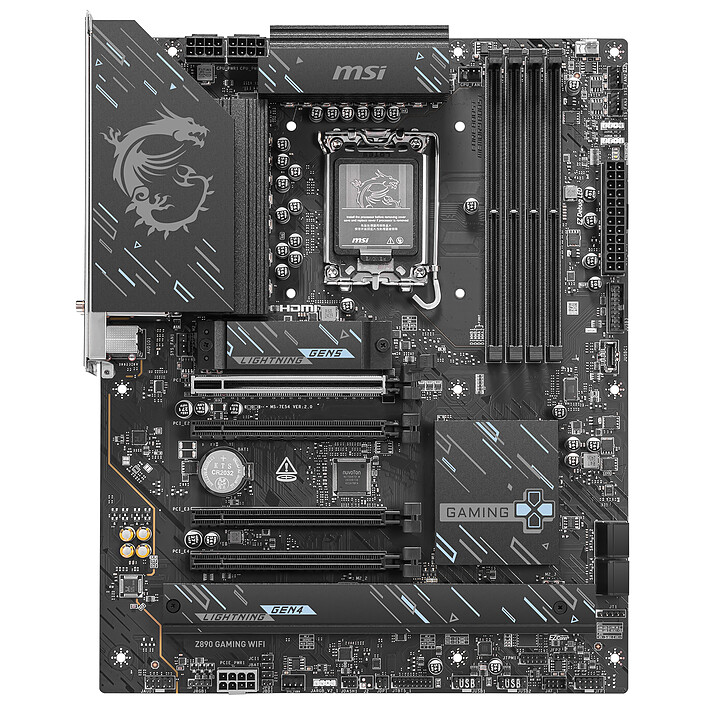

MSI Z890 GAMING WIFI
ATX Motherboard Socket 1851 Intel Z890 Express - 4x DDR5 - M.2 PCIe 5.0 - Thunderbolt 4 - PCI-Express 5.0 16x - 2.5 GbE LAN - Wi-Fi 7/Bluetooth 5.4
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Take your Intel Core Ultra processor to the next level with AI
The MSI Z890 GAMING WIFI motherboard with Intel LGA 1851 socket is capable of accommodating AI-optimised Intel Core Ultra Arrow Lake-S processors. Equipped with cutting-edge connectivity, such as Thunderbolt 4, the Z890 GAMING WIFI from MSI also offers a PCI-Express 5.0 x16 slot and an M.2 PCIe 5.0 x4 slot to accommodate high-performance gaming components. In terms of networking, nothing is missing, as a 2.5 Gbps LAN connector is available in addition to leading wireless connectivity with Wi-Fi 7 and Bluetooth 5.4.
MSI Z890 GAMING WIFI
- Supports Intel Core Ultra Arrow-Lake-S processors on LGA 1851 socket
- Support for DDR5 8800 MHz memory
- 1 M.2 PCIe 5.0 x4 slot + 1 M.2 PCIe 4.0 4x slot + 1 M.2 PCIe 4.0 4x/SATA slot
- PCI-Express 5.0 16x port
- Audio Boost for superior sound quality
- 1 Thunderbolt 4 (USB-C) 40 Gbps port
- 2.5 GbE LAN
- Wi-Fi 7/Bluetooth 5.4
Select your criteria
General information |
Product name |
MSI Z890 GAMING WIFI |
Brand |
MSI | |
Model |
Z890 GAMING WIFI | |
Processor |
Processor support |
Intel 1851 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z890 |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 8800 MHz | |
| DDR5 8600 MHz | ||
| DDR5 8400 MHz | ||
| DDR5 8200 MHz | ||
| DDR5 8000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 7800 MHz | ||
| DDR5 7600 MHz | ||
| DDR5 7400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
64 GB | |
Maximum RAM capacity |
256 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
Number and Type of slots |
2 X PCI Express 4.0 x16 (x4) | |
| 1 X PCI Express 3.0 x16 (x1) | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8125D |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| Bluetooth 5.4 | ||
| Wi-Fi 7 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | |
| 1 X M.2 - PCI-E 5.0 x4 | ||
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| 1 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 0 | ||
| 1 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

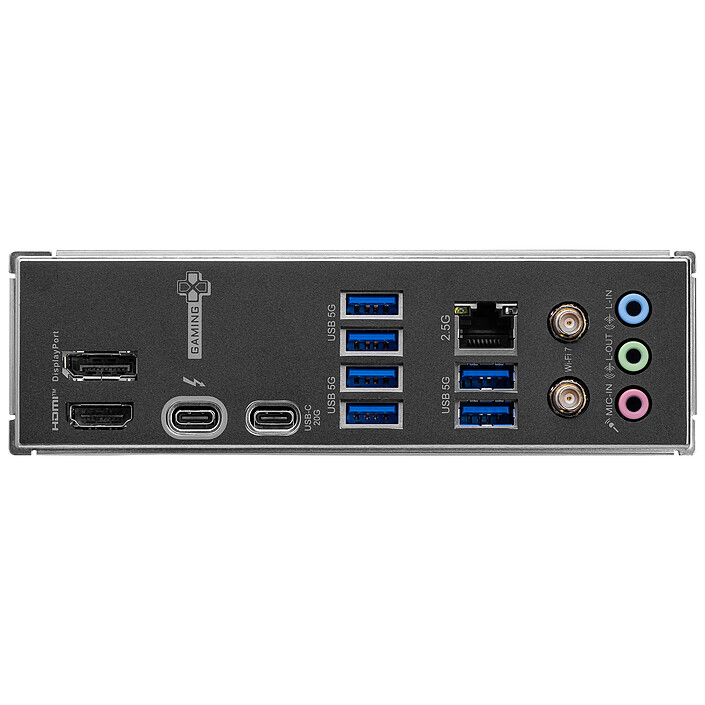

Rear panel connectors |
1 X DisplayPort Female | |
| 6 X USB 2.0 | ||
| 1 X Thunderbolt 4/USB-C | ||
| 1 X HDMI Female | ||
| 1 X USB 3.1 Type C | ||
| 1 X RJ45 Female | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
Front panel audio | |
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 Type C | ||
| 1 X PCI Express 8 Pin | ||
| 1 X LED RGB connector(s) | ||
| 3 X Addressable LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
304.8 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gaming | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years
|
Legal warranty |
See terms & conditions
|
|
Safety Information |
Responsible person |
MSI Computer Europe B.V |
Postal address |
Science Park Eindhoven 5706 5692 ER Son, the Netherlands | |
Electronic Address |
gpsr@msi.com |
