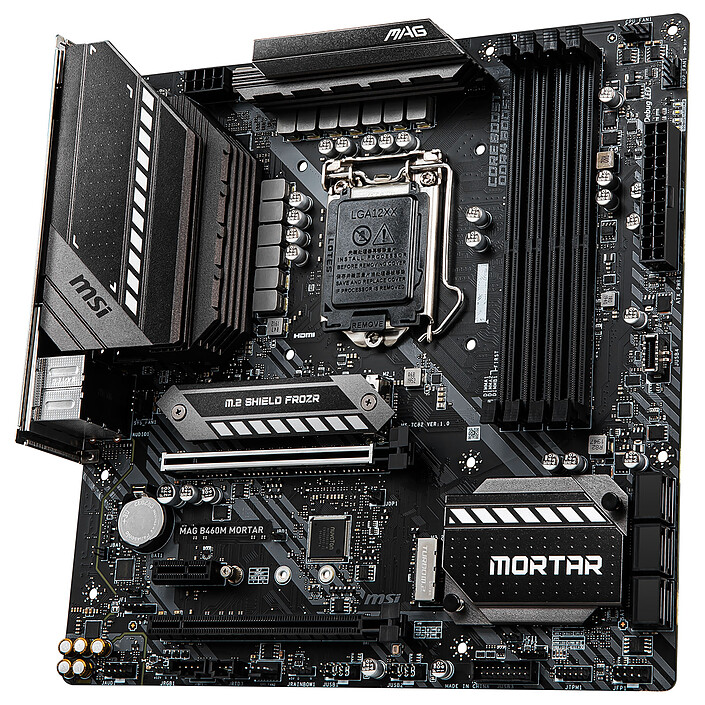

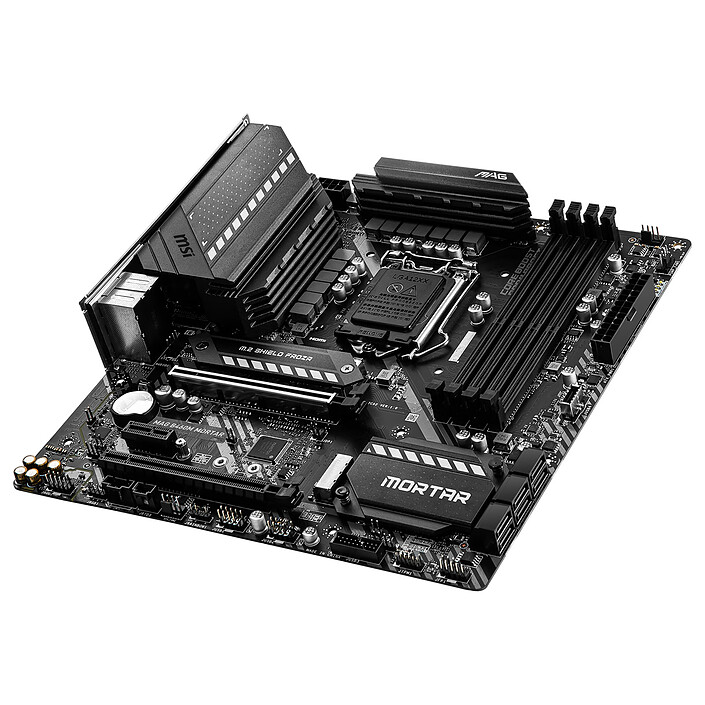

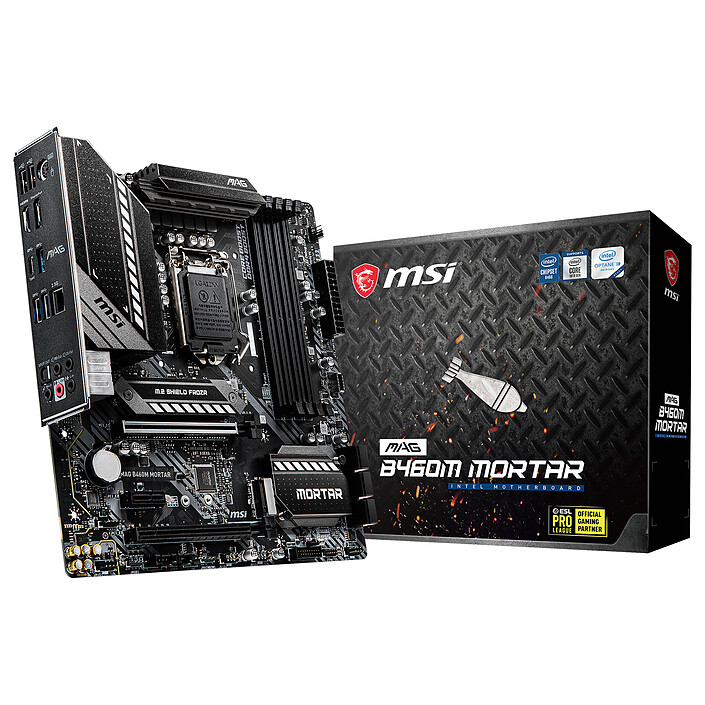

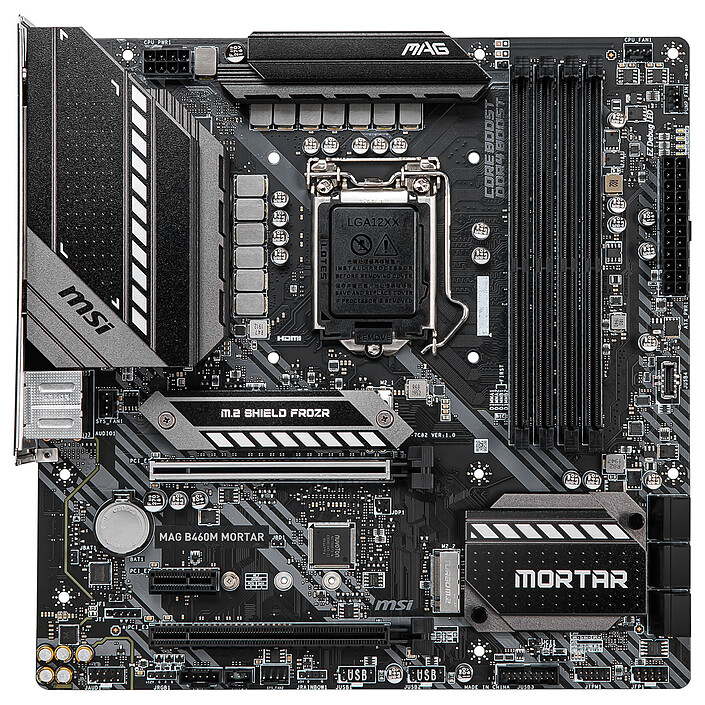

MSI MAG B460M MORTAR

Micro ATX Socket 1200 Intel B460 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCI-E NVMe - USB 3.0 - 2x PCI-Express 3.0 16x - LAN 2.5 GbE

Last price 137€95
Holy Moly!
Overview

A weapon of war to dominate the battle

The MSI MAG B460M MORTAR motherboard has been designed with the military in mind. For an optimal user experience, it features a pre-installed I/O panel and an enlarged heatsink that ensures perfect cooling. The B460M MORTAR motherboard is a robust and long-lasting model, ideal for gamers who want to dominate the game. The MSI MAG B460M MORTAR is designed to accommodate 10th generation Intel Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a balanced and powerful gaming PC.

It also supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E NVMe drives, and USB 3.0 devices. With MSI's quality manufacturing and a host of proprietary utilities, it represents a long-term investment.

MSI MAG B460M MORTAR

  • Support for 10th generation Intel Core processors on socket LGA 1200
  • DDR4 memory support, up to 2933 MHz
  • Digital power supply with 12+1+1 power phases
  • Extreme cooling with larger heatsink and M.2 Shield Frozr slots to keep the temperature at the right level
  • 2.5 GbE LAN
  • Turbo M.2 slot running PCI-E Gen3 x4 to improve performance of NVMe SSDs
  • Audio Boost: High quality audio for outstanding sound quality

10th Generation Intel Core Processor


With top-notch gaming performance, smooth virtual reality, and intensive multitasking, 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.

Specifications
Select your criteria

General information

Product name

MSI MAG B460M MORTAR

Brand

MSI

Model

MAG B460M MORTAR

Processor

Processor support

Intel 1200

Number of CPUs supported

1

Chipset

Chipset

Intel B460 Express

Memory

Memory format

4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2933 MHz

Memory type

DDR4

Memory technology

Dual Channel

Maximum RAM capacity per slot

32 GB

Maximum RAM capacity

128 GB

Graphic

Integrated graphics controller

No

Compatible graphics core integrated in the CPU

Yes

Graphics chipset

None

Expansion slots

Graphic connector(s)

1 X PCI Express 3.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

1 X PCI Express 3.0 x1

Multi-GPU type

CrossFireX

Audio

Audio Chipset

Realtek ALC1200

Number of audio channels

8

Network

Number of ports/Ethernet controler

1 X Realtek RTL8125B

Network standard(s)

2.5 Gbps Gigabit Ethernet (2.5 GbE)

Storage

RAID supported

Yes

Hard drives connectors

1 X M.2 - PCI-E 3.0 x4
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s
6 X Serial ATA 6Gb/s (SATA Revision 3)

Supported RAID Modes

5
10
1
0

Connectivity

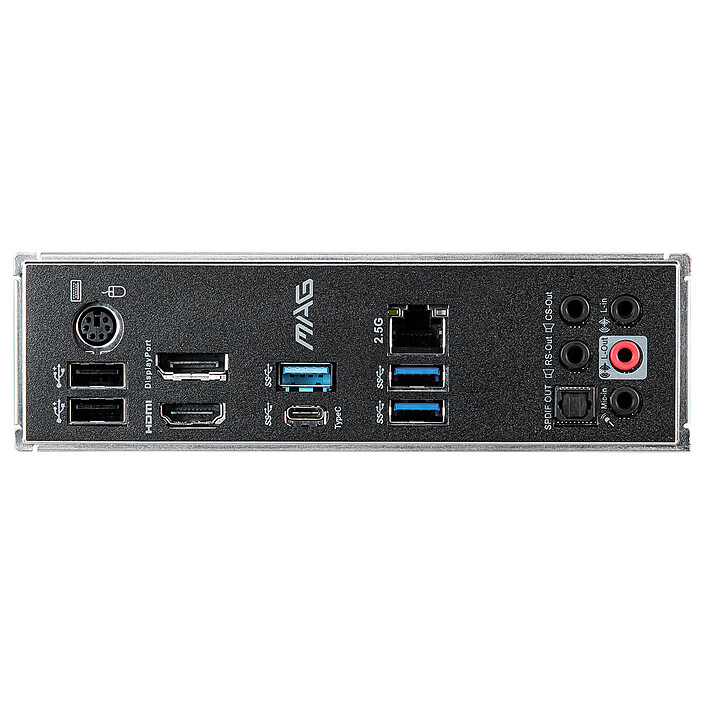

Rear panel connectors

5 X 3.5mm Jack Female Stereo
1 X Digital audio S/PDIF Optical
1 X MiniDin 6 Female (PS/2)
1 X RJ45 Female
2 X USB 2.0
3 X USB 3.0
1 X USB 3.0 Type C
1 X DisplayPort Female
1 X HDMI Female

Additional connectors

1 X LED RGB connector(s)
1 X Addressable LED RGB connector(s)
TPM
Front panel audio
Chassis intrusion
1 X +12V (Power supply P8)
1 X ATX 24 Pin
4 X Internal USB 2.0
3 X Internal USB 3.0

Physical characteristics

Motherboard format

Micro ATX

Length

243 mm

Width

243 mm

Equipment

Advanced overclocking features

No

Use

Gamer

LED

Yes

Warranties

Commercial warranty

Seller 2 years

Legal warranty

See terms & conditions

Product referenced on 24 Jun 2020
